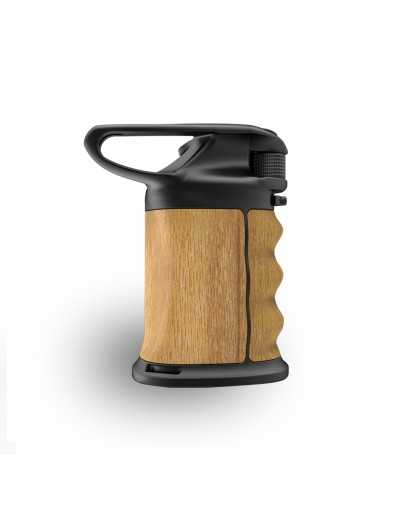

Portkeys Keygrip-RED

Experience comfort and practicality as all the controls you will need are at your fingertips.

The Keygrip-RED features built-in Bluetooth and Wi-Fi for camera control and offers cables for cameras that don’t have a wireless control option. This is the perfect low delay wireless setup with the Red Komodo/ V-Raptor and Blackmagic Pocket 4k/6k, as it controls and navigates smoothly and quickly using Bluetooth. Other cameras can benefit from the Keygrip-RED via LANC cables also.

The Keygrip-RED is made of a premium Aerometal frame with a Red oak handle and an artificial leather strap. Making it very comfortable for long usage. There is a programmable 3-section paddle switch for settings such as ISO, shutter, and aperture at the front of the handle. The 9-way analog stick makes menu settings much faster to navigate.

Features:

• Wireless control RED Komodo and V-Raptor, supports customize control option
• Tilta motor and motorized lens can be set at 5 levels of speed
• Compatible with 18650 batteries with protective design
• Multifunctional camera control grip handle
• Built-in Bluetooth and WiFi control module
• Built in Lanc splitter for use with BM5
• Milled aluminum frame red oak handle with artificial leather strap

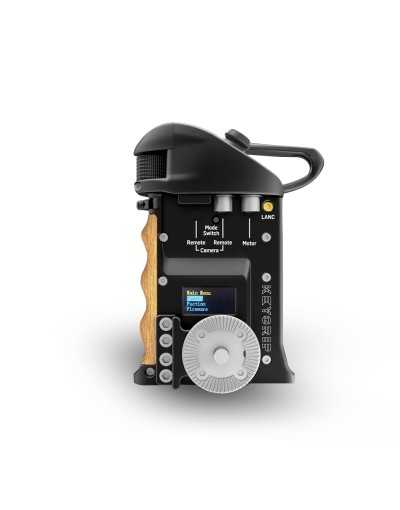

• 3 customized switches, 1 focus wheel, 1 REC switch, 1 nine-way joystick
• Battery voltage display

Specification:

Power Supply: It supports 2x 18650 batteries / CR7HB Wide Voltage Dummy Battery For Keygrip

RED

Wireless control enables REC, FOCUS, IRIS, SHUTTER, ISO, FPS, CT, EV, AUTO FOCUS, ROCKER FOCUS, ZOOM SPEED ADJUSTMENT and MANUAL AUTO MODE SWITCHING features.

SONY

A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7S III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02, FX3 (MULTI control cable). Wired control for REC, IRIS, ISO, SHUTTER, ZOOM,  SINGLE FOCUS.

FS5, FS7,FX6,FX9 (LANC control cable). Wired control for REC, IRIS, ZOOM, FOCUS, DIGITAL ZOOM, DISPLAY, FUNCTION, JOYSTICK, WHEEL, PLAYBACK, MENU.

A7C, A7S III, AVE10 (TYPE-C (USB-C) control cable). Wired control for REC, IRIS, ISO, SHUTTER, ZOOM, SINGLE FOCUS.

CANON

Wired control enables REC, IRS, ISO, SHUTTER, SHOOTING, AUTO FOCUS, Real-time Previews, Manual Focus Features on the 5D MARK III, 5D MARK II, 6D, 6D MARK II, 80D (MINI control cable); IDX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV(MICRO control cable); R5, R6, EOS R (TYPE-C (USB-C) control cable).

REC, IRIS, FOCUS, DIGITAL ZOOM, DISPLAY, FUNCTION, JOYSTICK, PLAYBACK and MENU features for the C700 PL, C700 GSPL, C300 MARK II, C300 MARK II PL, C300 MARK III, C200, C200 B, C100, C100 MARK 2 (LANC control cable).

PANASONIC

Wired control enables REC, AUTO FOCUS, FOCUS +/- , WB, COLOUR TEMPERATURE, ISO, IRIS, SHUTTER, SHOOTING features on the GH6, GH5II, GH5S, GH5, S1, S1H, S1R, S5, G9 9. When working with BGH1 and BS1H, it also supports to CONTROL THE NATIVE MENU.

Important: The screen of Panasonic camera doesn’t work when connected to the handle.

BMD

Remote controllable REC, IRIS, ISO, SHUTTER, ZOOM (Only when work with BMPCC 4K), AUTO EXPOSURE, WHITE BALANCE MODE SELECTION, PROJECT FRAME RATE, CODEC and QUALITY, OFF SPEED FRAME RATE, OFF SPEED RECORDING features on BMPCC 4K/6K/6K PRO.

The URSA MINI, BMPCC camera uses wired control which enables REC, IRIS, AUTO IRIS, AUTO FOCUS and MANUAL FOCUS features (LANC control cable).

ZCAM

Wired control for REC, IRIS, ISO, SHUTTER (angle/speed), ZOOM, Manual AUTO MODE SWITCHING, RESOLUTION, FRAME, Manual FRAME, PLAYBACK, COLOR TEMPERATURE, FN, F1/F2/F3, MENU, UP/DOWN BUTTON, OK BUTTON and MANUAL FOCUS features for the E2, E2 S6, E2 F6 camera (LANC control cable).

TILTA

Wired control enables CAL RUN and ZOOM SPEED AHJUSTMENT on Nucleus N/M systems.
