SKU:EI-7080-AA
Key Features
- 2-Stage Aluminum Legs with 100mm Bowl
- EI-7080H Fluid Video Head
- 26.4 lb Payload, Quick Release Plate
- 29.9 to 64.6" System Height Range
- Mid-Level Spreader, One Pan Handle
- Spikes with Removable Rubber Feet
- Includes Carry Bag
This EI-7080-AA 2-Stage Aluminum Tripod Field Kit from E-Image includes the AT7602A heavy-duty aluminum tripod legs, the EI-7080H fluid video head, a GP2 tripod plate, one GB3 pan handle, a mid-level spreader, removable rubber feet, and a carry bag to store and transport the entire system.
The aluminum legs feature a twist-lock design for quick adjustment, a mid-level spreader, and a 100mm bowl size, and they fold down to 28.1" for transport. They also incorporate spiked feet for increased grip on soft surfaces and spike covers that allow you to use the legs on hard/slippery surfaces. The fluid head mounts into the 100mm bowl and supports loads up to 26.4 lb. It features a sliding camera plate, 0+5 steps of counterbalance, and a fixed drag system for smooth movements.

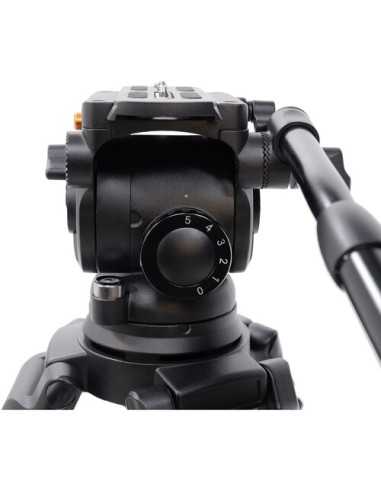

Fluid Head
The fluid head, designed with a 100mm bowl size, is adept at supporting equipment with a maximum payload of 26.4 lb. It features a slide range of 2.8", allowing for precise positioning and balance adjustments. The counterbalance can be finely tuned within a range of 0+5 steps, ensuring stability and smooth movement during operations. It comes with an extendable pan handle that can be adjusted from 15.9 to 23.8", offering users flexibility and enhanced control during filming.
Heavy-Duty Tripod
Constructed from durable aluminum, the tripod legs ensure strength while remaining lightweight with a net weight of 10.1 lb. Designed with a 100mm bowl size, the tripod can comfortably support equipment with a substantial payload of up to 132.3 lb. The legs are versatile in terms of height adjustments, ranging from 16.9 to 60.8". When it's time to pack up and move, the tripod legs can be collapsed to a compact transport length of 28.1".
On-Location Shooting
This field version of the tripod kit is equipped with three removable rubber feet, each measuring 2.4" in width and 3.1" in length. When these rubber feet are removed, they reveal spiked feet underneath, ideal for anchoring the tripod on soft ground.
Mid-Level Spreader
The Field Kit features an adjustable mid-level spreader with a leg range of 7.2 to 12", providing enhanced stability and adaptability during setups.
Carry Bag
This kit also comes bundled with a fully padded waterproof carrying bag made of 1680D nylon that can carried with a handle, over the shoulder, or as a backpack.
IN THE BOX
----------------------------------------------------
- E-Image EI-7080-AA 2-Stage Aluminum Tripod Field Kit
- AT7602A Aluminum Tripod Legs
- EI-7080H Fluid Head
- E-Image GP2 Camera Plate for GH15 / 25 Fluid Video Heads
- E-Image Handle for GH15/25 Heavy Duty Fluid Video Heads
- E-Image GS01 Mid-Level Spreader
- E-Image F3 Tripod Rubber Feet Set for E-image Tripods
- T10 Carry Bag
- Limited 1-Year Manufacturer Warranty
- Materials
- Aluminum
- Load Capacity
- 26.5 lb / 12 kg
- Camera Mounting Screw
- 1x 1/4"-20 Male with Locating Pin 1x 3/8"-16 Male with Locating Pin
- Maximum Working Height
- 5.4' / 164 cm
- Minimum Working Height
- 29.9" / 76 cm
- Closed Length
- 28.1" / 71.5 cm
- Leg Lock Type
- Twist Lock
- Leg Sections
- 3
- Feet Features
- Rubber, Spiked
- Camera Plate Type
- Proprietary Camera Plate
- Counter Balance
- Continuous 5-Step Plus 0
- Camera Plate Features
- Sliding Balance Plate
- Drag Type
- Fluid
