SKU : SWTALGPI8
Key Features :
- Displays Tallies for Video Signals
- Indicates On-air Status
- For ATEM Switchers / Videohub Routers
- 8 Contact Closure Inputs & Outputs
- Connects with Multiple Interfaces
Blackmagic Design GPI & Tally Interface Overview :
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
In the Box :
---------------------------------------------------------------------------------------------
- Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- 12 V Power Supply
- Limited 1-Year Manufacturer Warranty
- Inputs
- Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
- Connections
- dd
- Contact Closure

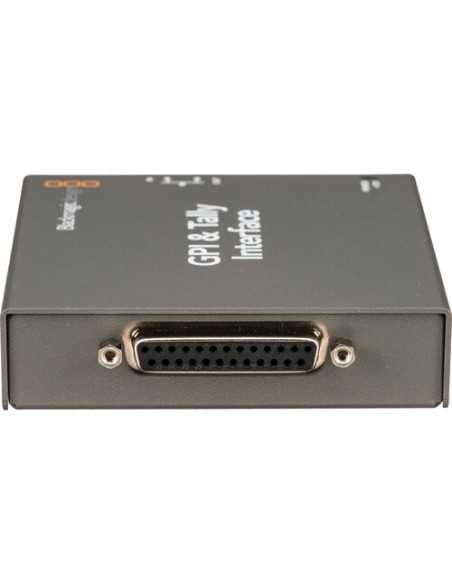

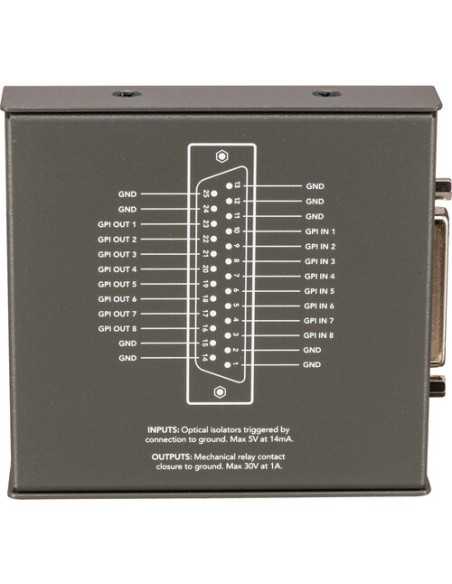

- 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
- Outputs
- Mechanical relay contact closure to ground (maximum 30 V @ 1 A)
- Ethernet

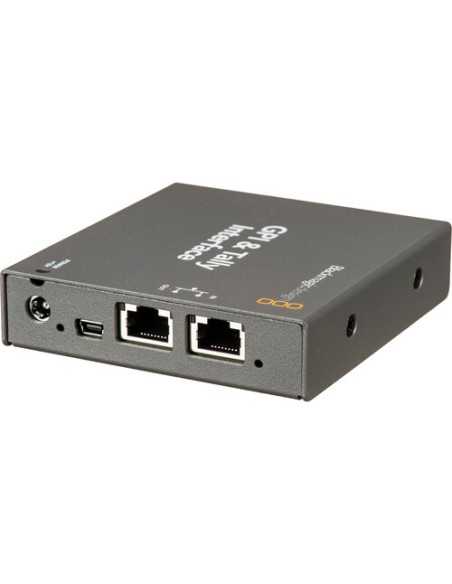

- 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
- Computer Interface
- 1 x USB 2.0 high speed interface for configuration and firmware updates
- Software Included
- Configured via ATEM Switcher utility
- Firmware Upgrade
- Firmware built into software driver. Loaded at system startup or via updater software
- Operating System
- Microsoft Windows 7 and Apple Mac OS X
- Power Supply
- 12 V power supply included with international socket adapters for all countries
