SKU : CINSTUDMFT/UHD/MRG2
Key Features :
- Active Micro Four Thirds Lens Mount
- UHD 4K Resolutions up to 3840 x 2160p60
- 12G-SDI Video Input/Output, HDMI Output
- 13-Stop Dynamic Range, Compact Design
- Camera Control via SDI, HDMI, or USB
- Program and Talkback over SDI, Tally
- USB-C Expansion Port, 3.5mm Audio In
- Built-In Color Corrector

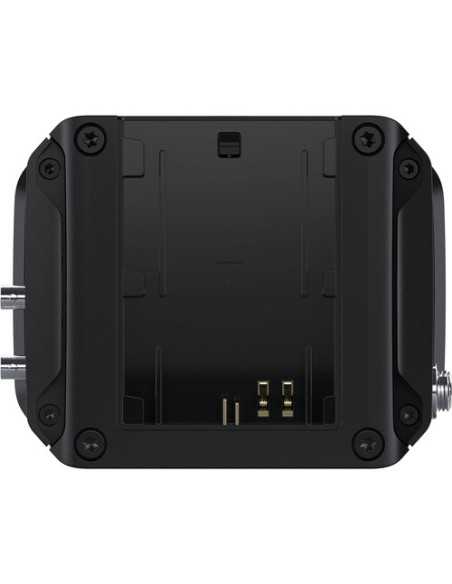

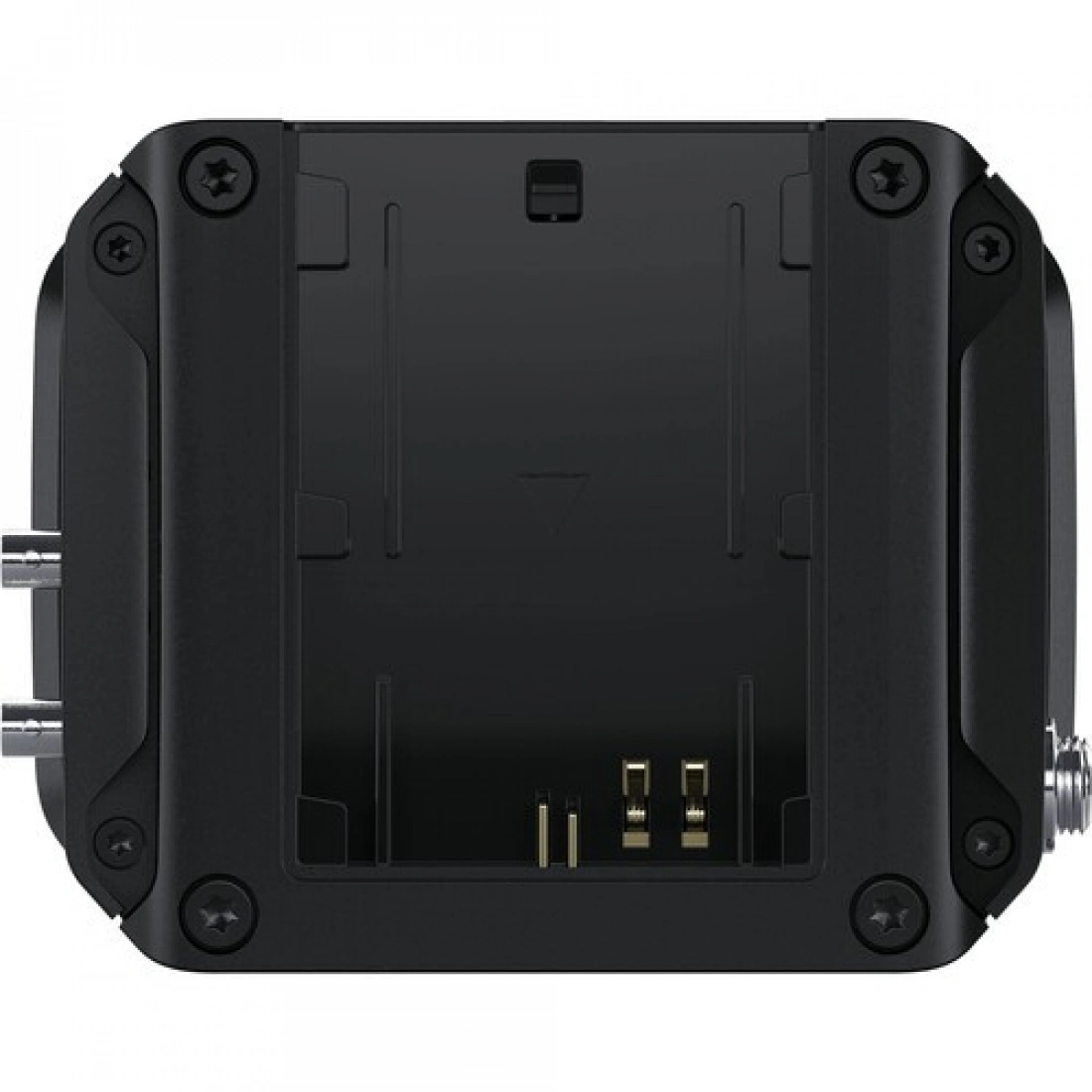

- Canon LP-E6 Battery Slot
Blackmagic Design Micro Studio Camera 4K G2 Overview :

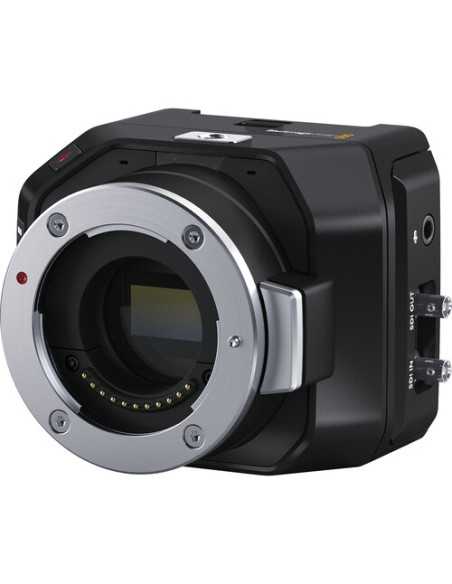

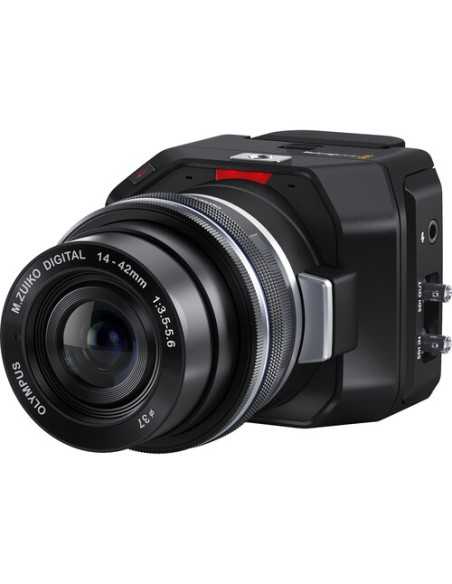

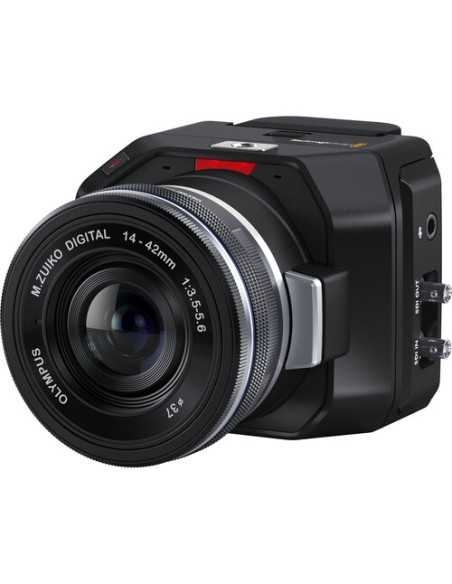

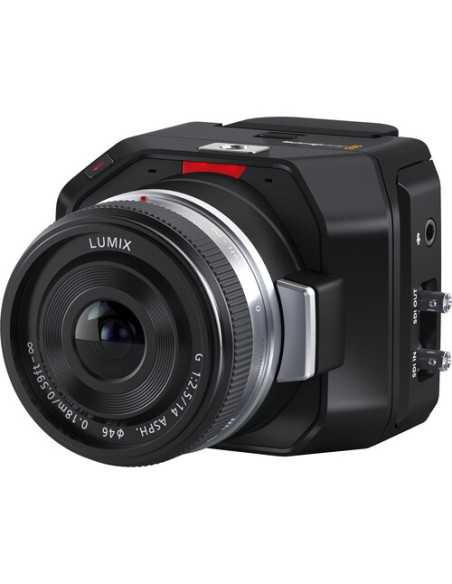

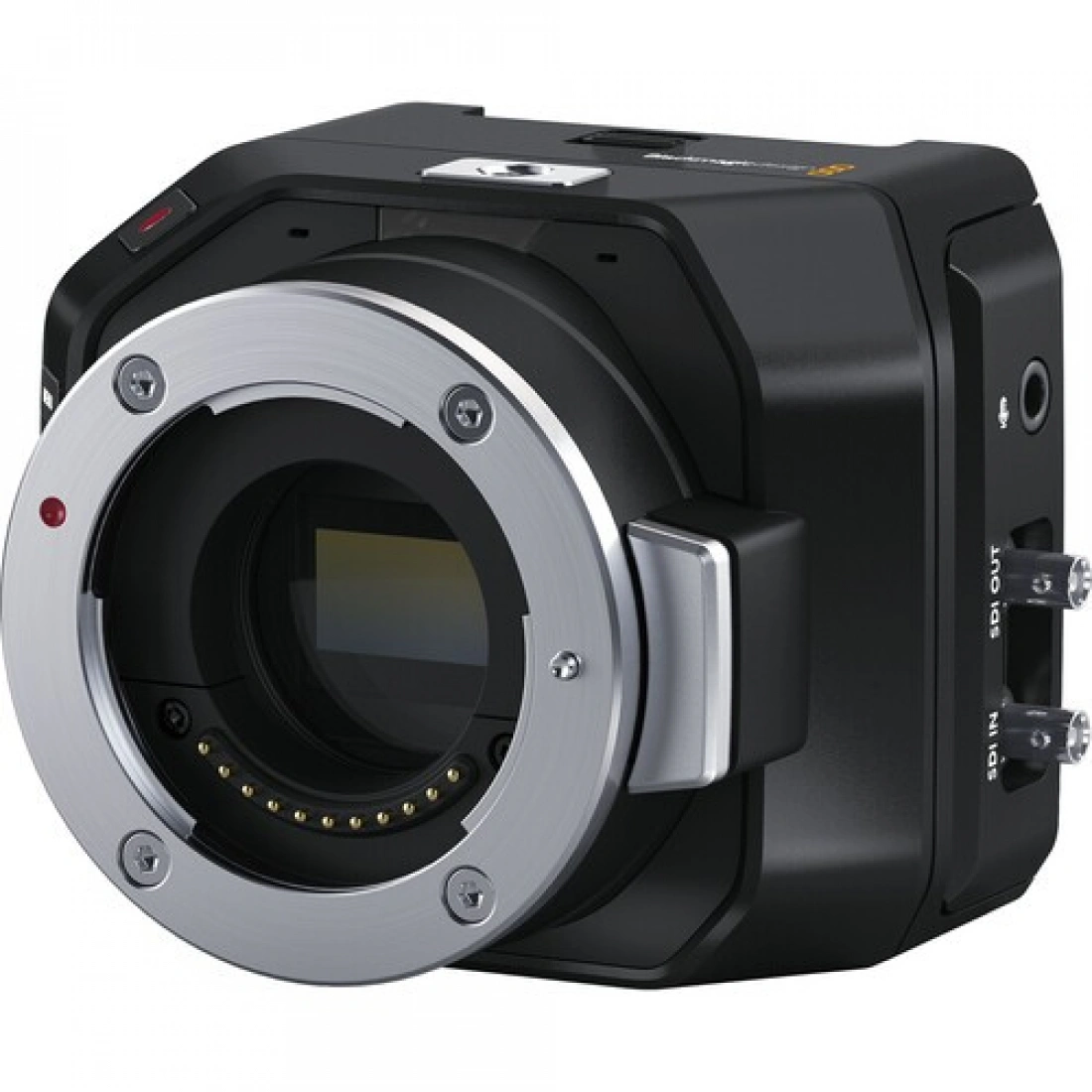

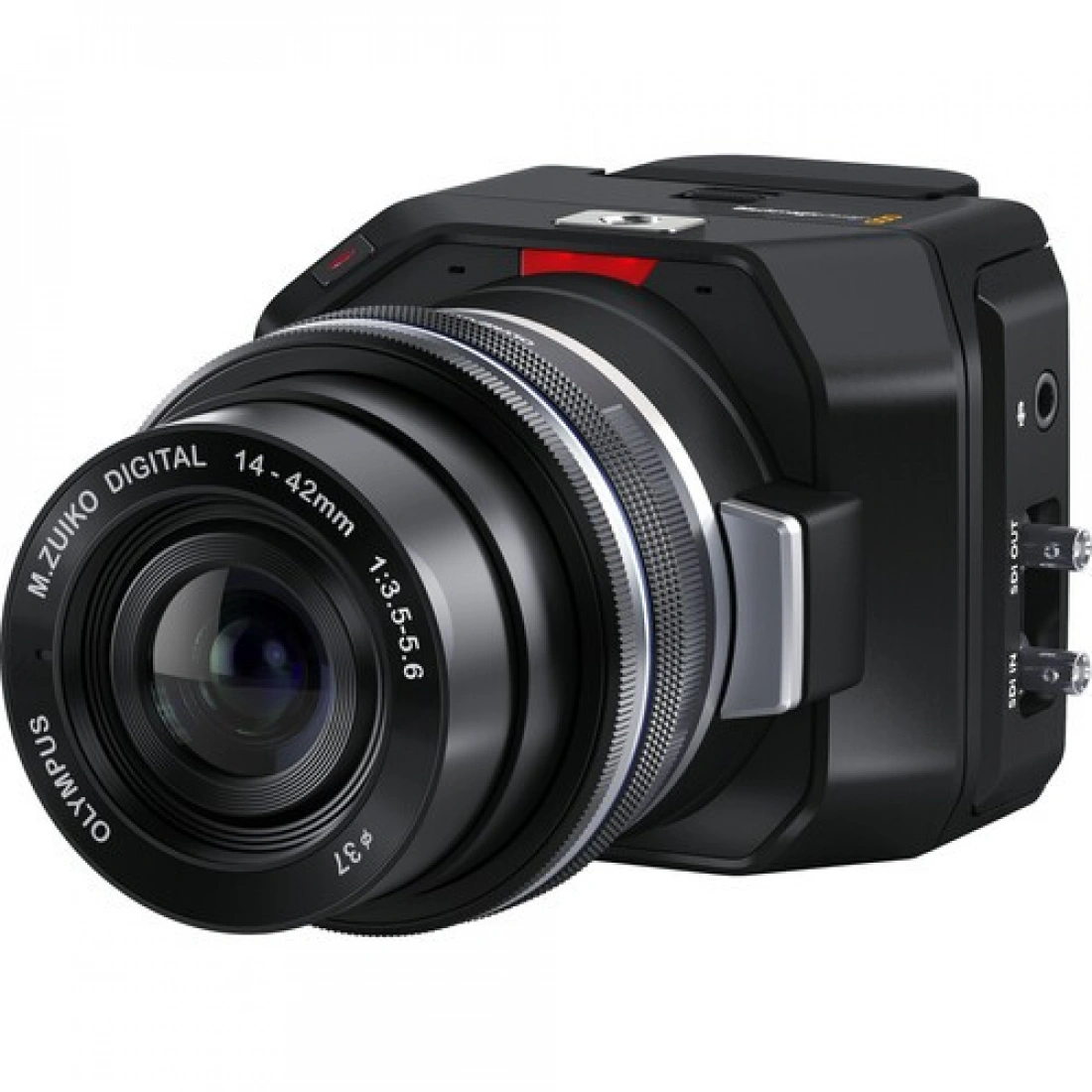

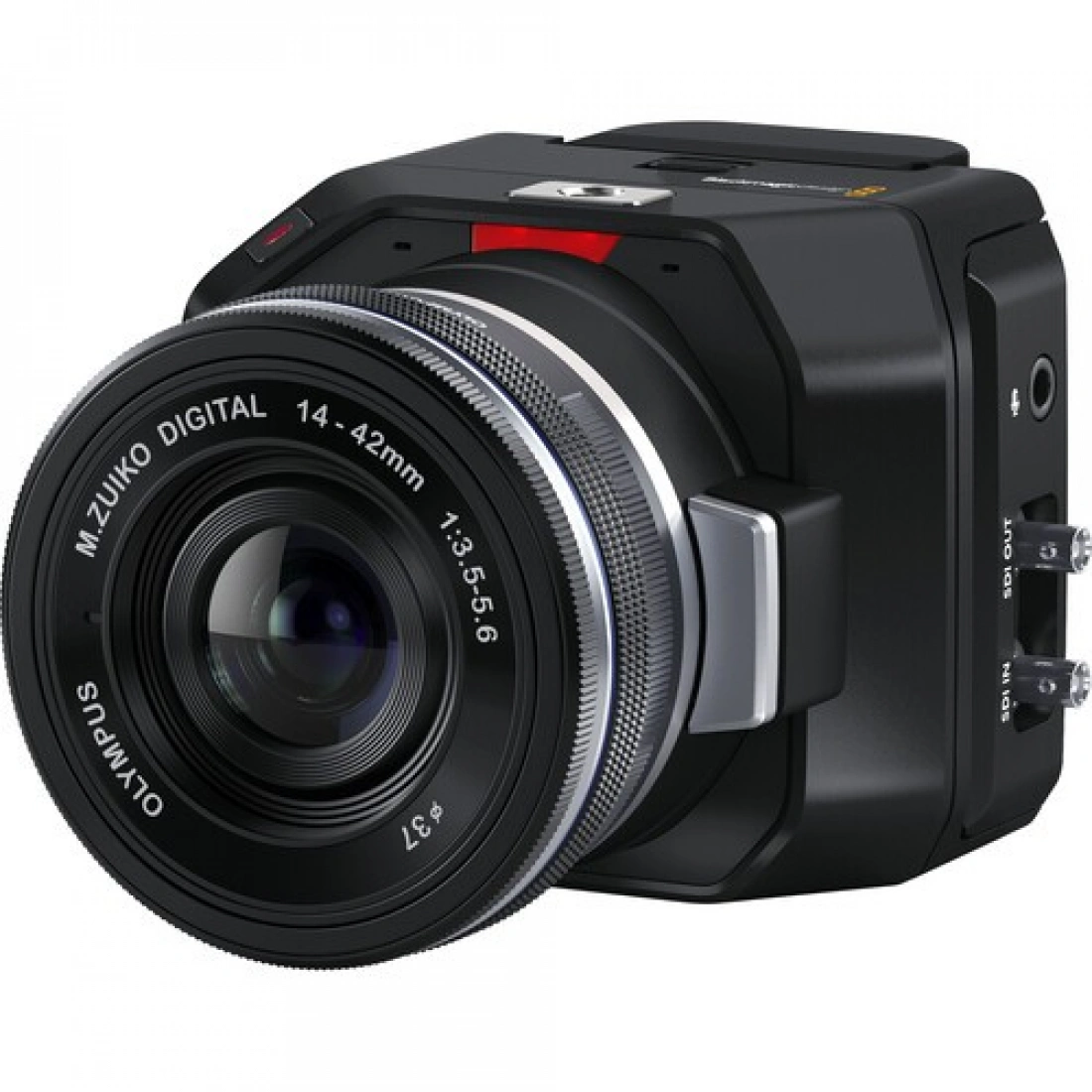

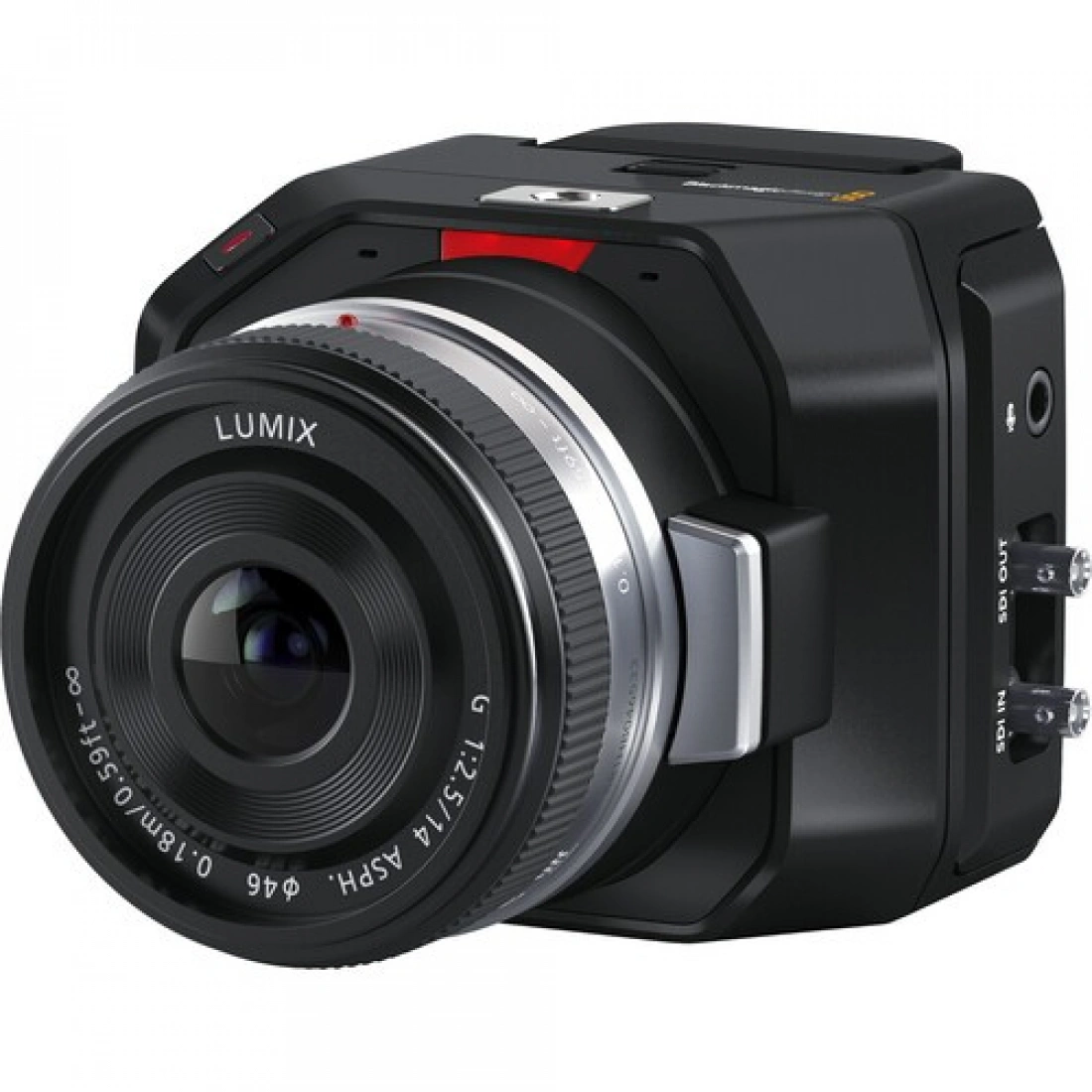

Install a camera anywhere in your studio or on location with the ultracompact Blackmagic Design Micro Studio Camera 4K G2. This tiny UHD 4K studio camera is designed for live productions and has been updated to feature the same image sensor found in Blackmagic's Studio Camera 4K Plus G2, which supports 3840 x 2160p60. The camera is equipped with an active MFT mount that can accept native MFT lenses or be adapted to a wide range of other modern and vintage lenses. It outputs 10-bit 4:2:2 video via 12G-SDI and can be remotely controlled from an ATEM switcher using SDI control protocol. The camera packs many professional studio features into a compact form factor, including a built-in color corrector, program return, talkback, and tally indicator.
In the Box :
----------------------------------------------------------------------------
- Blackmagic Design Micro Studio Camera 4K G2
- 12 VAC Power Supply with International Socket Adapters
- Turret Dust Cap
- Limited 1-Year Manufacturer Warranty

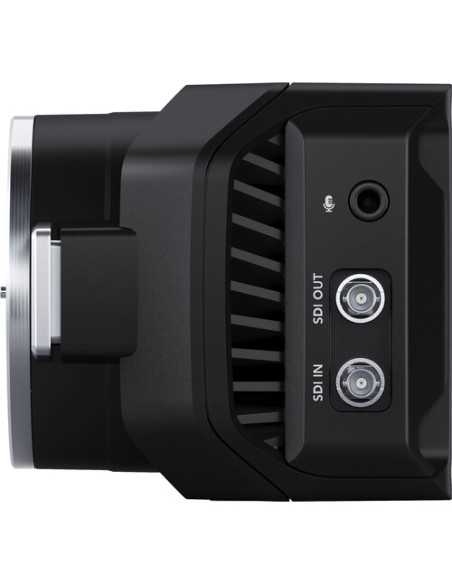

- Video I/O

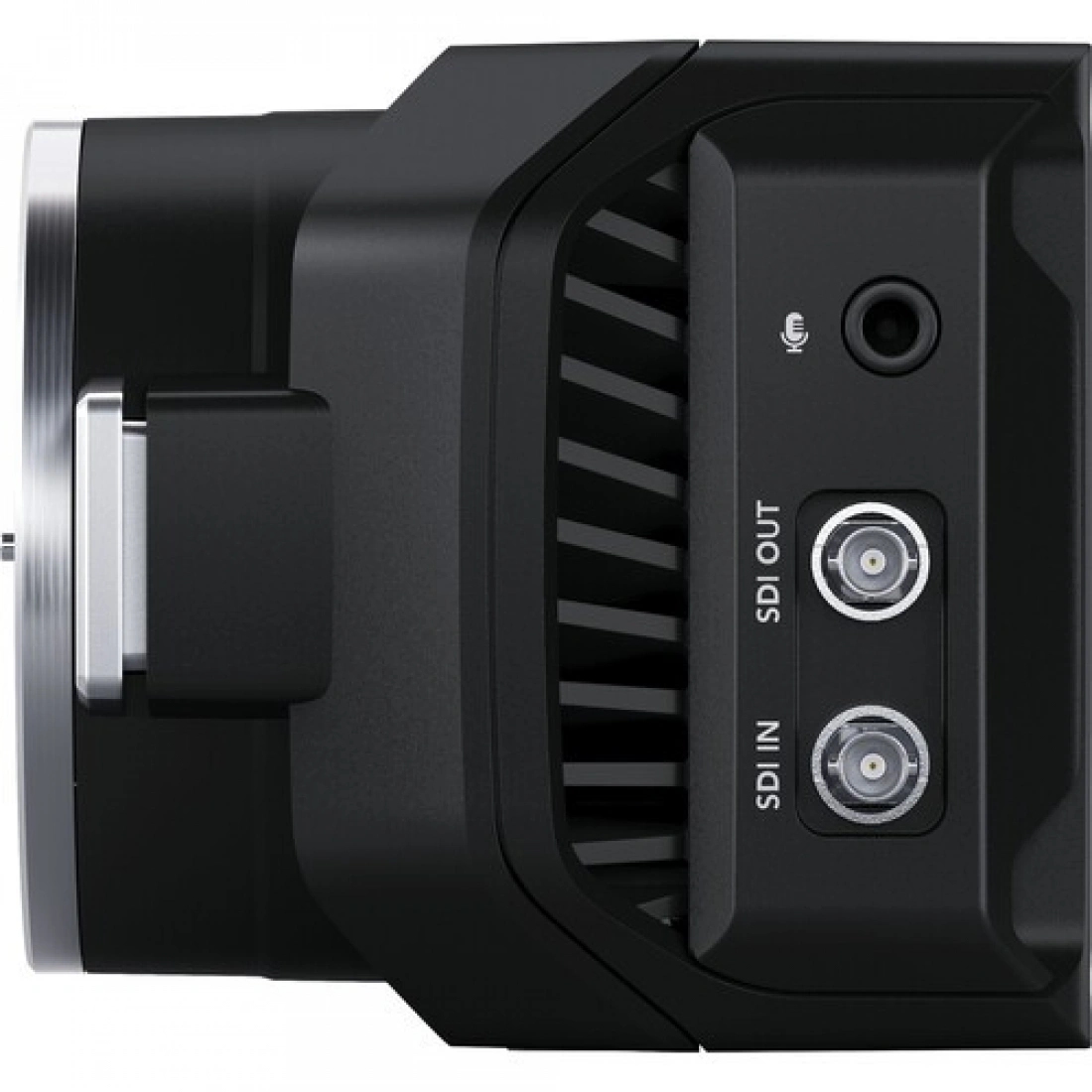

- 1x HDMI 2.0 Output 1x Micro BNC (12G-SDI) Input 1x Micro BNC (12G-SDI) Output
- Audio I/O
- 1x 1/8" / 3.5 mm TRS Stereo Microphone Input
- Power I/O
- 1x Barrel (12VDC) Input
- Lens Mount
- Micro Four Thirds
- Image Sensor
- 17.78 x 10 mm (Four Thirds) CMOS
- Sensor Resolution
- Not Specified by Manufacturer
- Broadcast System Compatibility
- NTSC, PAL
- Recording Modes
- DNxHD/ProRes: 3840 x 2160p at 23.98/24/25/29.97/30/50/59.94/60 fps 1920 x 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
- Raw Recording
- Blackmagic RAW 3840 x 2160 at 23.98/24.00/25/29.97/50/59.94/60 fps [26 to 190 Mb/s]
