SKU: NANO-ONE
Key Features
- 50Wh Lithium-Ion V-Mount Battery
- Supports up to 8A Continuous Draw
- Up to 15V/3A or 20V/2.2A USB-C Output
- Charge via USB-C + Micro-USB Inputs

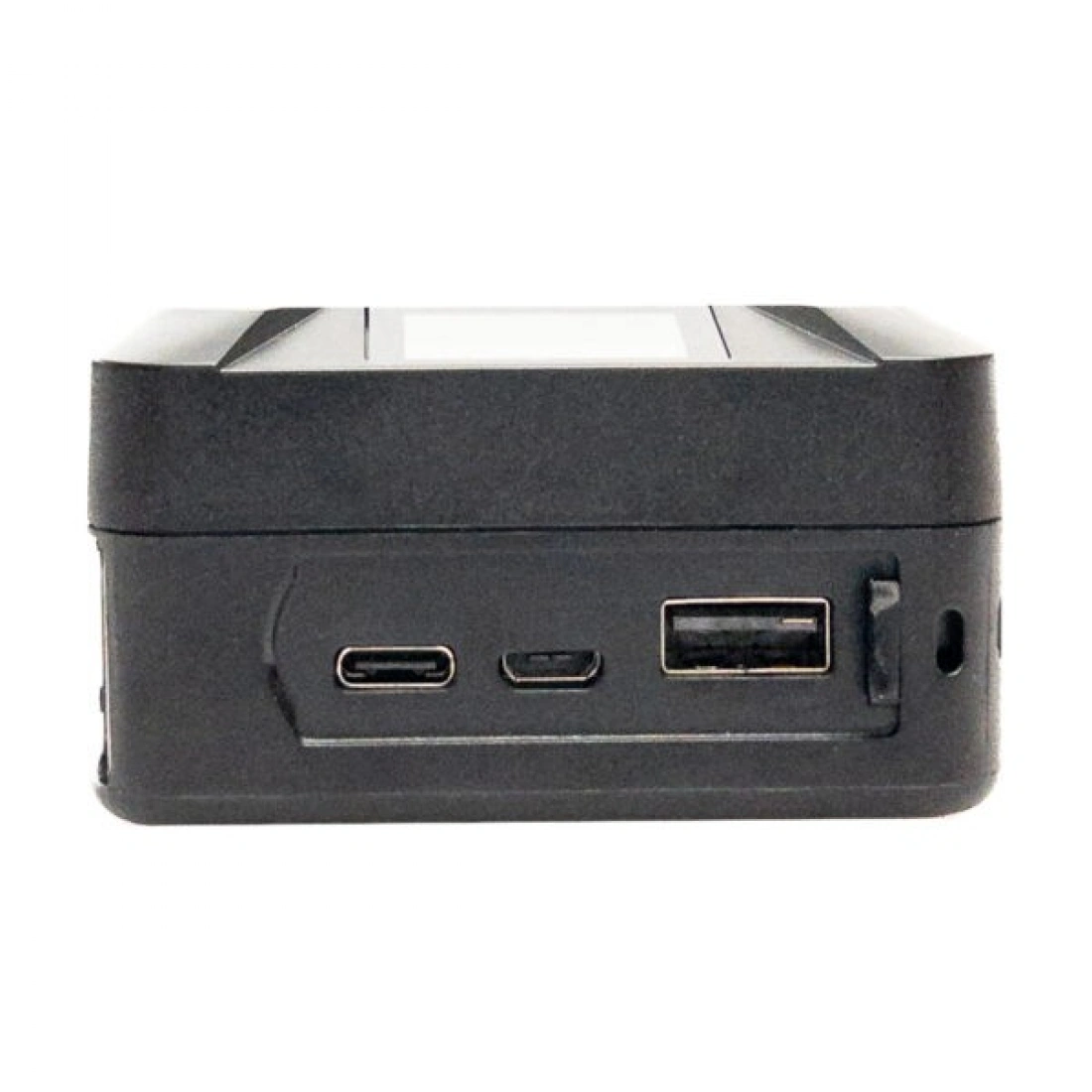

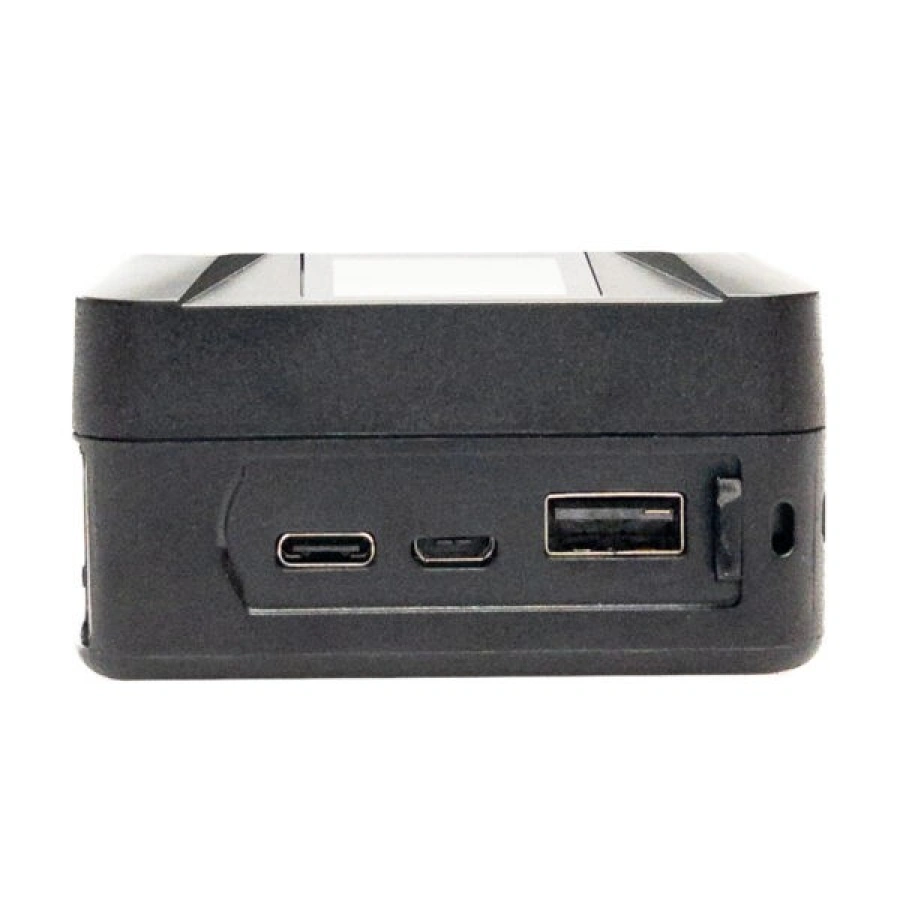

- USB-A, USB-C & Micro-USB Outputs

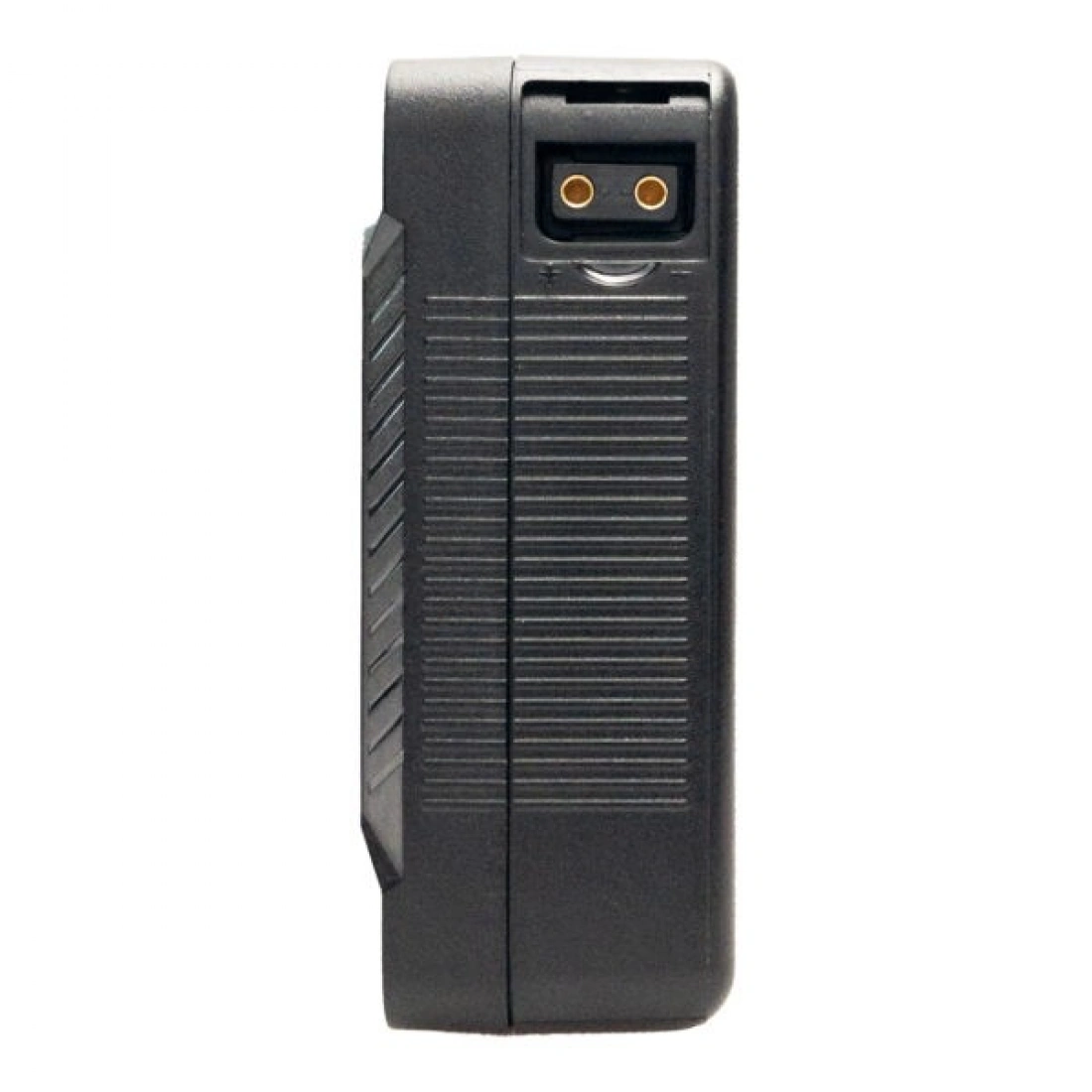

- 14.8V D-Tap Output

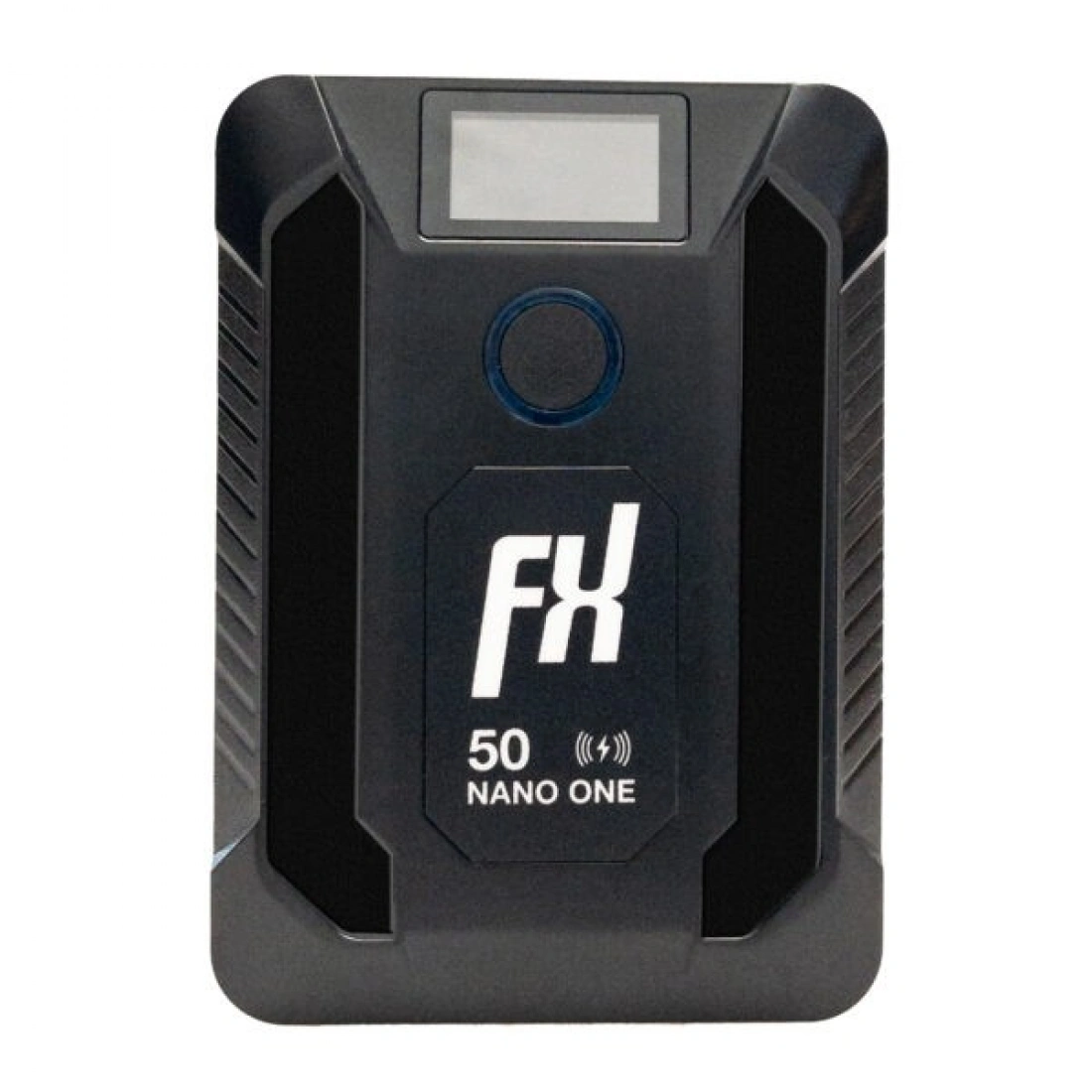

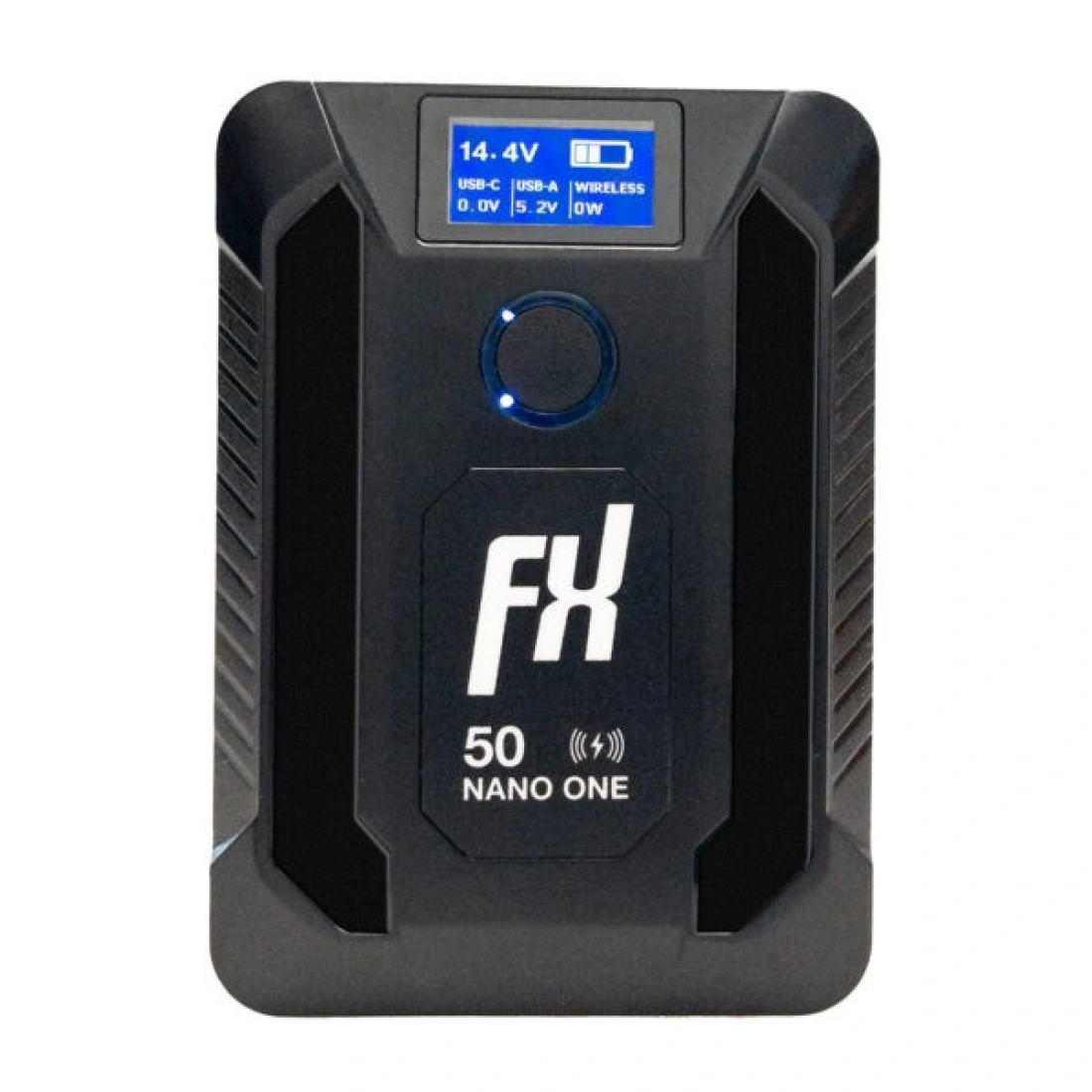

- LCD Status Screen
- Ultra-Compact, Travel-Friendly Size
This 14.8V battery is suited for small equipment or as a power bank for your phone. Its small size is perfect for gimbal operated equipment or smaller camera rigs. The USB-C Output is strong enough to even charge your Apple MacBook or any other USB-C powered laptops/devices. A big feature is also, that you don’t need a dedicated D-Tap or V-Mount charger. You are able to charge these batteries over USB-C very quickly. The sockets are protected from dust with a rubber cap. LCD screen shows battery information and 4-levels LED indicators show battery’s power.
The new design features a built-in wireless charger. So you can easily charge up your phone on the go. Wireless charging has a maximum output of 15W.
All our batteries have a built-in protection circuit, that protects it from over-current, over-charge, over-discharge and over-heat. It can be used in a wide range of environmental temperatures from -20°C up to 55°C.
For suitable equipment calculations visit our support webpage – you will find a comprehensive article about how to calculate the right capacity and how long this battery will last based on an example situation.
- Dimensions
- 101(L)mm×72(W)mm×39(H)mm
- Weight
- 330g
- Battery Capacity
- 3.4Ah 50Wh
- Nominal Voltage
- 14.8V
- USB-A Output
- 5V/2.4A, 9V/2A, 12V/1.5A
- USB-C In- & Output
- 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A (60W max.)
- Micro USB Input
- 5V/3A, 9V/2A 12V/1.5A
- D-Tap In- & Output
- Yes (1x)
- Wireless Charging Output
- 15W max.
- Working Temperature
- -20°C to 55°C
- Load
- 8A (max.)
