SKU: BM302
Key Features
- 299Wh Lithium-Ion B-Mount Battery

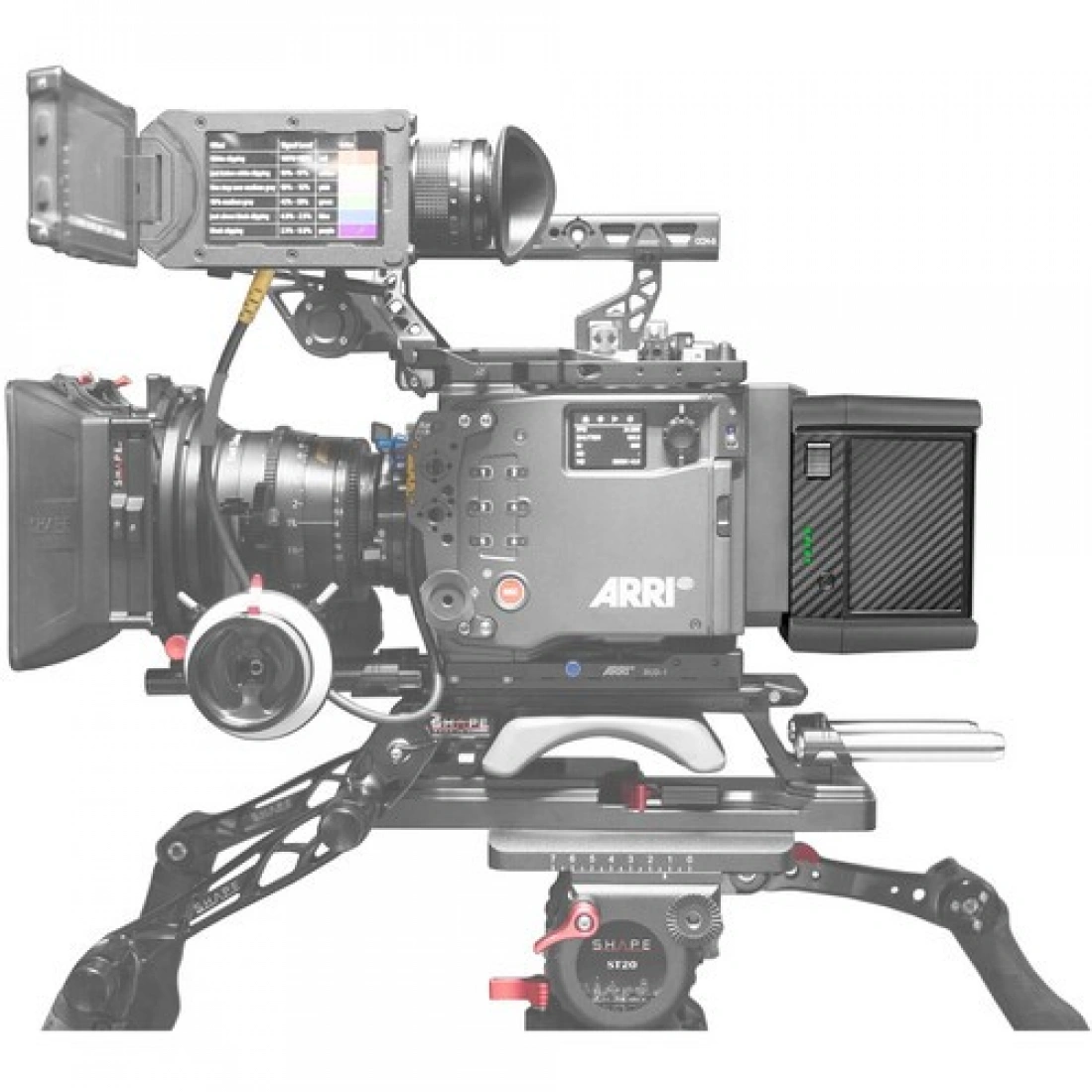

- For ARRI ALEXA 35

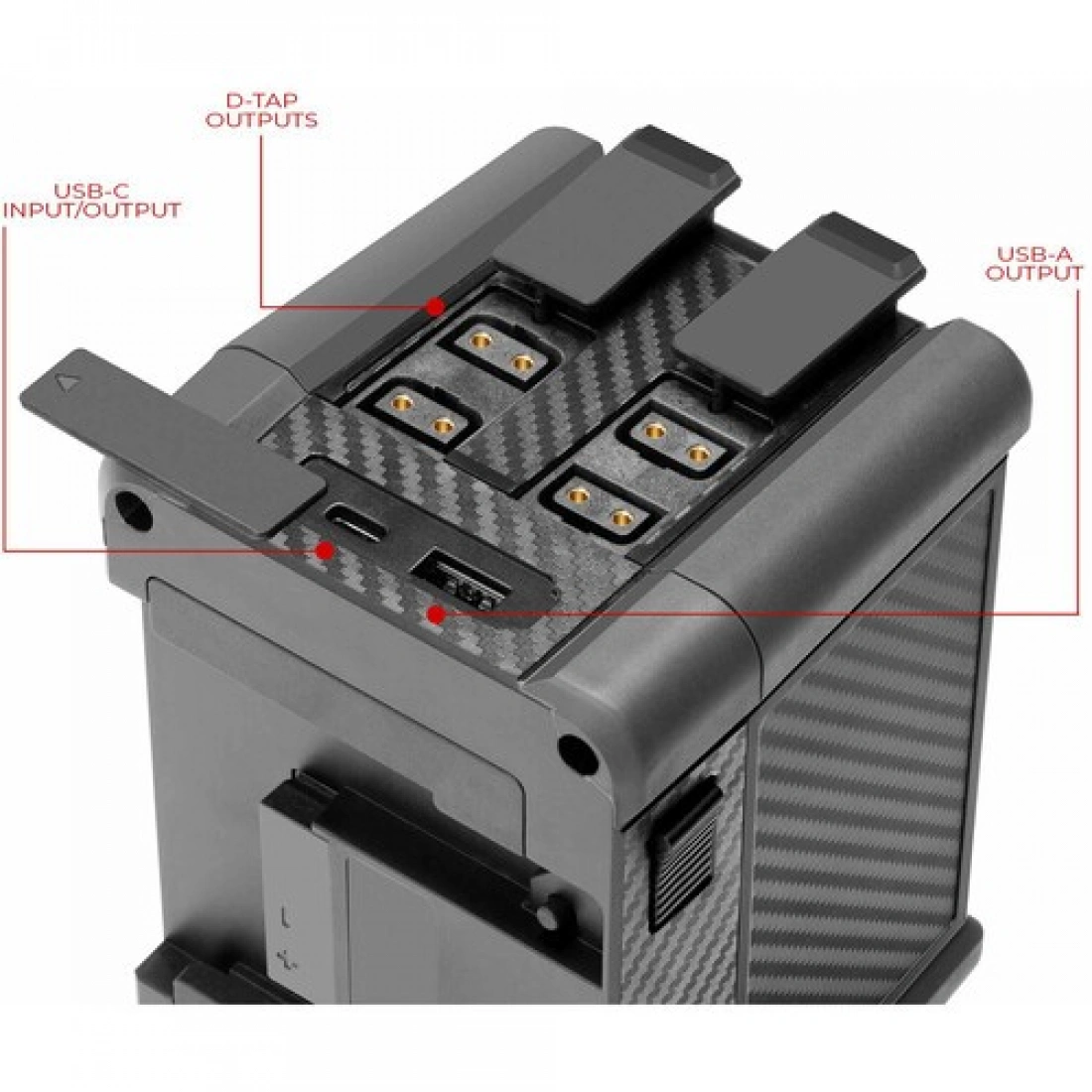

- 4 x D-Tap and 1 x USB-A Output Port
- USB-C Input/Output Port
- PD Fast Charging
Power your ARRI ALEXA 35 or compatible 12/24V cinema camera and its accessories with this B-mount SHAPE Full Play 14.4/28.8V 299Wh Lithium-Ion Battery. The battery outputs 299Wh at dual 14/28.8V via B-mount and features four D-Tap, one USB-A, and one USB-C accessory port. Its internal system automatically detects the load of your connected camera, fill light, or monitor to output the correct voltage. The USB-C port doubles as a charging interface for the battery and supports PD fast charging protocols. Monitor your battery's power status with the 5-stage LED indicators.
Features at a Glance
- Dual 14.4/28.8V output
- Four D-Tap ports with 16V at 3A output
- USB-A port with 5V at 2.1A output
- USB-C port with 5V at 2.1A mobile device output
- Charge battery via USB-C port
- Supports PD fast charging protocol
- Rubber-padded corners for impact protection
- Overheating, overcharge, overdischarge, and overcurrent protection
In the Box
- SHAPE Full Play 14.4/28.8V 299Wh Lithium-Ion Battery (B-Mount)
- Limited Lifetime Warranty (CNC Machined Parts)
- Limited 2-Year Manufacturer Warranty
- Dimensions
- 5.25 x 3.75 x 4" / 13.34 x 9.53 x 10.16 cm
- Weight
- 3.66 lb / 1.66 kg
- Battery Capacity
- 10,400 mAh / 299 Wh
- Output Voltage
- 14.4 VDC 28.8 VDC
- Maximum Load
- 10 A
- Accessory I/O
- 4x D-Tap / P-Tap Output 1x USB-A Output 1x USB-C Input/Output
- USB Output
- 5 V, 2.1 A 5 V, 3 A 9 V, 3 A 12 V, 3 A 15 V, 3 A 20 V, 3.5 A
- Mount / Series Type
- B-Mount
