SKU : 3581
Key Features :
- 155Wh Lithium-Ion V-Mount Battery
- Supports up to 14A Draw
- 1 x 14.8V D-Tap Output
- USB-A Output, 2 x DC Barrel Outputs
- USB-C Input/Output
- D-Tap & USB-C Fast PD Charging
- Ultra-Compact, Travel-Friendly Size

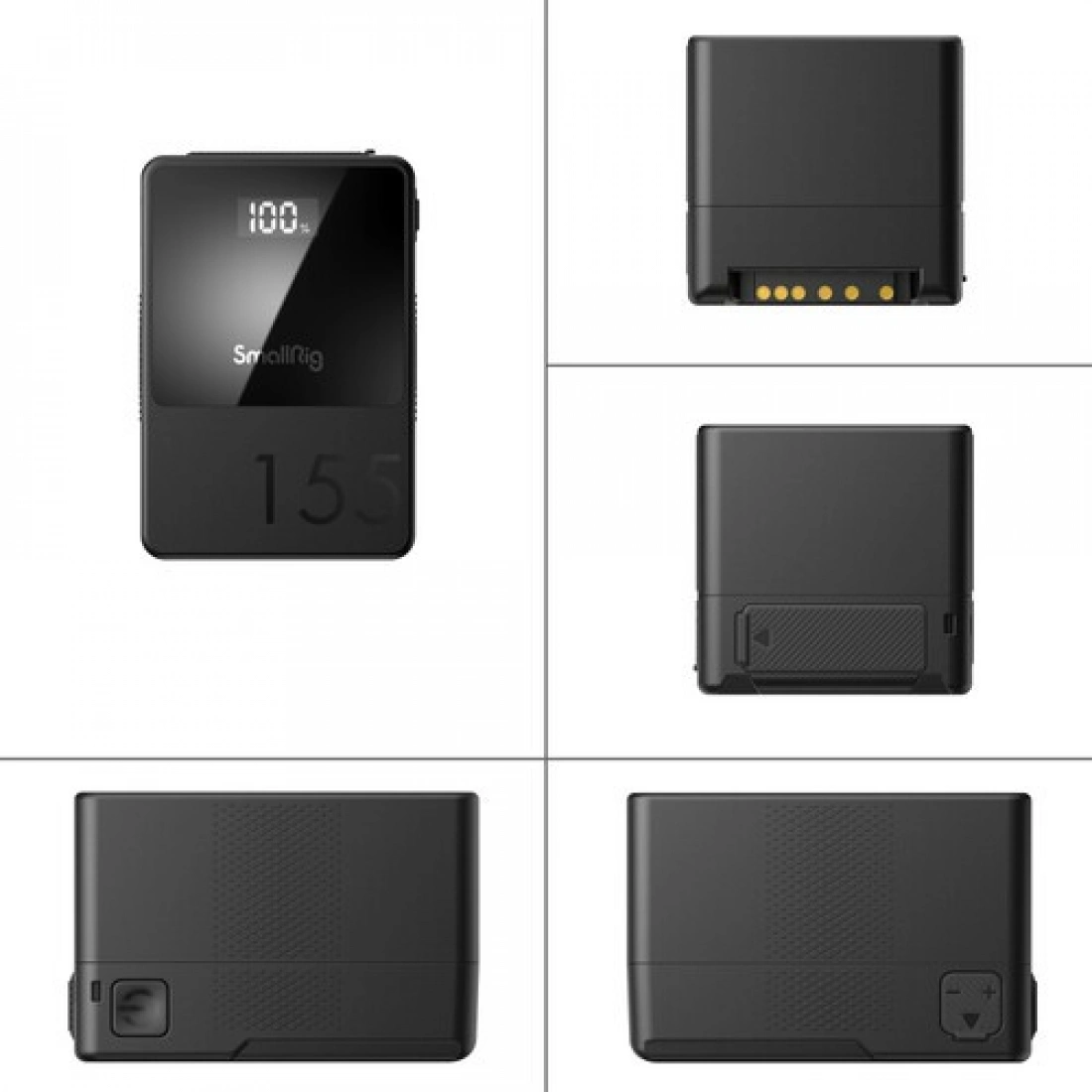

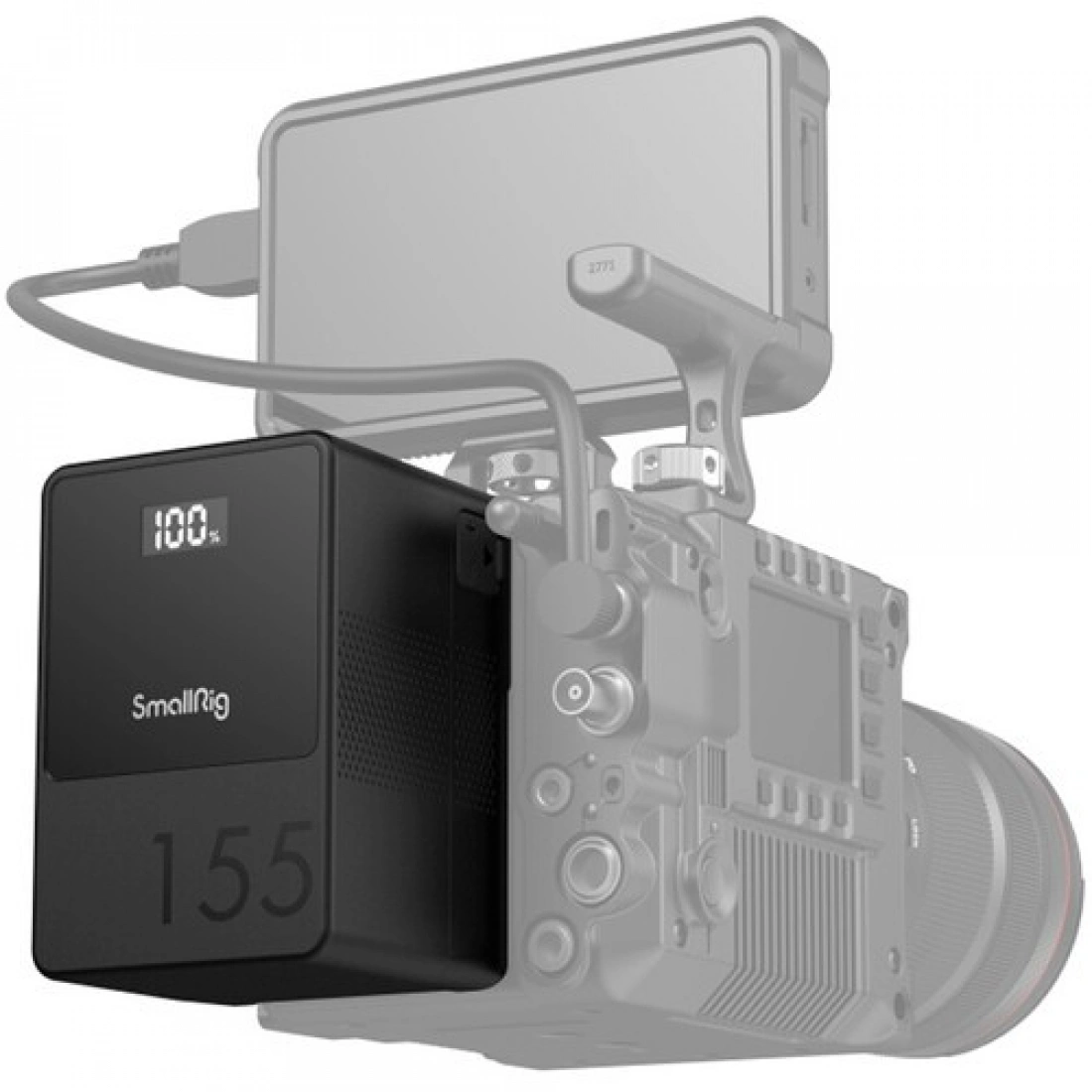

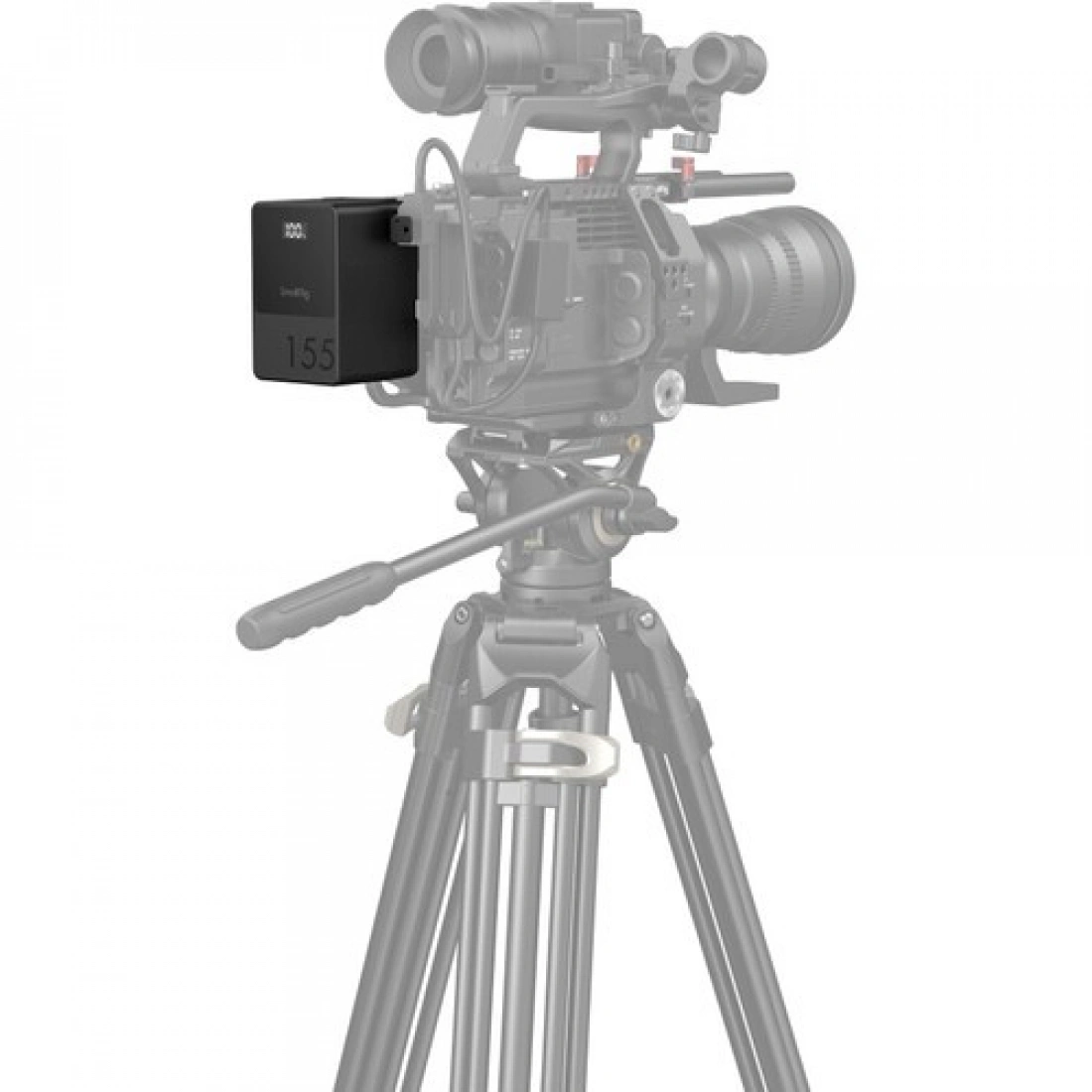

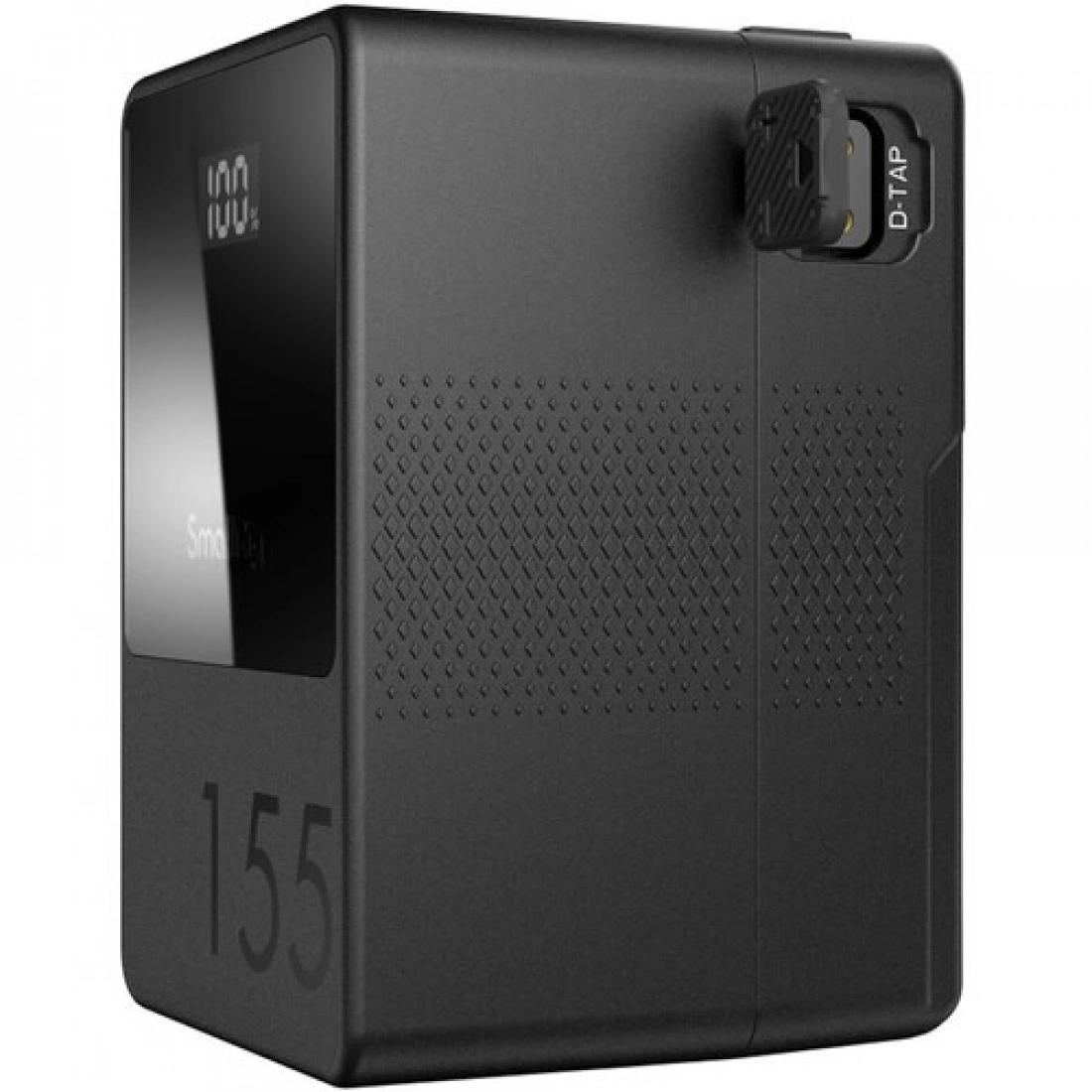

The VB155 Mini V-Mount Battery from SmallRig is an ultracompact, lightweight 155Wh battery that can support up to a 14A draw at a nominal 14.8V. This travel-friendly battery is suitable for powering handheld cameras, drones, and gimbals.

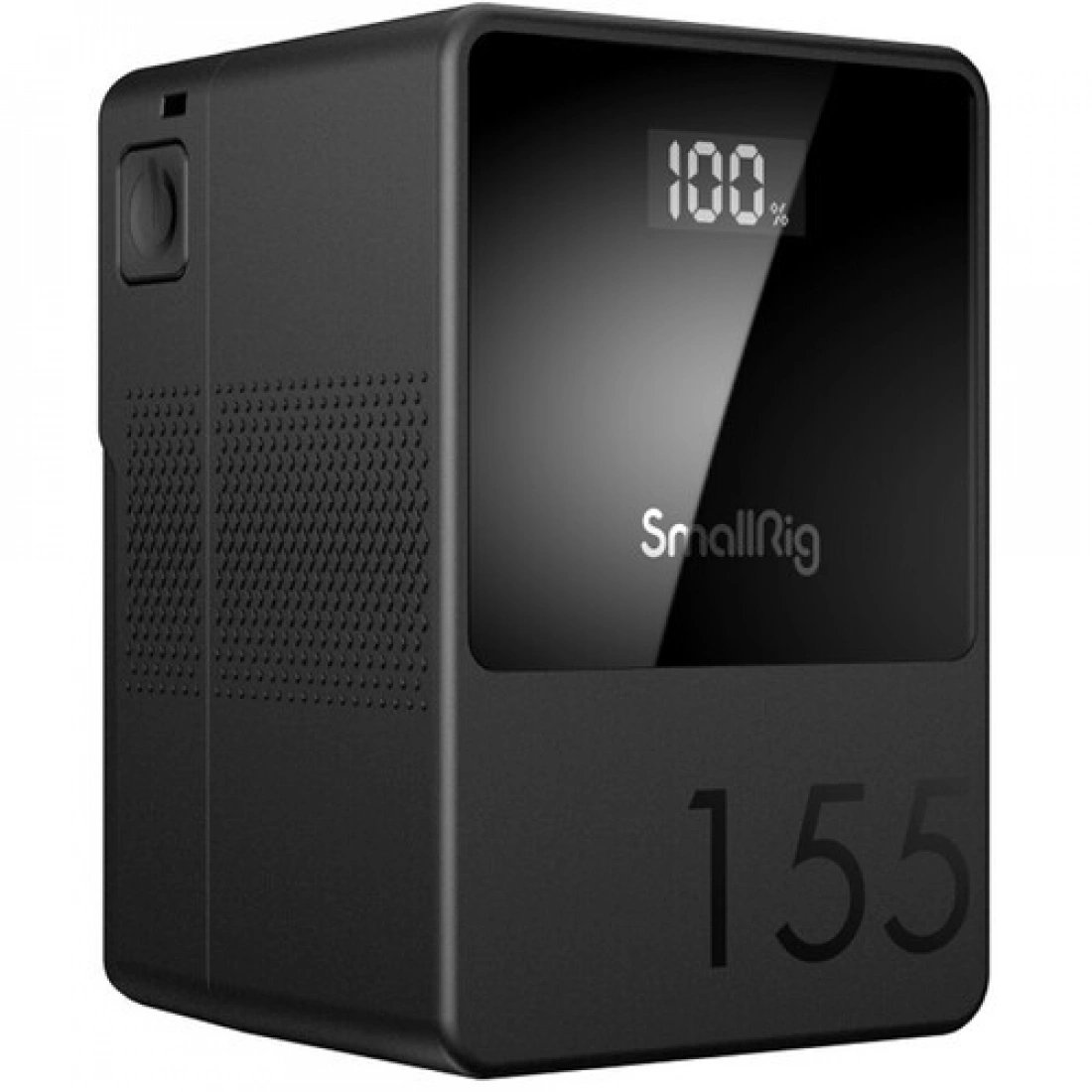

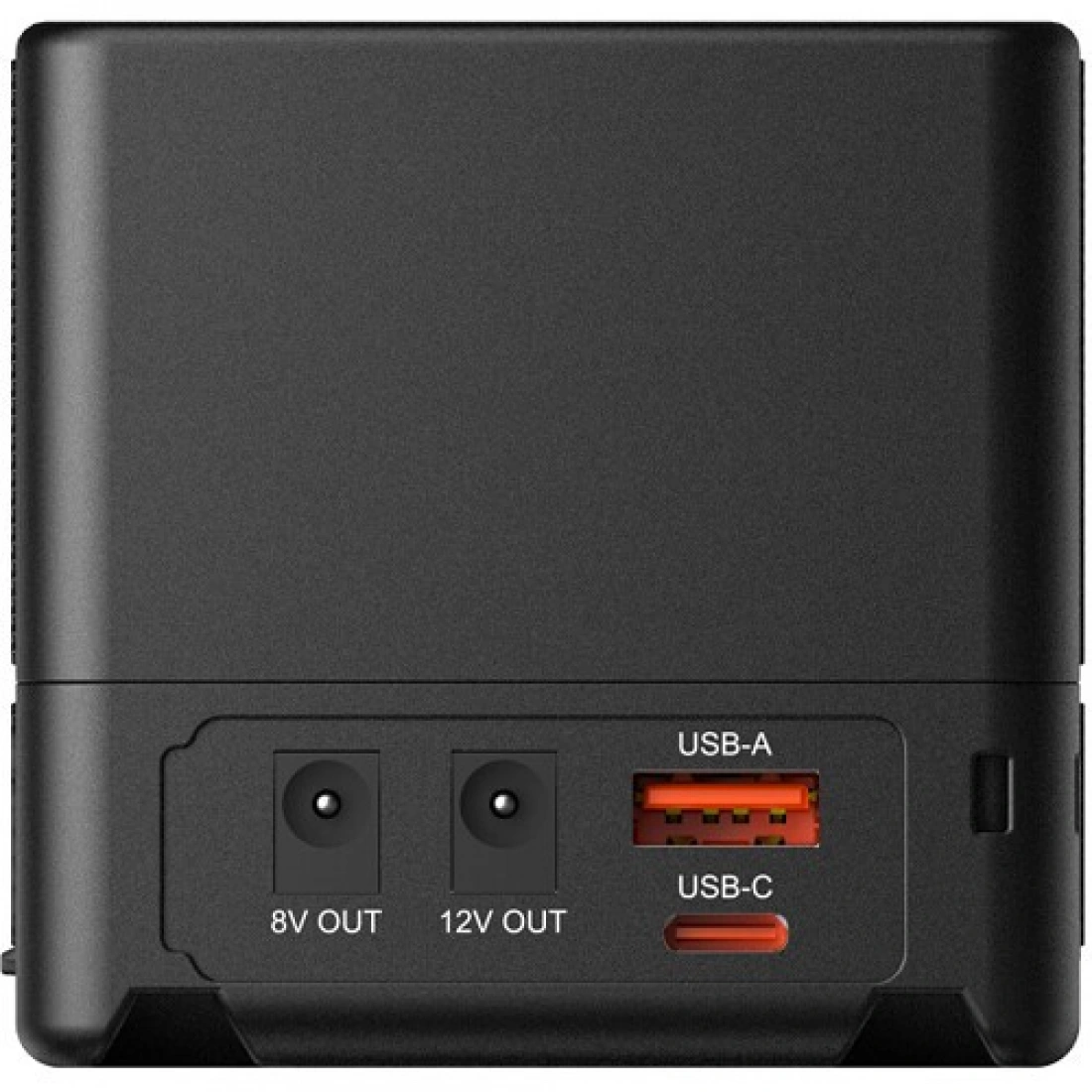

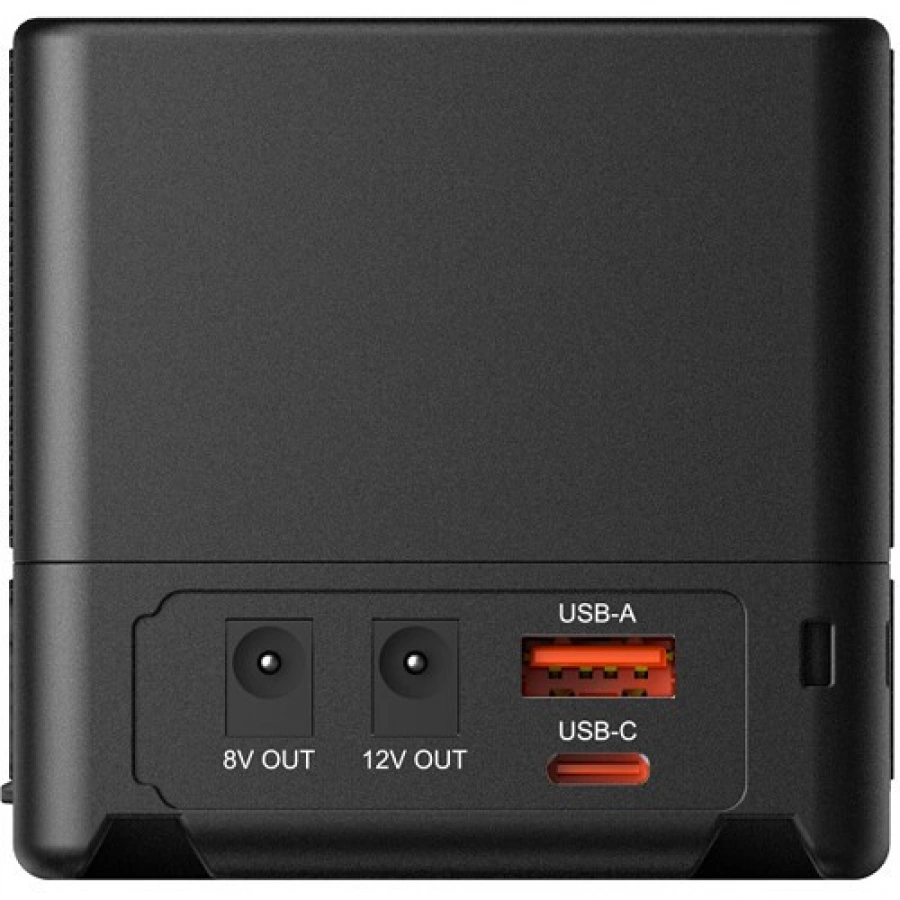

The VB155 provides multiple accessory ports, including one 14.8V D-Tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. The battery can be charged using a standard V-mount charger, an optional D-Tap charger, or by using the USB-C input/output with a 65W PD fast charger. A built-in OLED display shows the remaining battery capacity and status.
In the Box :
- SmallRig VB155 Mini V-Mount Battery (155Wh)
- Sticker Set
- Limited 1-Year Manufacturer Warranty
- Battery Type
- V-Mount
- Weight
- 26.8 oz / 760 g
- Dimensions
- 4.1 x 2.9 x 2.8" / 105 x 73 x 71 mm
- Operating Temperature
- 14 to 113°F / -10 to 45°C
- Storage Temperature
- -4 to 140°F / -20 to 60°C
- Chemistry
- Lithium-Ion
- Battery Capacity
- 155 Wh
- Output Voltage
- 14.8 VDC
- Maximum Load
- 14 A
- Accessory I/O
- 1x D-Tap / P-Tap Output 14.8 V, 14 A Regulated 1x USB-A Output 5 V Regulated 1x D-Tap / P-Tap Input 16.8 V, 8 A Regulated 1x USB-C Input/Output 65 W Regulated 1x Barrel 2.5 mm Output 12 V Regulated 1x Barrel 2.1 mm Output 8 V Regulated
- USB Output
- 5 V
- Environmental Protection
- No
- Package Weight
- 2.23 lb
- Box Dimensions (LxWxH)
- 5.8 x 4.8 x 3.6"
