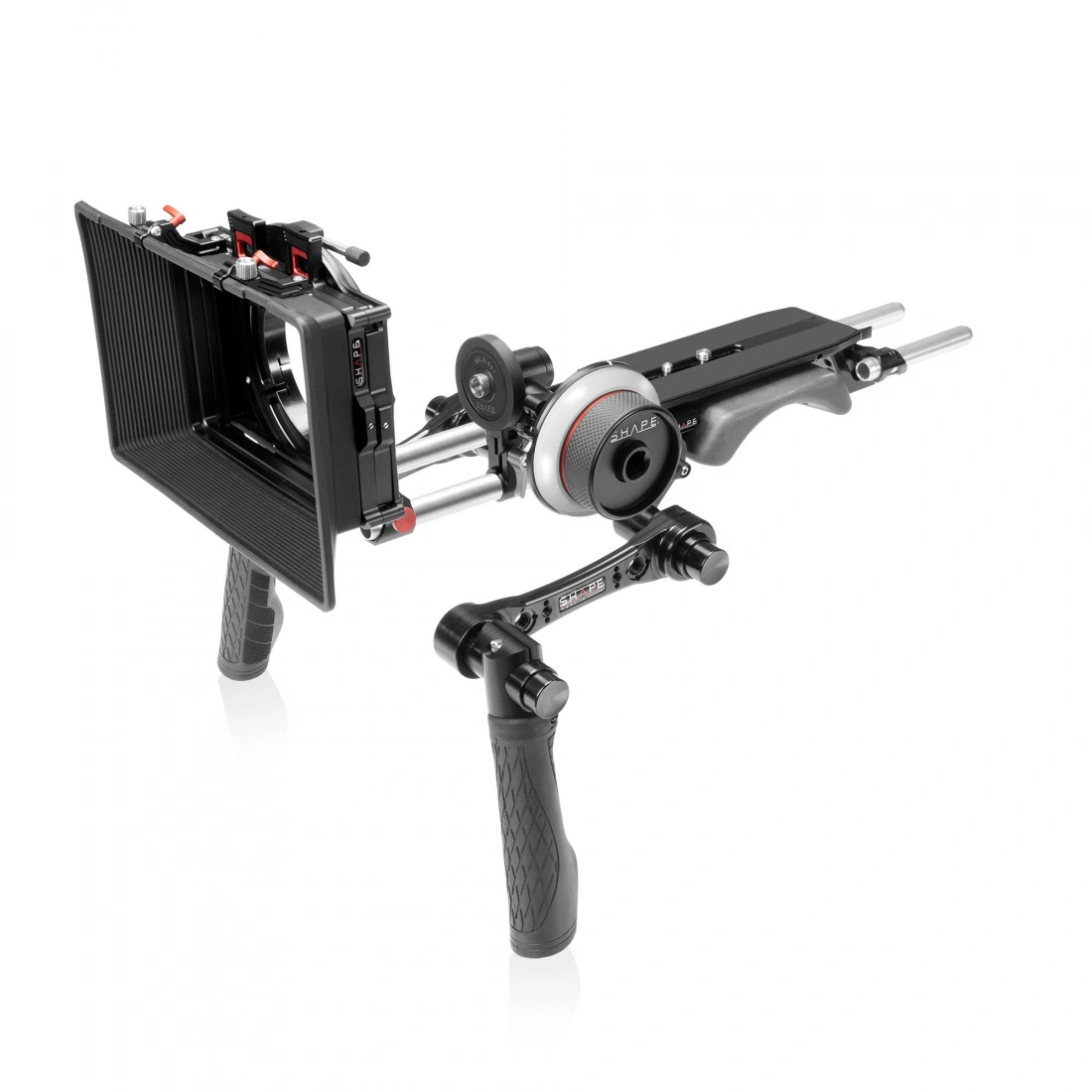

SHAPE COMPACT UNIVERSAL SHOULDER BASEPLATE (BP20) WITH FOLLOW FOCUS, HAND15 SHADOW AND MATTE BOX KIT

SHAPE COMPACT UNIVERSAL SHOULDER BASEPLATE (BP20) WITH FOLLOW FOCUS, HAND15 SHADOW AND MATTE BOX KIT

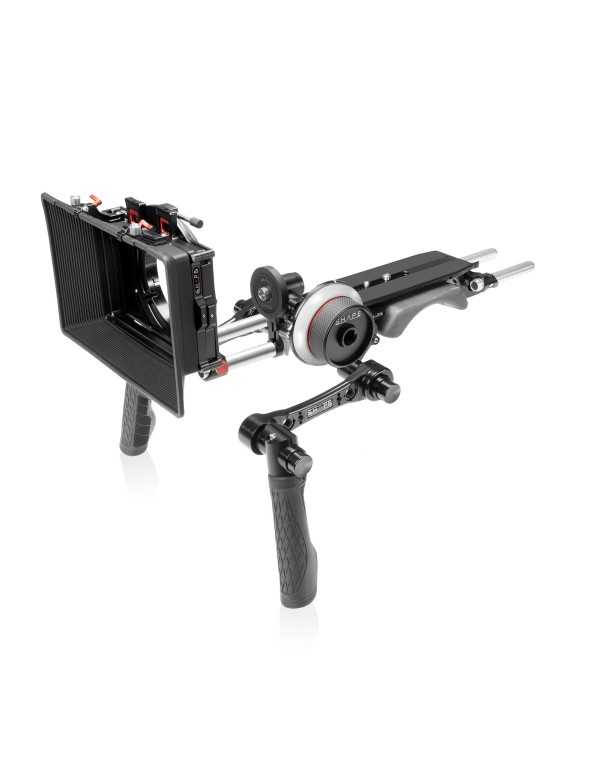

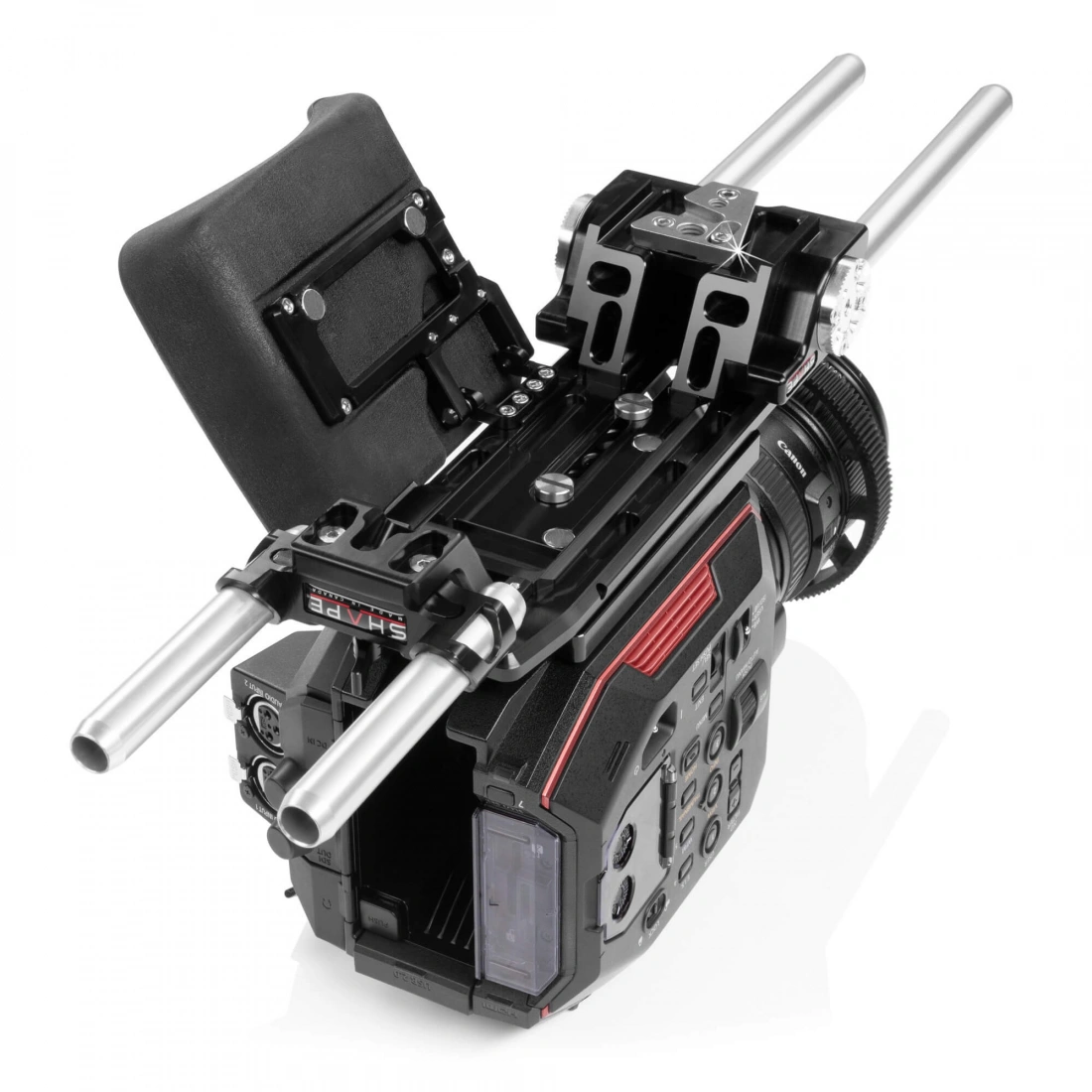

SHAPE Compact universal shoulder baseplate (BP20)

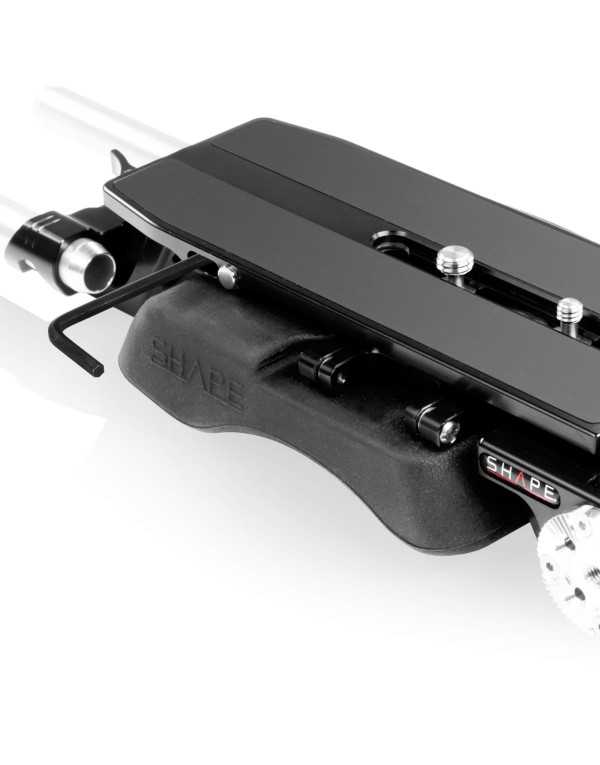

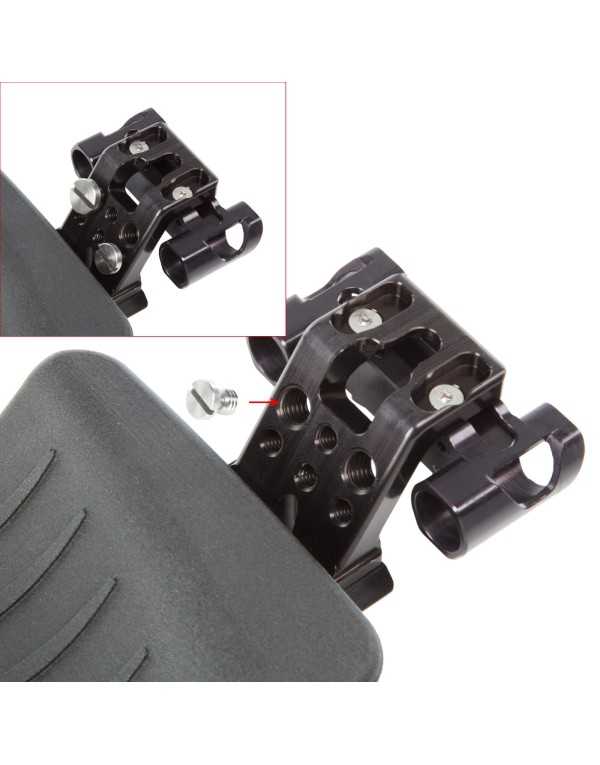

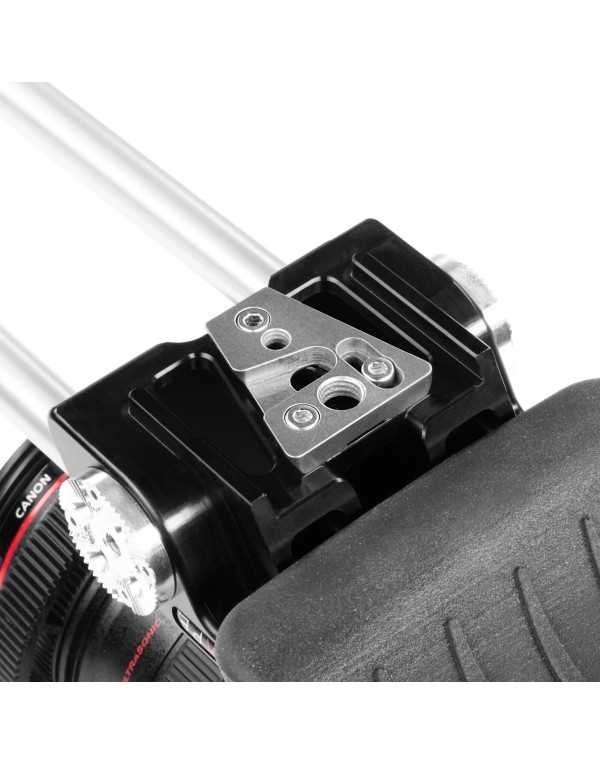

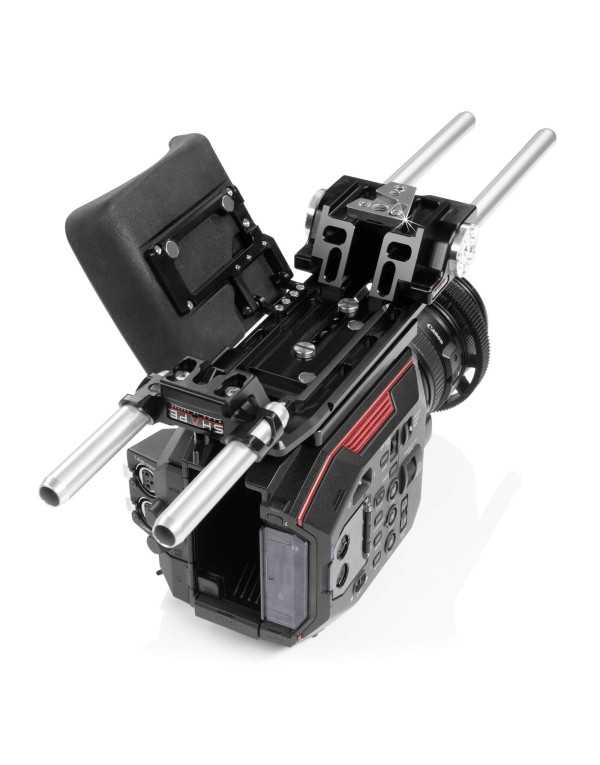

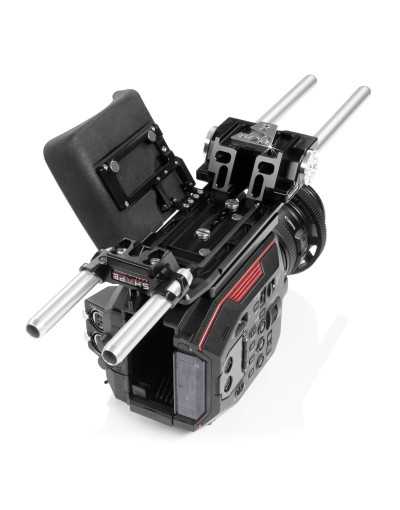

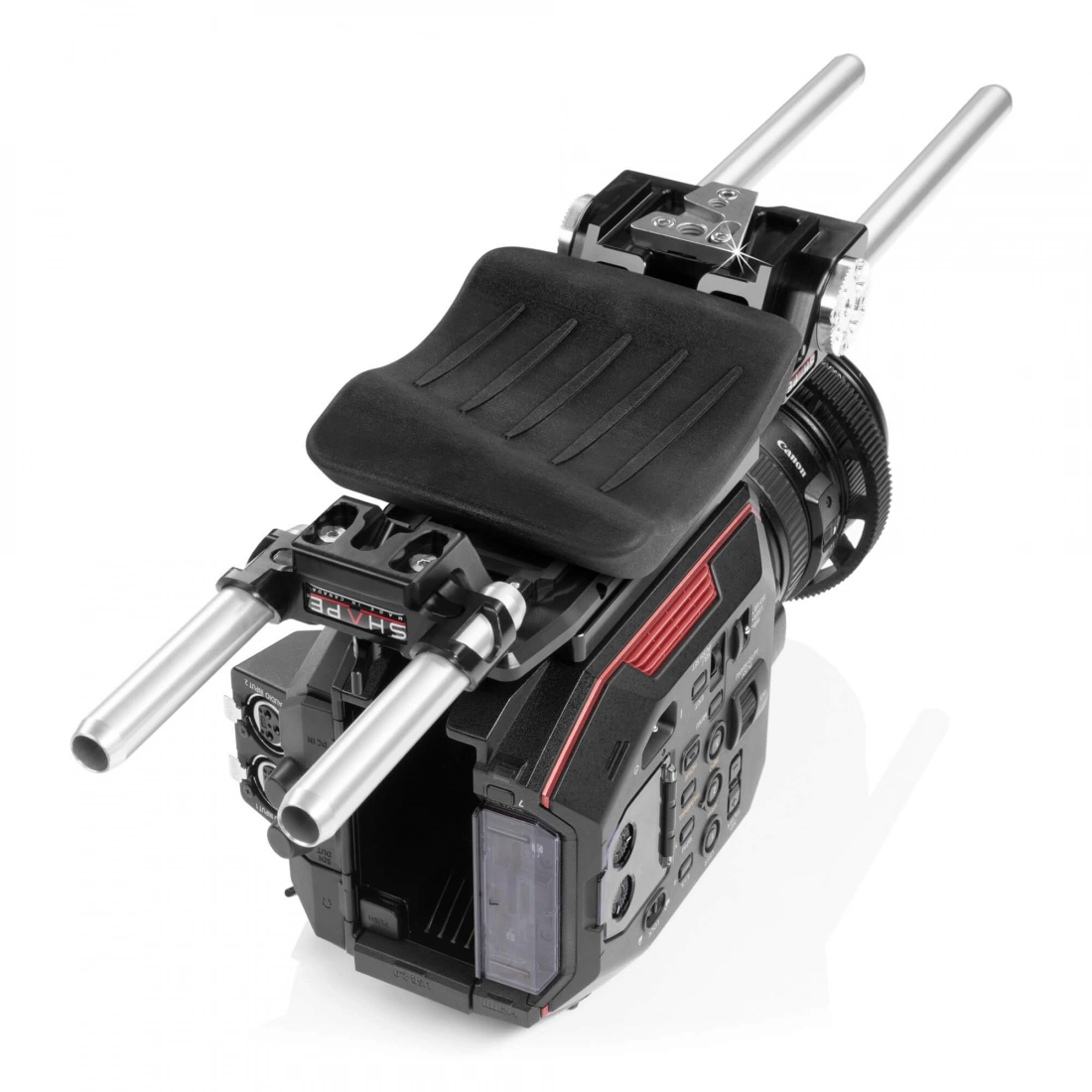

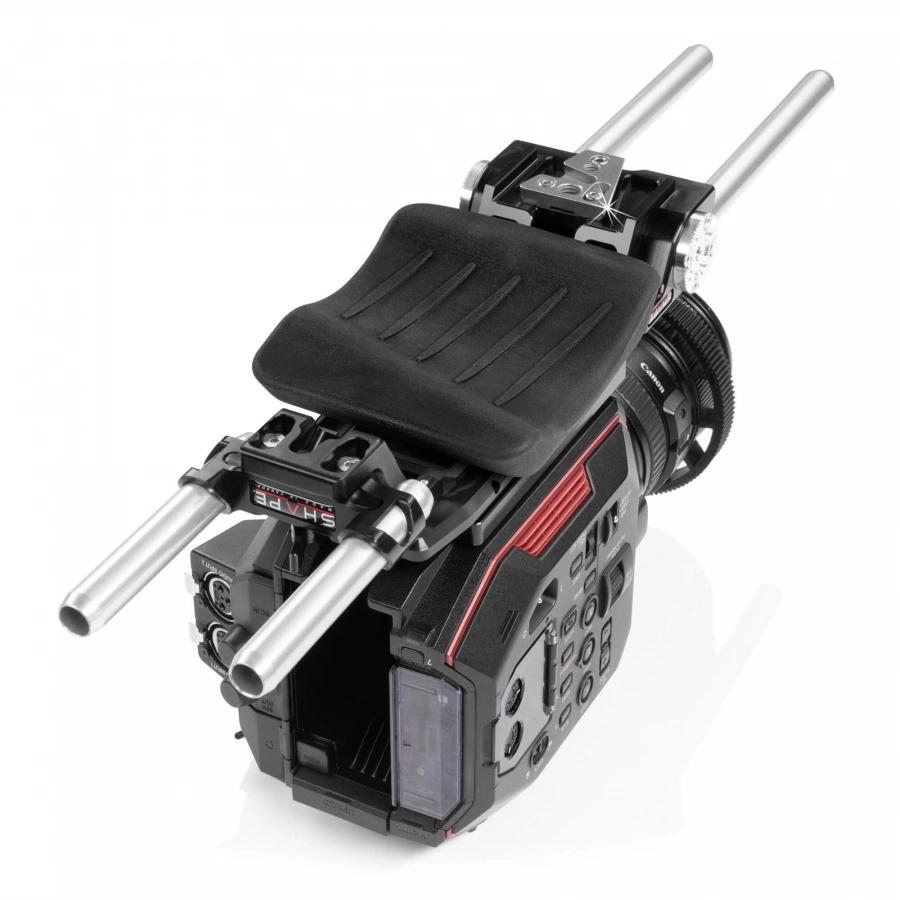

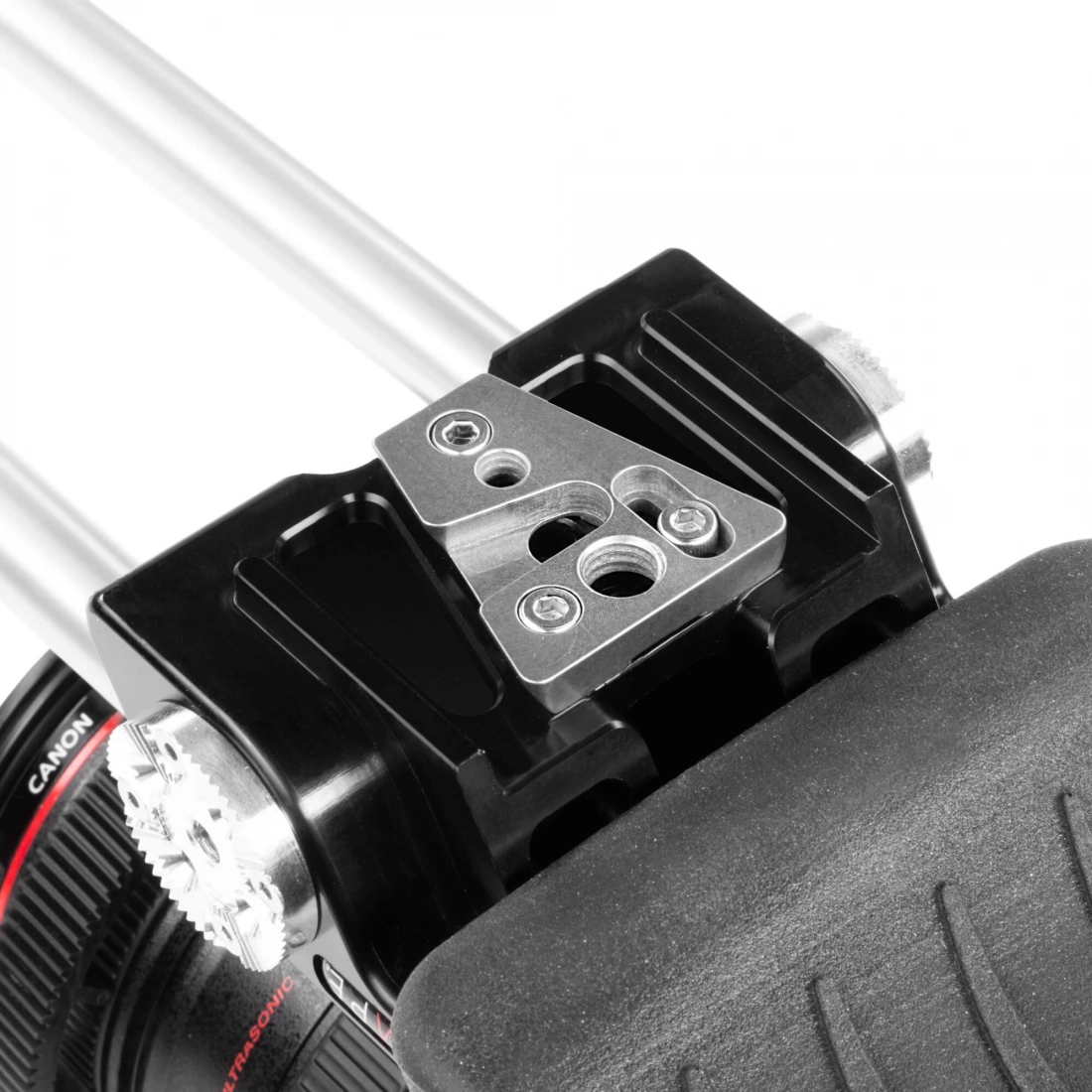

The SHAPE Compact Universal Shoulder Baseplate (BP20) offers a lightweight solution for versatile and mobile camera setups, providing superior ease of use over traditional baseplates. With a fixed plate and magnetic bracket system, it facilitates fast side-swivel adjustments for accessing camera screws without interruptions. The baseplate is equipped with dual ARRI-standard rosettes for handle compatibility and features a quick-release adapter for seamless mounting on VCT tripod plates.

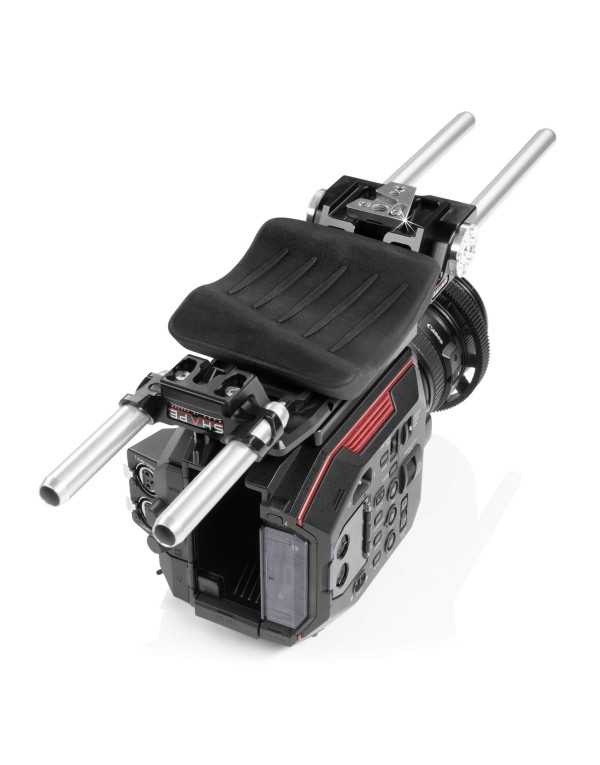

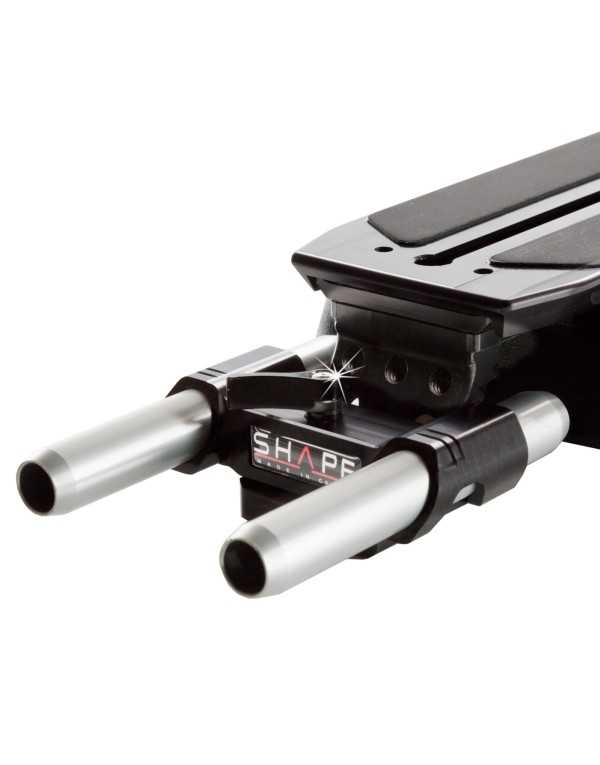

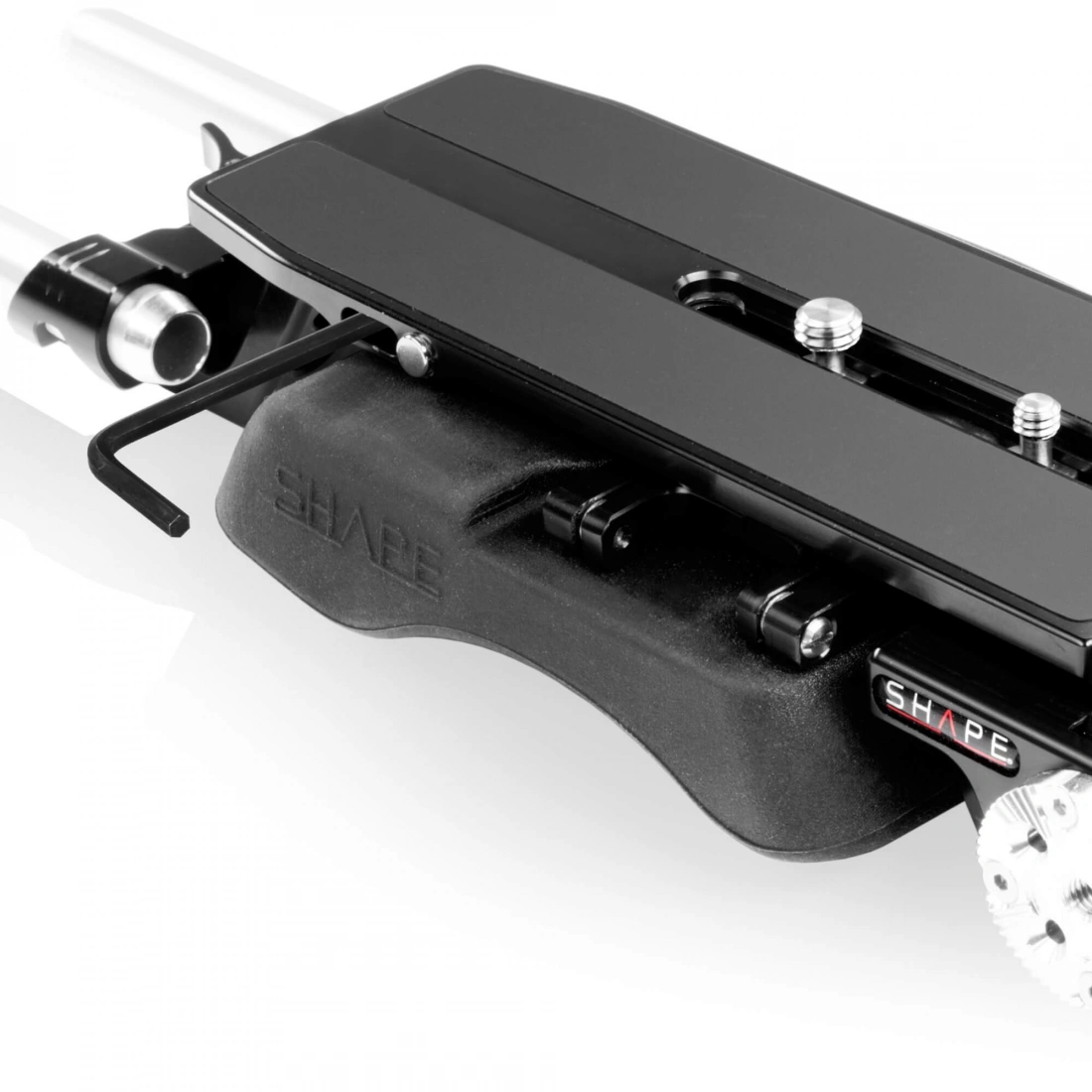

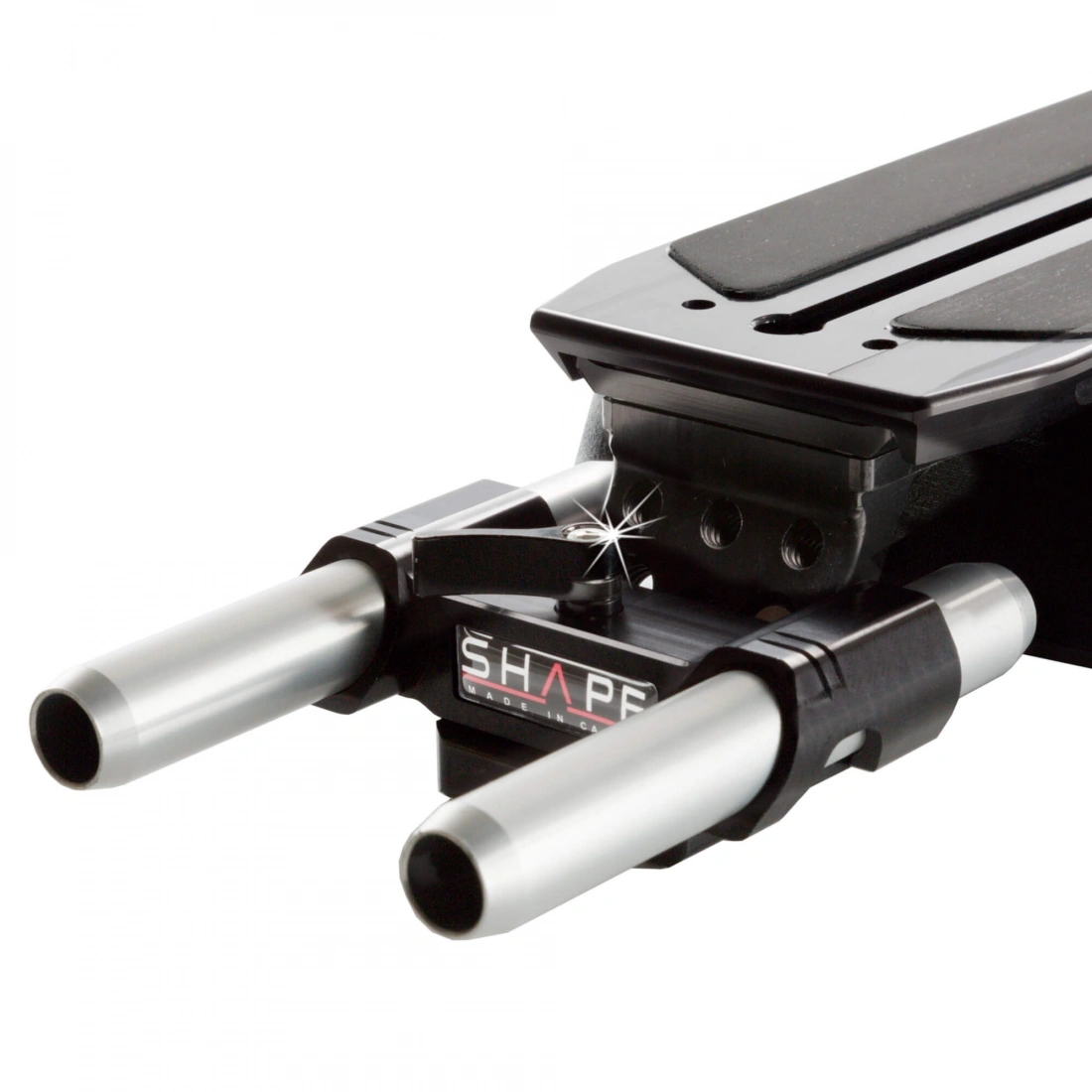

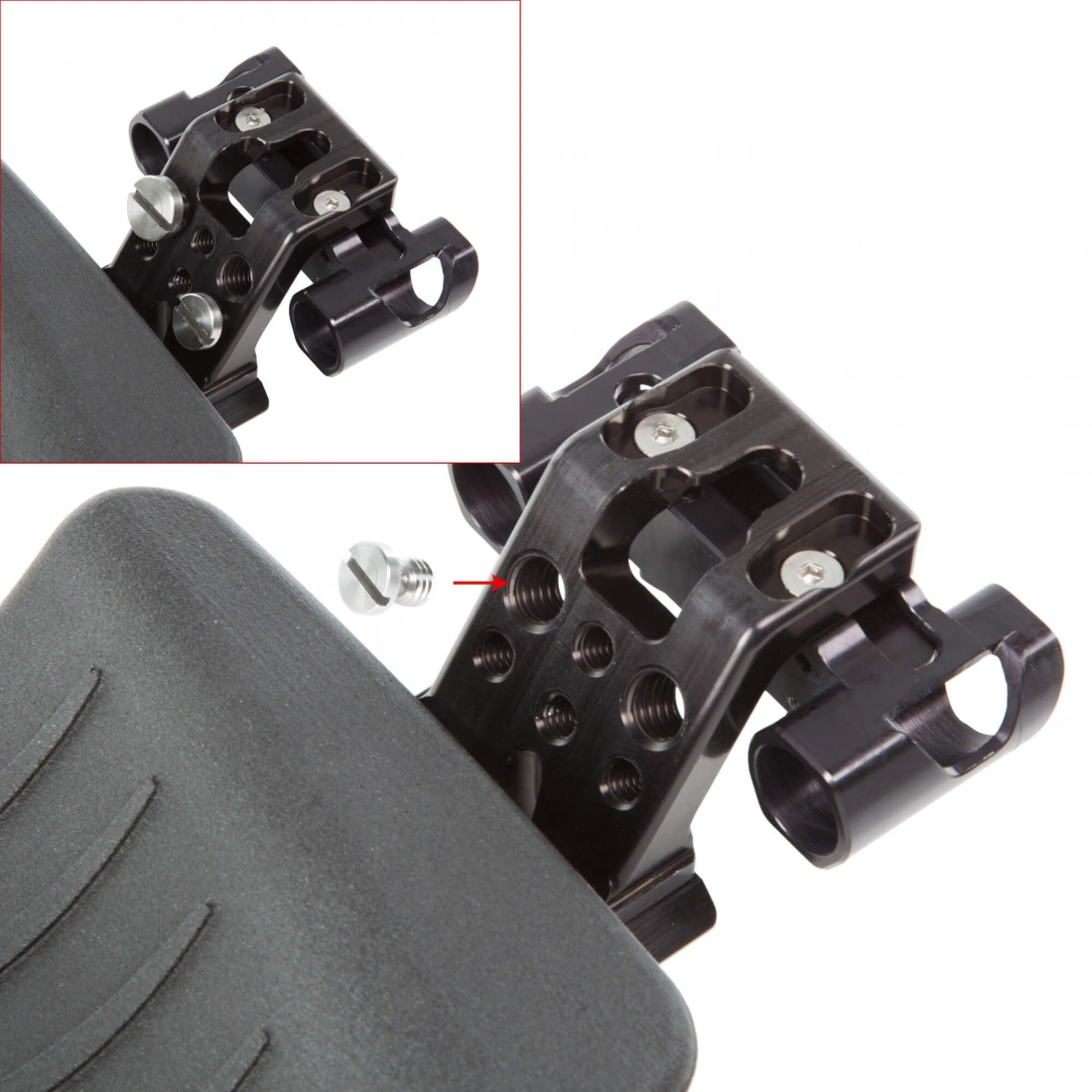

To protect your gear, the baseplate includes rubber pads, while its front and rear 15mm rod blocks offer additional space for mounting accessories, ensuring maximum flexibility for various filming setups. The baseplate also features a thick gel shoulder pad, making long shooting hours more comfortable by distributing the weight evenly. A built-in toolbox with magnetic storage keeps essential tools like screws and hex keys conveniently on hand

15 mm in rods (15TUBE4)

This pair of 15mm aluminum rods, measuring 4 inches in length, are hollow and feature tapered ends, providing a secure fit for mounting your camera rig. They are perfect for attaching any compatible accessories and ensuring a sturdy support structure.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for secure rod block connection
• Aluminum coated with a clear finish

15 mm 8 in rods (15TUBE8)

These 8-inch aluminum rods provide extended support for mounting heavier or additional camera accessories. Featuring the same durability and ease of use, these rods ensure your rig remains stable even during more demanding shoots.

• 15-mm diameter
• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

SHAPE Compact quick handle Arri rosette black (HAND15)

The SHAPE HAND15 features two ARRI rosette-compatible quick handles, designed for easy attachment to camera rigs. The handles offer three points of articulation for infinite adjustability and are equipped with SHAPE's innovative Push-button technology for effortless 360-degree rotation. These handles are engineered to withstand heavy use, allowing for quick adjustments without the need for tools.

• Quick adjustment system with Push-button
• Multiple mounting options with 1/4"-20 and 3/8"-16 threaded holes
• Durable, ergonomic design for ease of use

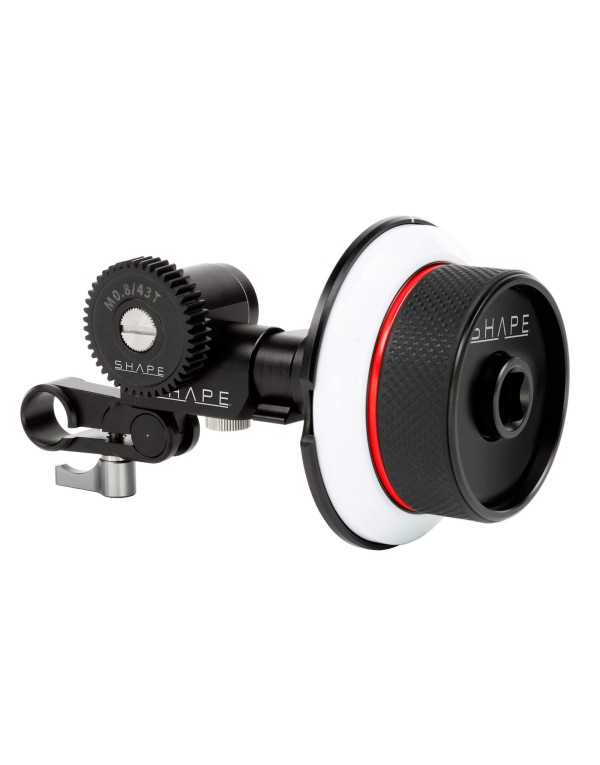

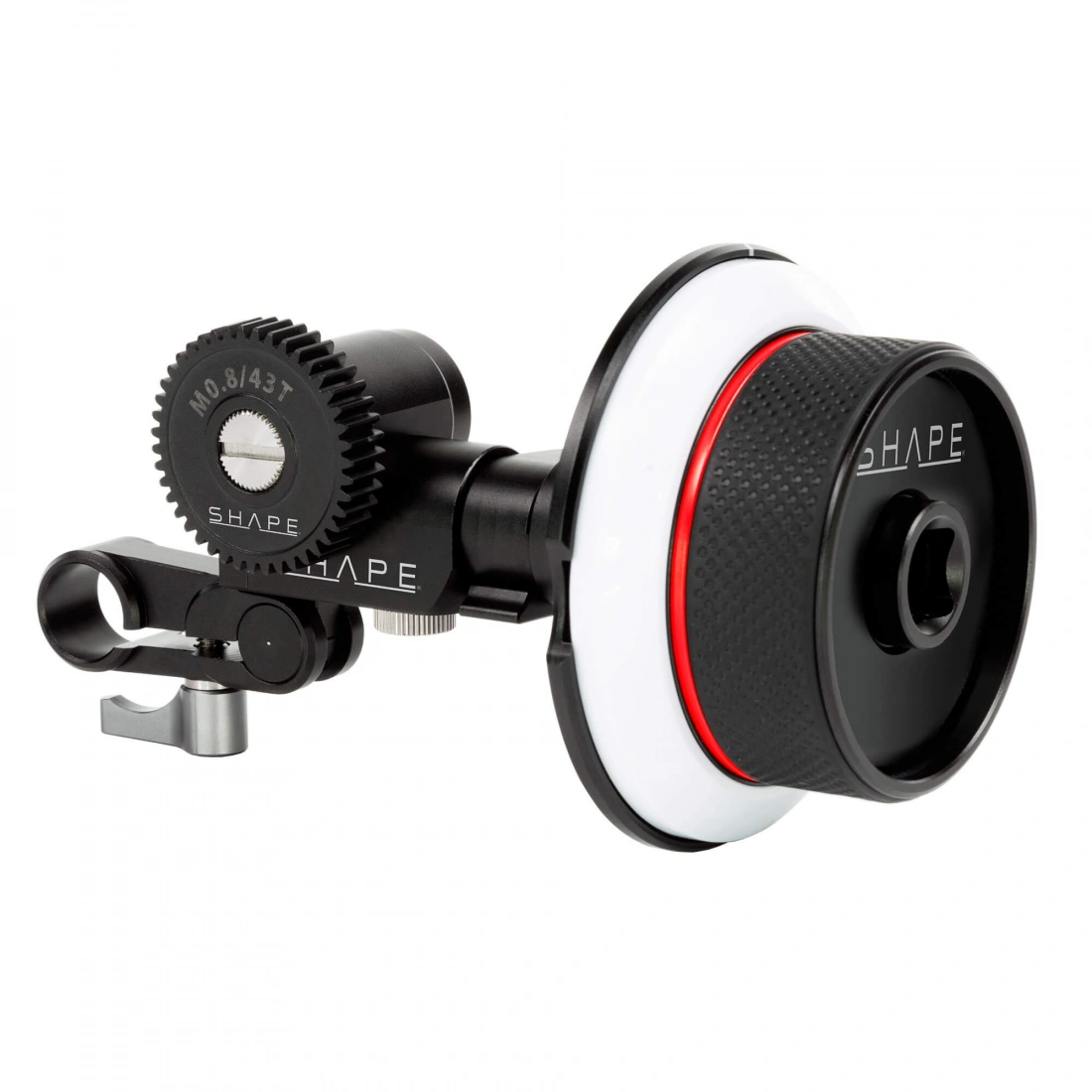

SHAPE kit focus single rod follow focus 15 mm LWs (FA123)

Use the compact SHAPE Follow Focus Kit with Single 15 mm Rod Clamp with your camera setup to make focus pulling easy. The modular design allows you to add and remove any of the components without screws or tools, and its small profile allows the addition of a matte box or accessories around your lens. At the core of the kit is a rubber, anti-slip follow focus wheels attached to a single aluminum 15 mm rod clamp. The clamp rotates to adjust to most lens sizes, and it’s tightened by a locking lever. The clamp’s rotation also allows the focus wheel to easily swing out of the way when changing lenses. Five drive gears are included to fit a variety of lens sizes: 0.5 MOD/78T, 0.6 MOD/64T, 0.8 MOD/38T, 0.8 MOD/43T, and 0.8 MOD/78T. The gears can be flipped from front to back to facilitate different lens configurations. A 49 mm rubber friction wheel is also included for the 0.5 MOD/78T gear which is most commonly used with DSLR lenses. For alternate fine-focus configurations, use the included speed crank or 11″ whip, both of which attach to the center point of the knob. Four magnetic marking disks are included to attach to the focus wheel.

• At the center of the knob, an ARRI-standard accessory port for attaching separately available accessories such as a whip or a speed crank;
• All gears can be flipped to the front or back position which is helpful for compact lens configurations;
• Two rotation points (one on the rod and one on the body) allowing you to get the follow focus perfectly aligned vertically on the side of the camera body;
• Swing Arm Design allows you to simply pull the follow focus away from the lens for a quick lens change then you can push it back into place when you’re ready;
• A compact design takes little space, so you can still attach a matte box to the front;
• Use the swing arm to properly align the follow focus and then you can tighten the thumbscrew on the bottom to keep it in place.

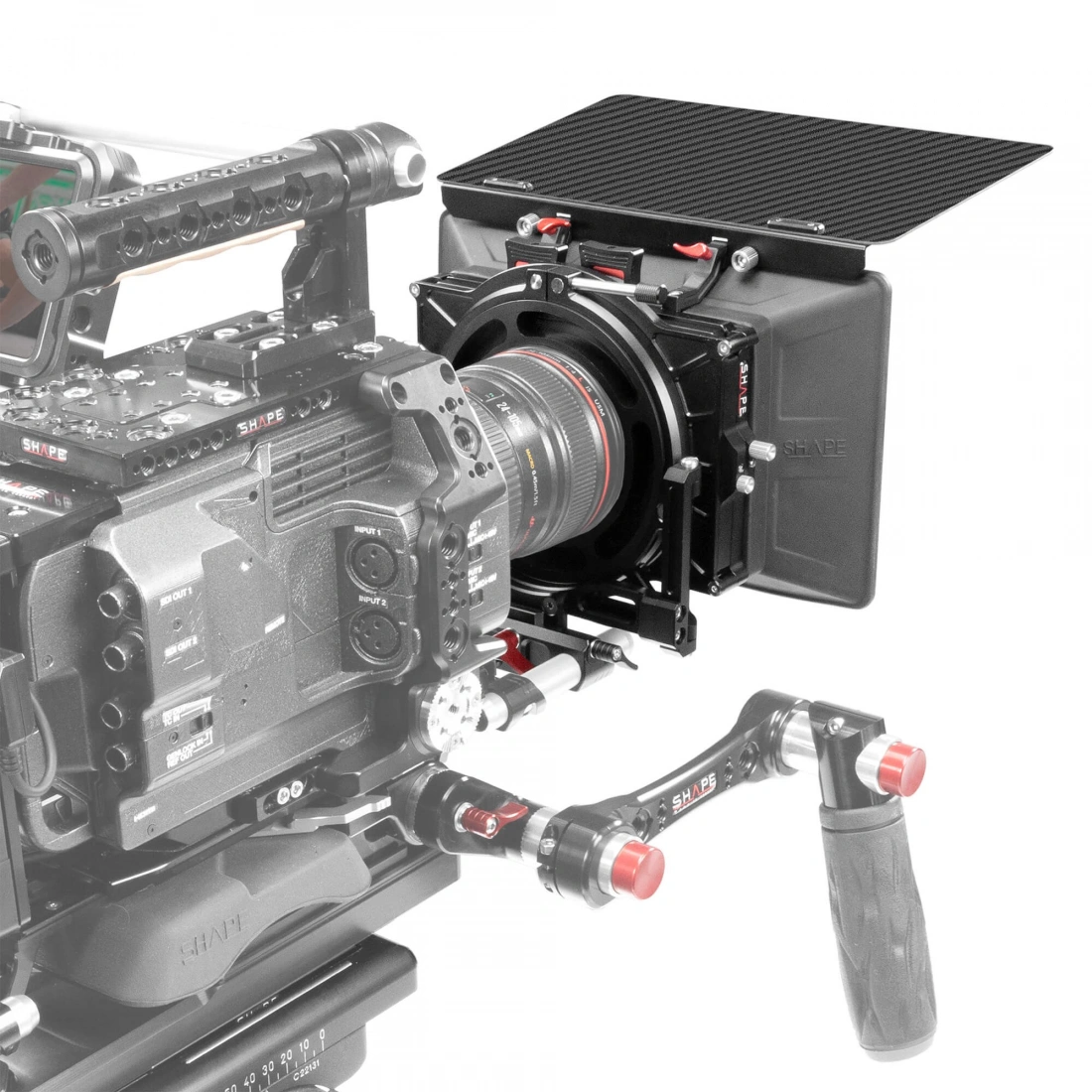

SHAPE matte box swing-away (AKSWA)

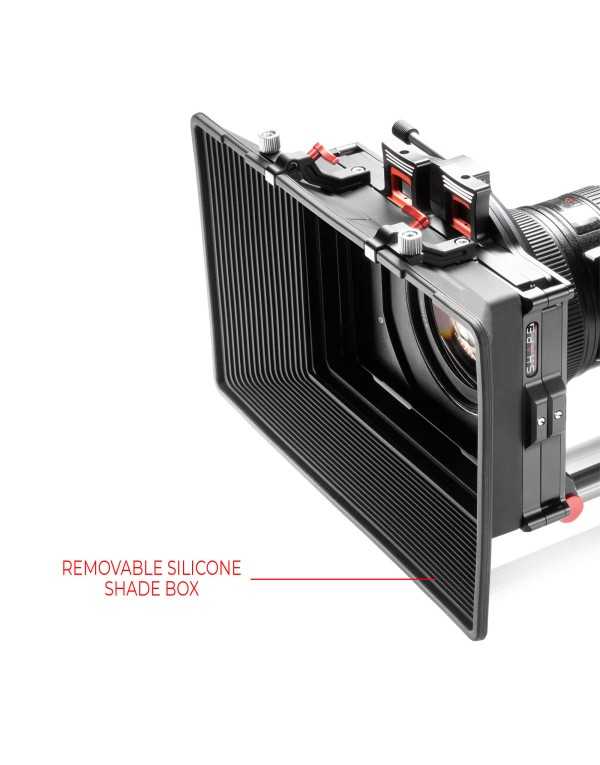

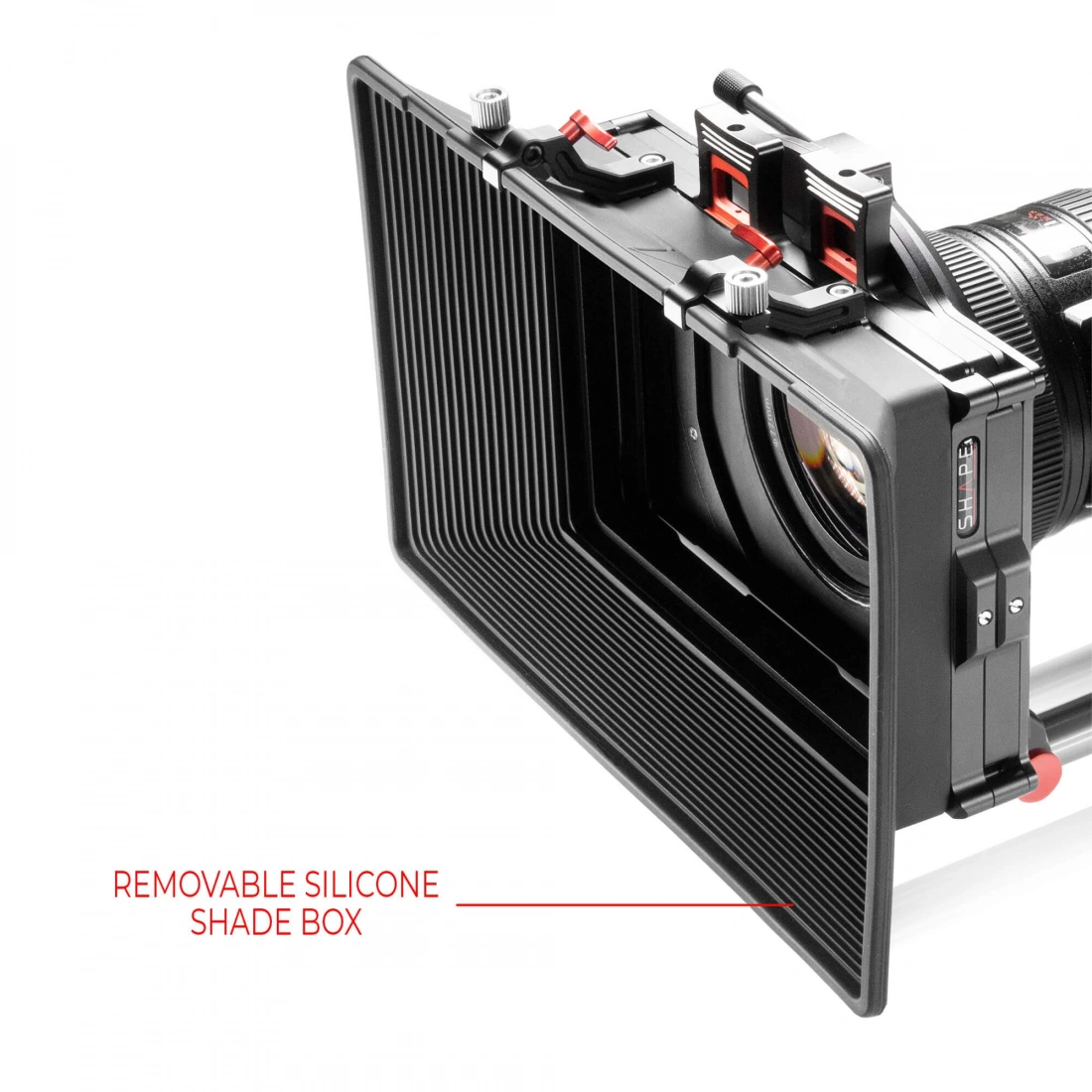

The SHAPE Matte Box Swing Away is a silicone matte box mounted on a CNC aluminum main frame with an outer diameter of up to 124 mm. It provides a wide field of view for a variety of wide-angle lenses.

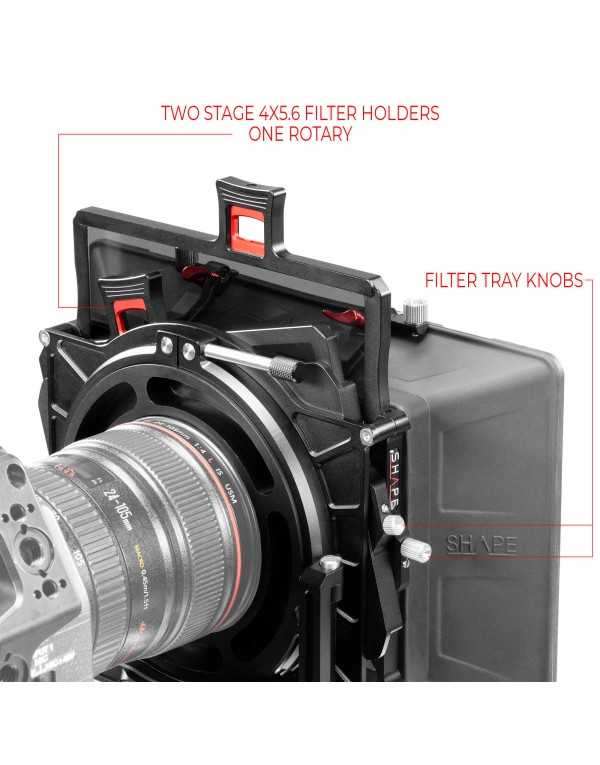

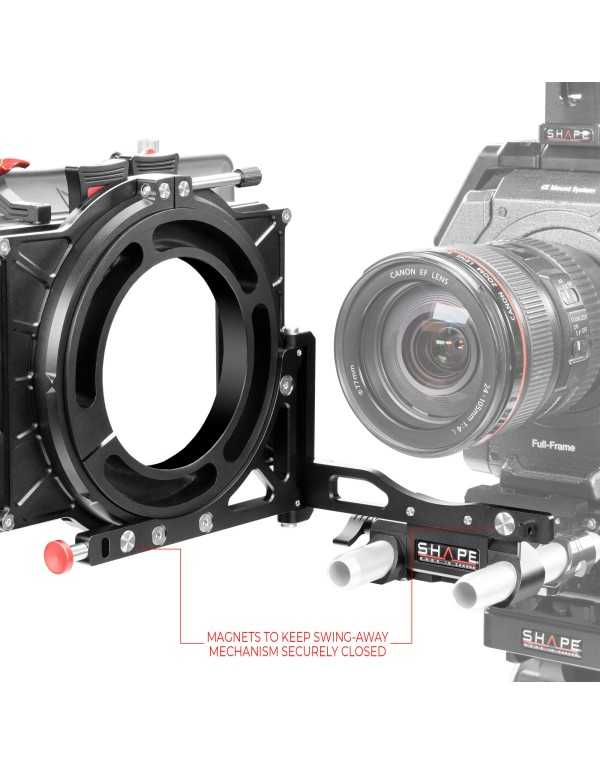

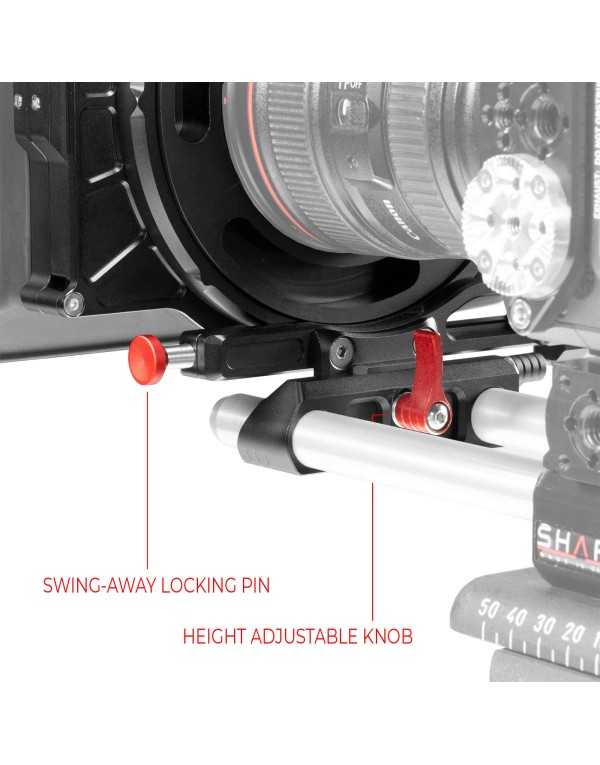

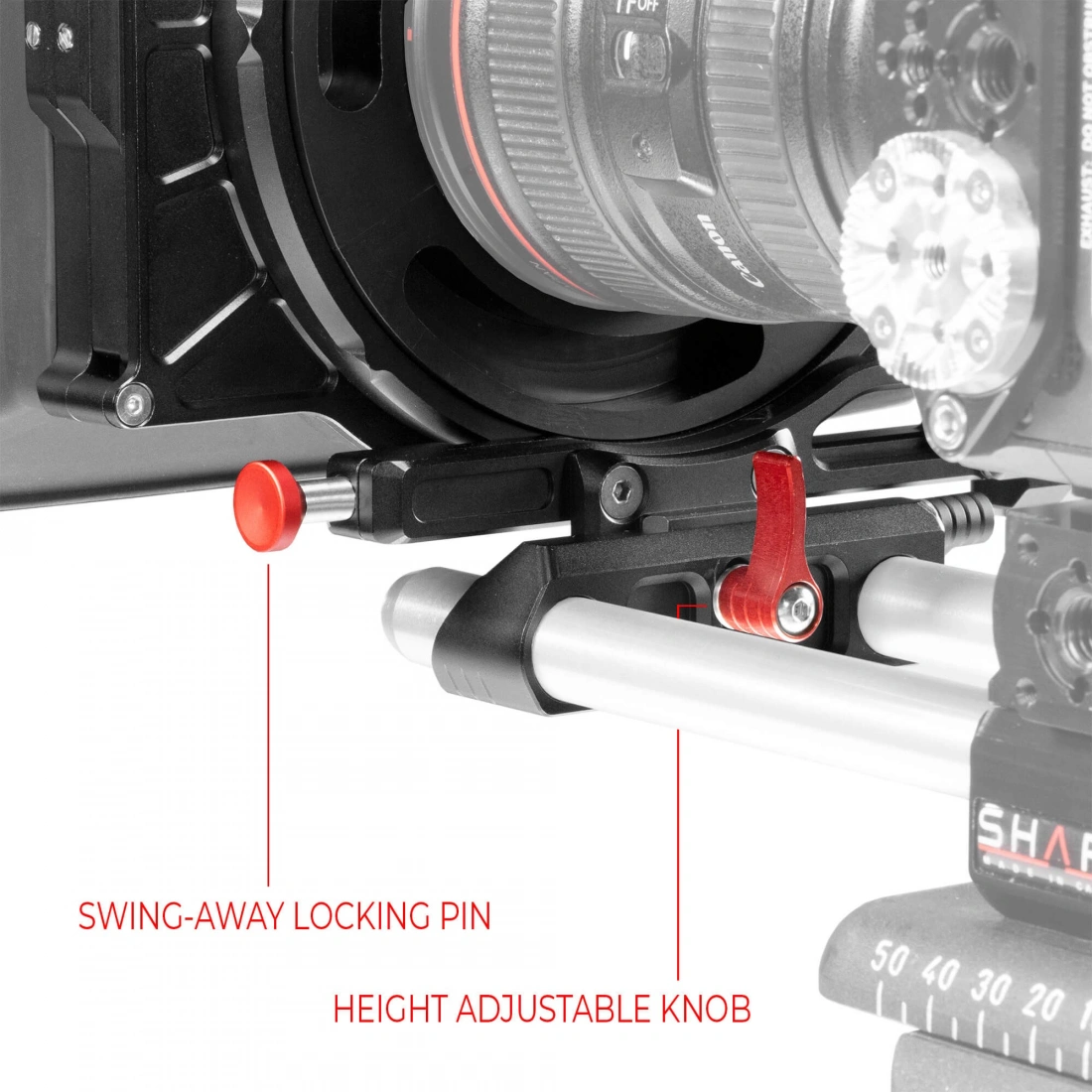

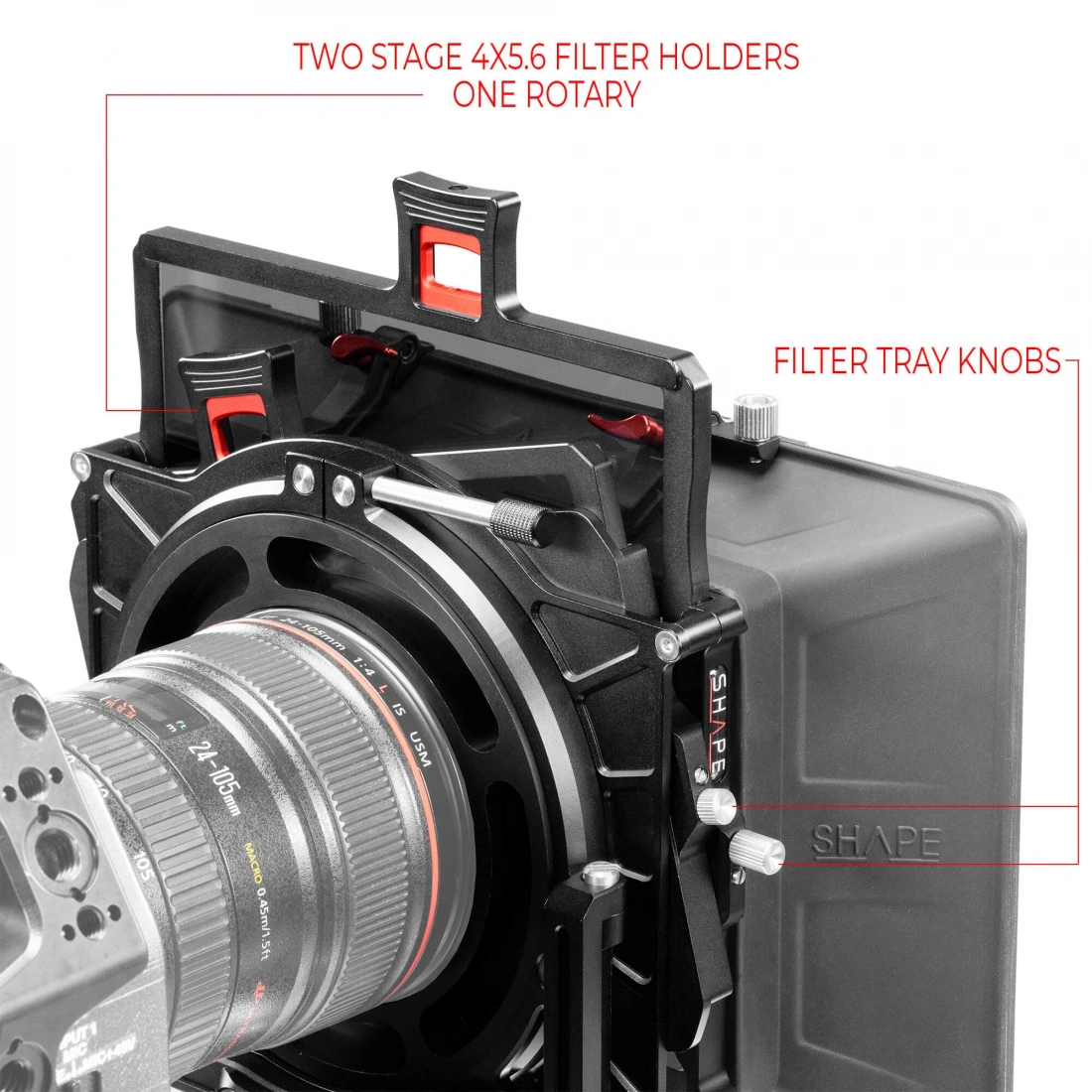

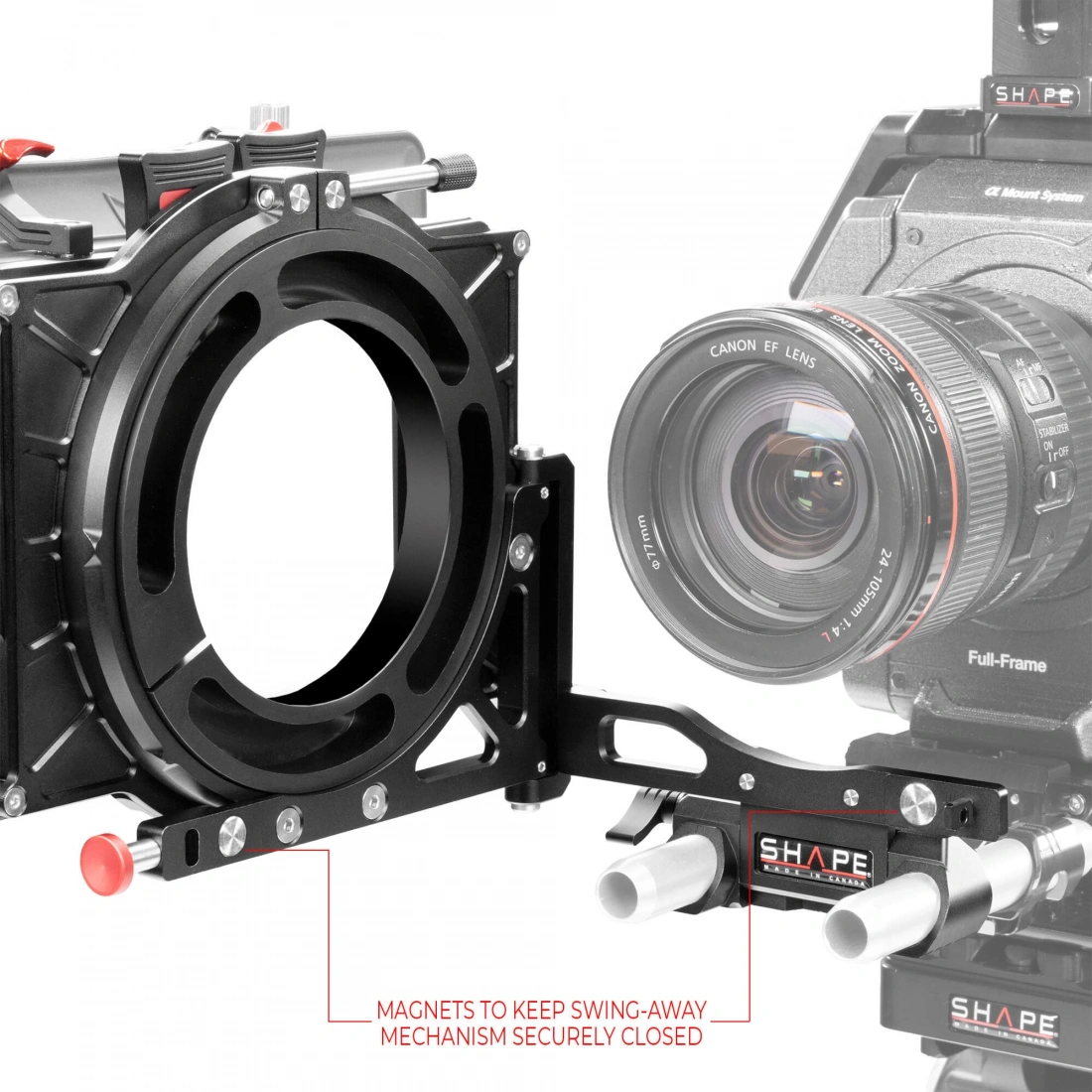

Two 4×5.6 filter trays (one rotary) with easy access handles that allow one-handed filter changes. 4×4 filters can also be installed in the trays. The frame includes two stops at the bottom of the filter trays section to prevent the filters from falling through. The removable swing-away module makes lens changes a snap. A spring pin helps to lock the mechanism closed without manually setting the pin. 2 magnets hold it in place when closed.

Removable height adjustable rod block with one tightening knob allows micro-adjustment of height, ensuring compatibility with a wide range of lenses. The rod block can be re-installed directly on the main frame for a straight configuration. The complete kit allows three different configurations, (swing-away, straight and clip-on).

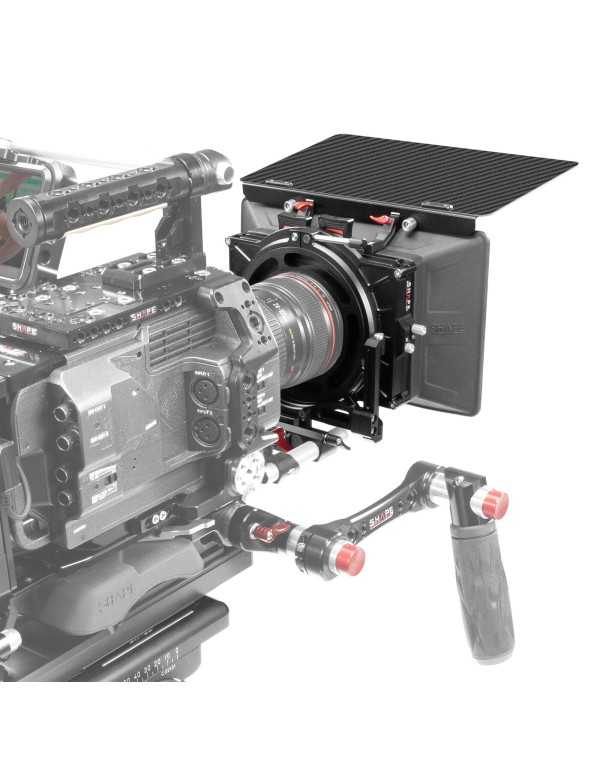

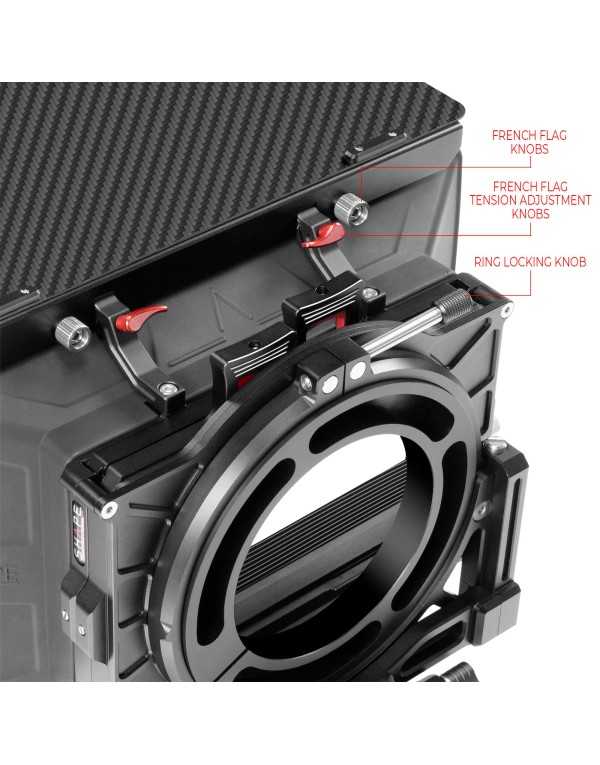

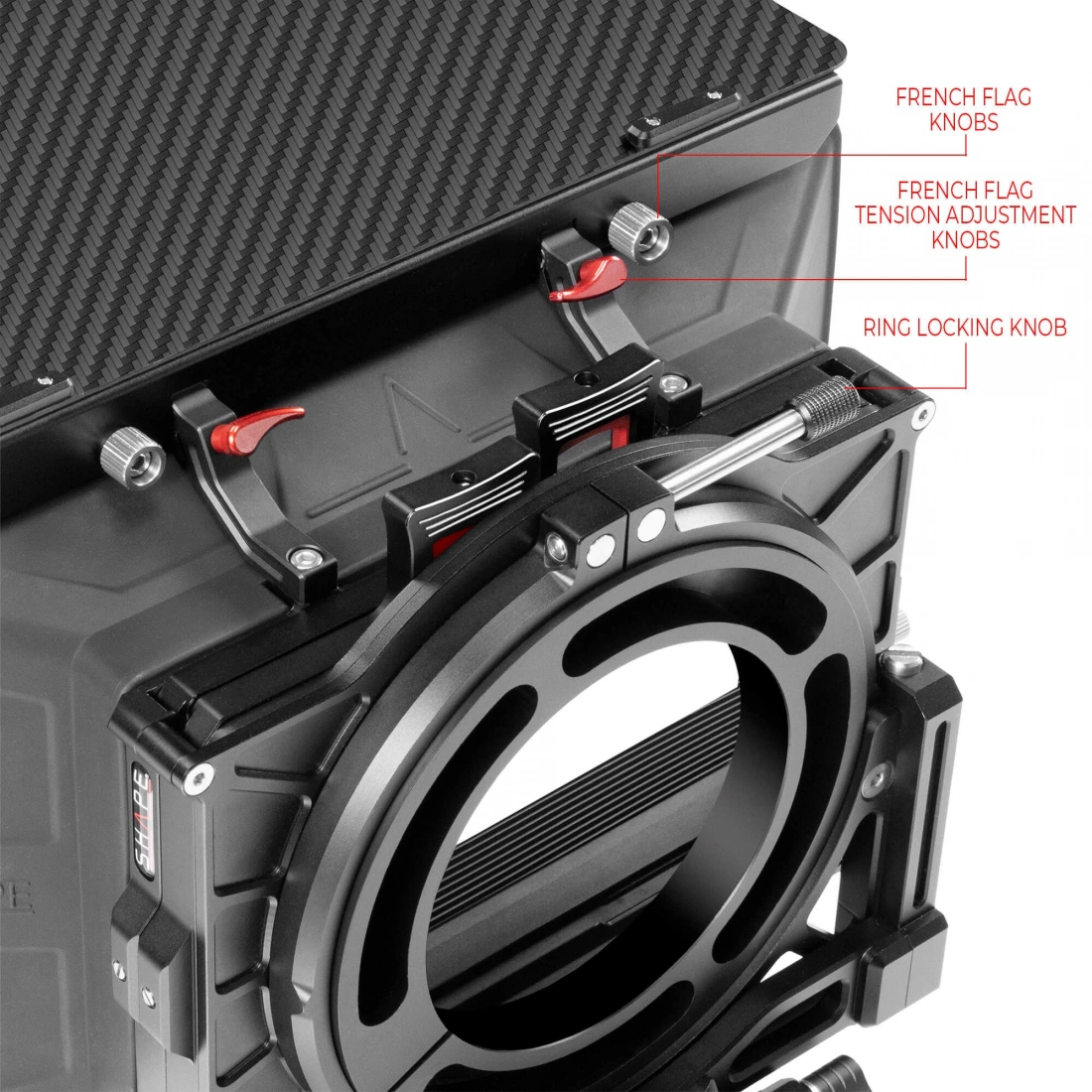

Removable light carbon fiber french flag can be attached to the top to prevent flares. A series of adapter rings are included in the kit:

Clamp-on adapter ring:

• 124-87 mm

Threaded aluminum adapter rings:

• 87-82 mm
• 87-77 mm
• 87-72 mm
• 87-67 mm

Fabric knicker:

• 124 mm

In the Box

• SHAPE Compact Quick Handle ARRI Rosette (Black)
• 2 x Quick Handle Rosette
• 2 x M6 Metric Screw
• Limited Lifetime Manufacturer Warranty
• SHAPE Compact Revolt Shoulder Baseplate
• SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
• SHAPE 15mm Aluminum Rods (Pair, 8")
• SHAPE 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Screw
• 2 x 3/8"-16 Screw
• 3mm Allen Wrench
• Limited Lifetime Manufacturer Warranty
• SHAPE Swing-Away Matte Box
• Silicone Shade Box
• 15mm LWS Rod Bracket
• 2 x 4 x 5.6" Filter Tray
• 87-67mm Threaded Adapter Ring
• 87-72mm Threaded Adapter Ring
• 87-77mm Threaded Adapter Ring
• 87-82mm Threaded Adapter Ring
• 124-87mm Clamp-On Adapter Ring
• 124mm Fabric Knicker
• Carbon Fiber Top Flag
• Limited Lifetime Warranty
• SHAPE Follow Focus Kit with Single 15mm Rod Clamp
• Follow Focus with 15mm Rod Clamp
• 0.5 MOD/78T Gear
• 0.6 MOD/64T Gear
• 0.8 MOD/43T Gear
• 0.8 MOD/38T Gear
• 0.8 MOD/78T Gear
• Speed Crank
• 11" Whip
• 4 x Magnetic Marking Disk
• Rubber Friction Wheel
• Limited Lifetime Manufacturer Warranty
• SHAPE 15mm Aluminum Rods (Pair, 4")
• Limited Lifetime Manufacturer Warranty
• SHAPE 15mm Aluminum Rods (Pair, 8")
• Limited Lifetime Manufacturer Warranty
