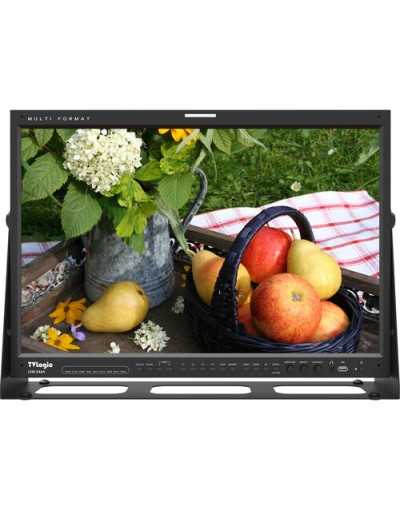

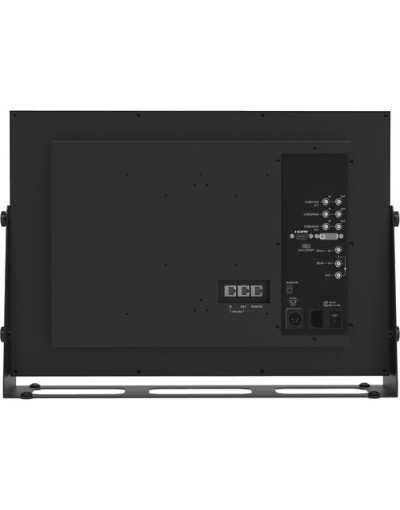

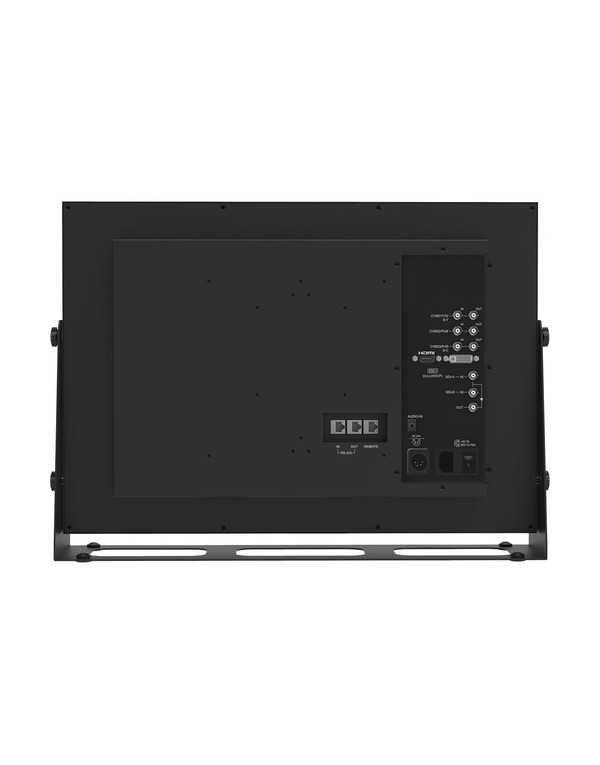

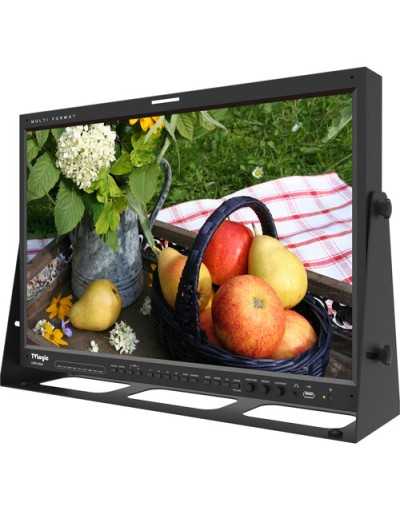

    TVLogic 24" Full HD 3G-SDI IPS LCD Monitor

    LVM-246A
    Special Order -
    AED12,176.00
    Tax excluded

    SKU : #LVM-246A

    Key Features :

    • 24" 1920 x 1200 IPS LCD Monitor
    • 2 x SDI, 1 x HDMI Inputs
    • 3 x Analog, 1 x DVI-I Inputs
    • 1 x SDI and 3 x Analog Outputs
    • Supports Inputs up to 1080p Video
    • 178° Viewing Angle
    • 600 cd/m² Maximum Brightness
    • Control via Buttons, RS-422, Remote
    • Various Image and Monitoring Controls

    NEED HELP?


    TVLogic LVM-246A Overview

    This 24" Full HD 3G-SDI IPS LCD Monitor from TVLogic is designed for field monitoring applications thanks to its various input connections and full HD 24" display. Various input connectors, two SDI, one HDMI, three analog BNC, and one DVI-I, support up to 1080p full HD video. The LVM-246A has a maximum brightness of 600 cd/m² and monitor resolution of 1920 x 1200 for improved visibility.

    In the Box :

    -----------------------------------------------

    • TVLogic 24" Full HD 3G-SDI IPS LCD Monitor
    • External Acrylic Filter
    • ND Filter
    • Rackmount Kit
    • Table Stand
    • AC Power Cord
    • Carrying Case
    • Limited 1-Year Manufacturer Warranty (LCD Panel)
    • Limited 2-Year Manufacturer Warranty (Hardware)
    Video I/O
    2x BNC (3G-SDI) Input 1x 3BNC (Component) Input 1x DVI-I Dual-Link Input 1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x 3BNC (Component) Output
    Mobile App Compatible
    No
    Dimensions
    No
    Weight
    23.8 lb / 10.8 kg
    Display Size
    24.00" / 61.0 cm
    Resolution
    1920 x 1200
    Touchscreen
    No
    Video Format
    HDMI 1080p: 60 1080i: 60 720p: 60 576p: 50 480p: 60 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 1035i: 60/59.94 720p: 60/59.94/50 576i: 50 480i: 59.94
    Power Consumption
    115 W
    Wifi
    No
    Bluetooth
    No
    DC Input Power
    12 to 24 VDC
    Screen Area
    20.4 x 12.8" / 518.4 x 324 mm
    Panel Type
    IPS-Type LCD
    Aspect Ratio
    16:10
    Viewing Angle
    Horizontal: 178° Vertical: 178°
    Maximum Brightness
    600 nits / cd/m2
    Contrast Ratio
    1000:1
    Dot Pitch
    0.27 x 0.27 mm
    Bit Depth / Color Support
    8-Bit (16.7 Million Colors)
    Image Controls
    Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform
    Audio I/O
    1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    No
    Power I/O
    1x XLR 4-Pin Input 1x IEC Input
    Other I/O
    1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output 1x RJ45 (GPI) 1x USB-A (Firmware)
    Media/Memory Card Slot
    No
    HDR Compatibility
    No
    Pixels Per Inch (ppi)
    94 ppi
    Video Standard Compliance
    SMPTE 125M/260M/274M/296M/425M-A/425M-B ITU -R BT.656
