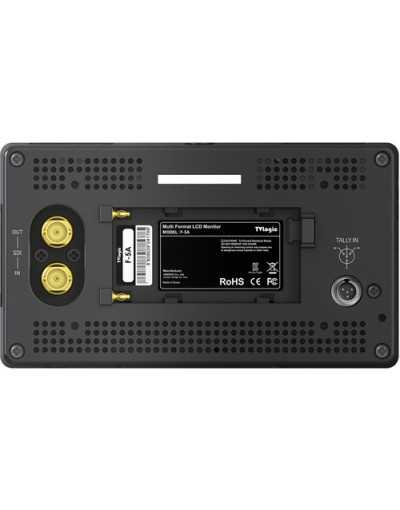

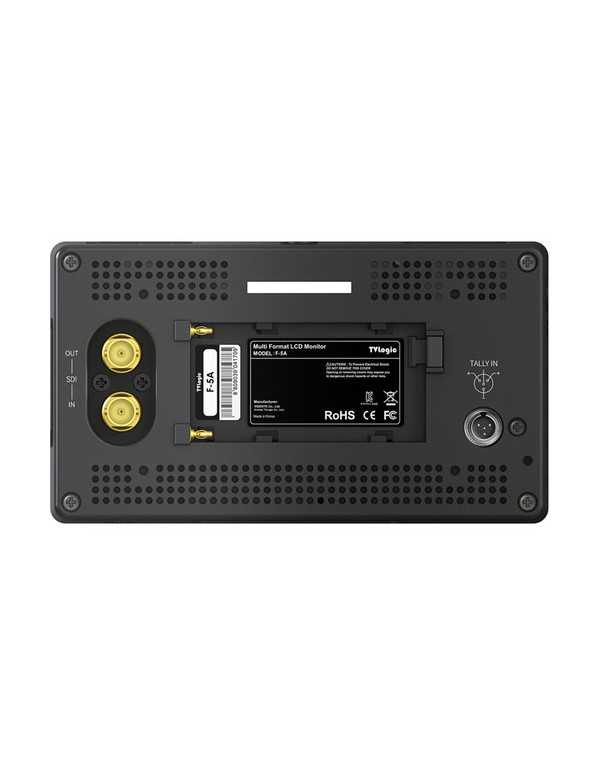

TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate

TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate

N278F-5A
Special Order -
AED4,261.00
Tax excluded

SKU : #N278F-5A

Key Features :

  • 5.5" 1920 x 1080 IPS Display
  • Waveform, Vectorscope & Audio Meter
  • 1000:1 Contrast Ratio
  • 160° Viewing Angle
  • 3G-SDI & HDMI Input/Output & Conversion
  • HDR Emulation of PQ, HLG & SLog3
  • Multiple Safety Area & Marker Functions
  • Supports Popular Camera LUTs
  • Integrated L-Series Battery Bracket
  • Lightweight, Durable Aluminum Chassis

NEED HELP?

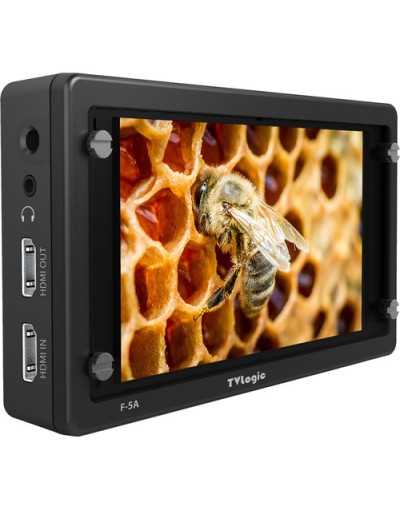

TVLogic's F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate offers cinematic image quality in a sleek, compact form suitable for use as an EVF or onboard camera monitor. This monitor features a 1080p Full HD IPS display with 160° viewing angle and a contrast ratio of 1000:1. Monitoring functions include waveform, vectorscope, and 16-channel audio level meter displays. The versatile F-5A monitor has both 3G-SDI and HDMI inputs and outputs, enabling HDMI-to-SDI and SDI-to-HDMI conversion.

In the Box :

---------------------------------------------------------------------------

  • TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
  • D-Tap Cable
  • L-Shaped BNC Adapter
  • Screen Protector
  • Camera Support
  • Limited 2-Year Warranty on Hardware
  • Limited 1-Year Warranty on Display Panel
Video I/O

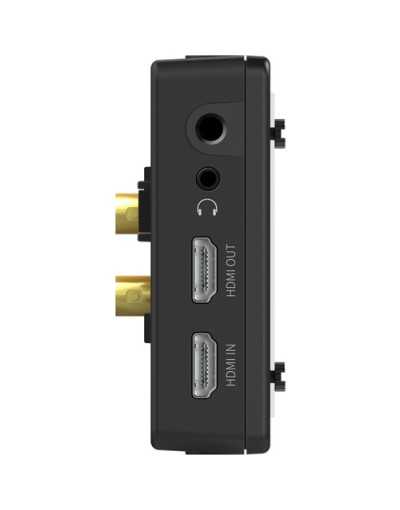

1x BNC (3G-SDI) Input 1x HDMI Input 1x BNC (3G-SDI) Output 1x HDMI Output
Battery Type
1x L-Series
Dimensions
6.4 x 3.6 x 1.1" / 162.5 x 92 x 27.6 mm
Weight
14.8 oz / 420 g
Display Size
5.5" / 14.0 cm
Resolution
1920 x 1080
Touchscreen
no
Power Consumption
10 W
DC Input Power
12 to 34 VDC at 0.65 A
Screen Area
4.83 x 2.72" / 122.7 x 69 mm
Panel Type
IPS-Type LCD
Aspect Ratio
16:9
Viewing Angle
Horizontal: 160° Vertical: 160°
Maximum Brightness
500 nits / cd/m2
Contrast Ratio
1000:1
Dot Pitch
0.0213 x 0.063 mm
Bit Depth / Color Support
8-Bit (16.7 Million Colors)
Real-Time LUT Monitoring
SDR
Image Controls
Blue Only, False Color, Focus Peaking, H/V Delay, Image Flip, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Embedded Audio
HDMI SDI
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
1
Power I/O
1x Barrel Input
Other I/O
No
Media/Memory Card Slot
No
PC Resolutions
1920 x 1080 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 800 at 60 Hz 1024 x 768 at 60/70/75 Hz 800 x 600 at 60/75 Hz 640 x 480 at 60/75 Hz 640 x 400 at 70 Hz
Video Signal Conversion
HDMI to SDI SDI to HDMI
Operating Temperature
32 to 77°F / 0 to 45°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Material of Construction
Aluminum
