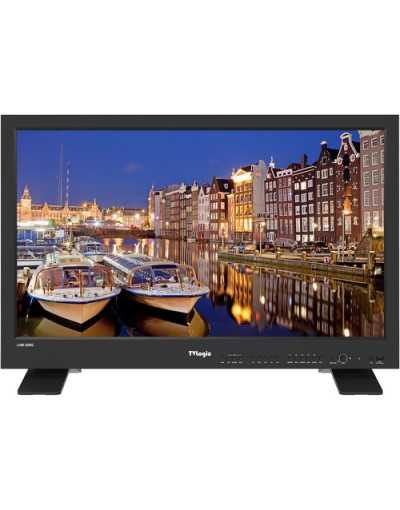

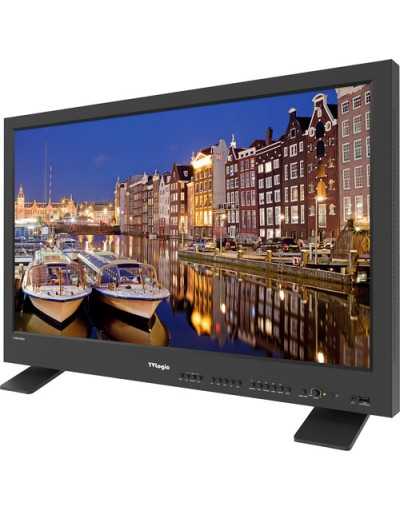

    TVLogic 31.5" UHD 4K SDI/HDMI LCD Monitor

    LUM-328G
    Special Order -
    AED44,067.00
    Tax excluded

    SKU : #LUM-328G

    Key Features

    • 31.5" UHD 4K LCD Monitor
    • 4 x SDI Inputs, 1 x HDMI Input
    • 2 x 12G-SDI and 2 x 3G-SDI Outputs
    • Supports Inputs up to UHD 4K Video
    • 178° Viewing Angle
    • 1000 cd/m² Maximum Brightness
    • Control via Buttons, RS-422, Remote
    • Various Image Monitoring Controls

    NEED HELP?


    TVLogic LUM-328G Overview

    Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to this 31.5" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections while the 3G-SDI ports can perform in quad-link configurations.

    In the Box

    -----------------------------------------------------

    • TVLogic 31.5" UHD 4K SDI/HDMI LCD Monitor
    • AC Power Cord
    • Table Stand
    • Limited 1-Year Manufacturer Warranty (LCD Panel)
    • Limited 2-Year Manufacturer Warranty (Hardware)
    Video I/O
    2x BNC (12G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output 1x HDMI 2.0 Input
    Mobile App Compatible
    No
    Display Size
    31.5" / 80.0 cm
    Resolution
    3840 x 2160
    Touchscreen
    No
    Wifi
    No
    Bluetooth
    No
    Screen Area
    27.45 x 15.44" / 697.31 x 392.23 mm
    Panel Type
    LCD
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178° Vertical: 178°
    Maximum Brightness
    1000 nits / cd/m2
    Contrast Ratio
    1000:1
    Dot Pitch
    0.18159 x 0.18159 mm
    Bit Depth / Color Support
    10-Bit (1.07 Billion Colors)
    Real-Time LUT Monitoring
    SDR
    Image Controls
    Blue Only, Focus Assist, H/V Delay, Vectorscope, Waveform
    Audio I/O
    1x 1/8" / 3.5 mm Headphone Output 1x 1/8" / 3.5 mm Line Input
    Built-In Speaker
    No

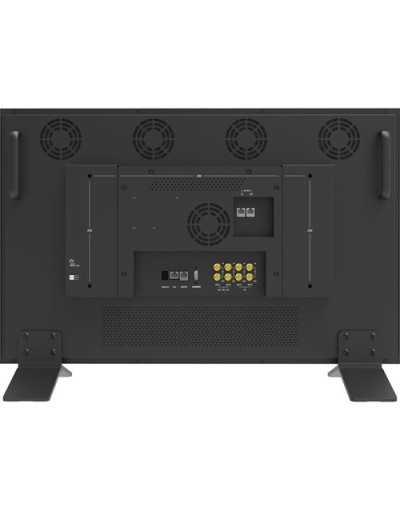

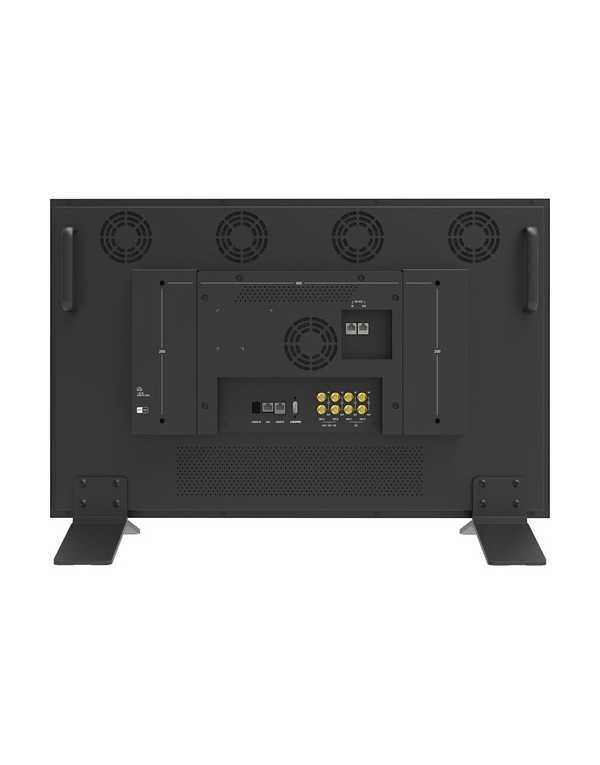

    Other I/O
    1x USB-A (Firmware) Input 1x RJ45 (GPI) Input 1x RJ45 (LAN) Input 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output
    Media/Memory Card Slot
    No
    HDR Compatibility
    Hybrid Log Gamma
    Pixels Per Inch (ppi)
    139 ppi
