TVLogic LVM-095W-N 9" 1080p LCD Multipurpose 3G-SDI/HDMI Monitor | Camera Monitors | CAM TOOLS Middle East | TV Logic

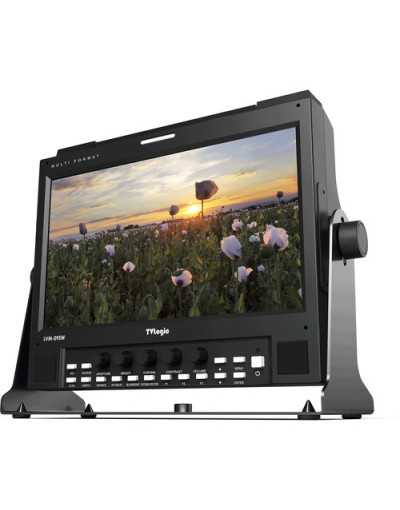

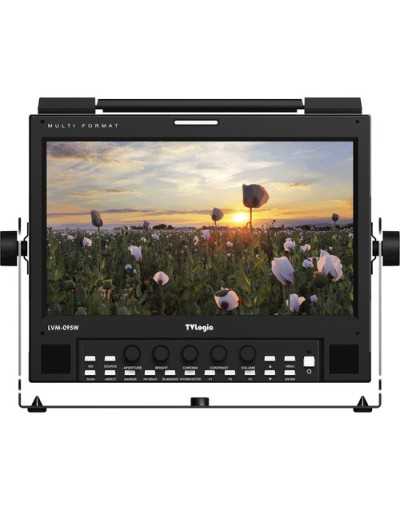

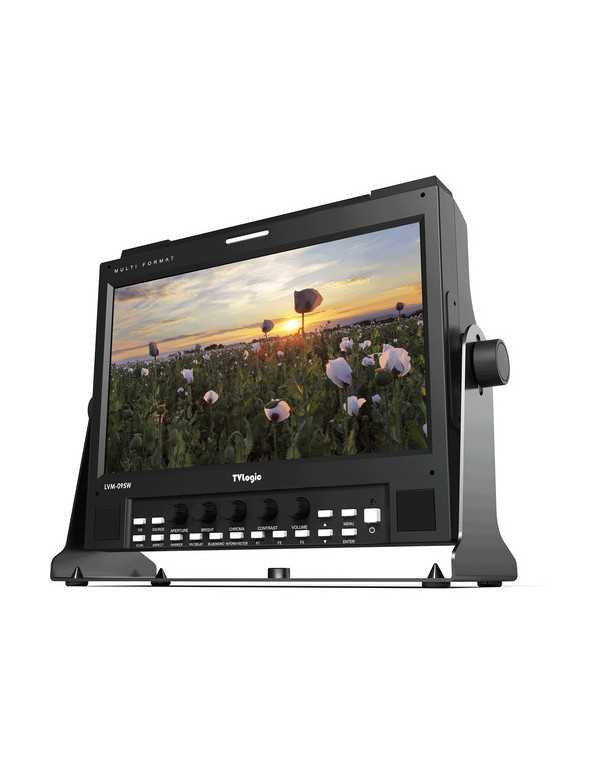

TVLogic LVM-095W-N 9" 1080p LCD Multipurpose 3G-SDI/HDMI Monitor

Name: TVLogic LVM-095W-N 9" 1080p LCD Multipurpose 3G-SDI/HDMI Monitor
Brand: TV Logic
SKU: LVM-095W-N
Price: 10578.24 AED
Availability: BackOrder

Reference LVM-095W-N

Special Order -

AED10,578.24

Tax excluded

SKU : #LVM-095W-N

Key Features :

For Film and Video Professionals
1920 x 1080 Resolution LCD
2 x 3G-SDI / 1 x HDMI Input
3G-SDI Input with Active Loop-Through
176° Viewing Angle
3.5mm Audio I/O and Built-In Speakers
750:1 Contrast Ratio
Supports Popular Camera LUTs
Wide Range of Display Tools and Overlays

NEED HELP?

TVLogic LVM-095W-N Overview

The LVM-095W-N 9" 1080p LCD Multipurpose 3G-SDI/HDMI Monitor from TVLogic produces crisp images for effective remote viewing and can be configured for both on- and off-camera use. This monitor is lightweight and portable yet maintains a large library of features and display overlays that one would expect from a professional video monitor.

In the Box

-----------------------------------------------------------------------------

TVLogic LVM-095W-N 9" 1080p LCD Multipurpose 3G-SDI/HDMI Monitor
AC Power Cord
DC Power Adapter
Stand
Handle
Camera Mount
Limited 1-Year Manufacturer Warranty

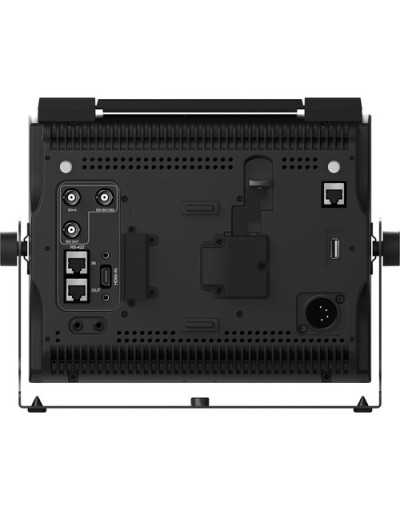

Video I/O: 1x HDMI Input 2x BNC (3G-SDI) Input 1x BNC Loop Output
Mobile App Compatible: No
Battery Type: 1x V-Mount
Dimensions: 8.8 x 6.9 x 2.4" / 223 x 175 x 60 mm 10.2 x 7.6 x 3.5" / 260 x 194.2 x 90 mm, Including Stand
Weight: 4.63 lb / 2.10 kg
Display Size: 9.0" / 22.9 cm
Resolution: 1920 x 1080
Touchscreen: No
Video Format: HDMI/SDI 1080p: 60
Power Consumption: 24 W
Mounting: 1x 1/4"-20 Female
Wifi: No
Bluetooth: No
DC Input Power: 12 to 24 VDC at 3 to 6 A
Screen Area: 7.8 x 4.4" / 198 x 111 mm
Panel Type: LCD
Aspect Ratio: 16:9
Viewing Angle: Horizontal: 176° Vertical: 176°
Maximum Brightness: 400 nits / cd/m2
Contrast Ratio: 750:1
Dot Pitch: 0.1035 x 0.0135 mm
Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
Image Controls: Blue Only, Customizable Aspect Ratios, Focus Assist, Frame Luminance Monitor, H/V Delay, Image Flip, Overscan, Scaling, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
Embedded Audio: HDMI/SDI
Audio I/O: 1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Output
Built-In Speaker: 1
Power I/O: 1x XLR 4-Pin Input
Other I/O: 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output 1x USB-A (Firmware)
Media/Memory Card Slot: No
No
Video Signal Conversion: HDMI to SDI
Operating Temperature: 32 to 104°F / 0 to 40°C
Storage Temperature: -22 to 122°F / -30 to 50°C
Material of Construction: Aluminum
HDR Compatibility: No
Pixels Per Inch (ppi): No
Gamma Curve: ARRI Log C, Canon Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3
Video Standard Compliance: SMPTE 125M/260M/274M/296M/424M-A/424M-B ITU -R BT.656
