    TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor

    LXM-240P
    Special Order -
    AED30,726.48
    Tax excluded

    SKI : #LXM-240P

    Key Features :

    • 23.8" Display, 3840 x 2160 Resolution
    • 4 x 3G/12G-SDI I/O, 1 x HDMI Input
    • 1000 cd/m² Bright, 1000:1 Contrast

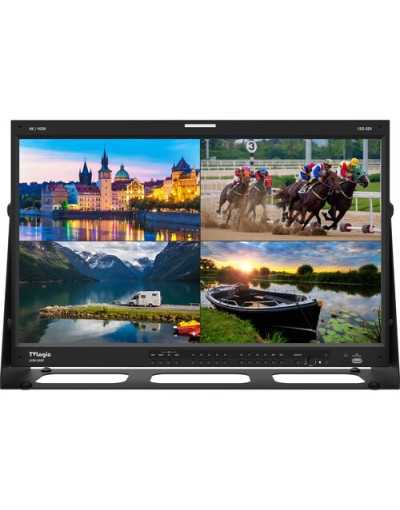

    • Wide Color Gamut, Quad/Dual View Tools
    • HDMI/SDI Cross Conversion
    • HDR/SDR Comparison
    • Quad-Link 3G-SDI Input/Output
    • Speaker & Headphone Output

    NEED HELP?


    TVLogic LXM-240P Overview

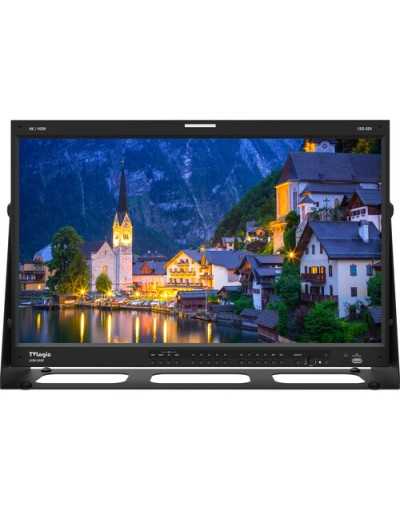

    Add a professional-grade UHD 4K monitor to your production environment with this LXM-240P 23.8" DCI/UHD 4K Monitor from TVLogic. This bright and vivid monitor supports HDR emulation including a wide color gamut, wide dynamic range, PQ, HLG, and SLog3 gamma, and 10-bit color support, and its native resolution is 3840 x 2160. It accepts video up to UHD 4K via its HDMI 2.0 input or four 12G-SDI inputs, and up to 1080p60 via two 3G-SDI input. It also features 12G-SDI and 3G-SDI quad-link loop outputs to send the signals to additional monitors or switchers for quad-view or dual-view displays.

    In the Box

    ------------------------------------------------------

    • TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor
    • AC Power Cord
    • Desktop Stand
    • USB Port Cover
    • Limited 1-Year Manufacturer Warranty

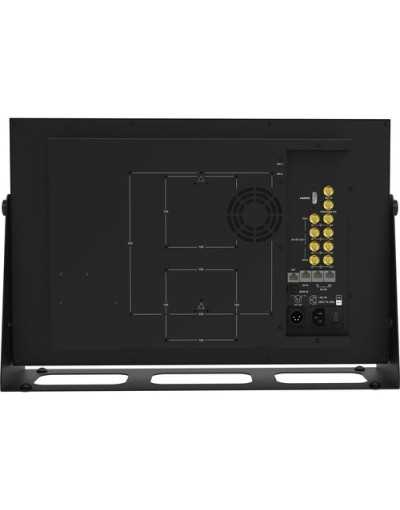

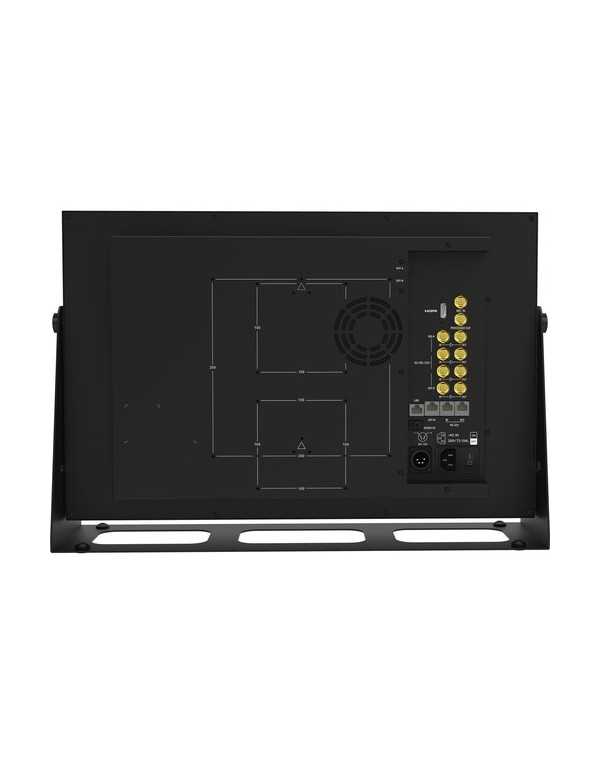

    Video I/O
    4x BNC (12G-SDI) Input 1x HDMI 2.0 Input 4x BNC (12G-SDI) Loop Output 1x BNC (Unspecified SDI) Output
    Mobile App Compatible
    No
    Dimensions
    21.75 x 14.19 x 3.78" / 55.25 x 36.04 x 9.59 cm 23.07 x 15.28 x 5.9" / 58.61 x 38.82 x 15 cm, Including Stand
    Weight
    22.0 lb / 10 kg
    Display Size
    23.8" / 60.5 cm
    Resolution
    3840 x 2160
    Touchscreen
    No
    Wifi
    No
    Bluetooth
    No
    Screen Area
    20.70 x 11.64" / 52.7 x 29.65 cm
    Panel Type
    IPS-Type LCD
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178° Vertical: 178°
    Maximum Brightness
    1000 nits / cd/m2
    Contrast Ratio
    1000:1
    Dot Pitch
    0.137 x 0.137 mm
    Bit Depth / Color Support
    10-Bit (1.07 Billion Colors)
    Real-Time LUT Monitoring
    SDR, HDR
    Image Controls
    Histogram, Vectorscope, Waveform
    Audio I/O
    1x 1/8" / 3.5 mm Line Input
    Built-In Speaker
    No
    Power I/O
    1x XLR 4-Pin (12 VDC) Input 1x IEC Input
    Other I/O
    1x BNC (Reference) Input 1x RJ45 (LAN) 1x RJ45 (GPI) Input 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output
    Media/Memory Card Slot
    No
    Video Signal Conversion
    HDMI to SDI SFP+ to SDI
    HDR Compatibility
    Hybrid Log Gamma
    Pixels Per Inch (ppi)
    185 ppi

    If your cart contains products with different delivery times, your order will be split, and items will be delivered separately based on their availability.

    • Products in stock: 1-3 days
    • Limited stock: 3-7 days
    • Backordered items: 1-4 weeks
