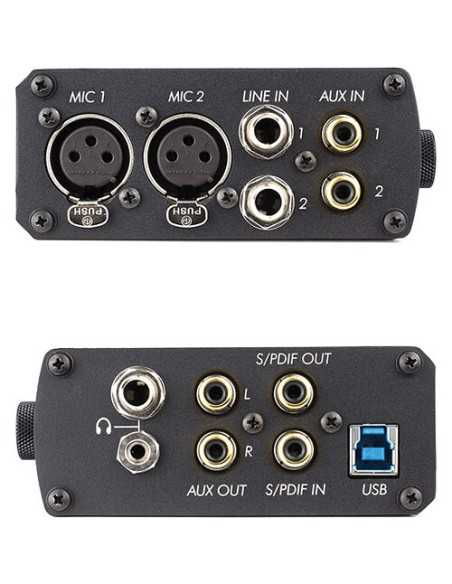

Sound Devices USBPre 2 USB-B Audio Interface
SKU : #USBPRE 2
Key Features :
- Field Mixers & Location Sound Recordists
- Bus Powered, Mac/Windows/Linux

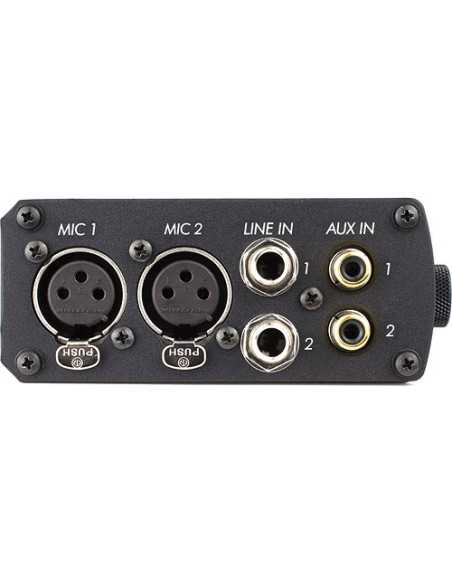

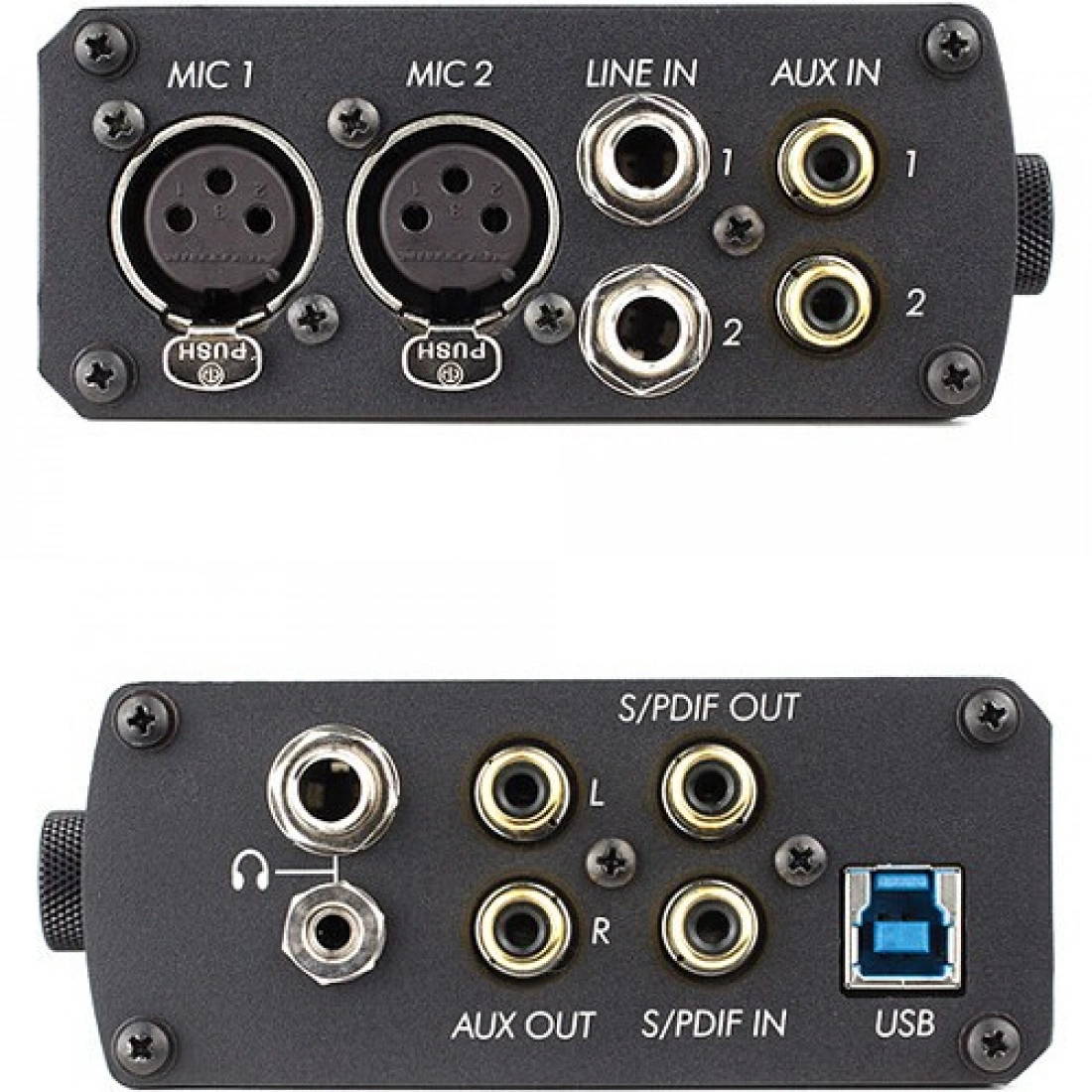

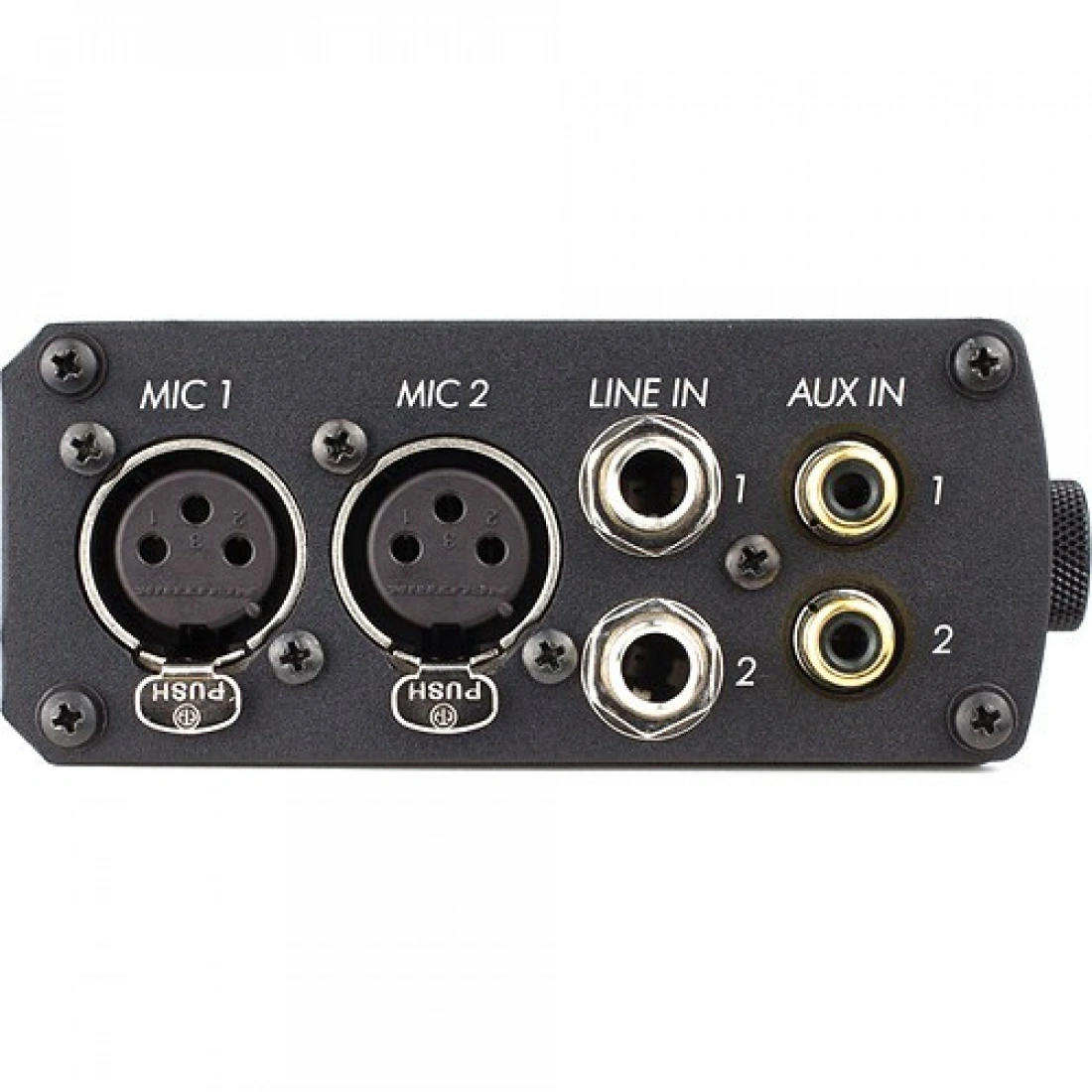

- 2 Mic Preamps, 2 Line In, Stereo Aux In

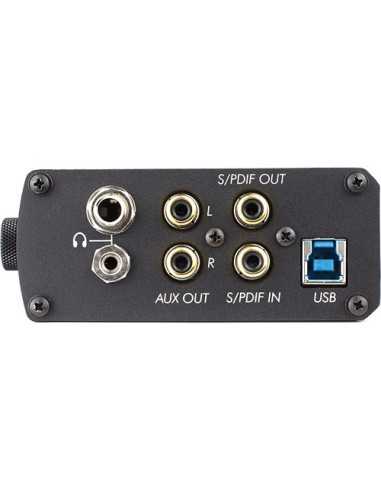

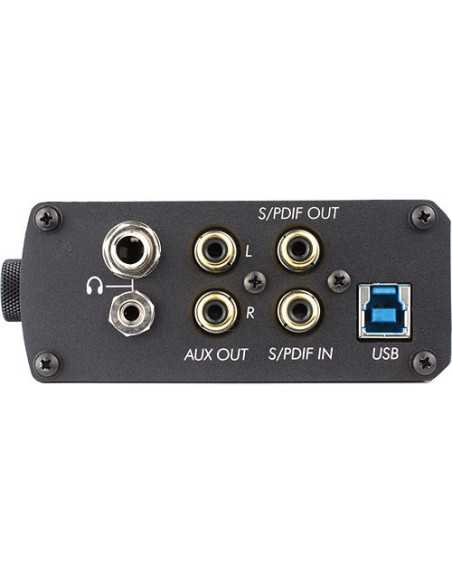

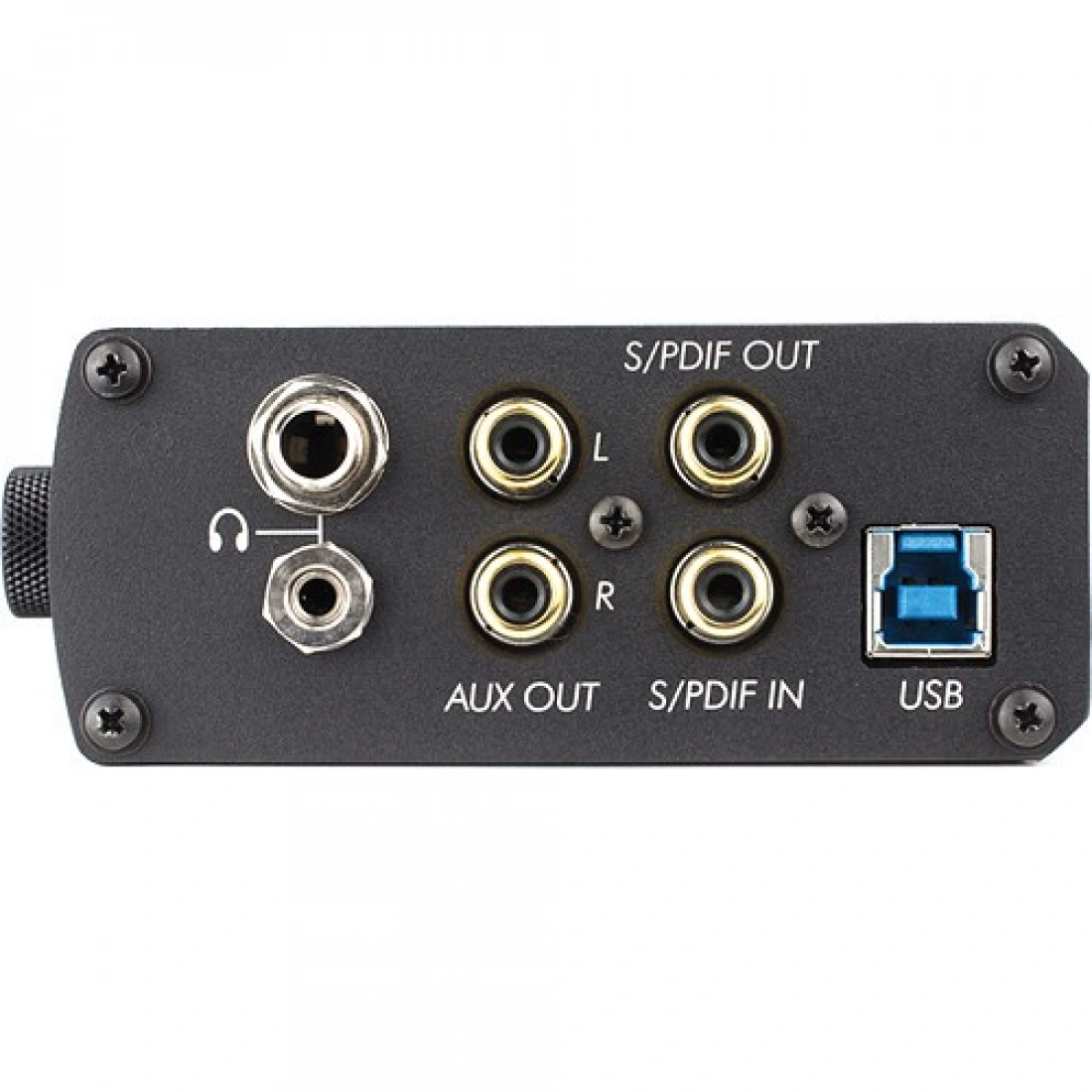

- 2 Headphone, 2 Mic/Line, 2 Aux Out
- 24-Bit / 192 kHz AD/DA Conversion
- +48V, Pads, Limiters, High-Pass Filters

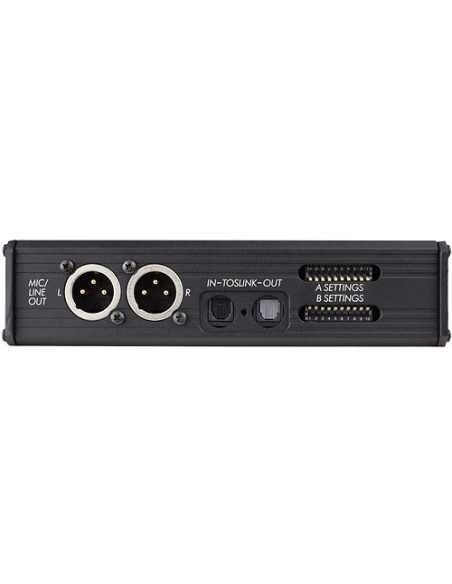

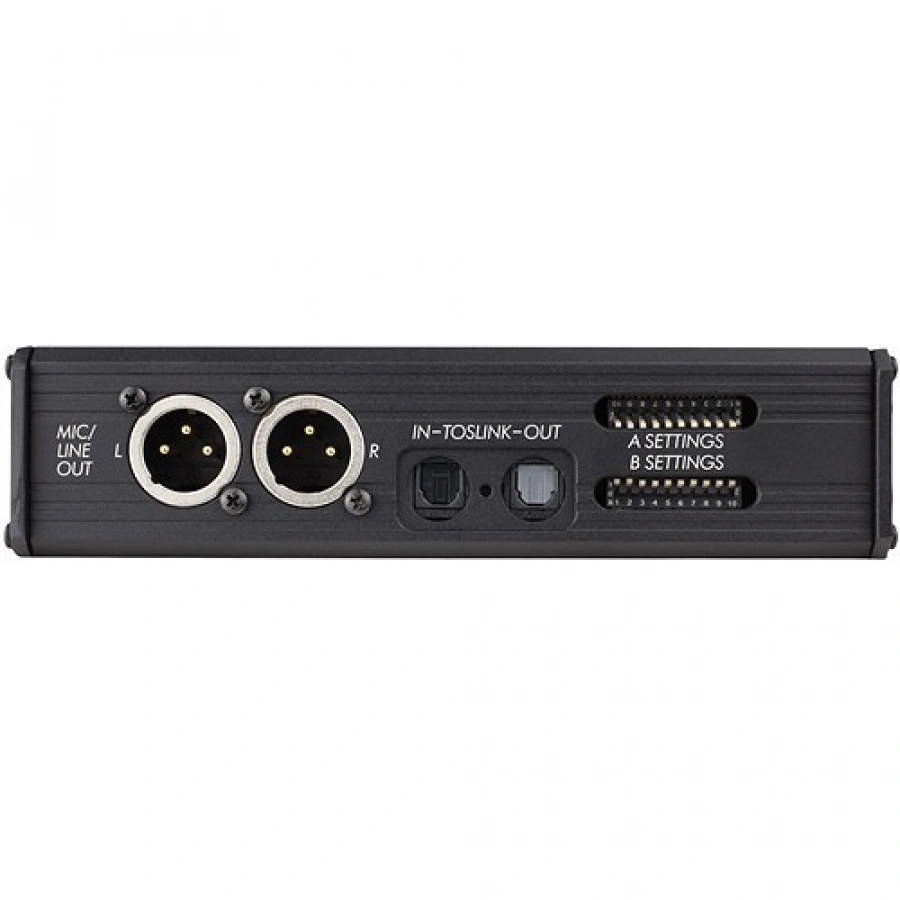

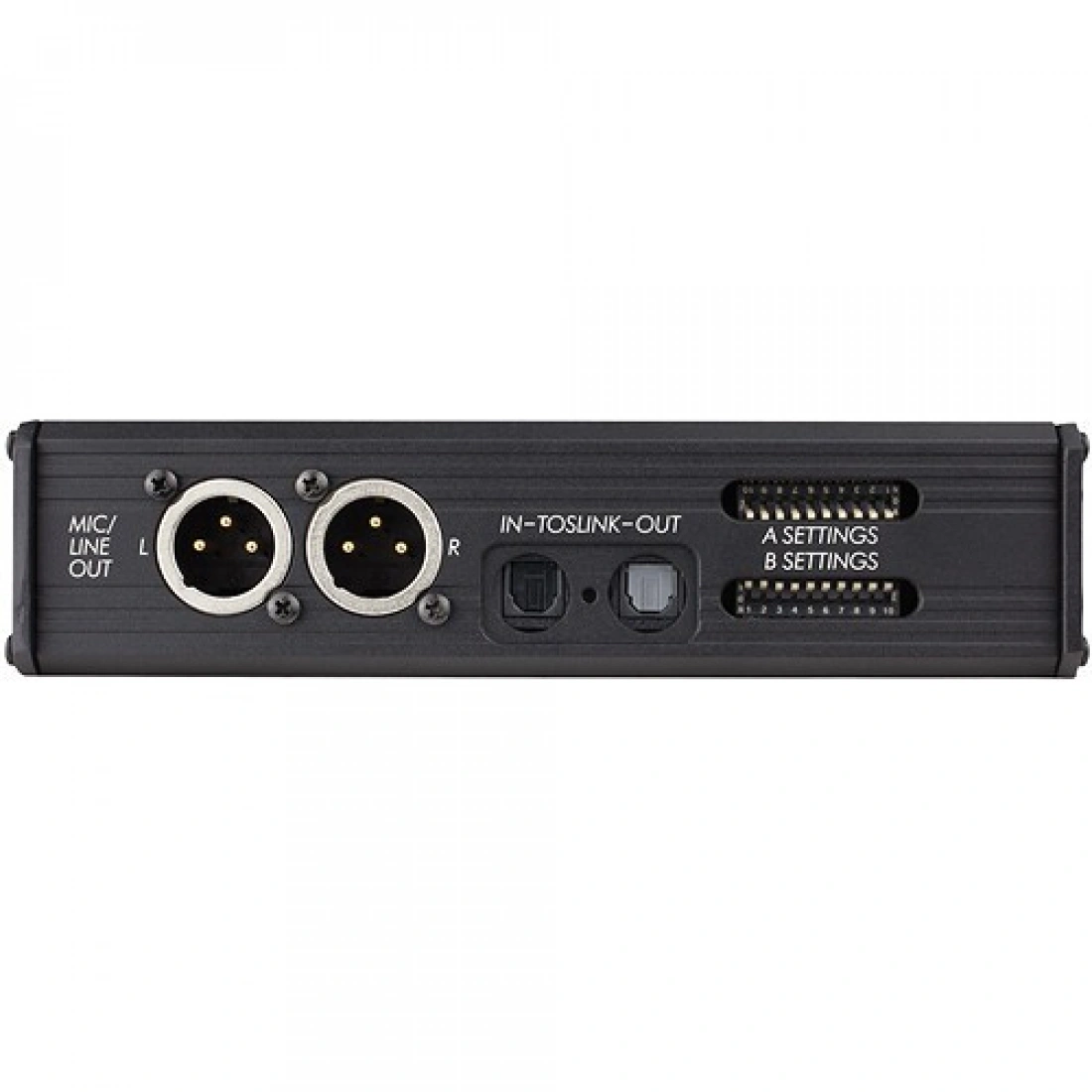

- Coaxial and Optical S/PDIF I/O
- Standalone Preamp/Converter Operation

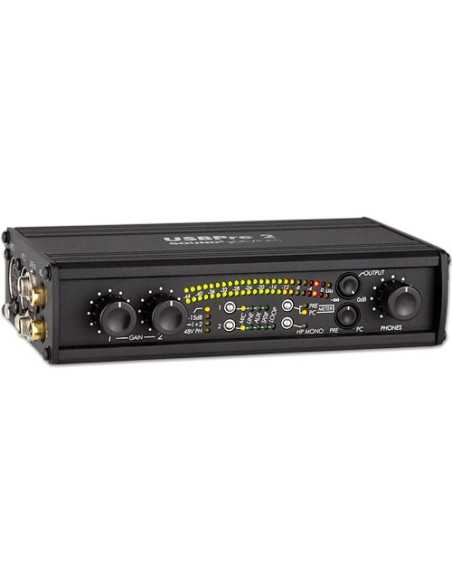

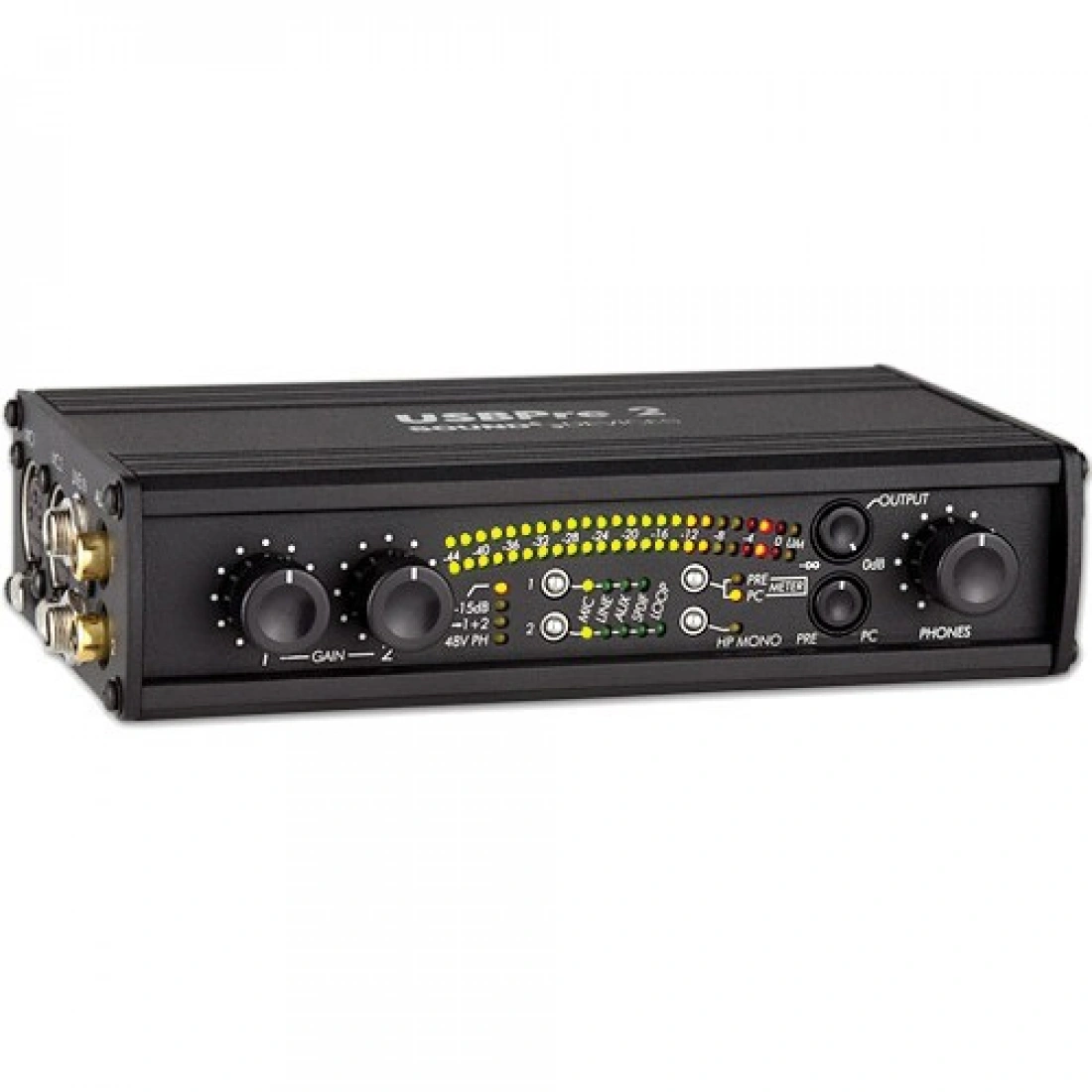

- Multicolor LED Meter
Sound Devices USBPre 2 Overview
With topology from the award-winning 788T recorder, field-tested reliability, and class-compliant operation, the Sound Devices USBPre 2 portable 2x2 USB audio interface offers field mixers and location sound recordists a rugged, simple, and high-resolution device that connects professional microphones, line-level sources, consumer audio electronics, and S/PDIF digital sources with Mac, Windows, or Linux computer systems.
In the Box
-------------------------------------------------------
- Sound Devices USBPre 2 USB-B Audio Interface
- USB Type-B to Type-A Cable (6.6')
- 4 x Adhesive Rubber Bumpers
- Limited 2-Year Manufacturer Warranty
- Dimensions
- 7.25 x 4.25 x 1.7" / 18.41 x 10.79 x 4.3 cm
- Weight
- 1.1 lb / 0.5 kg
- Package Weight
- 2.385 lb
- Media/Memory Card Slot
- No
- High-Pass Filter
- Mic Input: 80 Hz, 12 dB/Octave
- Sample Rate
- 8 / 16 / 32 / 44.1 / 48 / 96 / 192 kHz
- OS Compatibility
- macOS 10.4 or Later Windows XP Windows Vista Windows 7 (32/64-Bit) Linux 2.6.0 or Later
- Maximum Sampling Rate
- 192 kHz / 24-Bit
- Number of Microphone Inputs
- 2 Preamps
- Bit Depth
- 8 / 16 / 24-Bit
- Digital I/O
- 1x TOSLINK Optical S/PDIF Input 1x TOSLINK Optical S/PDIF Output 1x RCA Coaxial S/PDIF Input 1x RCA Coaxial S/PDIF Output
- Phantom Power
- 10 mA per Channel
- Gain/Trim Range
- Mic Inputs: Up to +80 dBu Line Inputs: Up to +30 dBu
- Dynamic Range
- A/D Converters: 114 dB (A-Weighted, 22 Hz to 22 kHz) D/A Converters: 112 dB (A-Weighted, 22 Hz to 22 kHz)
- Impedance
- Aux Inputs: 80 Kilohms (Balanced) Aux Outputs: 660 Ohms (Balanced) Line Inputs: 60 Kilohms (Balanced) Mic Inputs: 4 Kilohms (Balanced) XLR Outputs: 500 Ohms (Balanced, Line Level) 5 Ohms (Balanced, Mic Level)
- THD+N
- System: 0.05% Aux Outputs: 0.009% Headphone Outputs: 0.05%
- Frequency Response
- 10 Hz to 40 kHz ±0.5 dB (at 96 kHz, 1 kHz)
- Power Requirements
- USB Bus Power
- Included Software
- No
- EIN
- Mic Inputs: -127 dBu (150-Ohm Source)
- Channels of I/O
- Analog: 2 Inputs / 2 Outputs Digital: 2 Inputs / 2 Outputs
- Host Connection
- 1x USB-B (Class-Compliant)
- Host Connection Protocol
- USB 2.0
- Sync I/O
- No
- Network I/O
- No
- MIDI I/O
- No
- Maximum Input Level
- Mic Inputs: -10 dBu +4 dBu (with Pad) Line Inputs: +28 dBu Aux Inputs: +9 dBu
- Maximum Output Level
- Aux Outputs: +8 dBu Headphone Outputs: +11 dBu XLR Outputs: +18 dBu (Balanced)
- Sync Sources
- Internal or S/PDIF
- Required Hardware
- Available USB 1.1 Port or USB 2.0 Port USB Cable (Included)
- Box Dimensions (LxWxH)
- 10.45 x 7.4 x 4.15"
