SKU : #CNT.003.001
Key Features :
- Color TFT LED Display, Analog Controls
- Wi-Fi Access Point
- IEEE 802.11 a/b/g/n, 10/100 Mb/s
- Wi-Fi : 2.412~2.484 GHz (13-Ch)
- Wi-Fi : 5.180~5.845 GHz (35-Ch)
- 2 x DMX Outputs, 5-Pin XLR
- Art-Net/DMX Nodule
- Basic DMX Recorder
- AC and V-Mount Battery Power Options

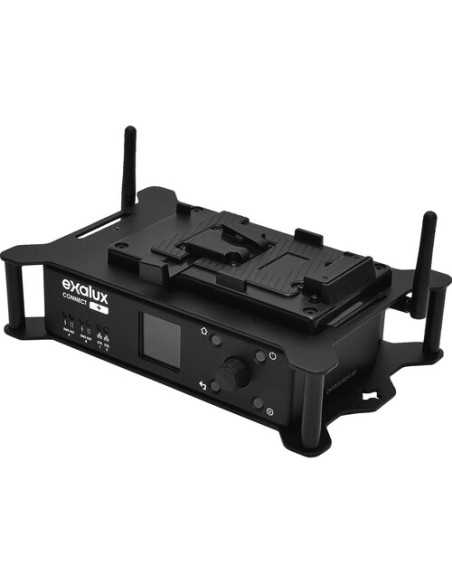

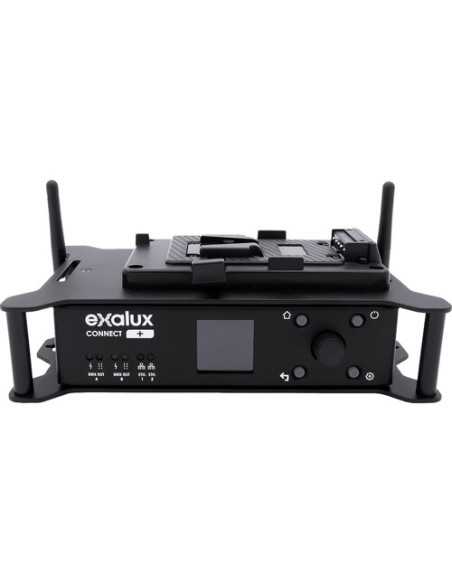

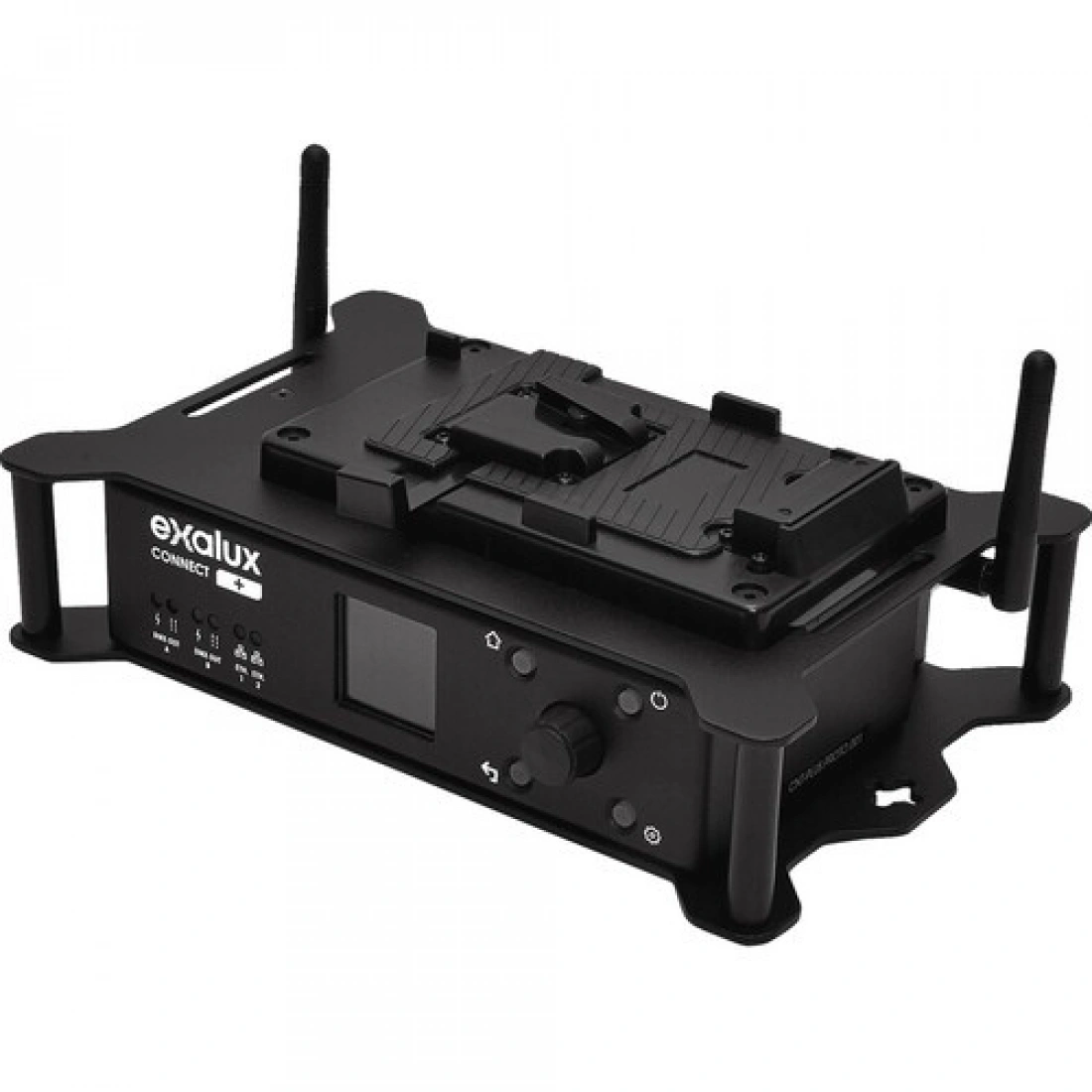

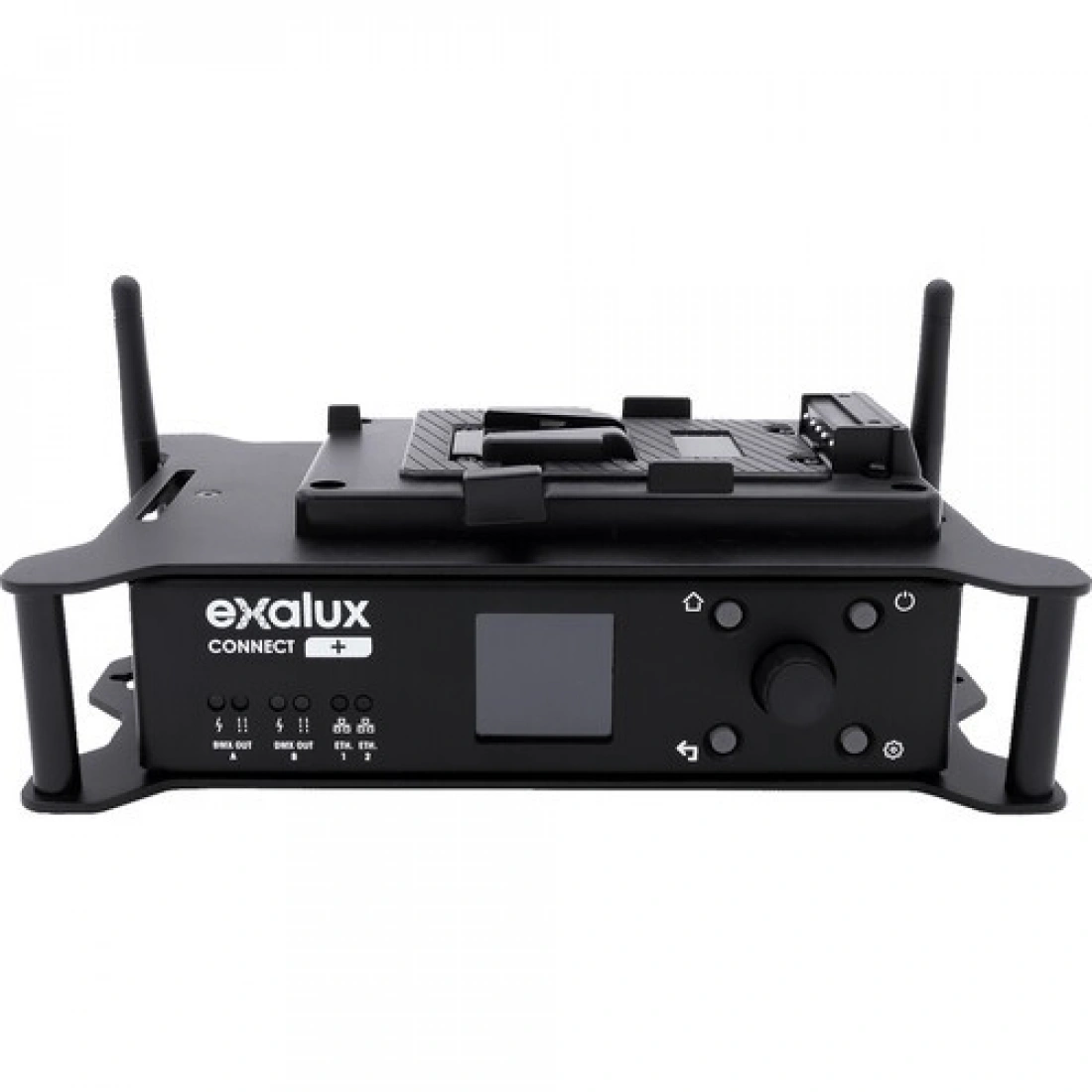

Exalux Connect+ Overview
The CONNECT+ Dual-Band Wi-Fi to DMX Gateway from Exalux allows wireless lighting control via an Art-Net compatible app. CONNECT+ is compatible with most DMX apps like BlackOut, DMX Connect+, Luminaire, and more. It makes it possible to control lighting fixtures with an iPad or an Art-Net/sACN console, plus controlling HUE lamps and NYX lamps. It features a high-performance dual-band (2.4 GHz + 5 GHz) MiMo Wi-Fi Access point for reliable and responsive connectivity. Switch the 5 GHz Wi-Fi to use your CONNECT+ with a CRMX transmitter, such as the TX100N, and avoid any interference, or use it if the area is too noisy. It features a mode that makes it possible to automatically select the clearer frequency band.
In the Box
------------------------------------------------------------
- Exalux CONNECT+ Dual-Band Wi-Fi to DMX Gateway
- AC Adapter with Plug Adapters
- Limited 2-Year Manufacturer Warranty
- Power Source
- AC Adapter
- Inputs/Outputs

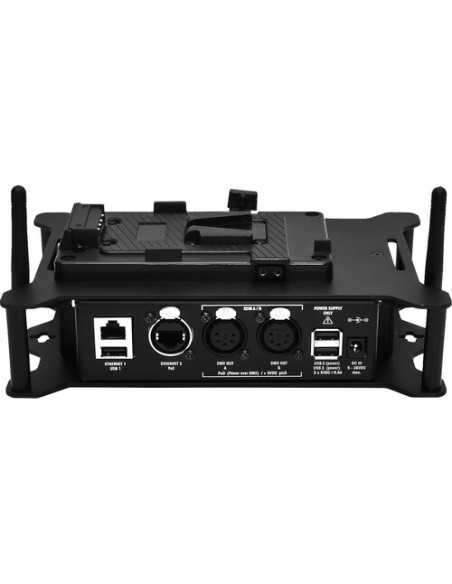

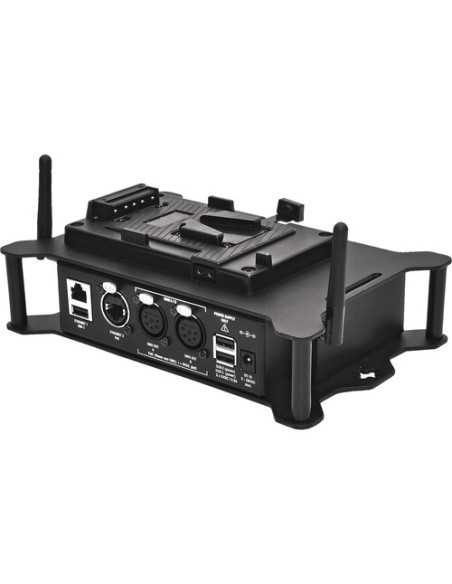

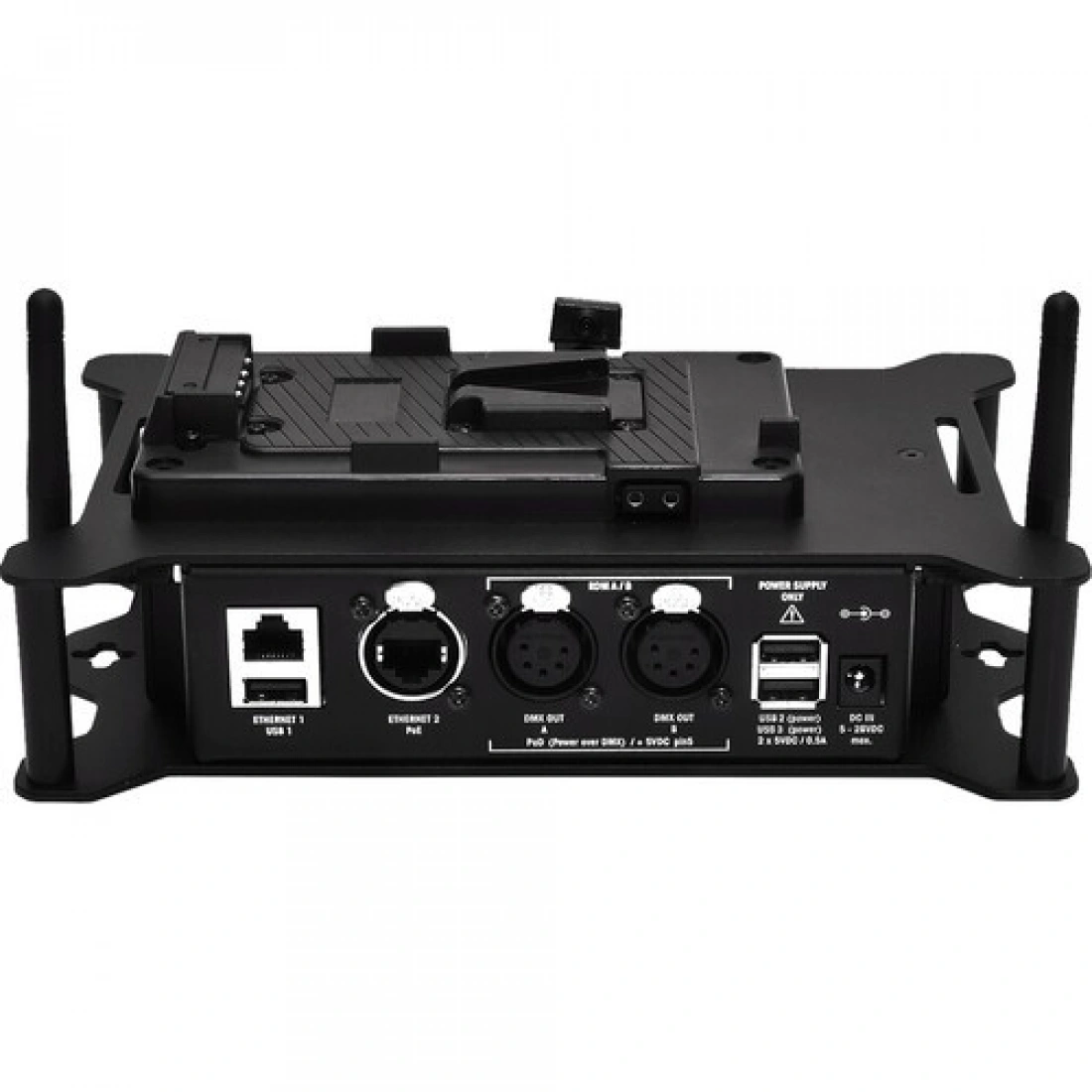

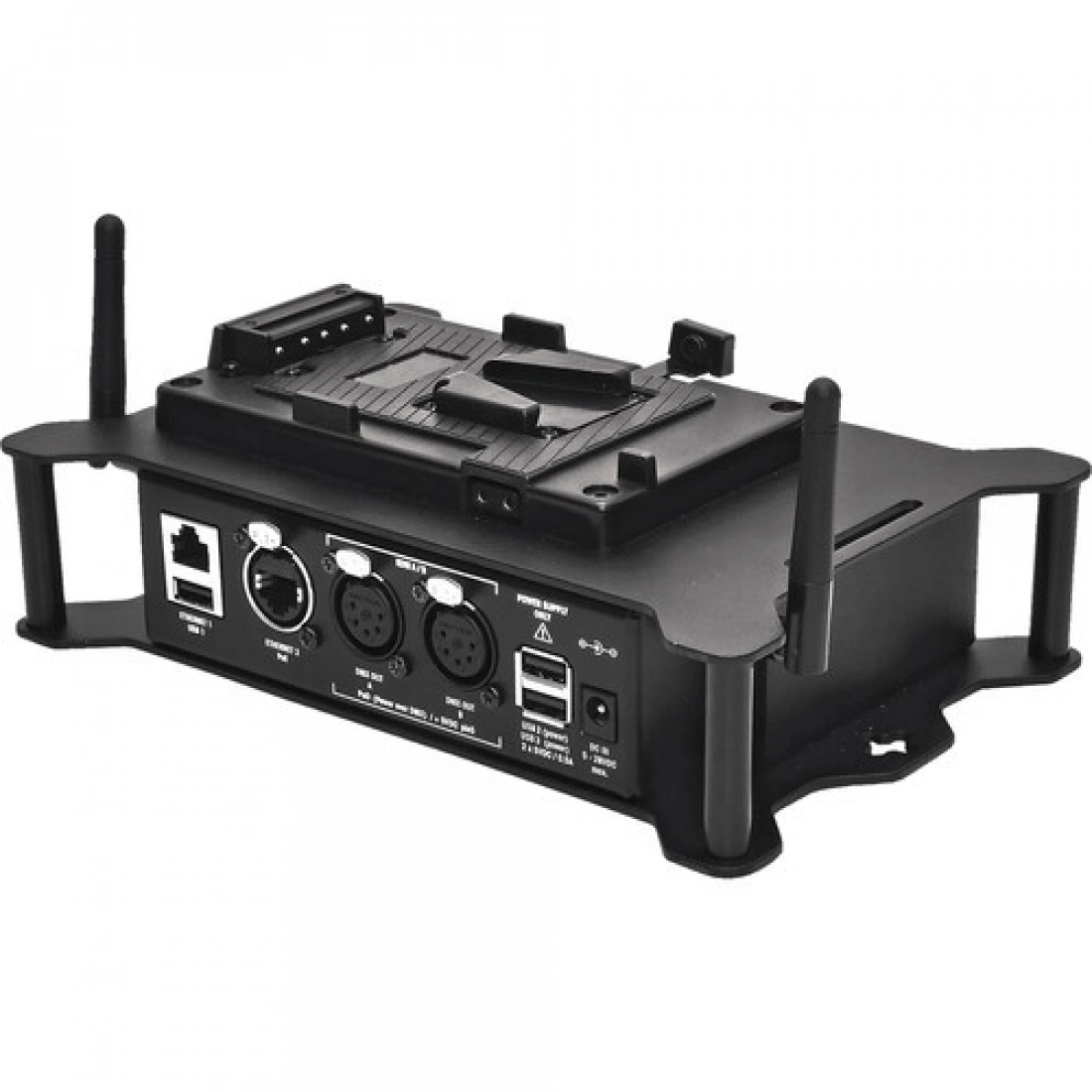

- 2x XLR 5-Pin (DMX) Locking Female Output 2x RJ45 (10/100 Ethernet) Female 1x USB-A (10/100 Ethernet) Female Input 2x USB-A (Power) Female Output 1x DC Barrel (Power) Female Input
- Channels
- 35
- Wireless Protocol
- DMX512
