Wooden Camera Dual Director's Monitor Cage v3

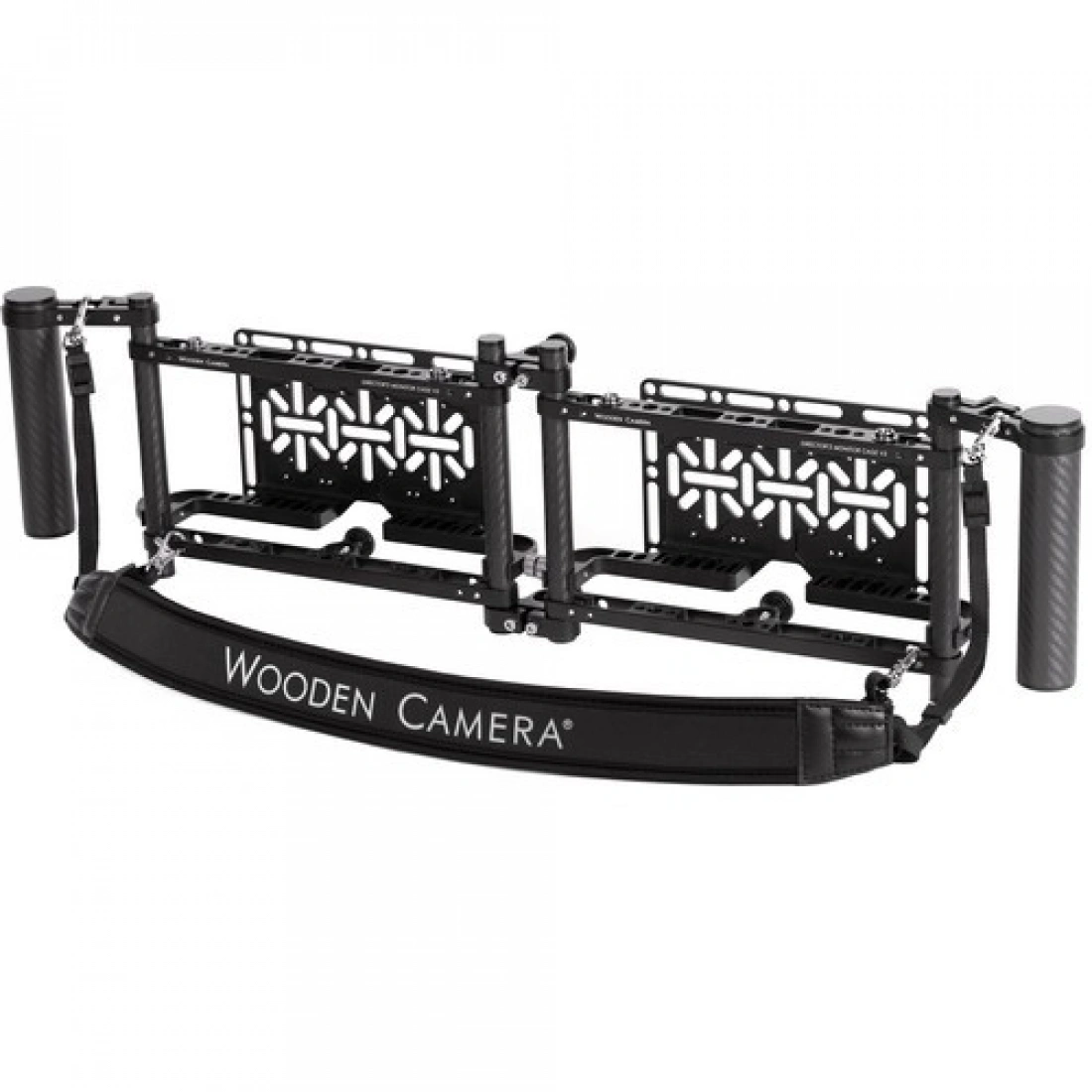

The Dual Director's Monitor Cage v3 is engineered to be universally compatible with any monitor up to 9 inches (measured diagonally) and attaches via top, bottom, or rear 1/4-20 mounting locations. New design provides 33% weight reduction compared to the previous model and adds unique new features like a dual direction swing away bracket, quick release neck strap, dual Teradek mounting areas, and carbon fiber rods and handles.

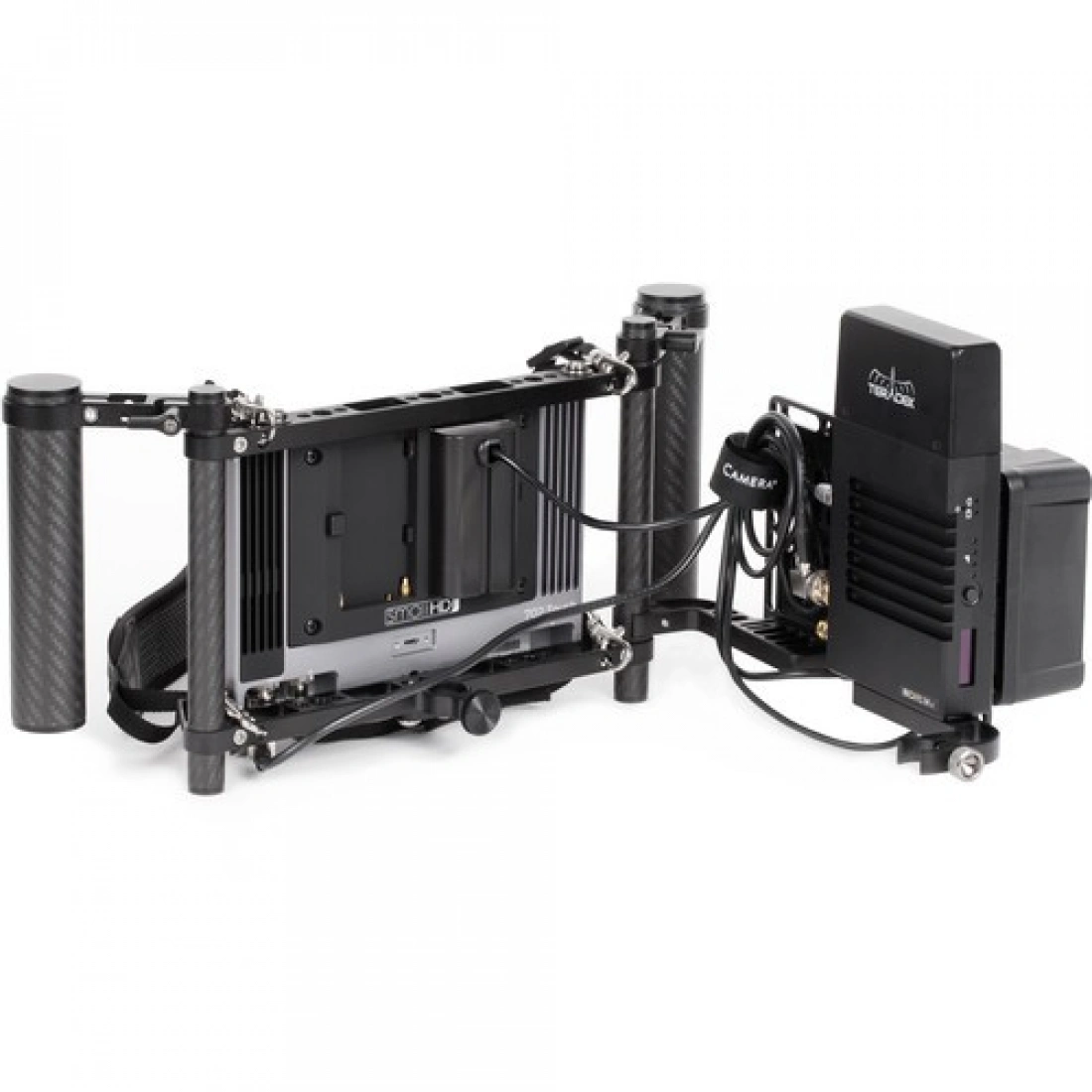

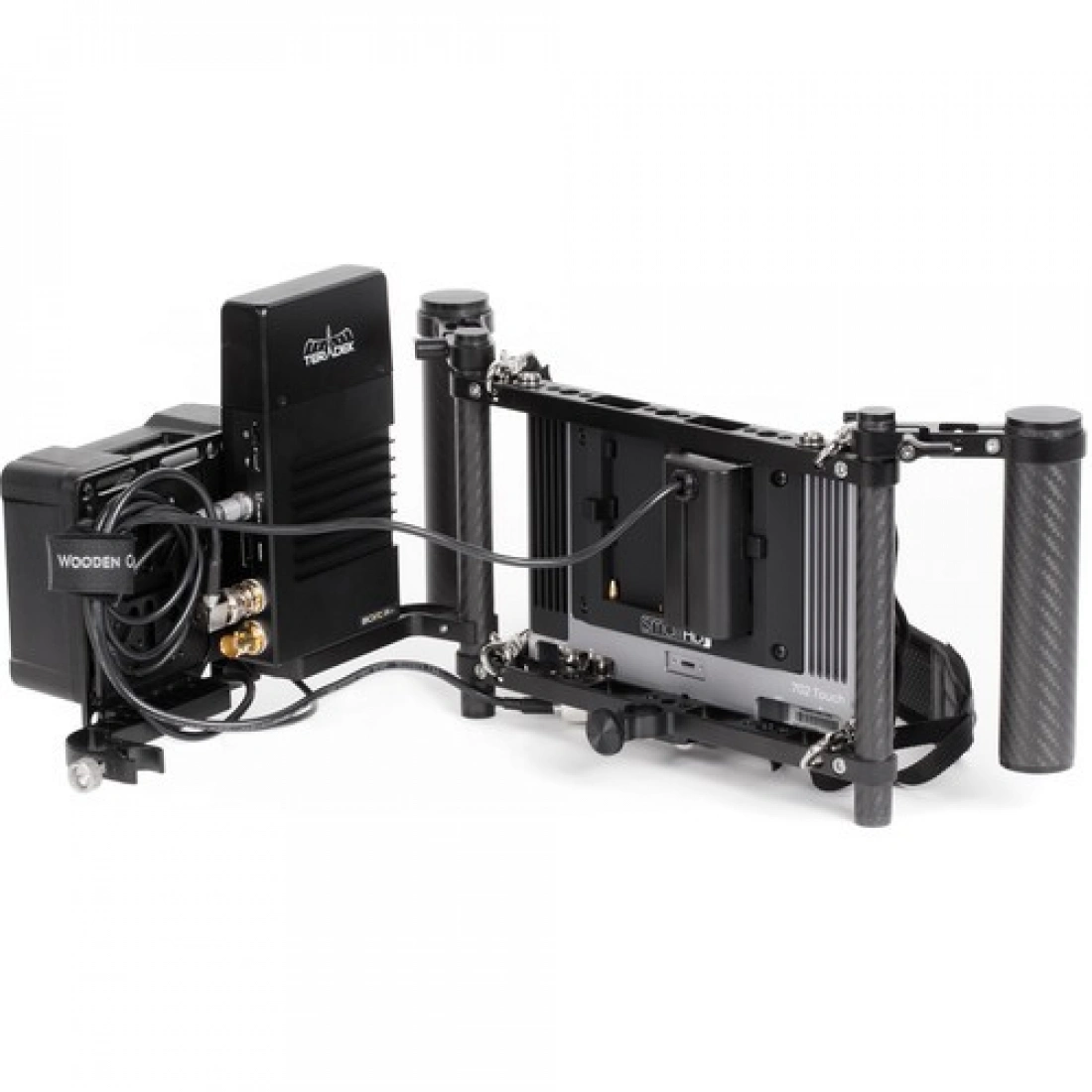

The DMCv3 arrives mostly pre-assembled, with simple, rod-based height adjustment. Carbon fiber hand grips can be quickly positioned via the built-in 15mm clamps. The battery mounting plate features V-Mount and Gold Mount attachment points as well as dual direction swing away functionality for easy access to the rear of the monitor and installed wireless devices. The battery bracket can also be quickly removed when both swing clamps are loosened. The cage includes a built in baby pin clamp with locking thumbwheel for stand mounting and holes on the main brackets.

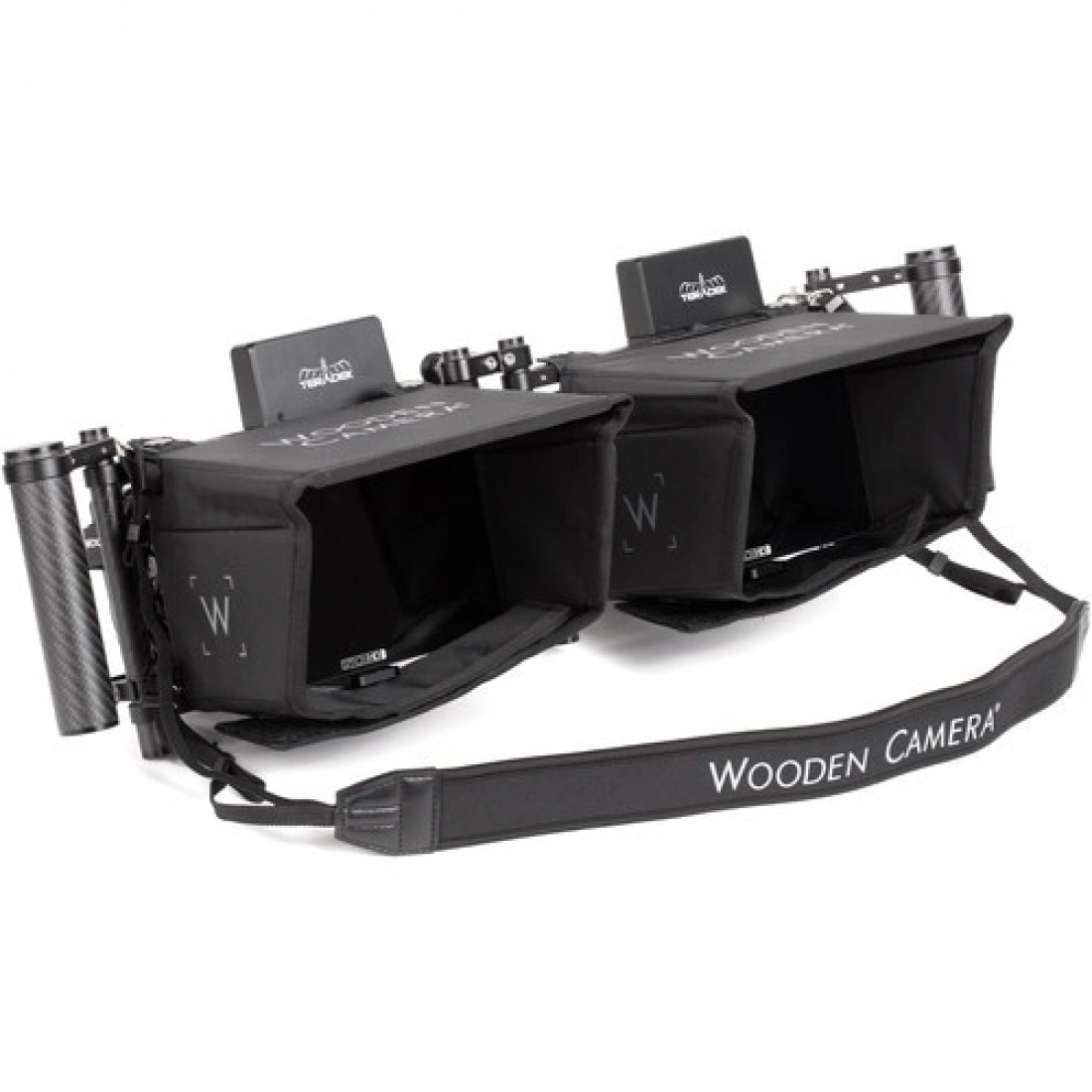

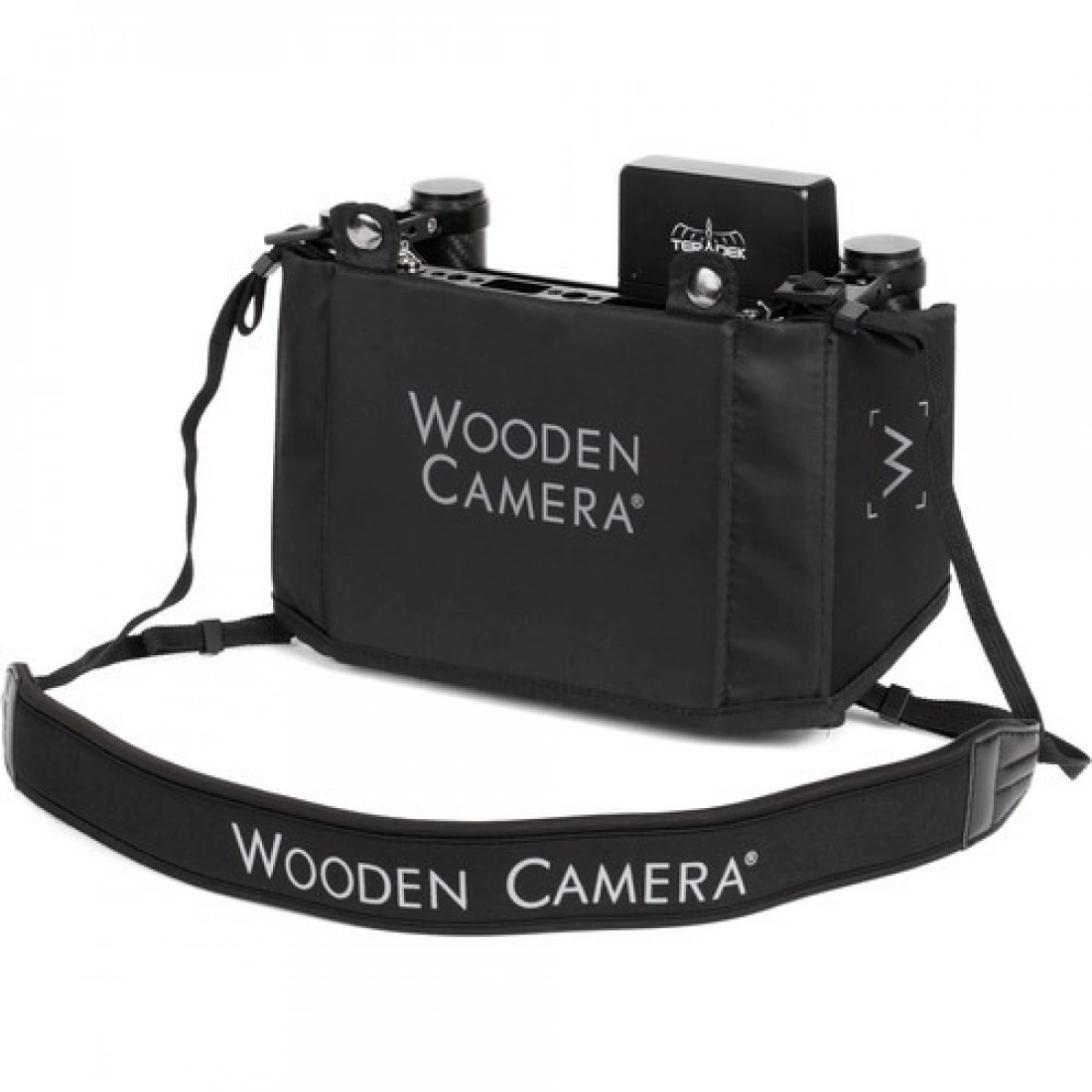

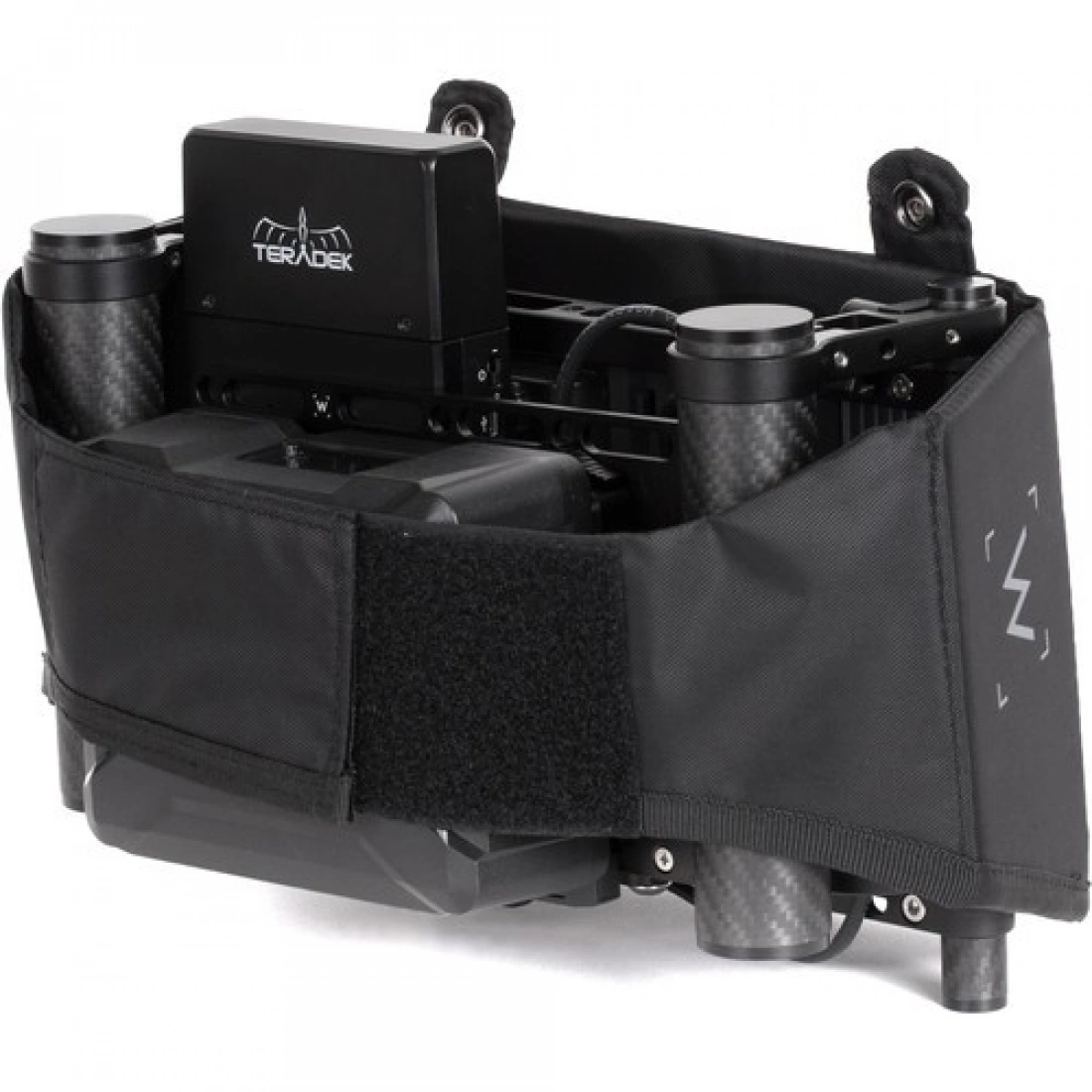

The included sun shade is adaptable to most monitors and snaps directly to the cage frame. The bottom of the shade is made of velcro, which can be adjusted to the proper width of the monitor and an included loop piece can be used to hook onto the bottom of the cage for a more permanent mounting of the shade.

The tool-less design of the handles allow them to be folded in for easy packing and the sun shade can be repurposed to act as a protective cover. Also included is a padded neck strap with 4 mounting points and quick release clips, Teradek mounting areas that allow up to two wireless receivers to be mounted side by side, and a cable tie for cable management.

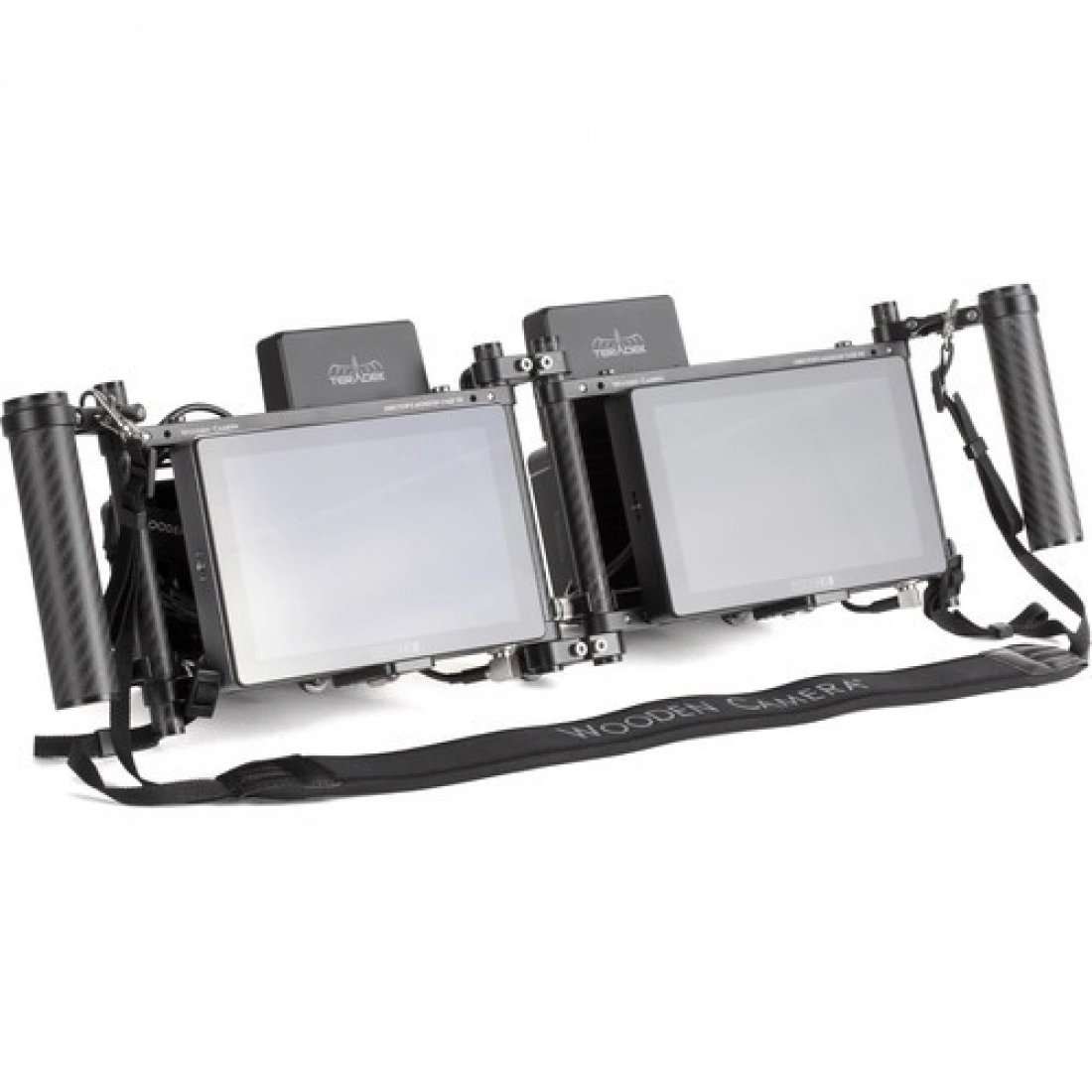

Comes with two Director's Monitor Cage v3 and a Dual Director's Monitor Cage v3 Adapter Set which includes two connector pieces. For side by side mode, attach one connector piece on the top and the other on the bottom.

Photo for visual representation only. Actual Rod will be made of aluminum for improved tightening without any added weight.

Compatibility

SmallHD DP4, DP6, AC7, DP7, 500 Series, 700 Series, Cine 7, 702 Touch, FOCUS 5/7, and UltraBright

TVLogic VFM-056W/WP, VFM-058W, VFM-055A, F-7H, F-5A

Ikan D5, VK7i, VH8, VL5, VX9e, DH5e, DH7, D7C, S7H, S7C, S7P

Odyssey 7, 7Q, 7Q+

Blackmagic Video Assist

Atomos Samurai, Ninja, Shogun, Shinobi

And many more

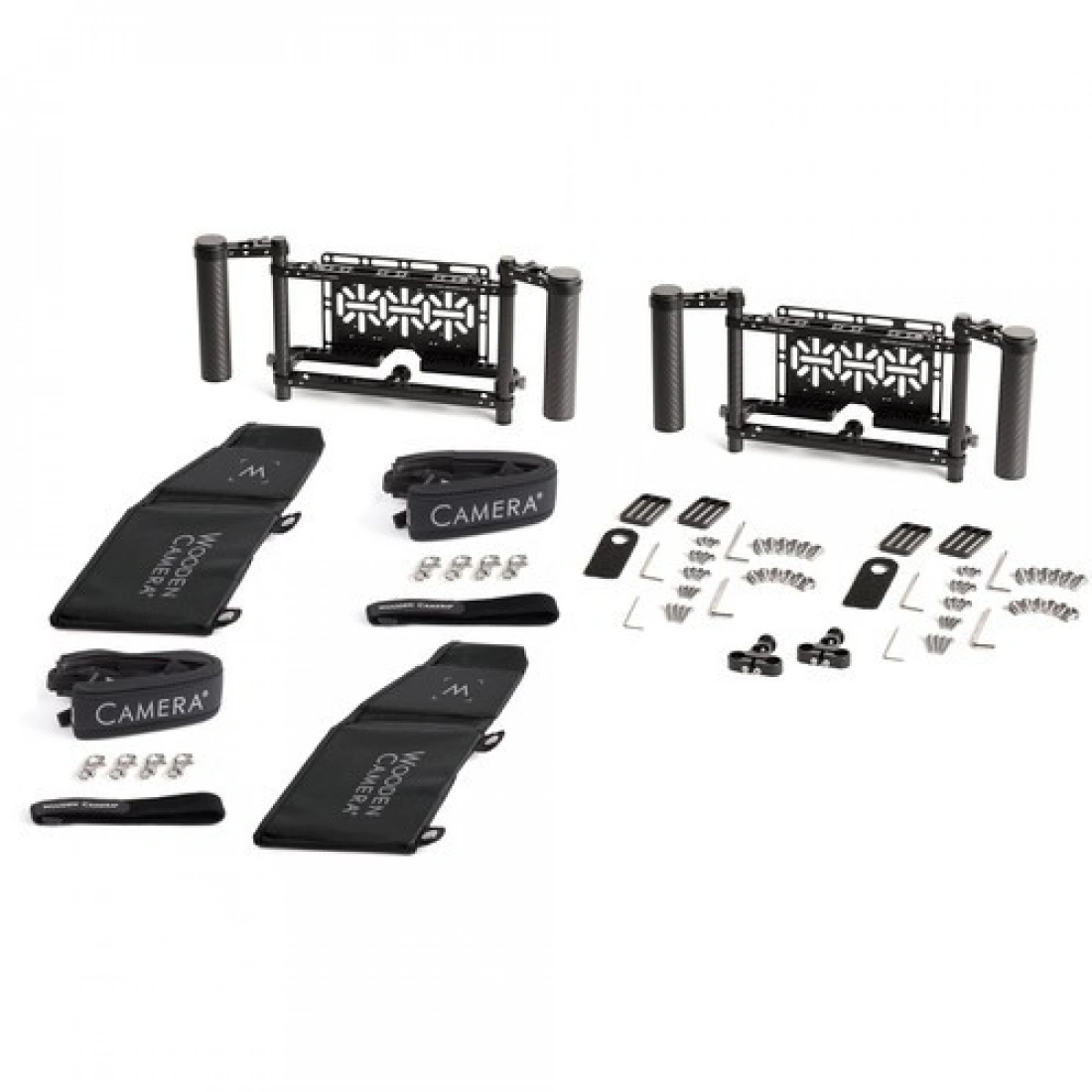

In the Box

---------------------------------------------

• 2 x Wooden Camera Director's Monitor Cage v3 with Dual Carbon Fiber Handgrips
• 2 x Wooden Camera Handle Assembly for Director's Monitor Cage v3
• 6 x 1/4"-20 x 1/2" Button Head Screw
• 6 x 1/4"-20 x 3/8" Button Head Screw
• 2 x Offset Adapter
• 4 x M3 x 8mm Philips Screw (for V-Mount Plate)
• 4 x M3 x 12mm Philips Screw (for Gold Mount Plate)
• 4 x #4-40 x 1/2" Socket Cap Screw (for Teradek Receiver)
• 4 x M3 x 12mm Pan Head Phillips Screw (for Teradek XT/LT)
• 4 x M3 x 6mm Socket Cap Screw (for Odyssey 7Q)
• WC Cable Tie
• Sun Hood
• Padded Neck Strap
• 4 x Allen Key
• Limited 1-Year Manufacturer Warranty
• Wooden Camera Adapter Set for Dual Director's Monitor Cage v3
• Limited 1-Year Manufacturer Warranty
