SKU:S-1093F
Key Features

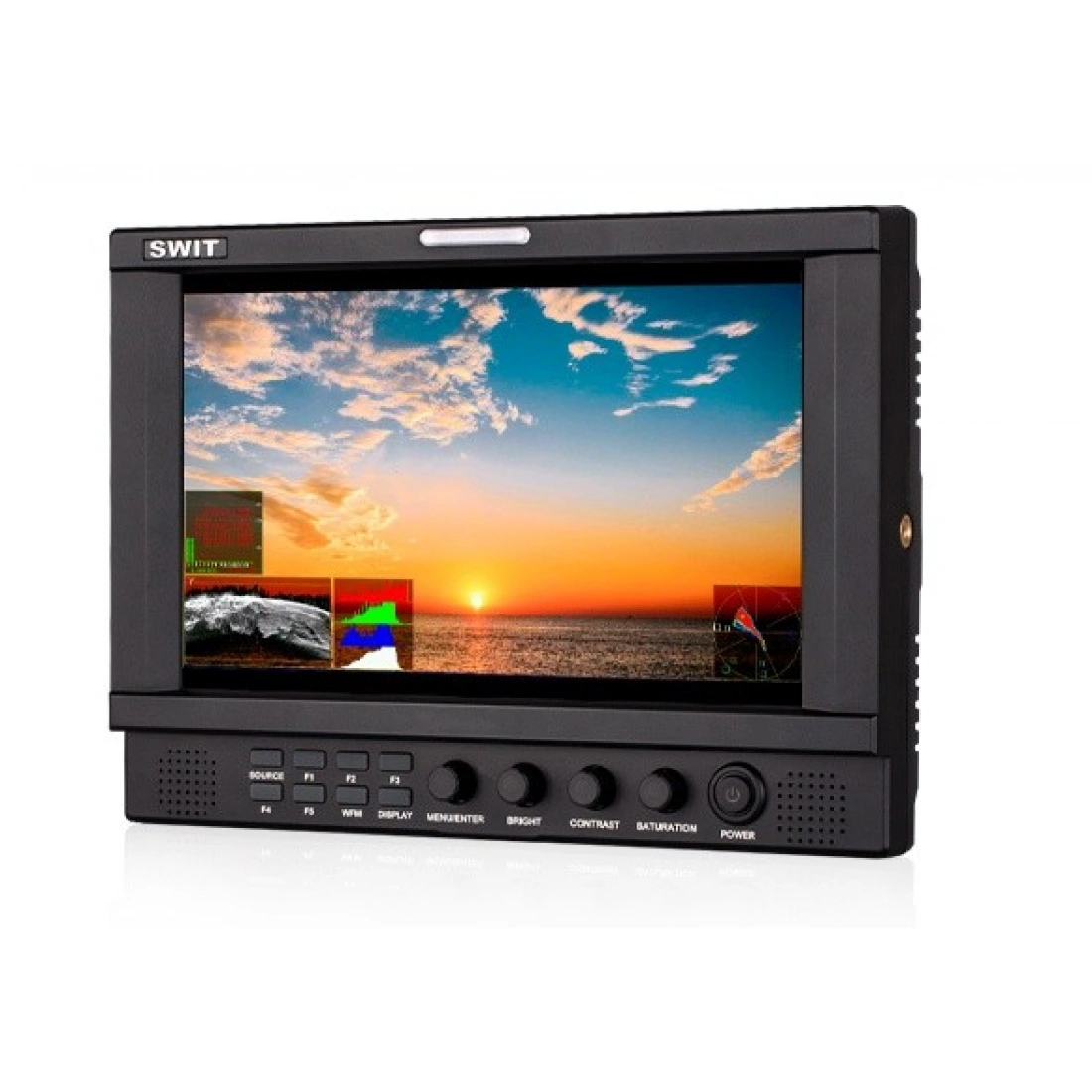

9-inch Full HD LCD
IPS panel with LED backlight
The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 1000:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°
LCD Protective Glass
The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.

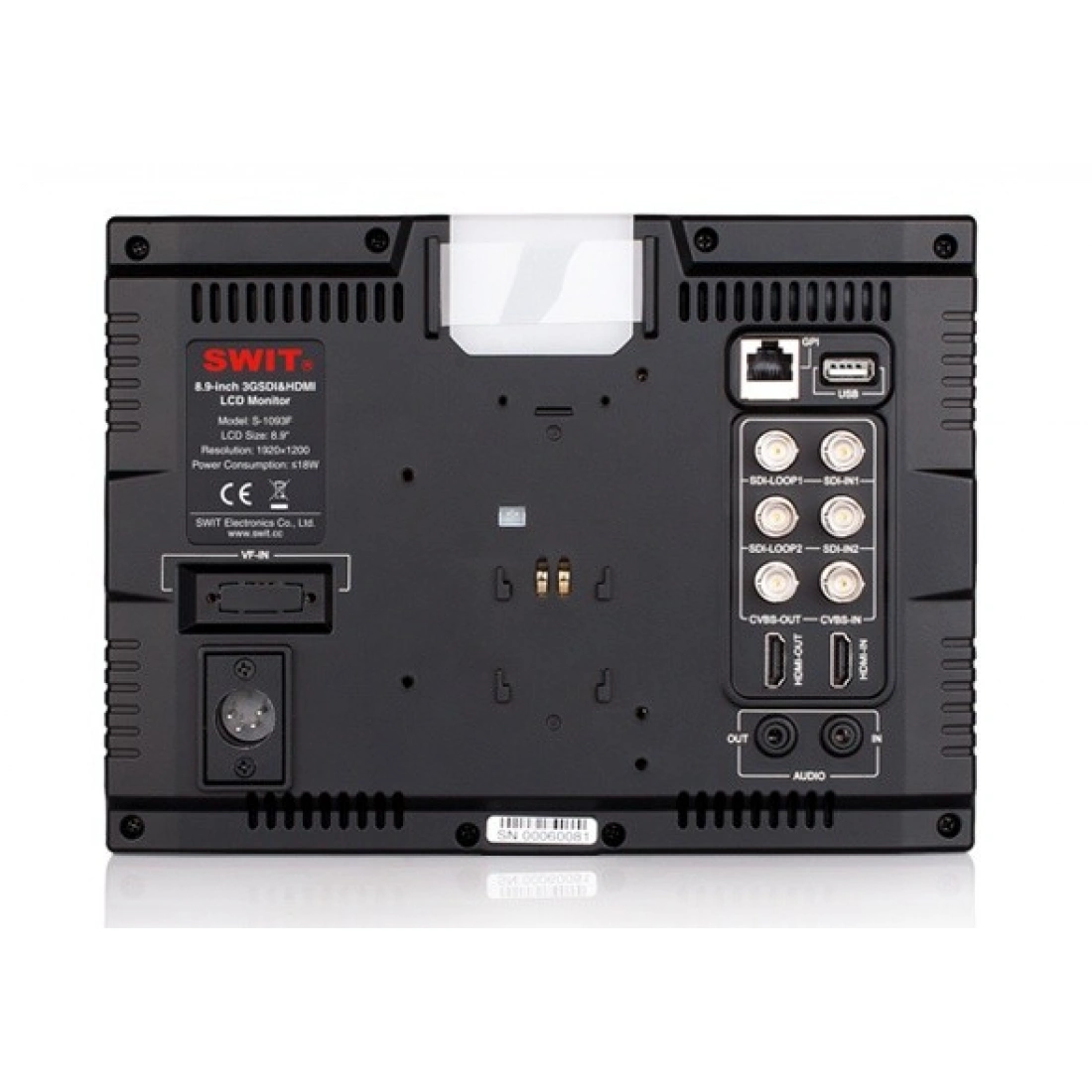

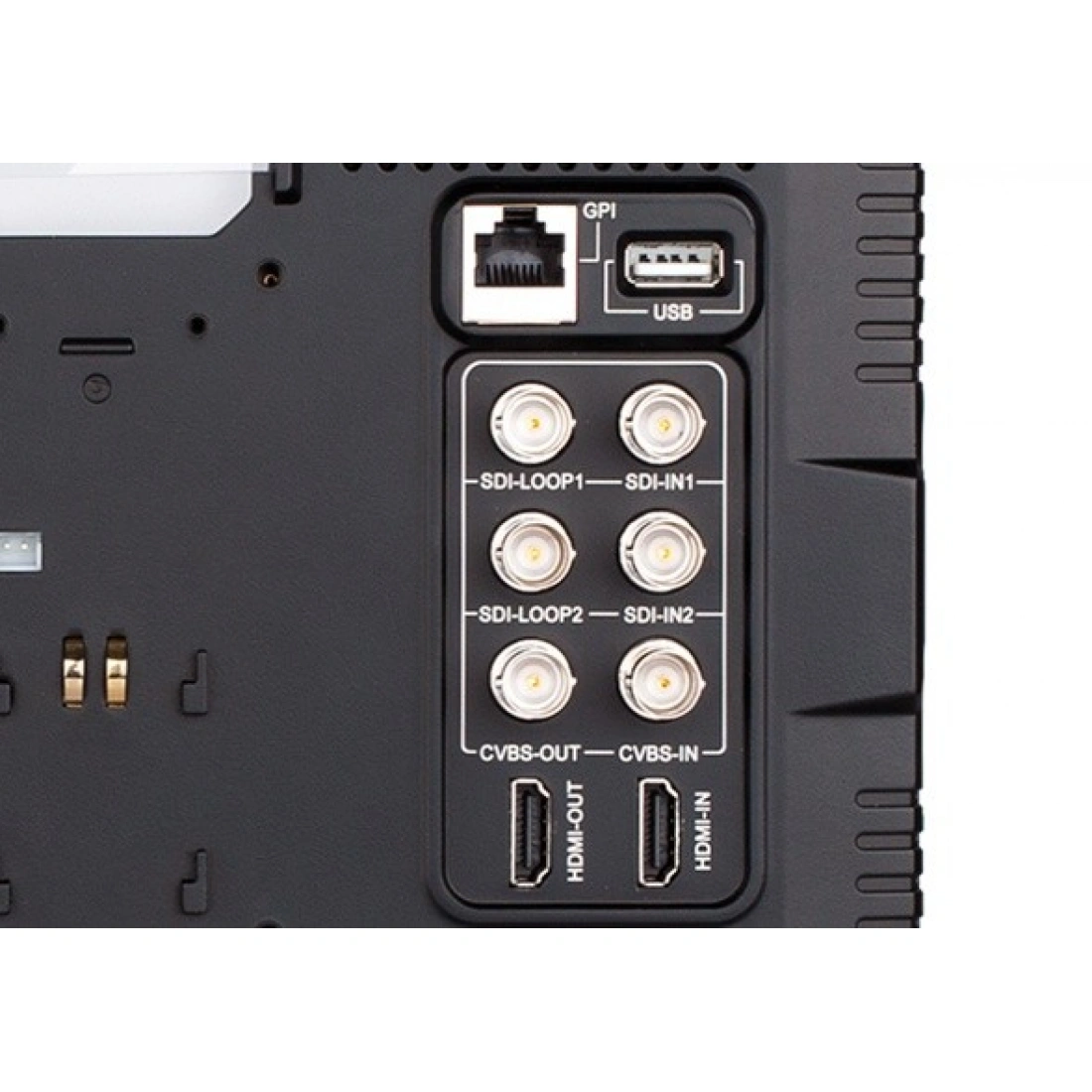

Input/Output Interfaces
SDI / HDMI® / CVBS / Analog Audio
S-1093F monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 2
HDMI input × 1
HDMI loop output × 1
CVBS input × 1
CVBS loop output × 1
3.5mm analog audio input × 1
3.5mm analog audio output × 1

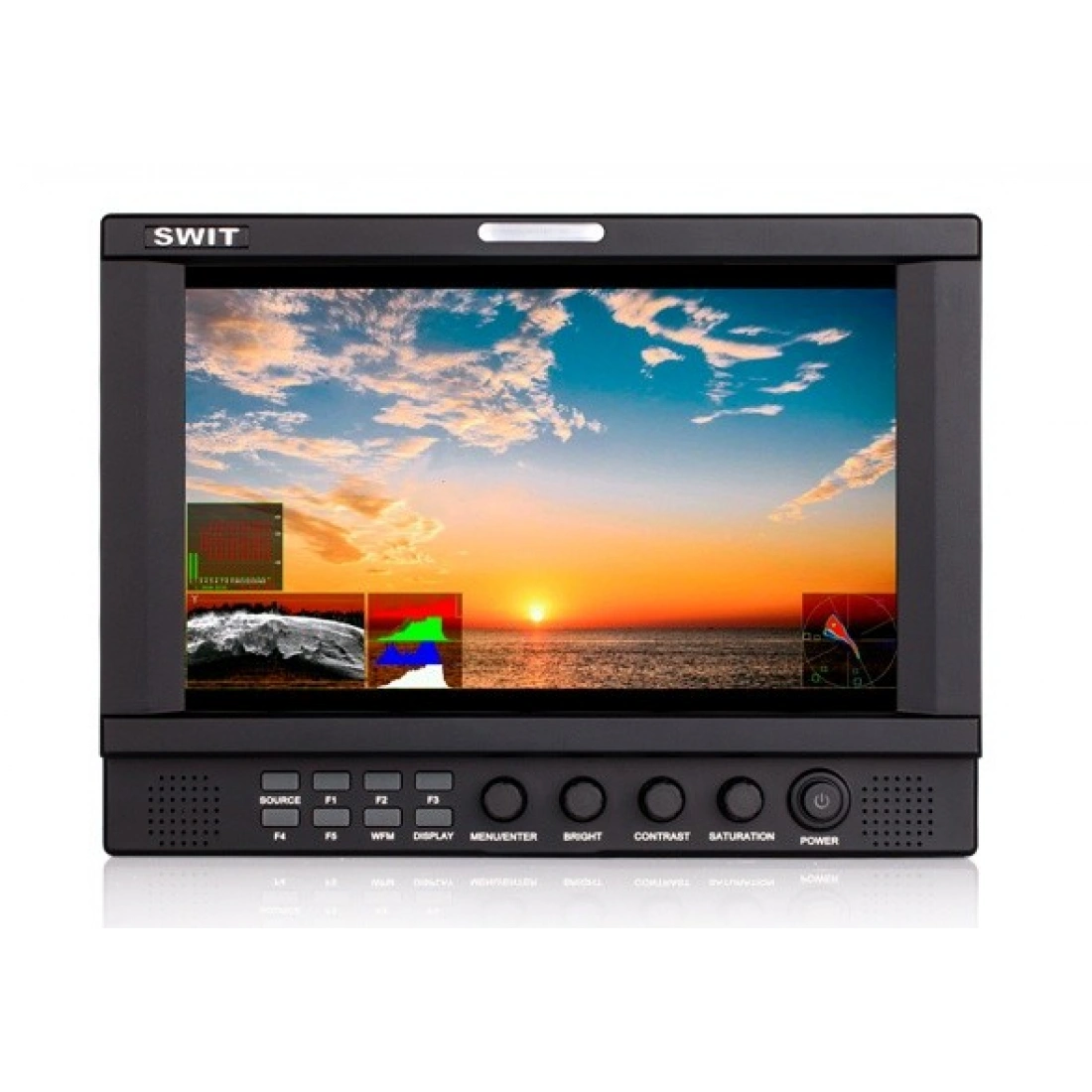

Video Analysis Assistant Pattern
Waveform / Vector scope / Histogram
S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
S-1093F supports SDI-16ch and HDMI®-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
TSL 3.1 / 4.0 Protocol
S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1093F monitor to upgrade, without PC connection.
3-color TALLY Light
RJ45(RS485) input signal
There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RJ45 port to control the TALLY lights
Multiple Power Sources
AC adaptor / V-mount / Gold mount / Snap-on DV mount
The monitor provides a 4-pin XLR socket of DC 6.5-24V power input, and can be fixed on V-mount, Gold mount or DV battery plate. Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other. There’re following DV plates for selection:
Sun Hood
For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.
The sun hood is provided in the monitor package.
