SKU : SWATEMTVSTDMC
Key Features :
- Audio Inputs for ATEM Television Studio
- Connects to Switcher via MADI
- 4 XLR-1/4" Combo Mic/Line Inputs, +48V
- 32-Bit Float Digital Preamps
- 8 ADCs/Channel, 24-Bit / 48 kHz Audio
- Easy-to-Use, No Setup Required
- 64-Channel MADI Digital Audio I/O Ports
- HDMI Monitor Out
- USB-C and Ethernet Ports
- Works with ATEM Software Control App

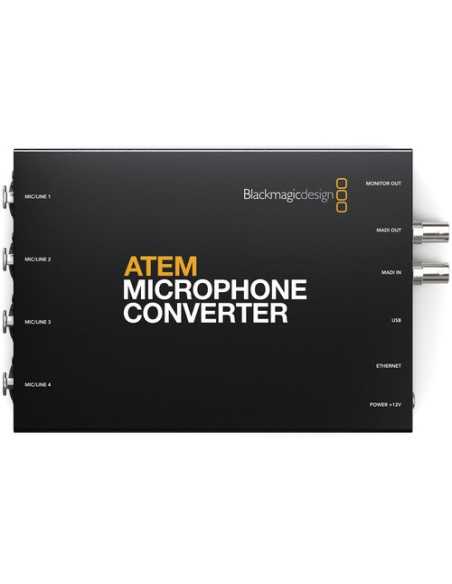

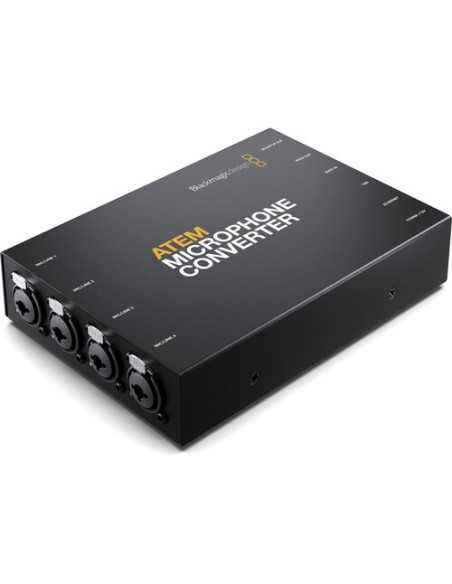

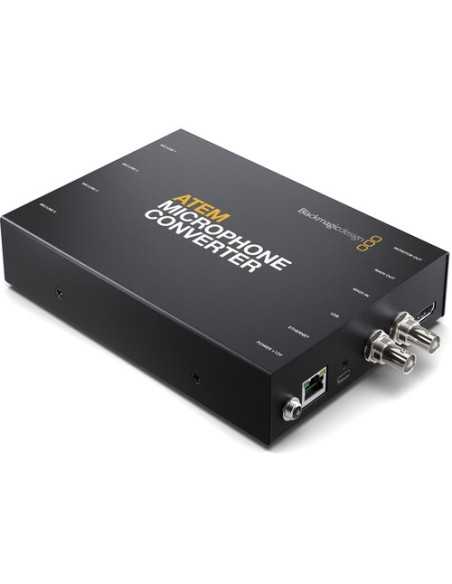

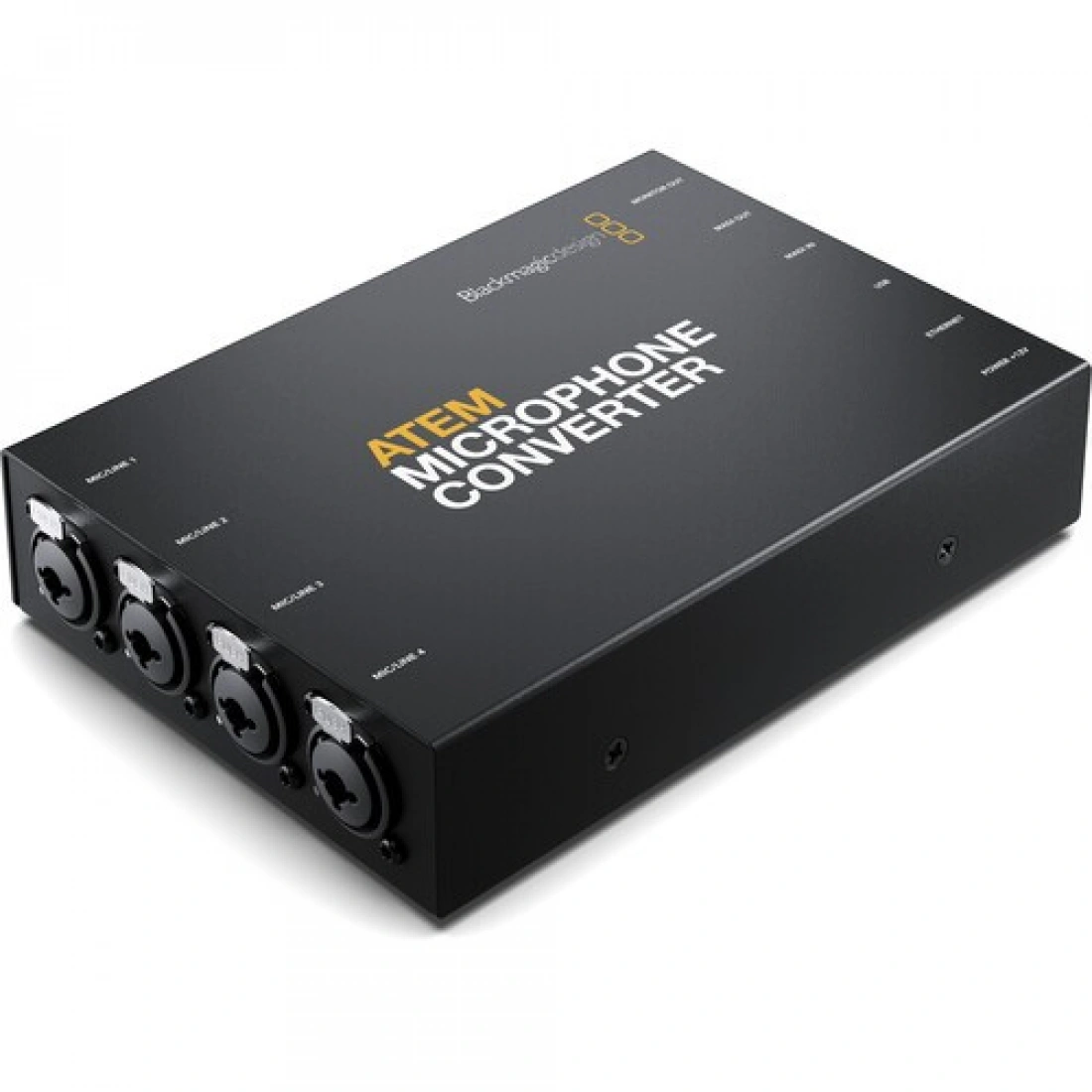

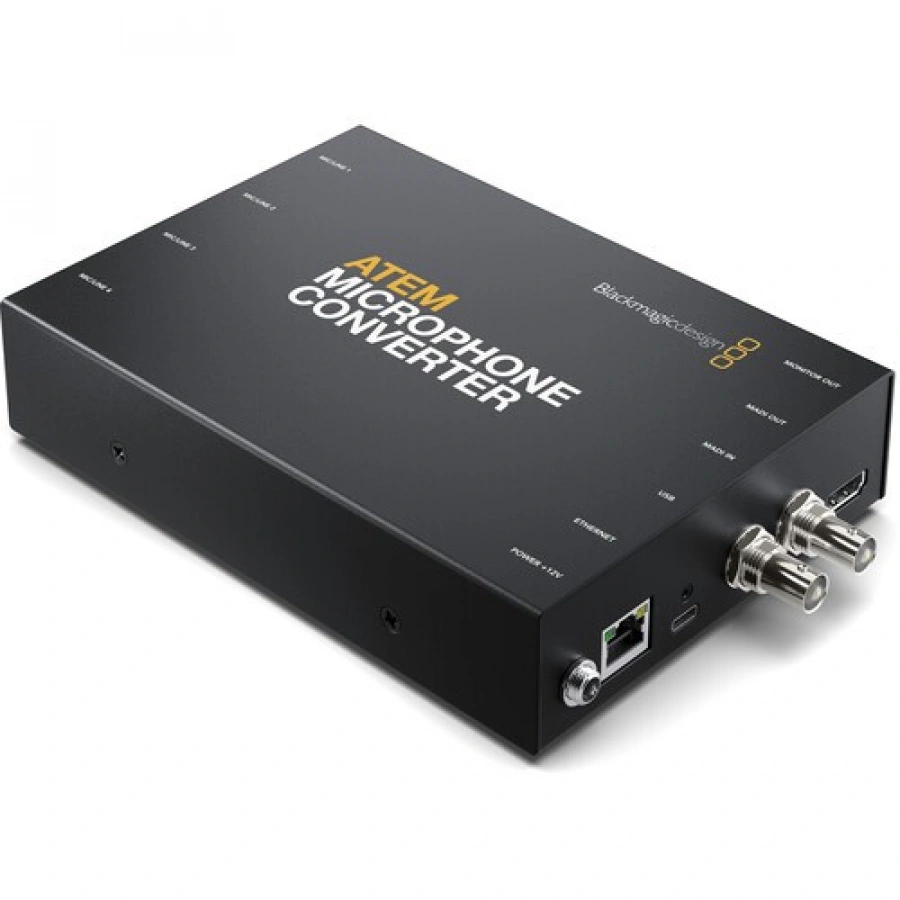

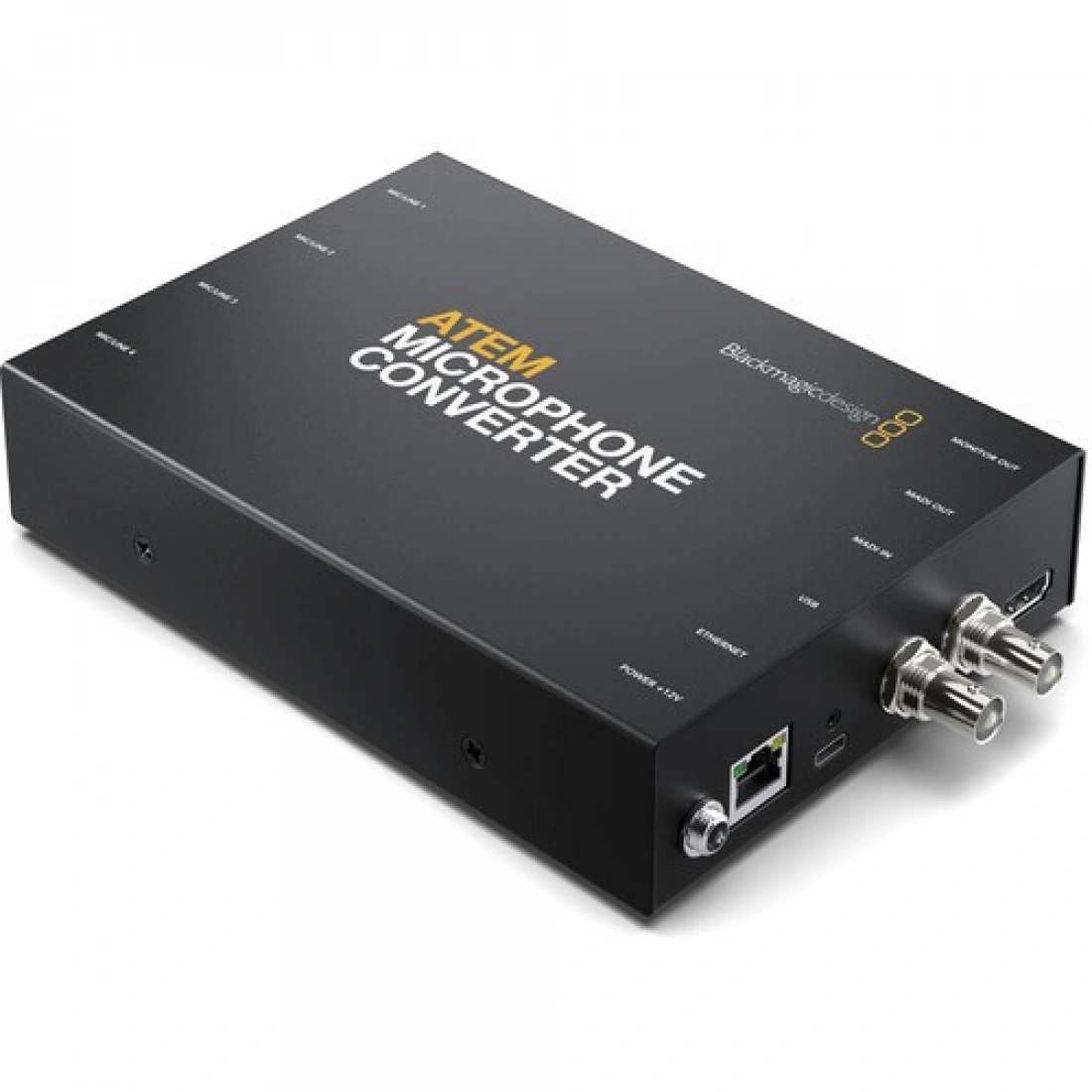

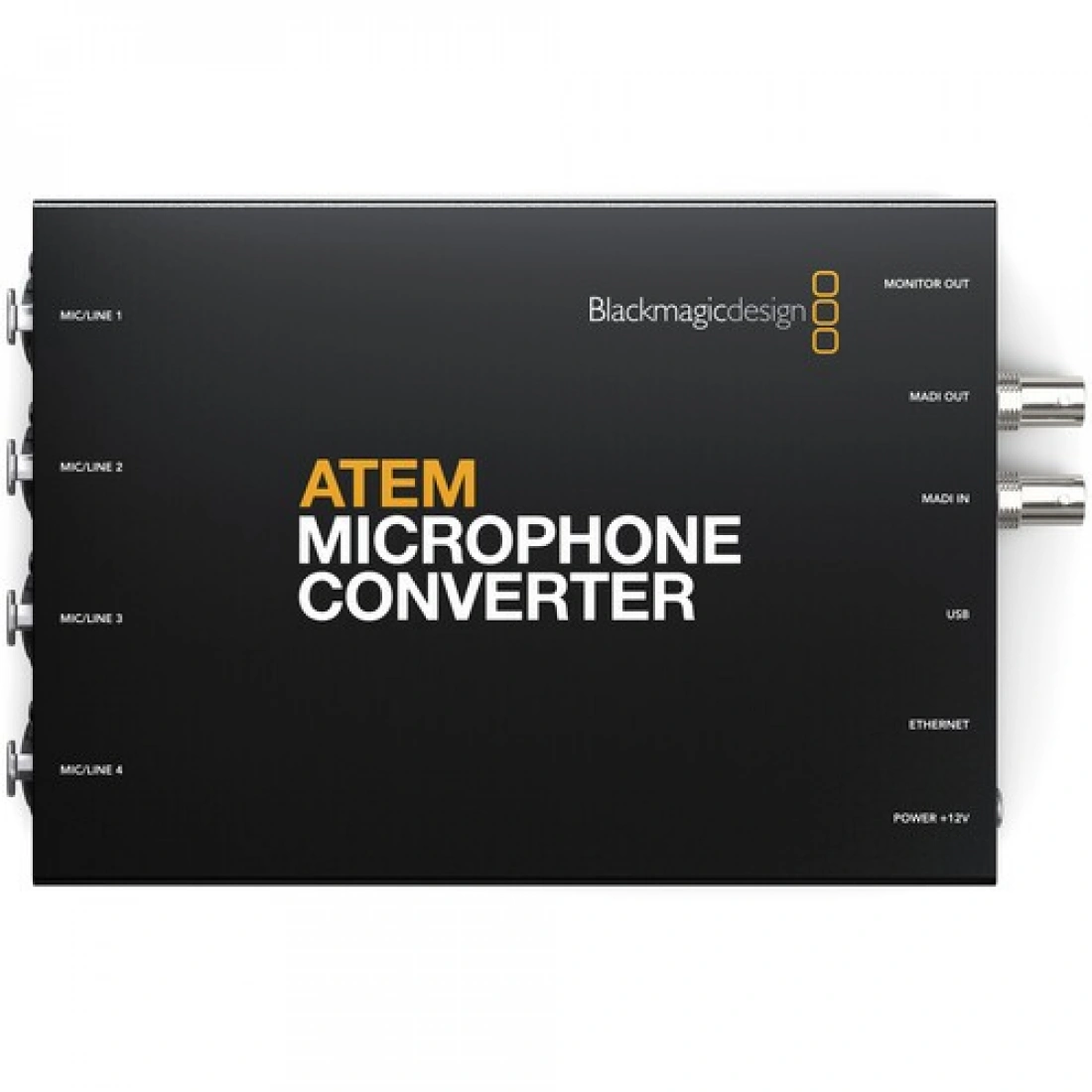

Blackmagic Design ATEM Microphone Converter Overview :
Whether you're building a podcasting studio or you just need more microphones, the Blackmagic Design ATEM Microphone Converter allows audio-input expansion for your ATEM Television Studio by converting four analog XLR inputs to MADI. Equipped with two BNC MADI I/O ports, the Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no complex setup required—and additional units can even be daisy chained for more sources. The four XLR-1/4" combo analog inputs are mic-/line-selectable and provide 48V phantom power.
In the Box :
-------------------------------------------------------------------
- Blackmagic Design ATEM Microphone Converter
- 12 VDC Power Supply
- Limited 3-Year Manufacturer Warranty
- Compatibility
- Blackmagic Design ATEM Television Studio
- Sample Rate
- 48 kHz
- Bit Depth
- 24-Bit
- Dynamic Range
- 131 dBA
- ADC
- 8 x per Input
- Preamps
- Digital Preamps: 32-Bit Float
- Noise Floor
- -129 dBV
- THD
- 0.002%
- MADI
- AES10-2020 Compliance
- HD Video Standards
- 1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
