SKU : SWATEMMXEP
Key Features :
- 4-Channel Live Stream 3G-SDI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- 2 x 3G-SDI Output, Ethernet ATEM Control
- Media Player, Computer Input Support
- Upstream and Downstream Keyers
- DVE Transition, Chroma/Luma Keyers
- Color and Pattern Generators
- USB-C Streaming/Webcam Output
Blackmagic Design ATEM SDI Overview :

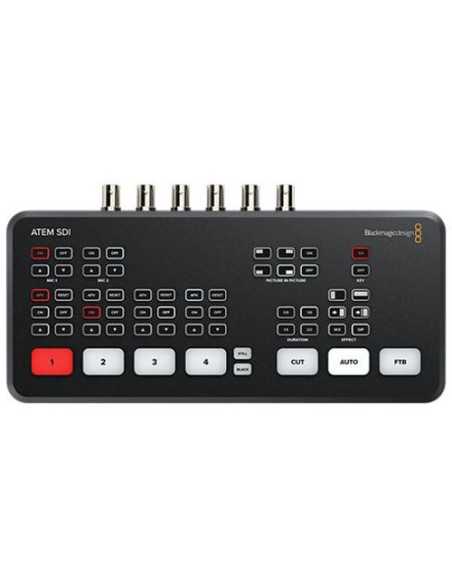

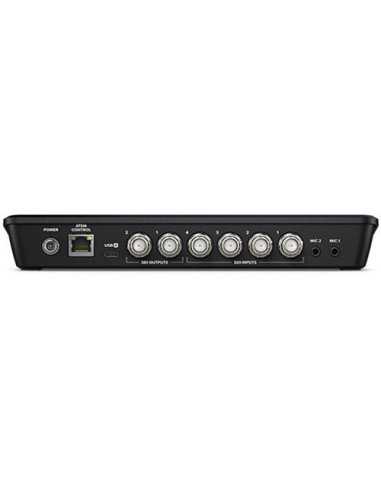

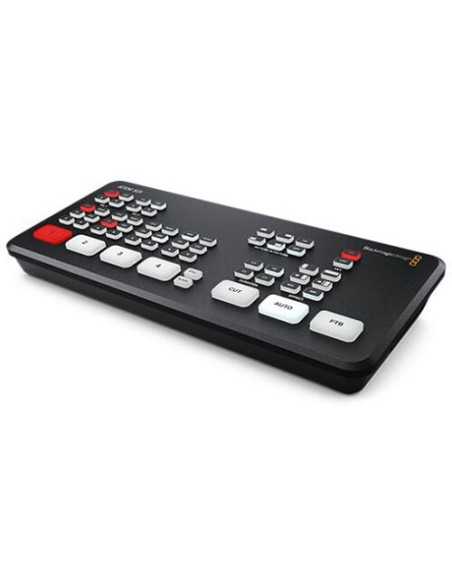

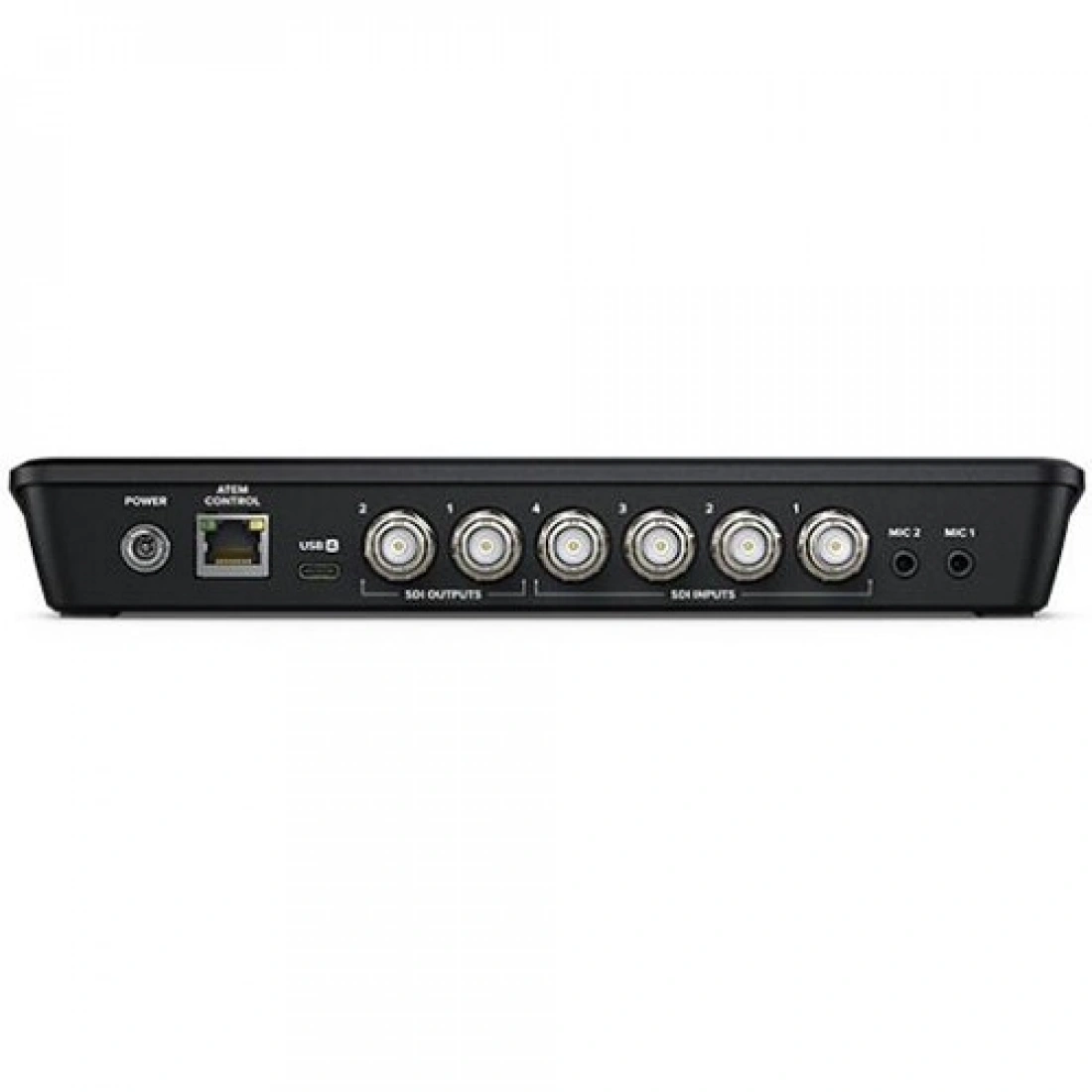

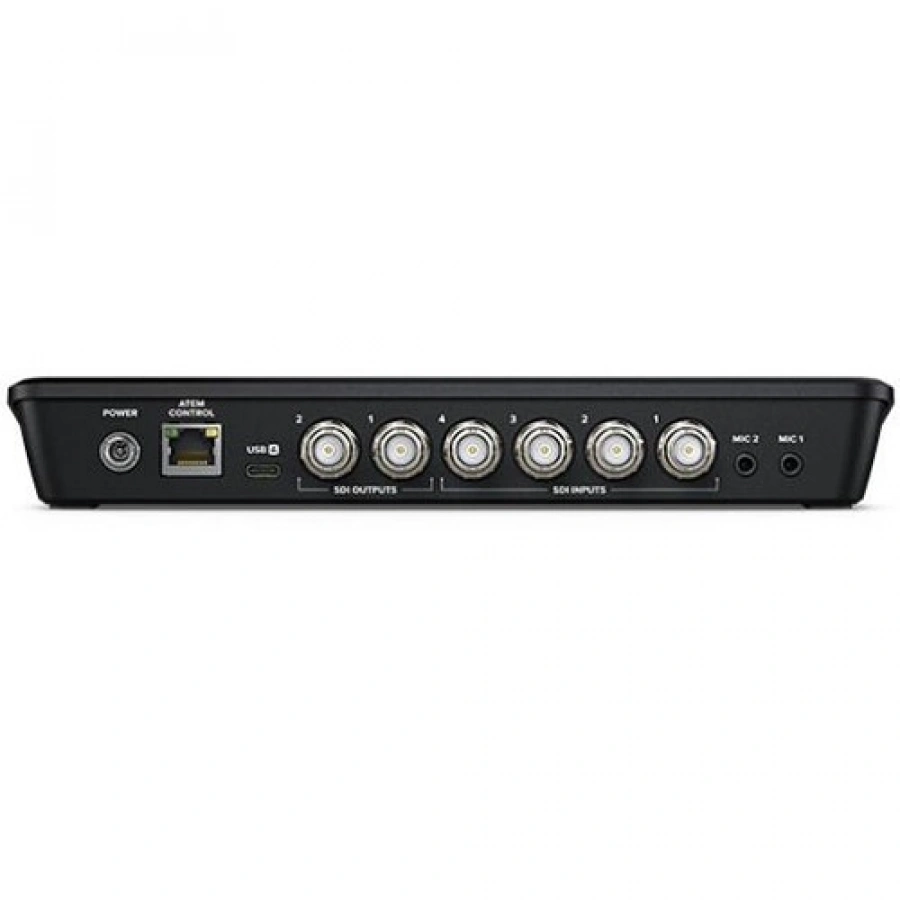

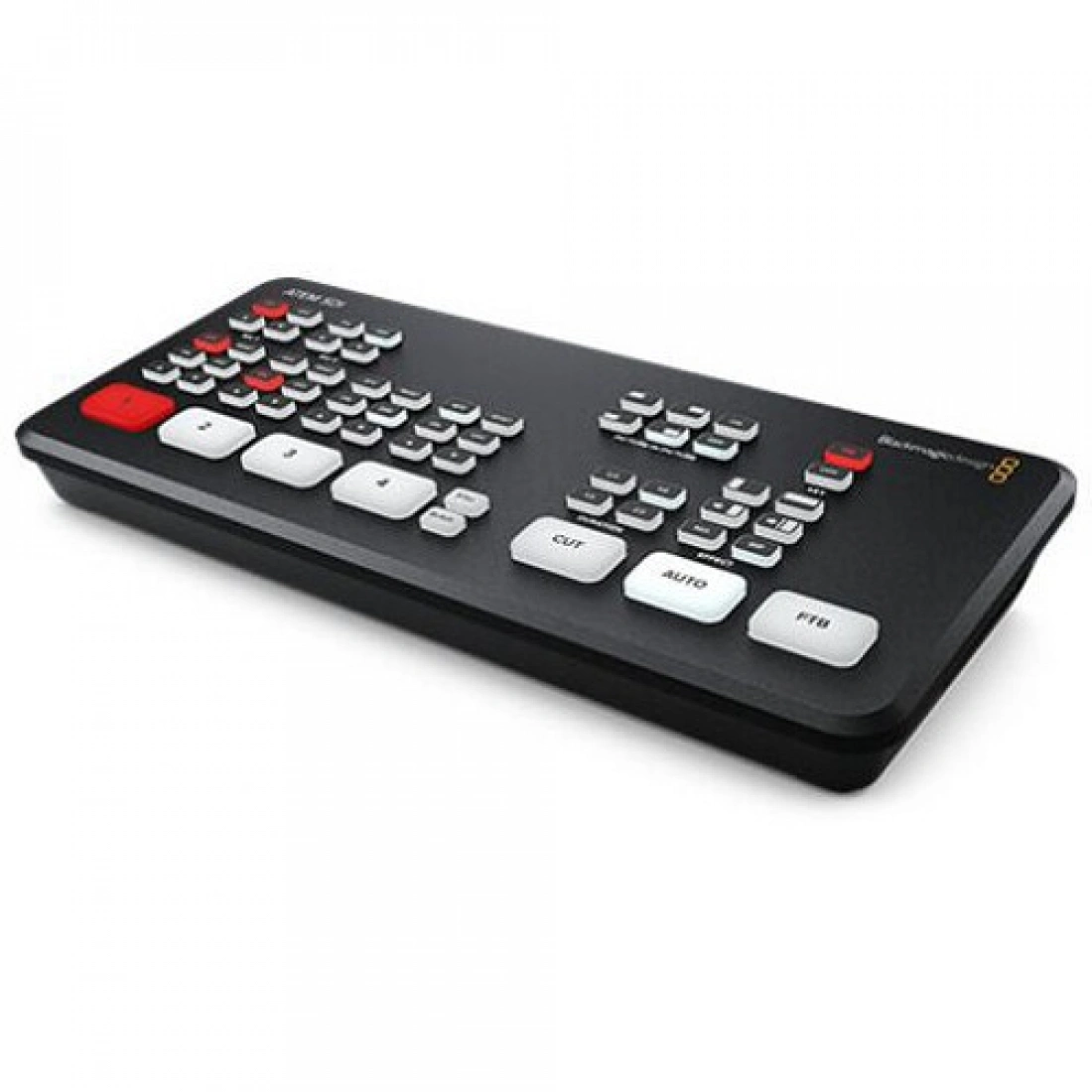

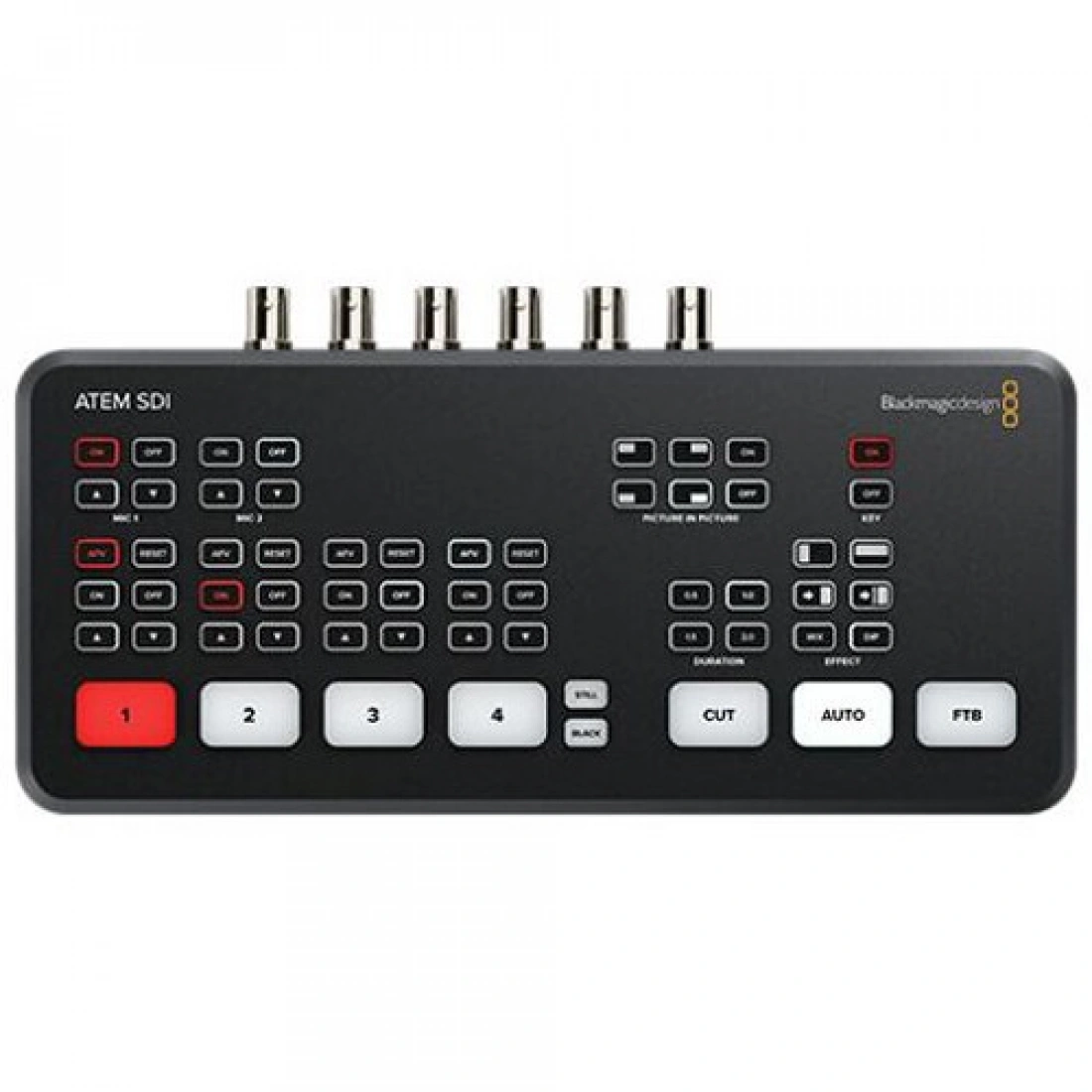

Designed for multi-camera live streaming to the internet or broadcast applications, the compact ATEM SDI from Blackmagic Design provides gaming consoles, corporate computer streams, or HD cameras a four-input, live-production switcher with an integrated control panel. The four SDI inputs are available on the rear of the chassis and they input up to 1080p60 video. Two 3G-SDI outputs are useful for a projector or external monitor, a USB-C output for streaming up to 1080p60 video to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control, and upgrades.
In the Box :
------------------------------------------------------
- Blackmagic Design ATEM SDI Switcher
- 12 VDC External Power Supply
- Limited 1-Year Manufacturer Warranty
- Power Consumption
- Device: 18 W
- Power I/O
- 1x Barrel (12 VDC) Input
- Other I/O
- 1x RJ45 Control Input/Output
- Video Outputs
- 2x BNC (3G-SDI) (Program)
- Available M/E Layers
- 5 M/E
- Effect Types
- DVE, Transition, Chroma Key
- Generators
- 1x Pattern 2x Color
- Audio Mixing
- 2-Channel Mixing
- Switching Type
- IR Remote, Pushbutton, Software
