SKU : #EW 135P G4-A
Key Features :
- For Mobile Journalist, Presenters
- MMD 835 Dynamic Cardioid Mic Capsule
- Lightweight Handheld Transmitter
- Diversity Camera-Mount Receiver
- 1680 Auto-Scan Frequencies
- Advanced Controls for Flexible Use
- Daylight-Readable Display
- 8-Hour AA Batteries
- Up to 12 Mics on Set / 330' Range

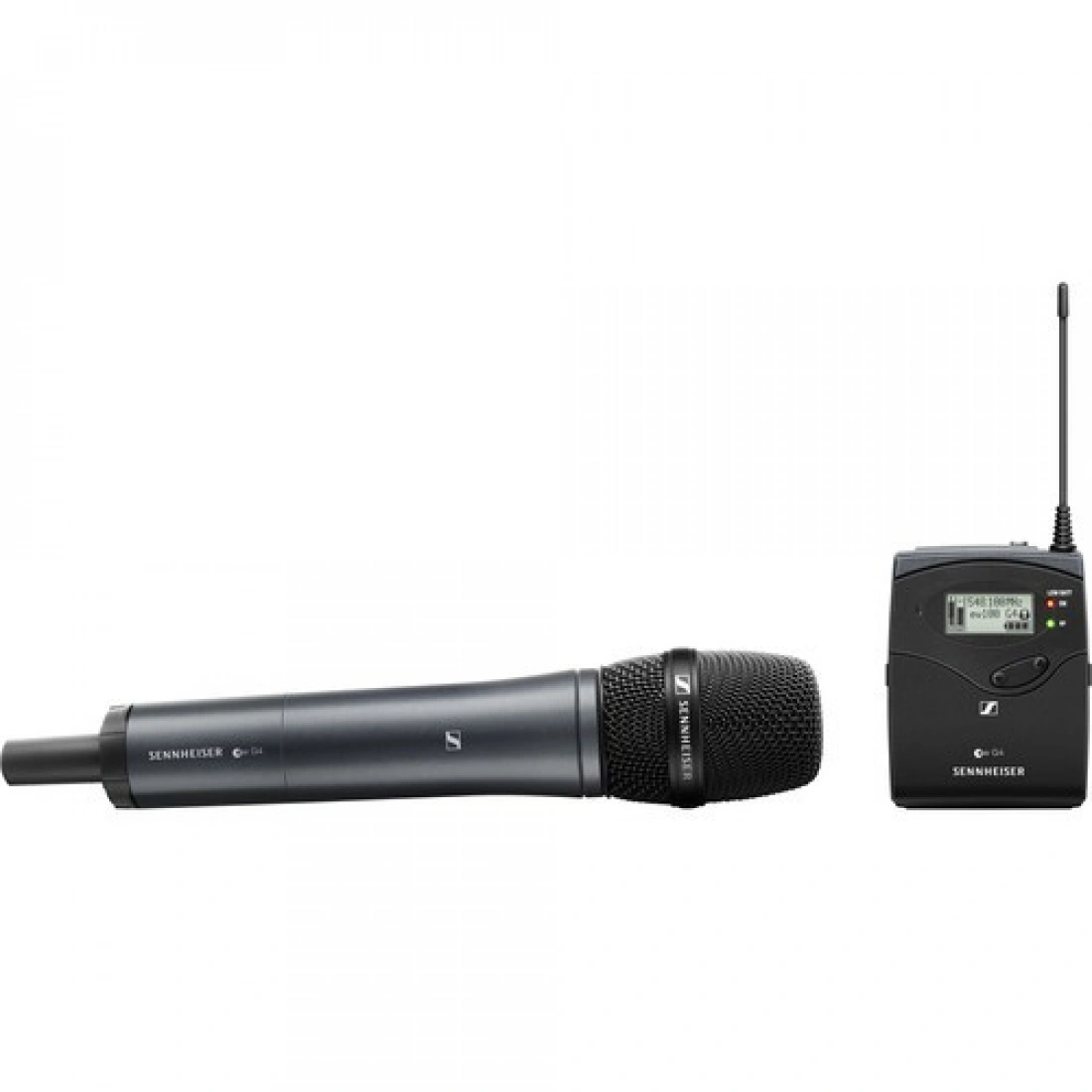

Sennheiser EW 135P G4 Overview
The Sennheiser EW 135P G4 camera-mount wireless handheld microphone system features the proven combination of reliability, flexible control, and broadcast-quality sound that has made the EW Series an industry standard for videographers, journalists, and content creators all over the world.
The EW 135P G4 gives you the tools to adapt and meet the wireless challenges that inevitably arise on set. The frequency scan function automatically searches for the cleanest frequency at your location, while the transmitter offers an interchangeable capsule design, allowing you to swap mic capsules with different polar patterns to suit your application.

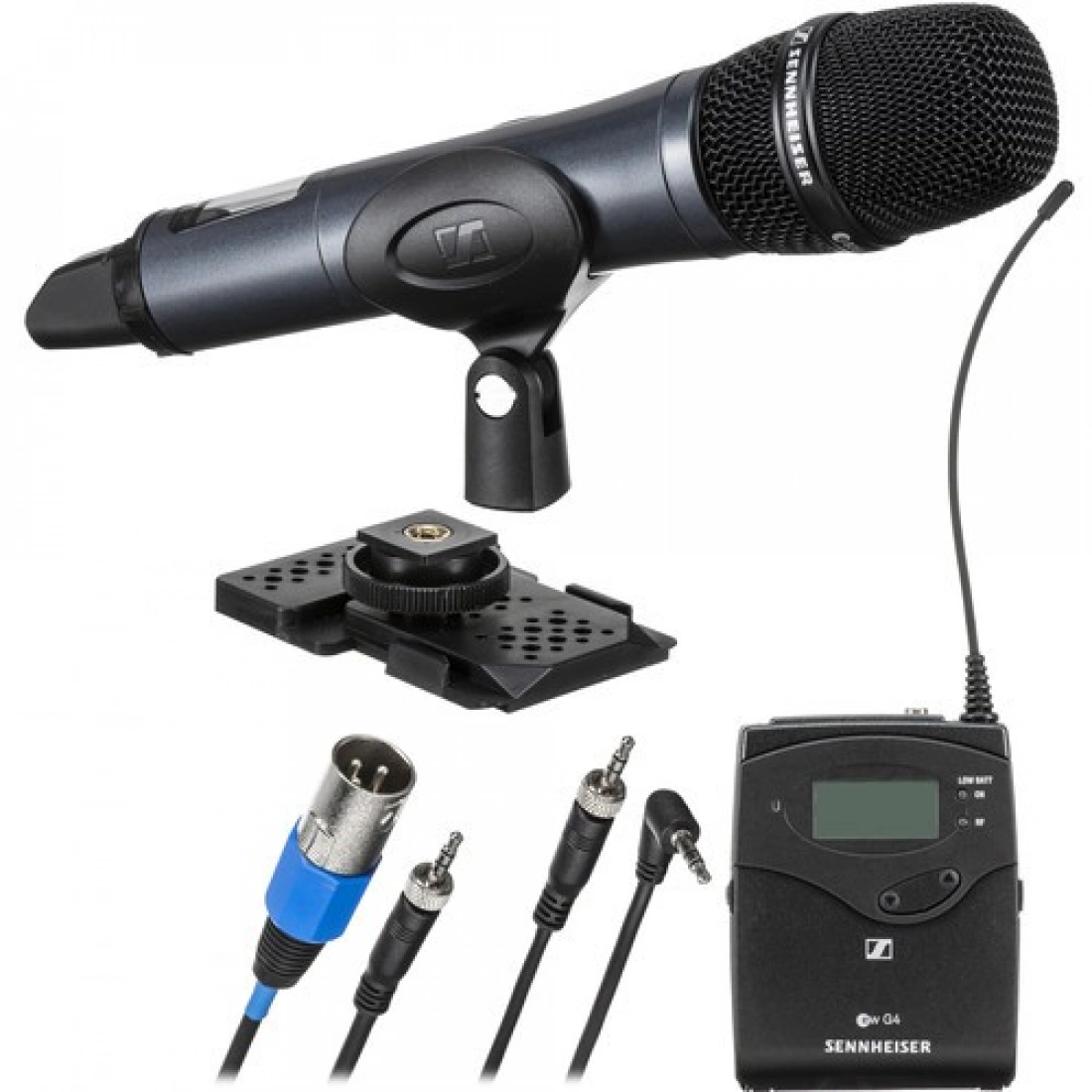

In the Box
- Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System (A: 516 to 558 MHz)

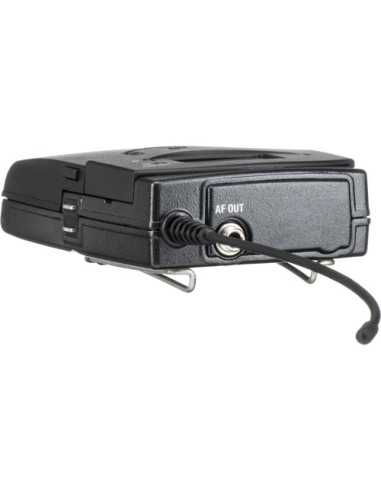

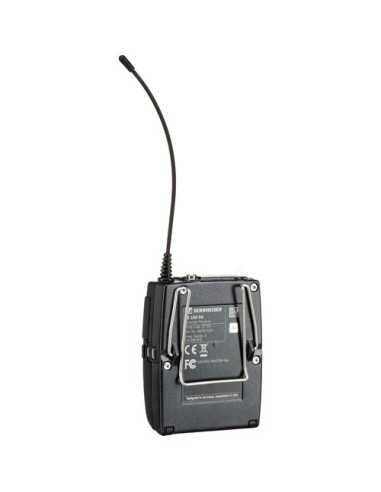

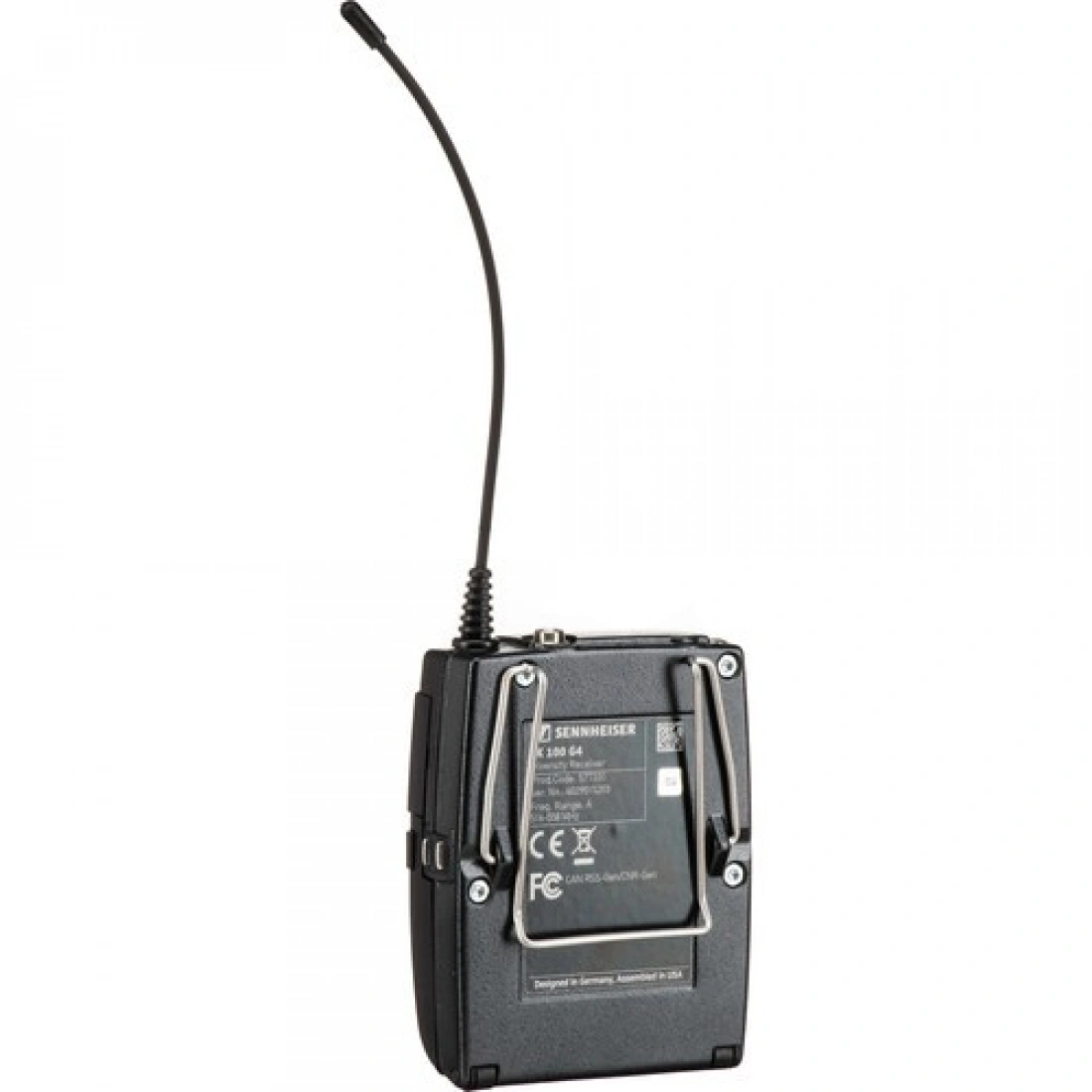

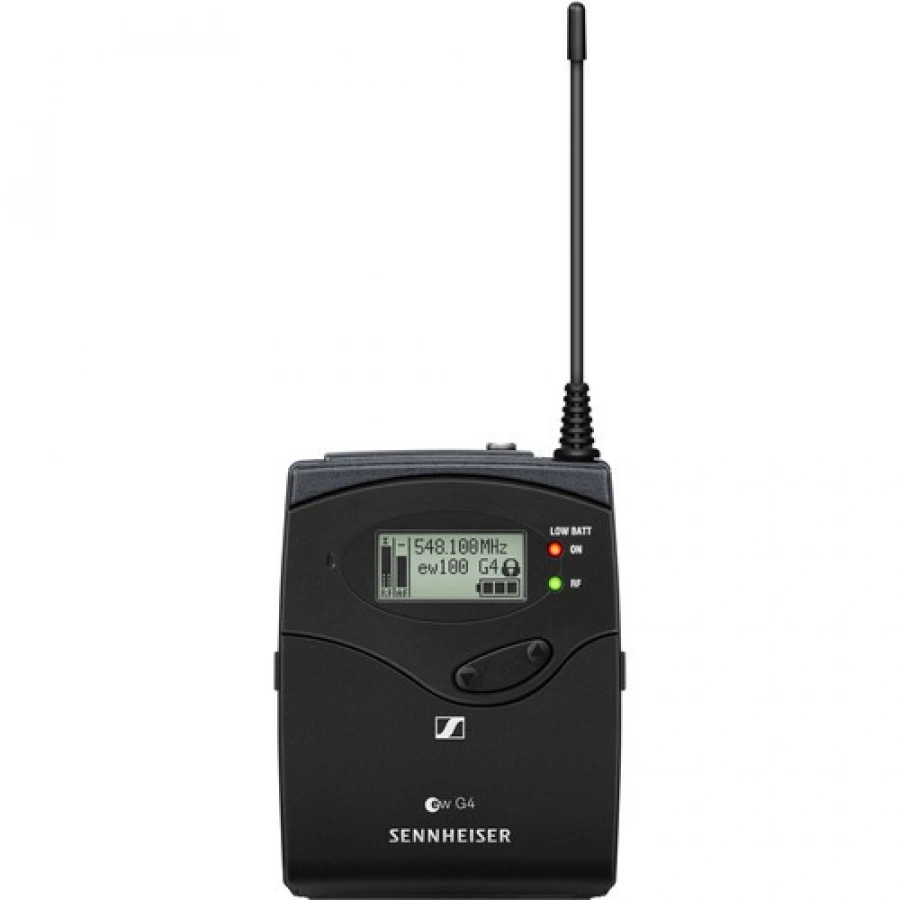

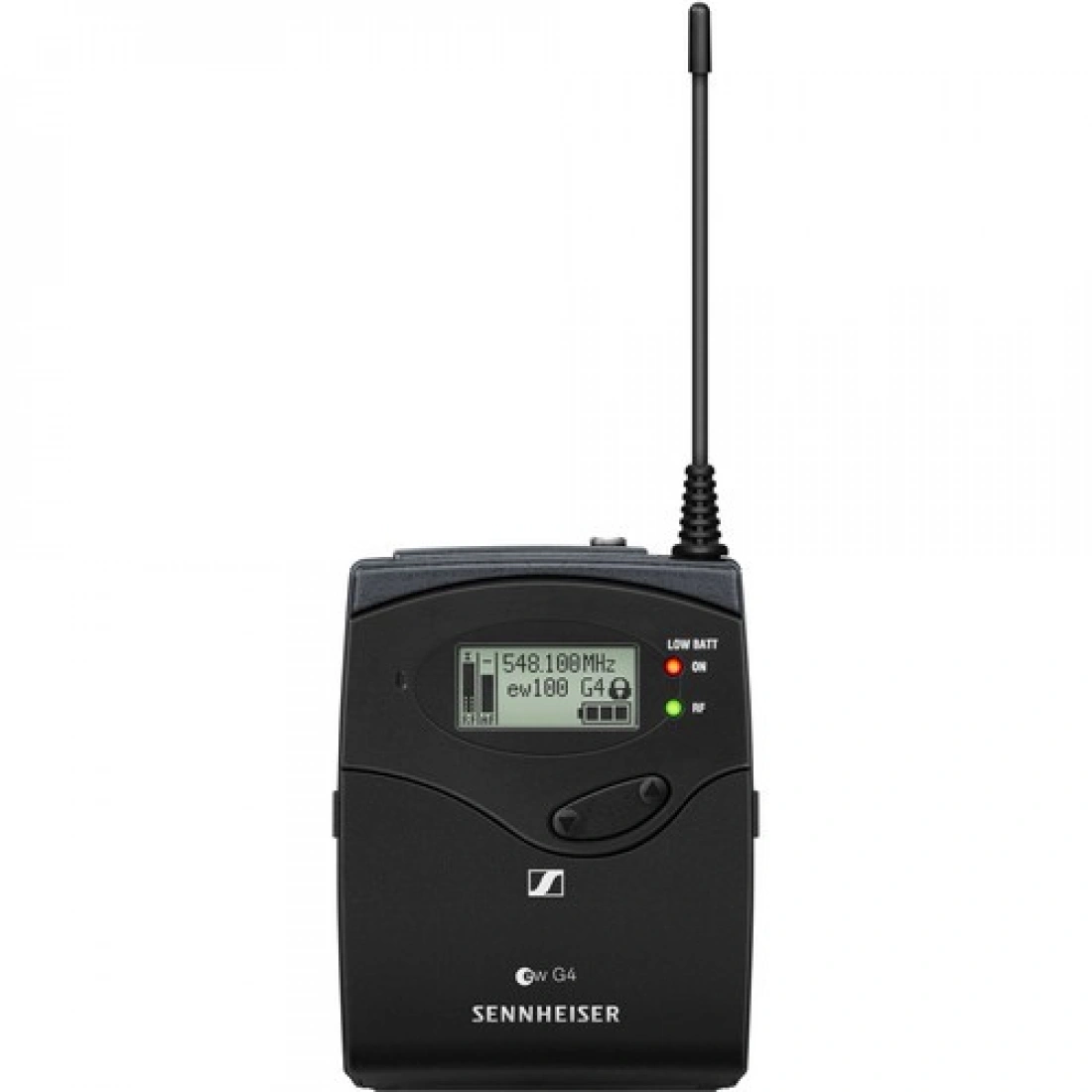

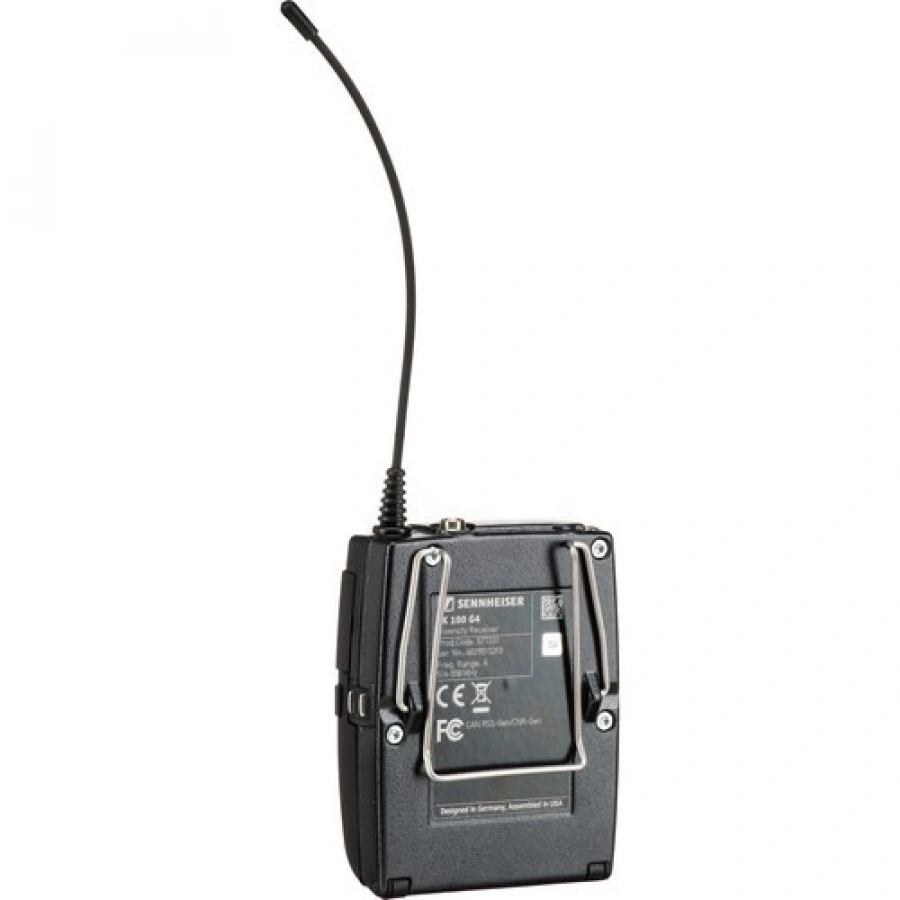

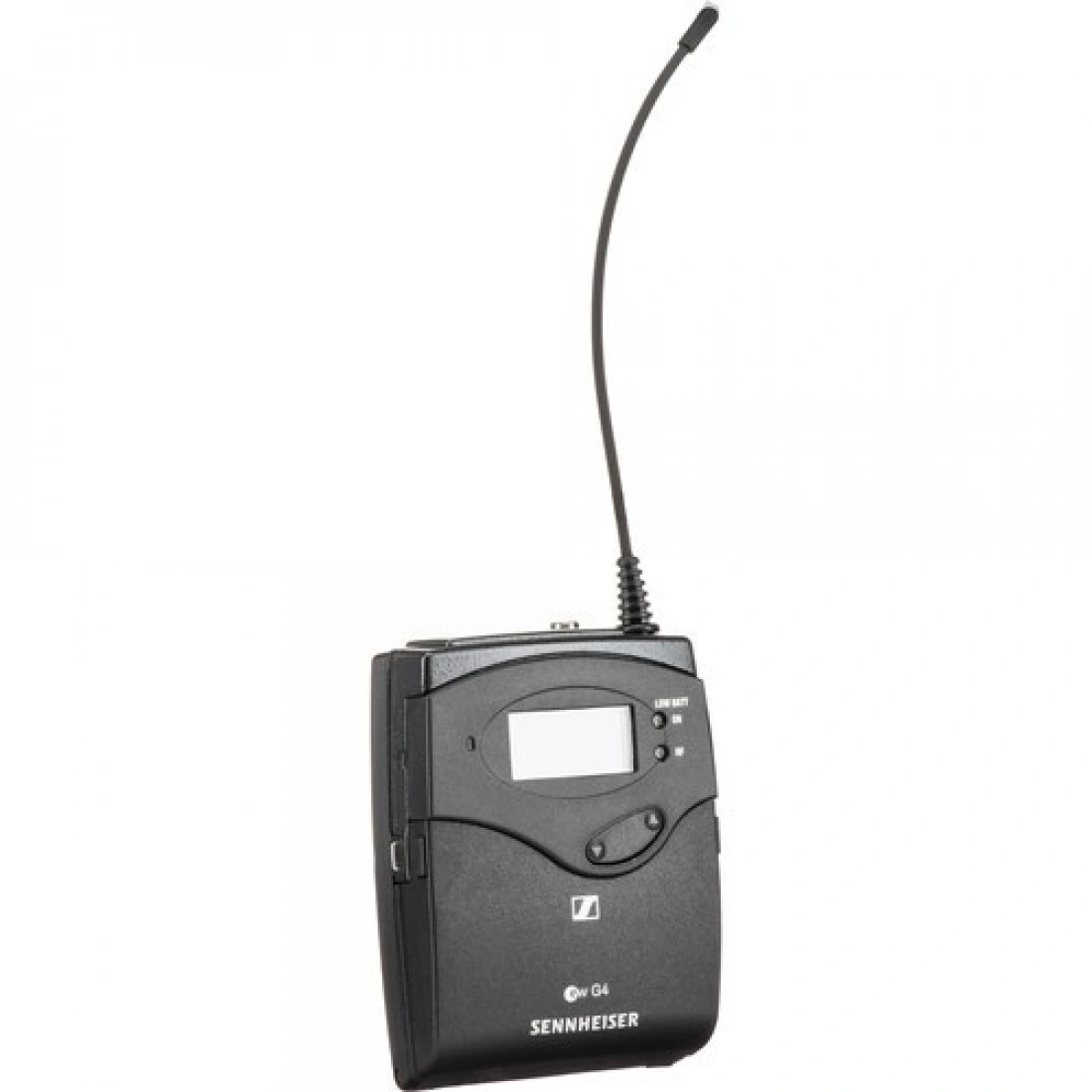

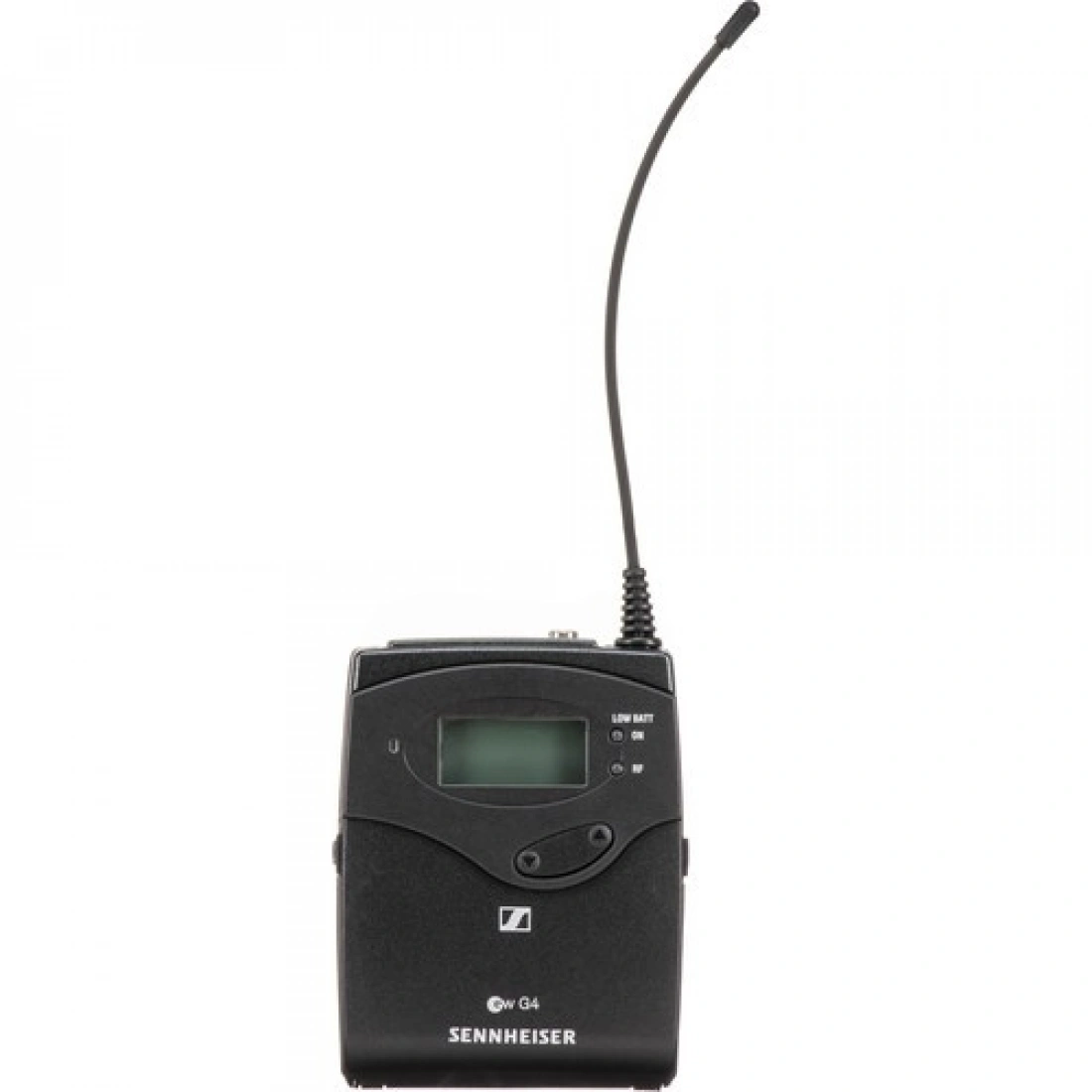

- Sennheiser EK 100 G4 Camera-Mount Wireless Receiver (A: 516 to 558 MHz)

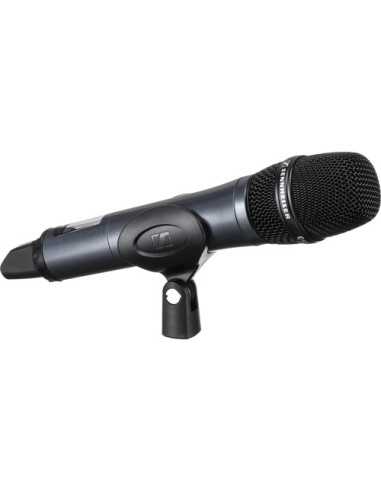

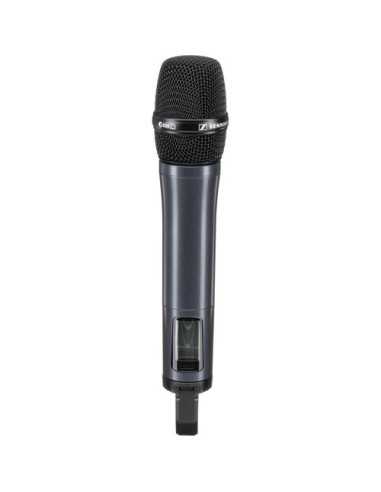

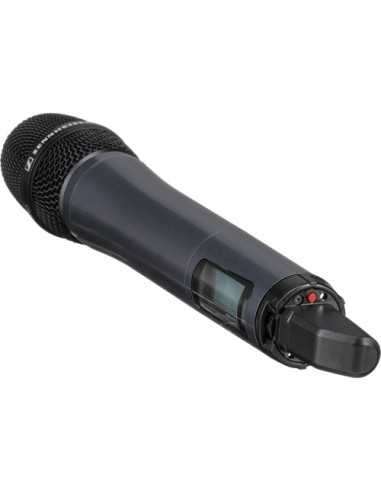

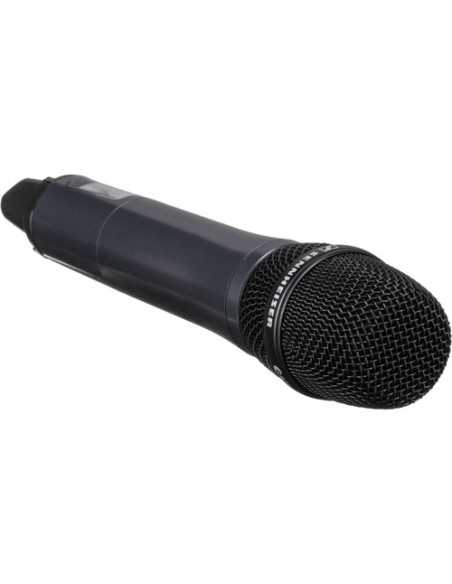

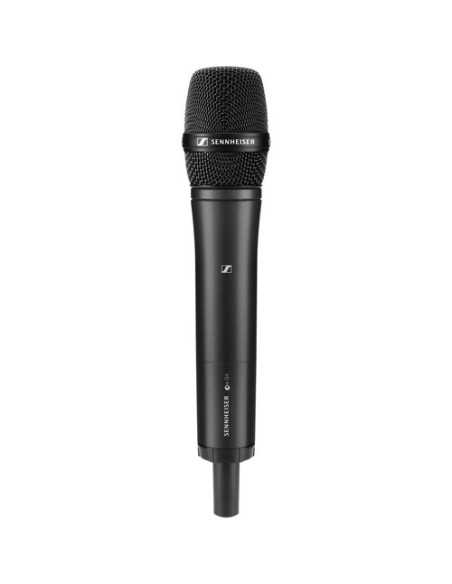

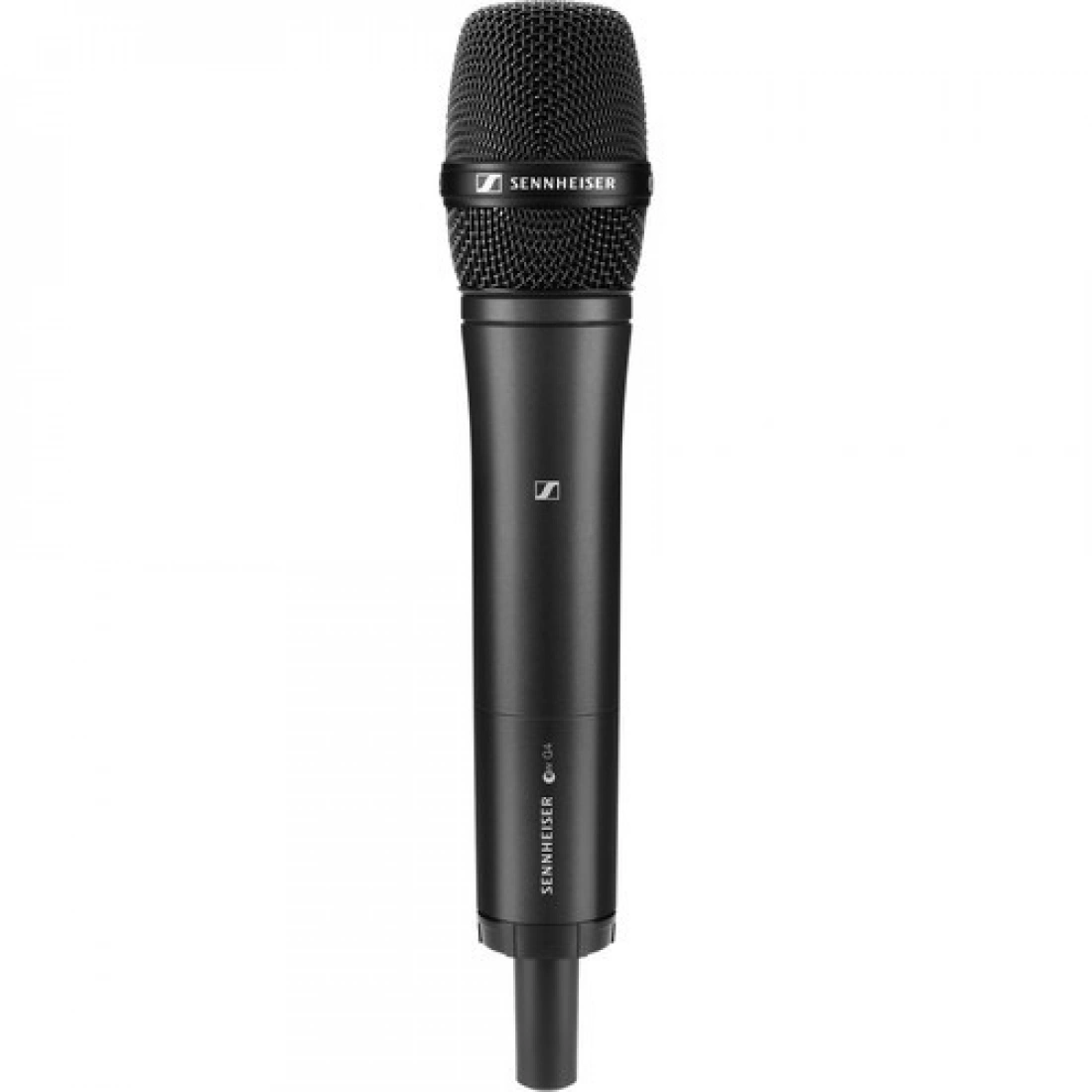

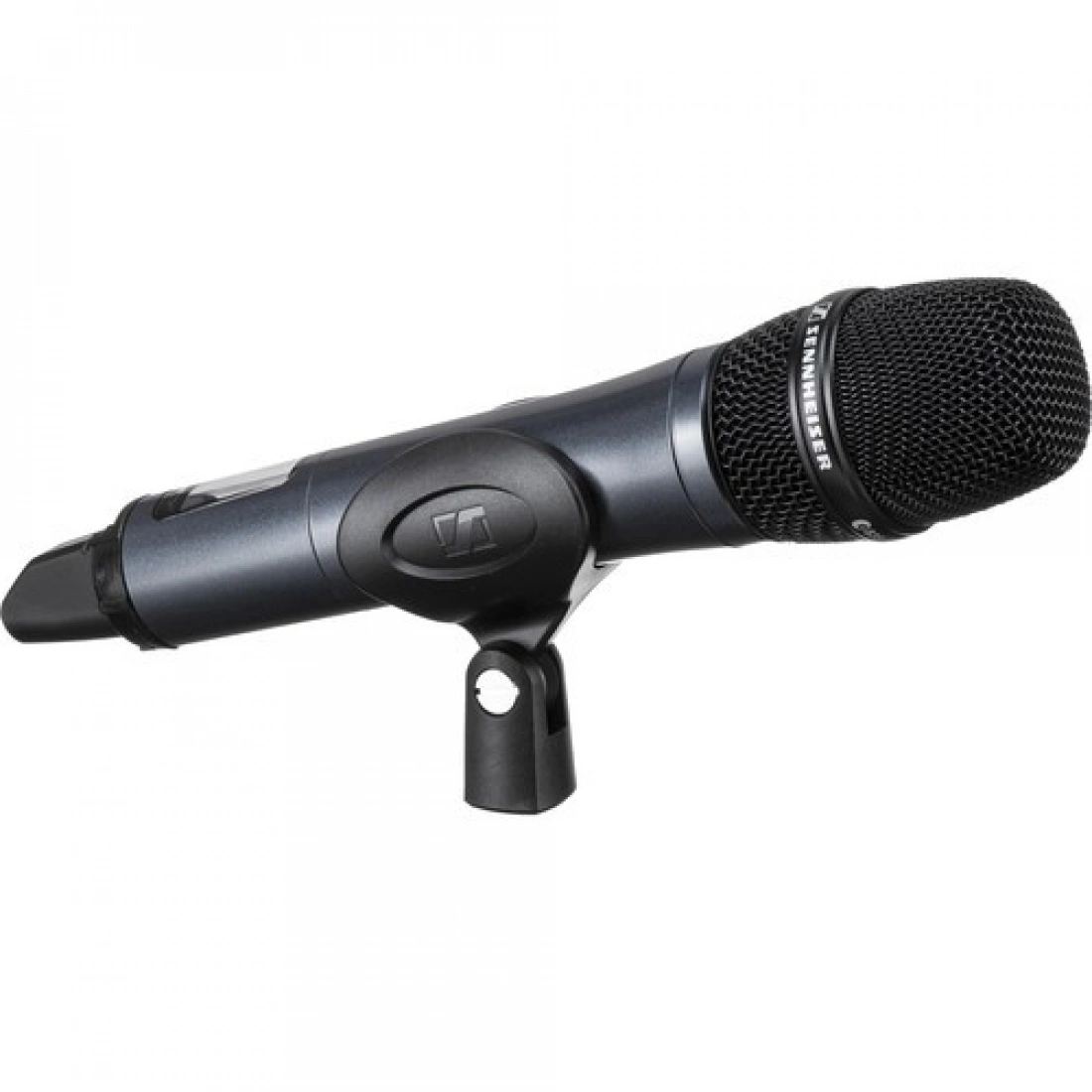

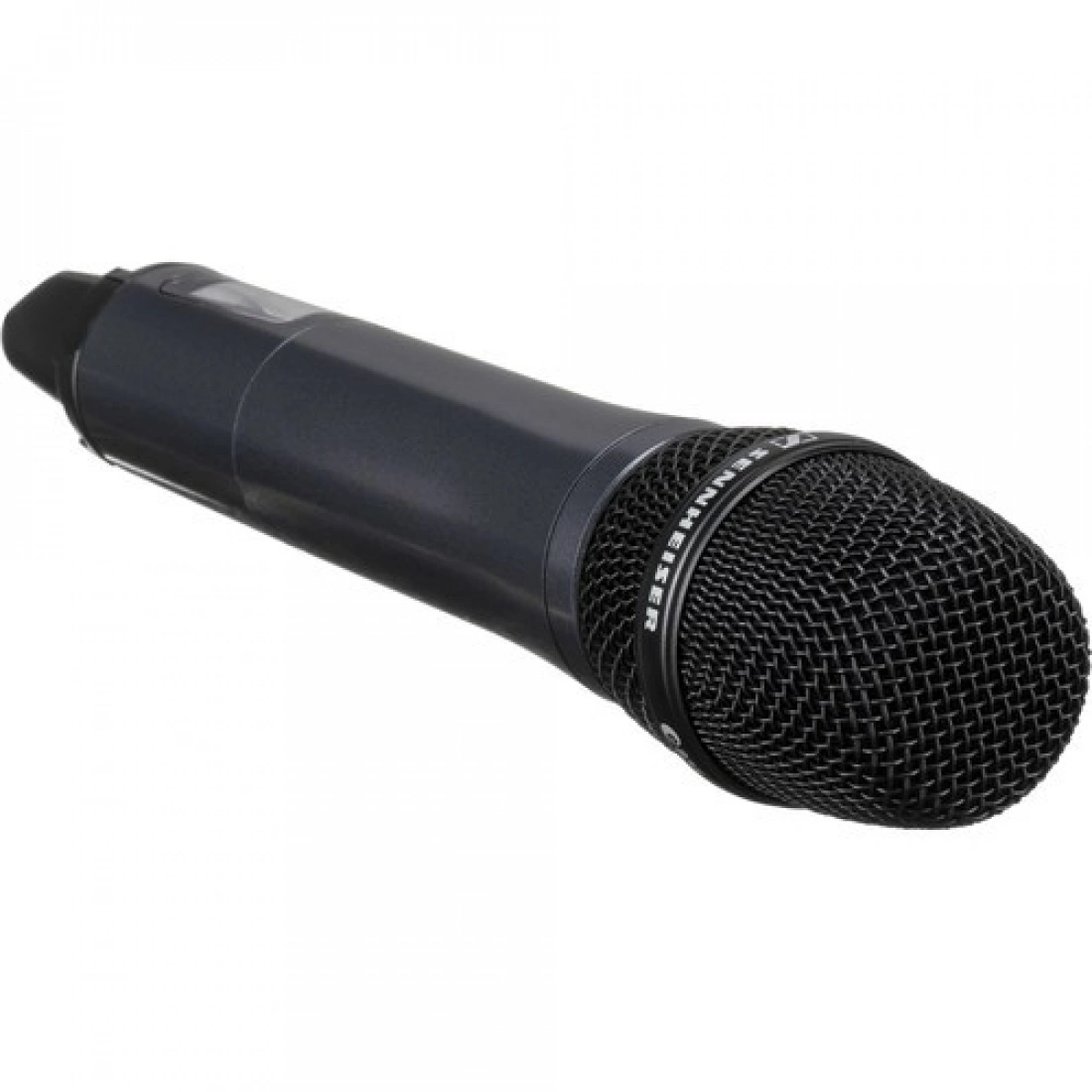

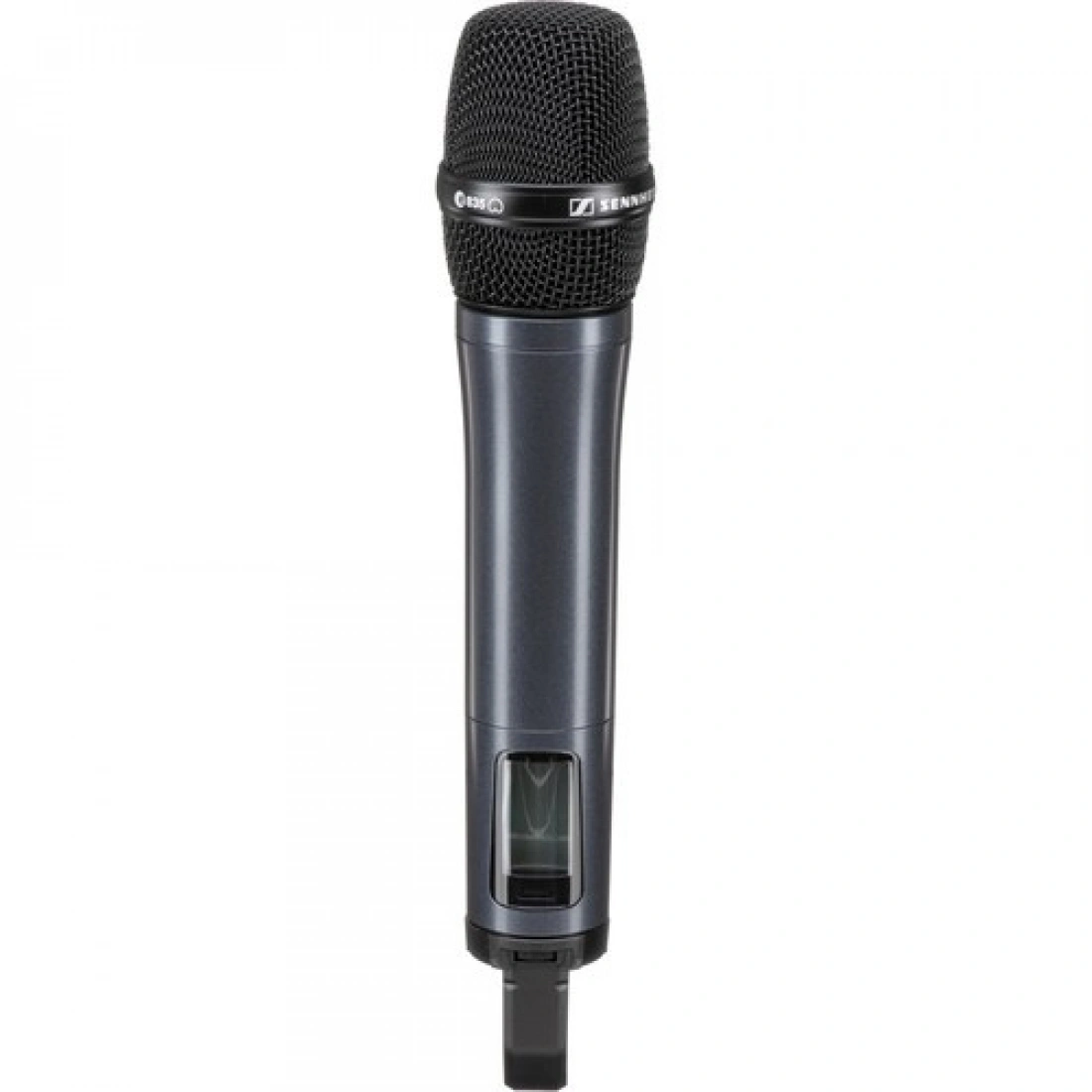

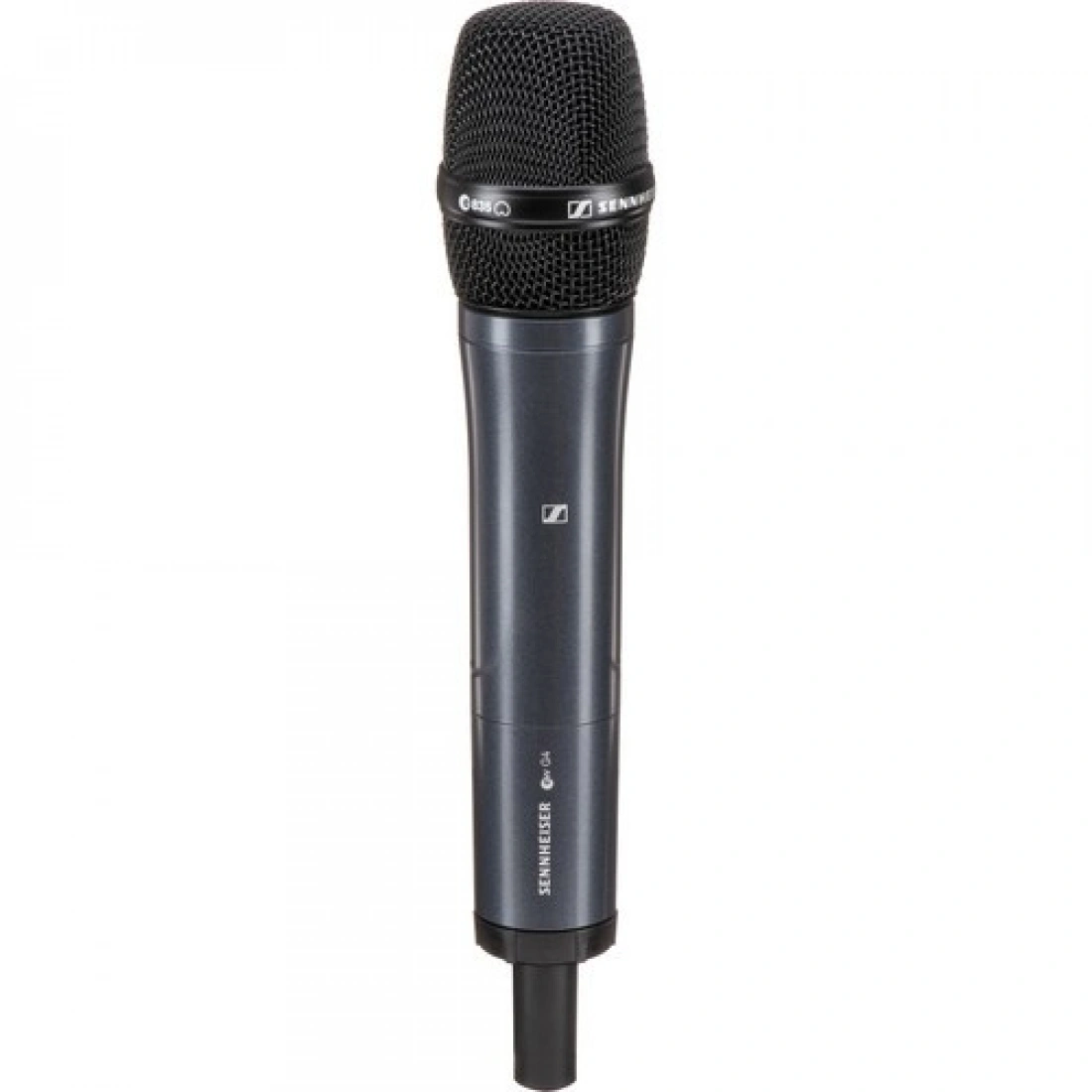

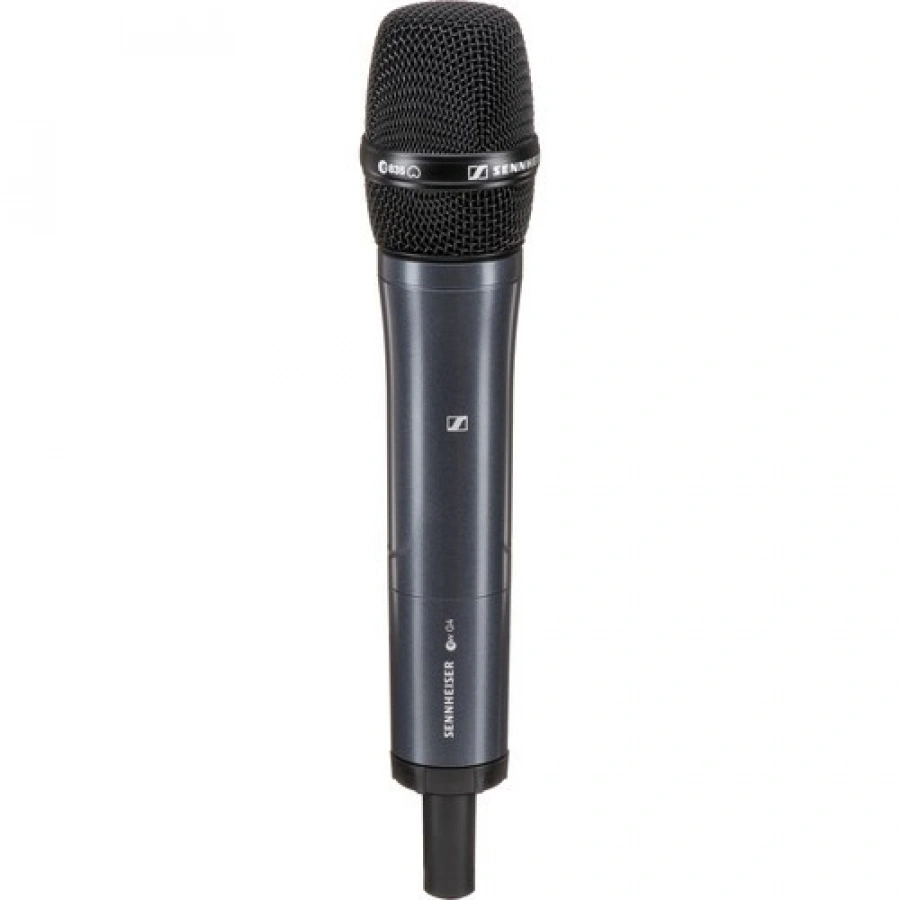

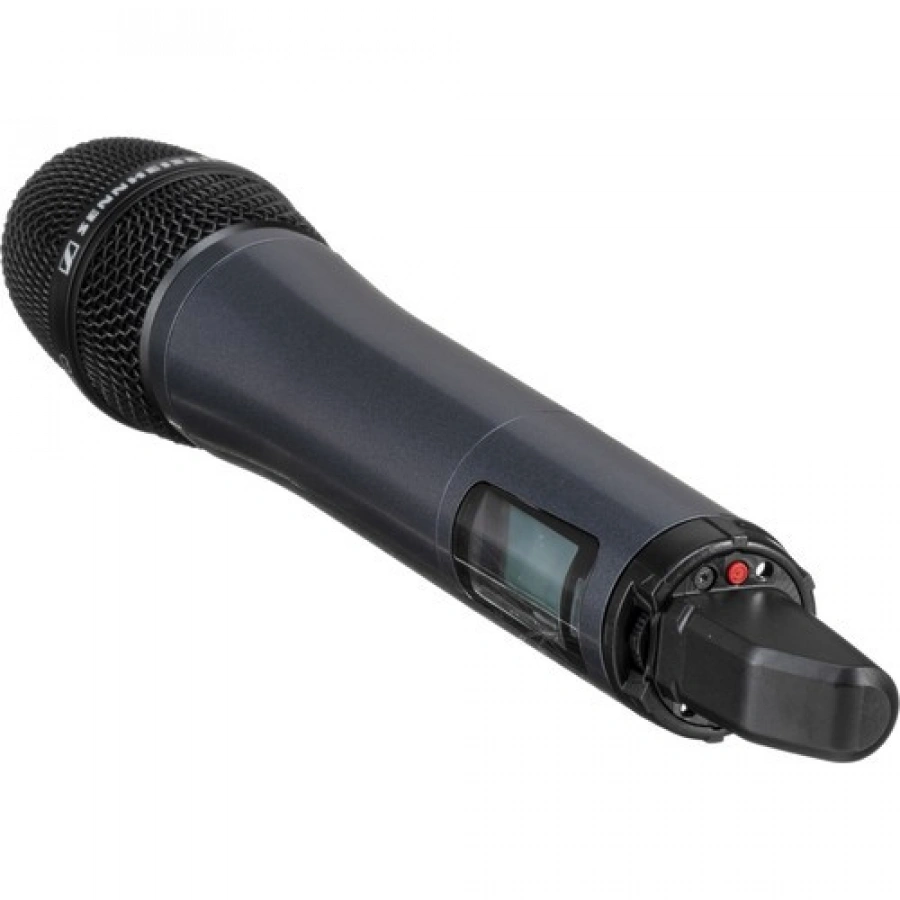

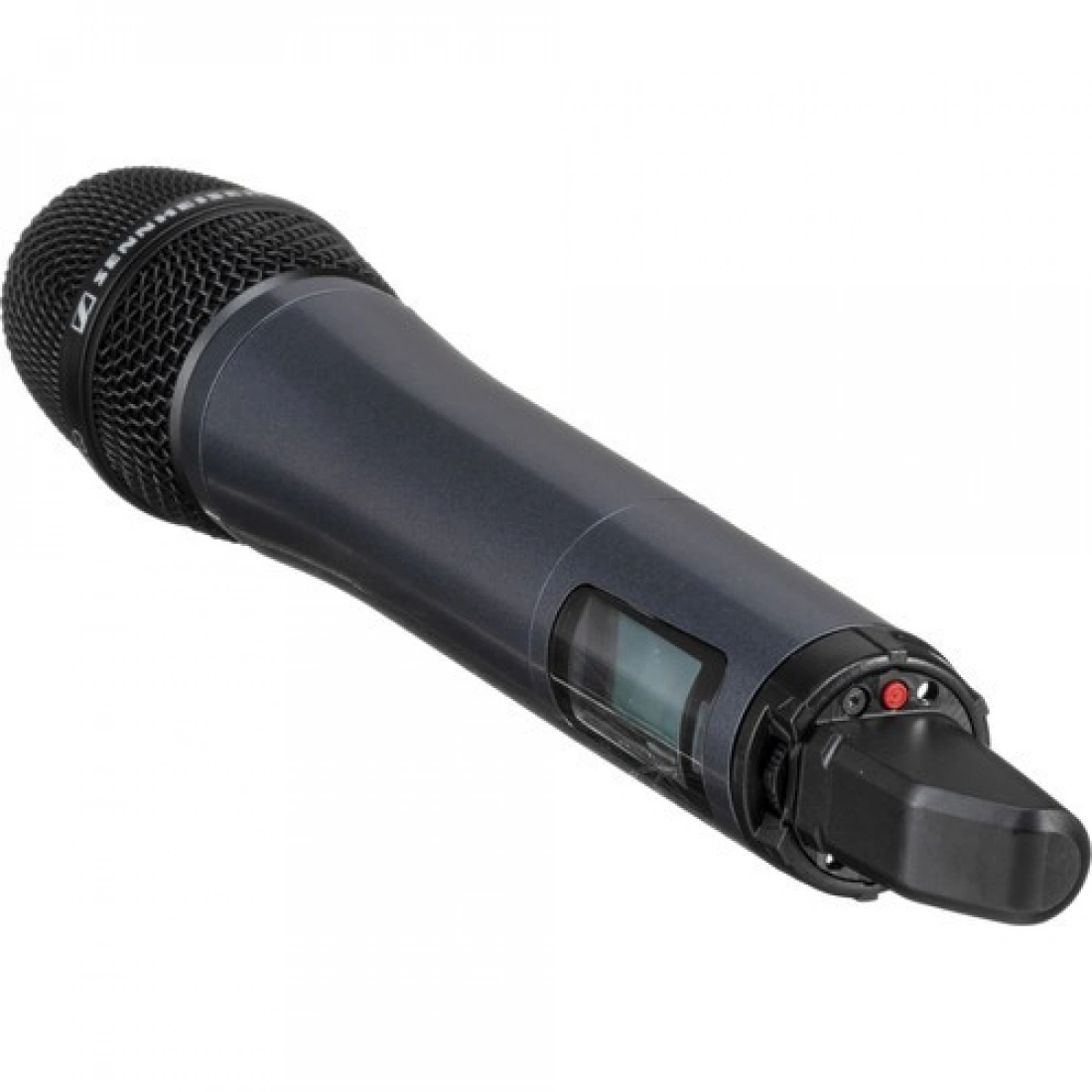

- Sennheiser SKM 100 G4 Handheld Wireless Microphone Transmitter with No Mic Capsule (A: 516 to 558 MHz)
- Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
- Sennheiser MZQ 1 Clip for SKM Wireless Handheld Microphones

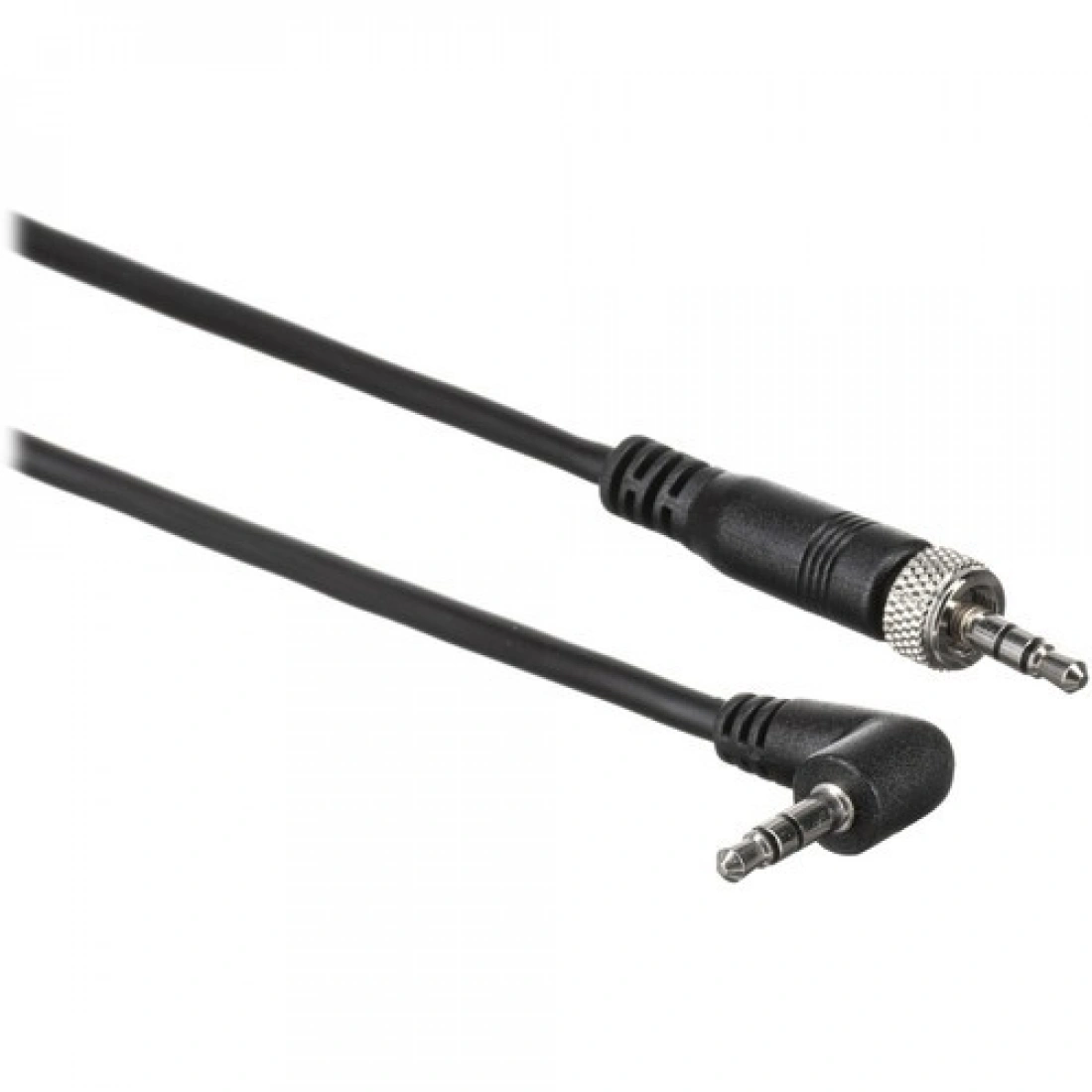

- Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver

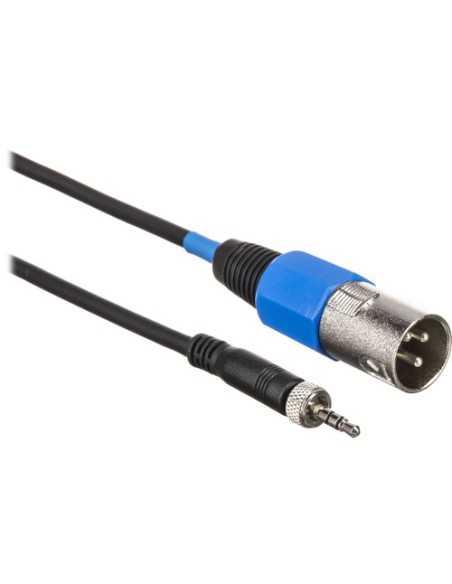

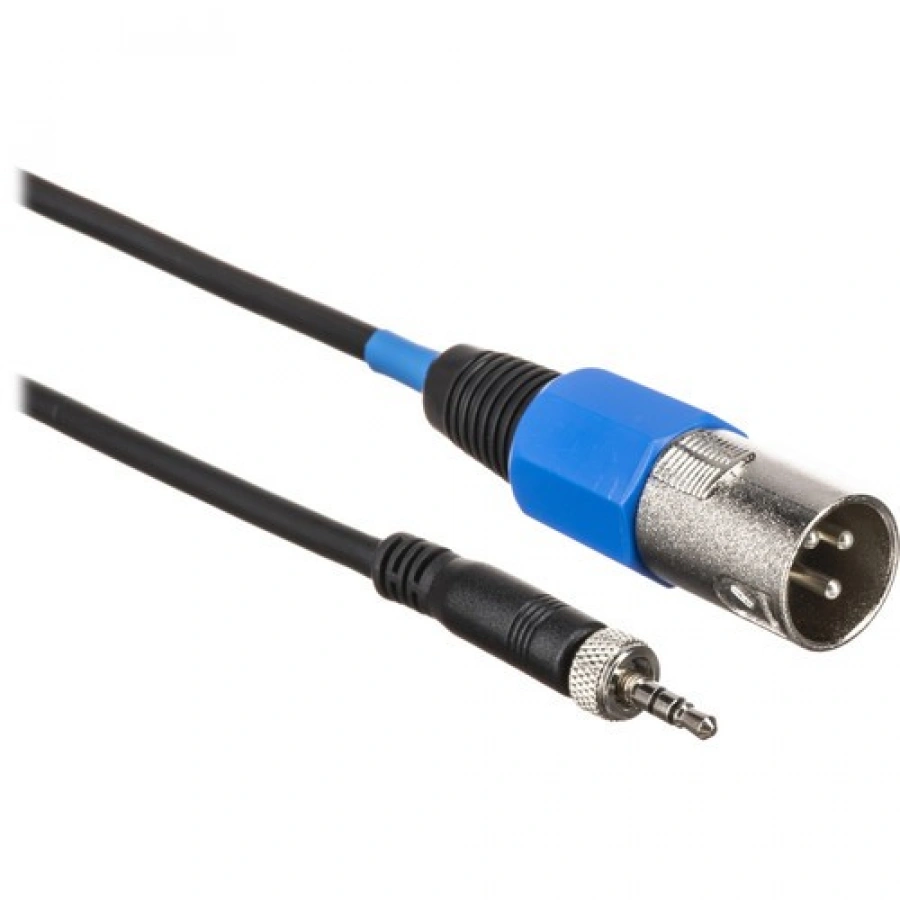

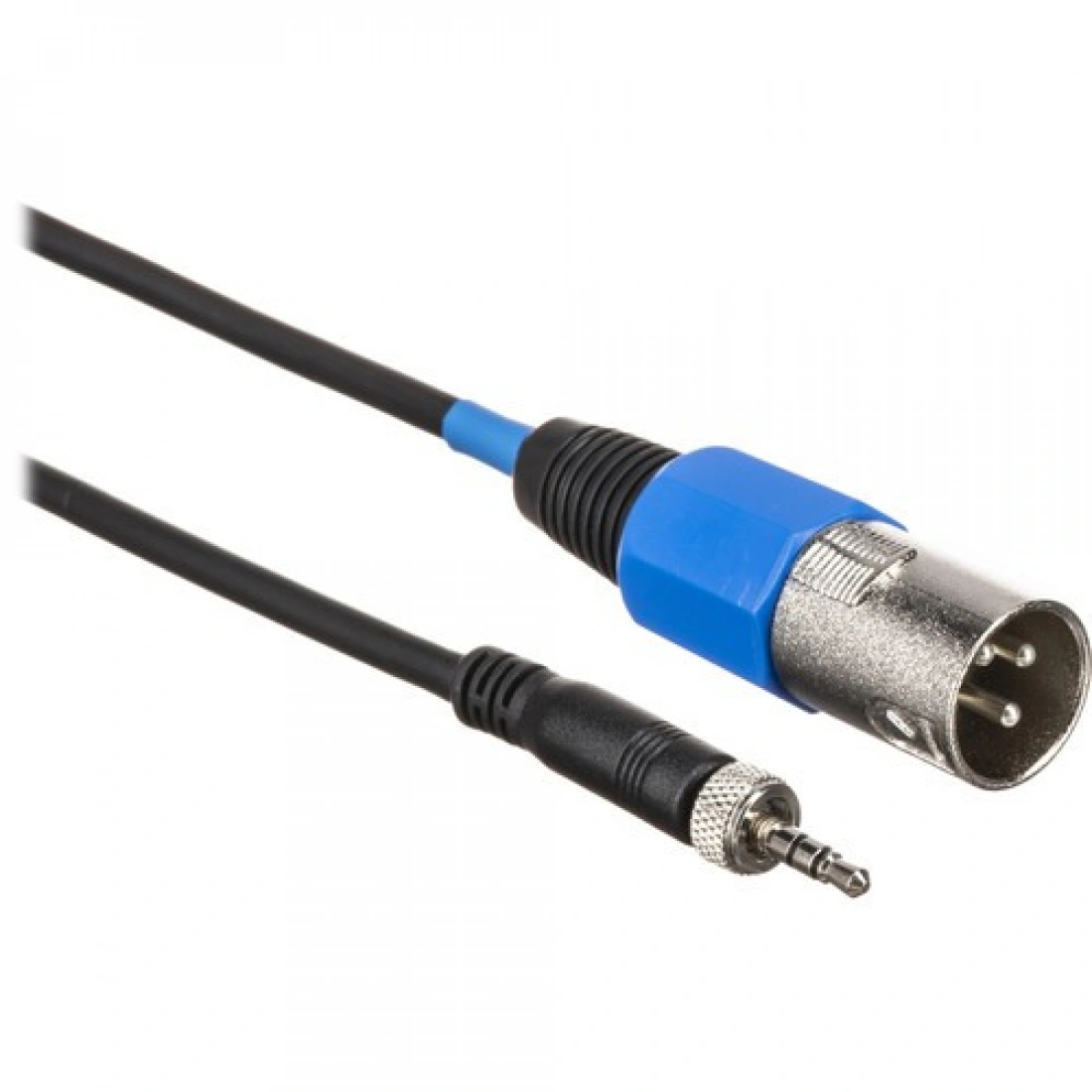

- Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable for Sennheiser EK100 Receiver

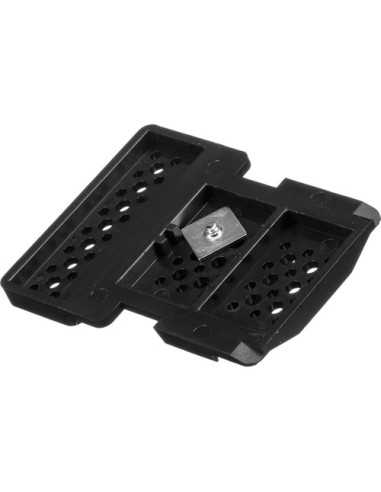

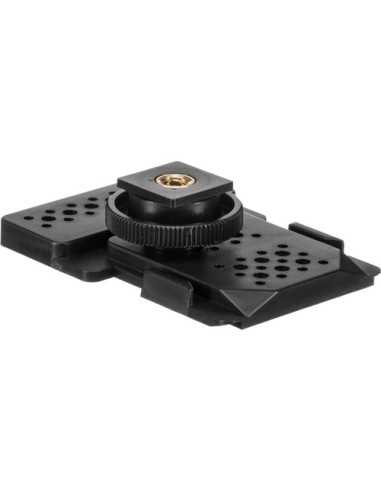

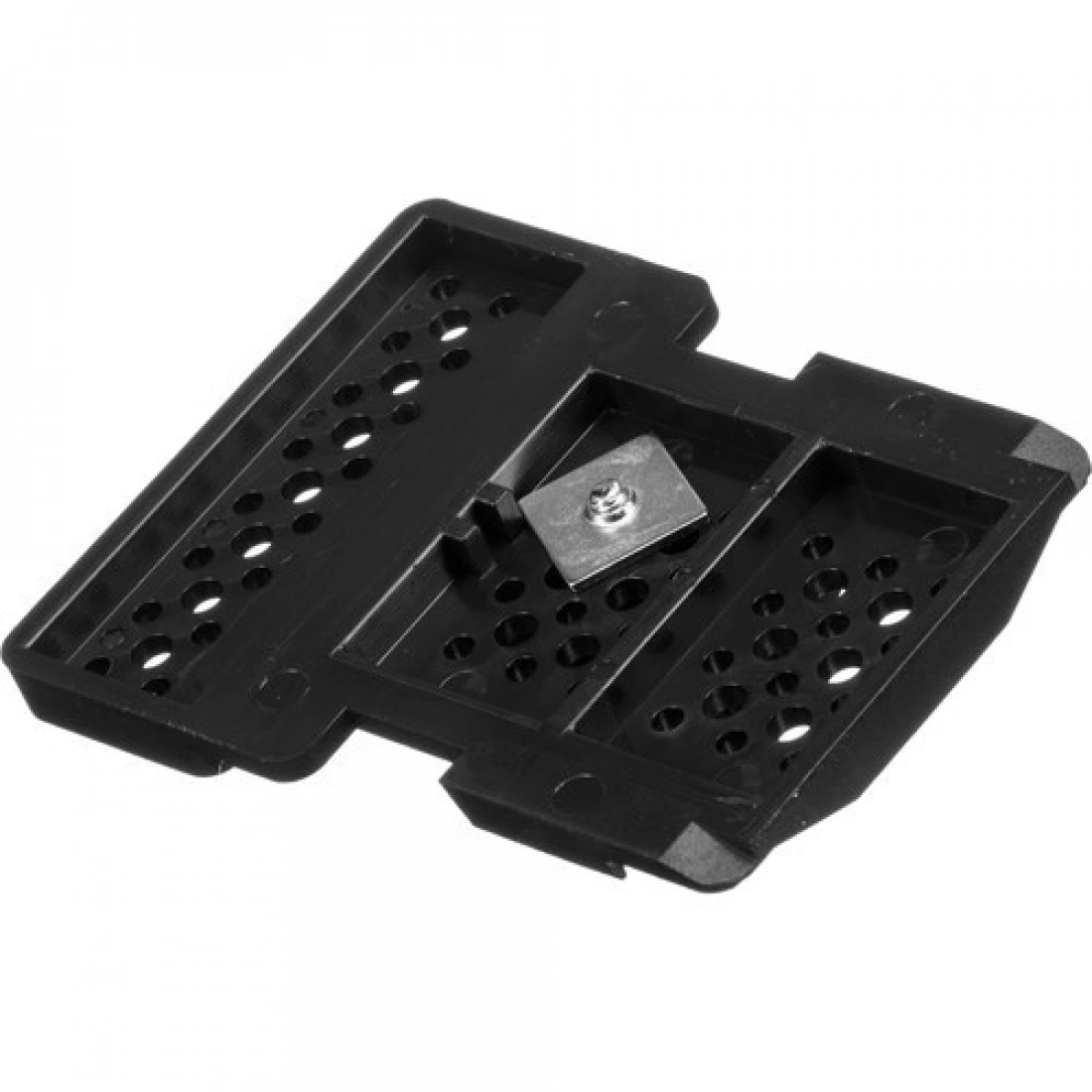

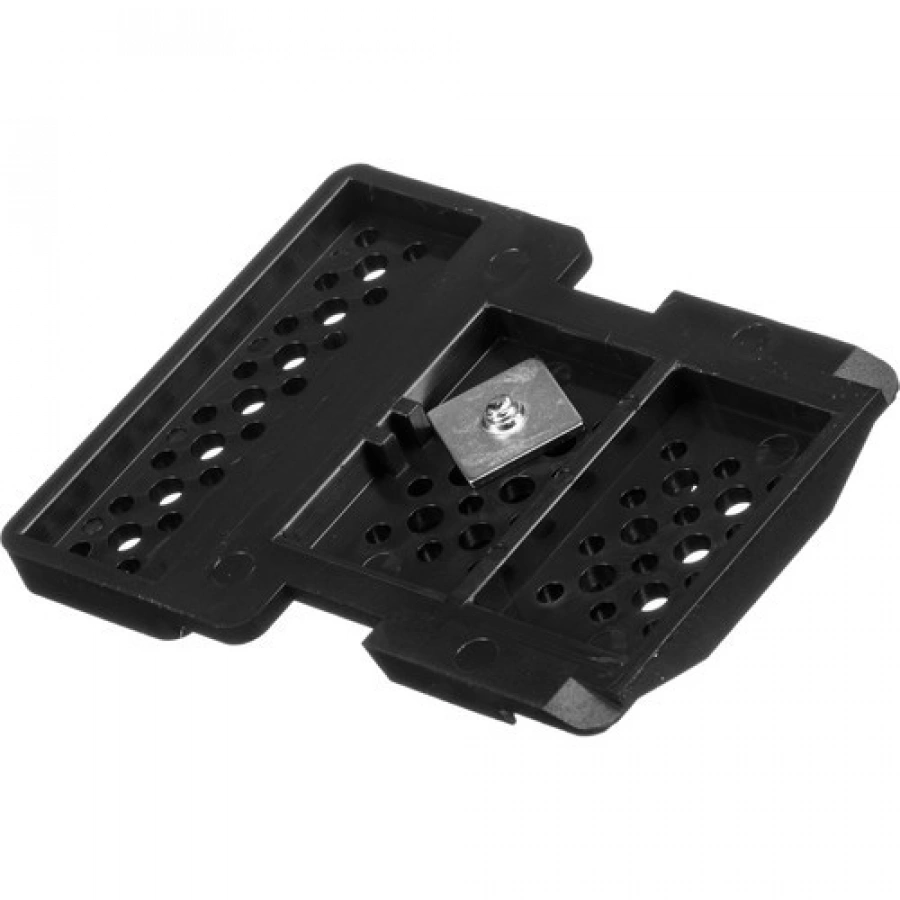

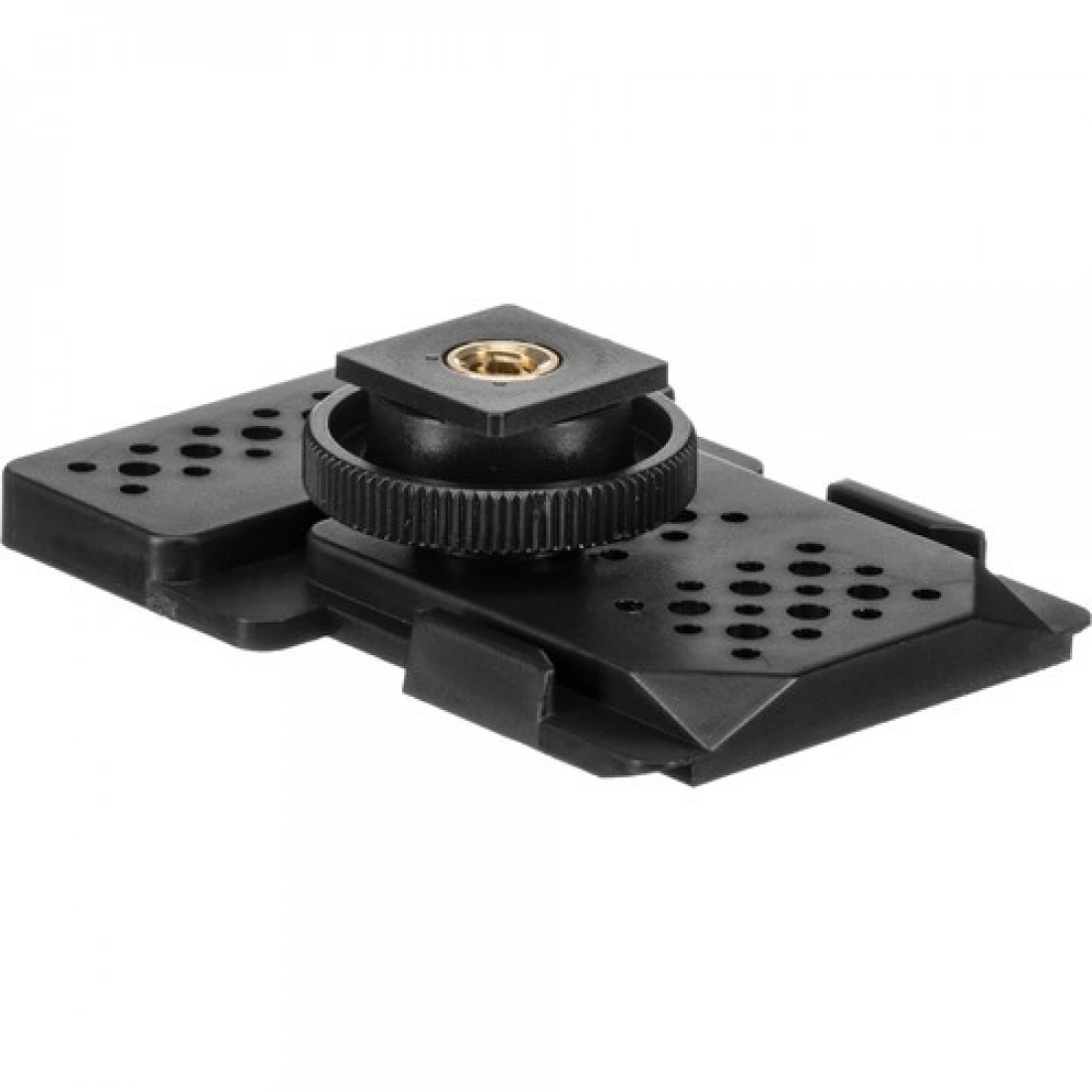

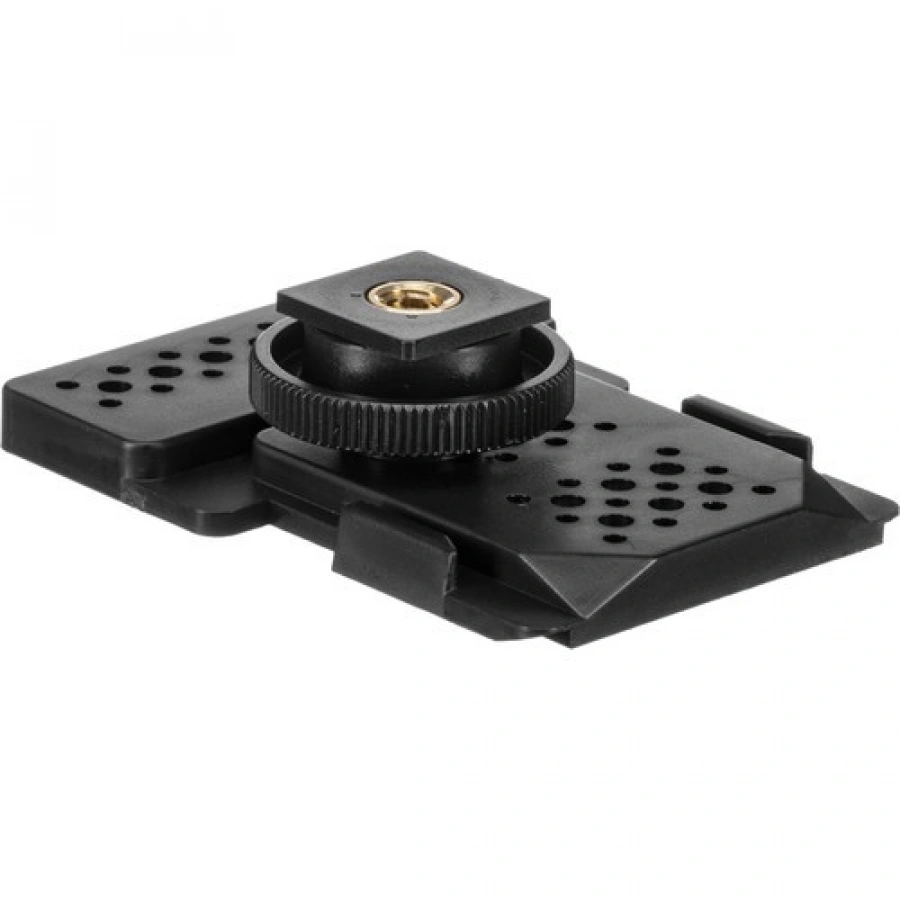

- Sennheiser CA2 Shoemount Adapter for EW Series Camera Mountable Receivers
- 4 x AA Batteries
- Limited 2-Year Manufacturer Warranty
- Audio I/O

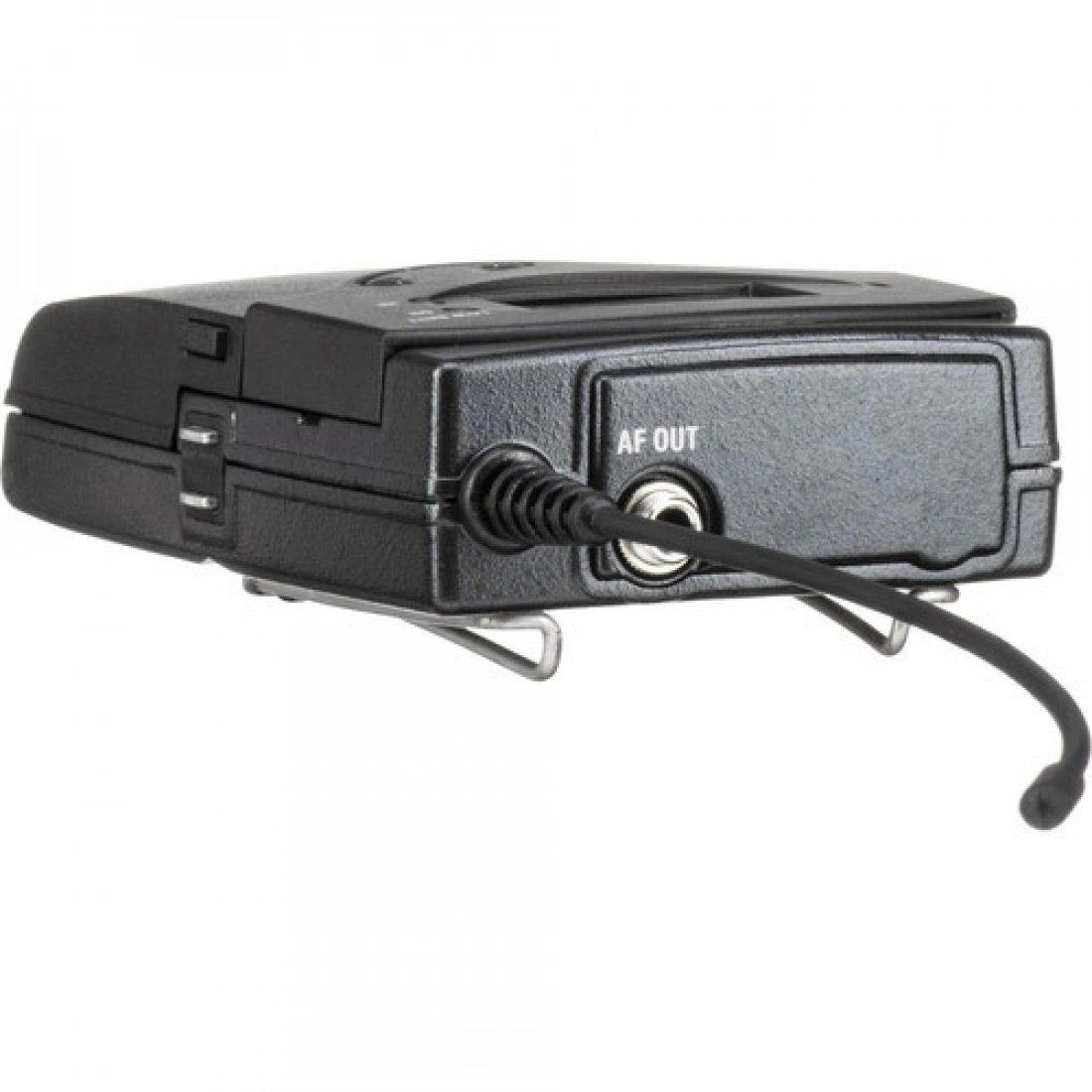

- 1x 1/8" / 3.5 mm TRS Female Unbalanced Output (Locking)
- Wireless Technology
- Analog UHF
- Included Transmitters
- 1x Bodypack with Microphone
- Diversity
- Antenna Diversity
- Max Operating Range
- 330' / 100.6 m (Line of Sight)
- Receiver Type
- Camera-Mount
- Mounting Options
- Shoe-Mount (with Included Hardware)
- RF Frequency Band
- A: 516 to 558 MHz
- Frequency Step Size
- 25 kHz
- Modulation
- Wideband FM
- Number of Audio Channels
- 1
- Antenna
- 1x Flexible Whip, Fixed
- Audio Output Level
- +12 dBu
- Number of RF Channel Frequencies
- 1680
- RF Bandwidth
- 42 MHz
- Squelch
- 5 to 25 dBμV
- Gain Range
- 42 dB (6 dB Steps)
