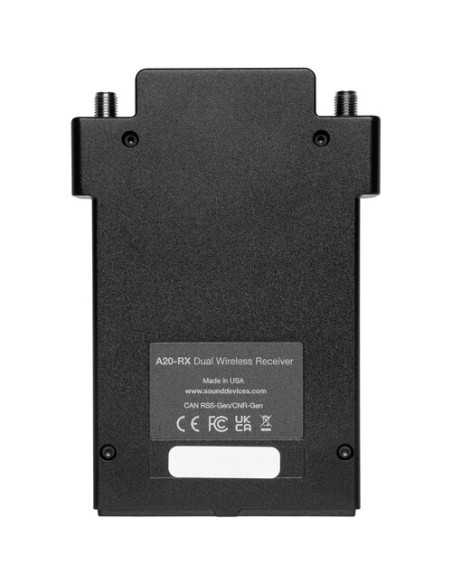

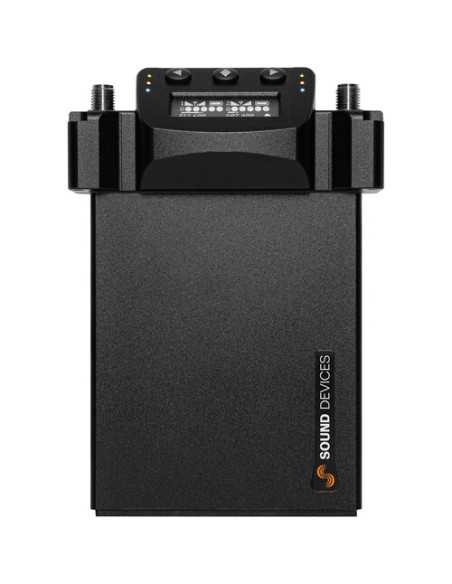

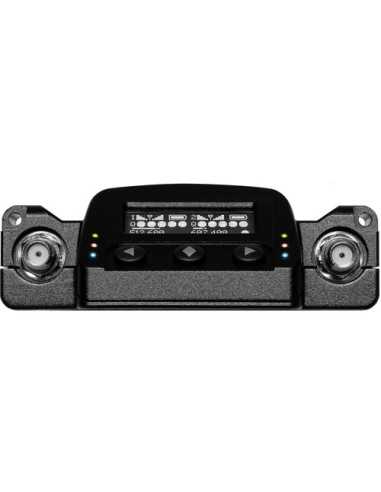

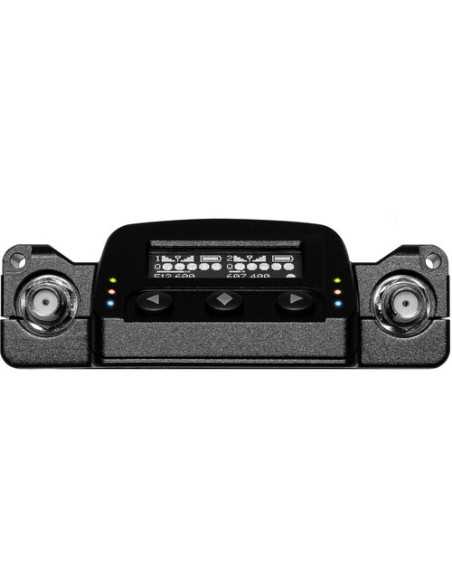

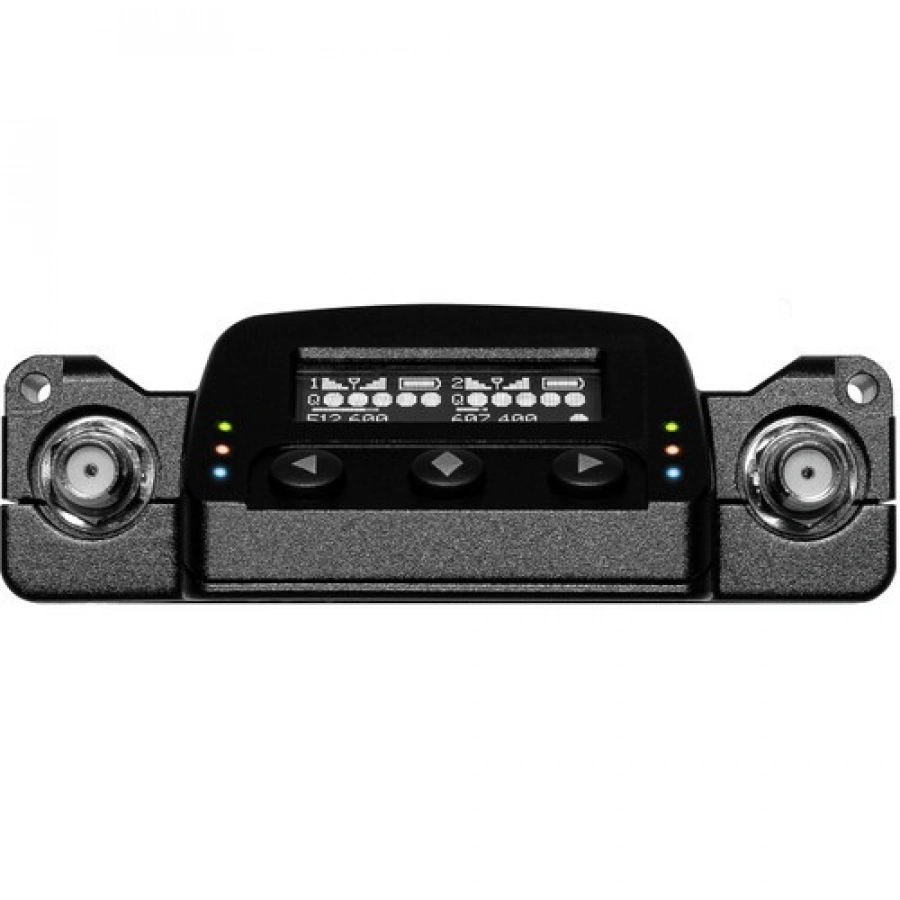

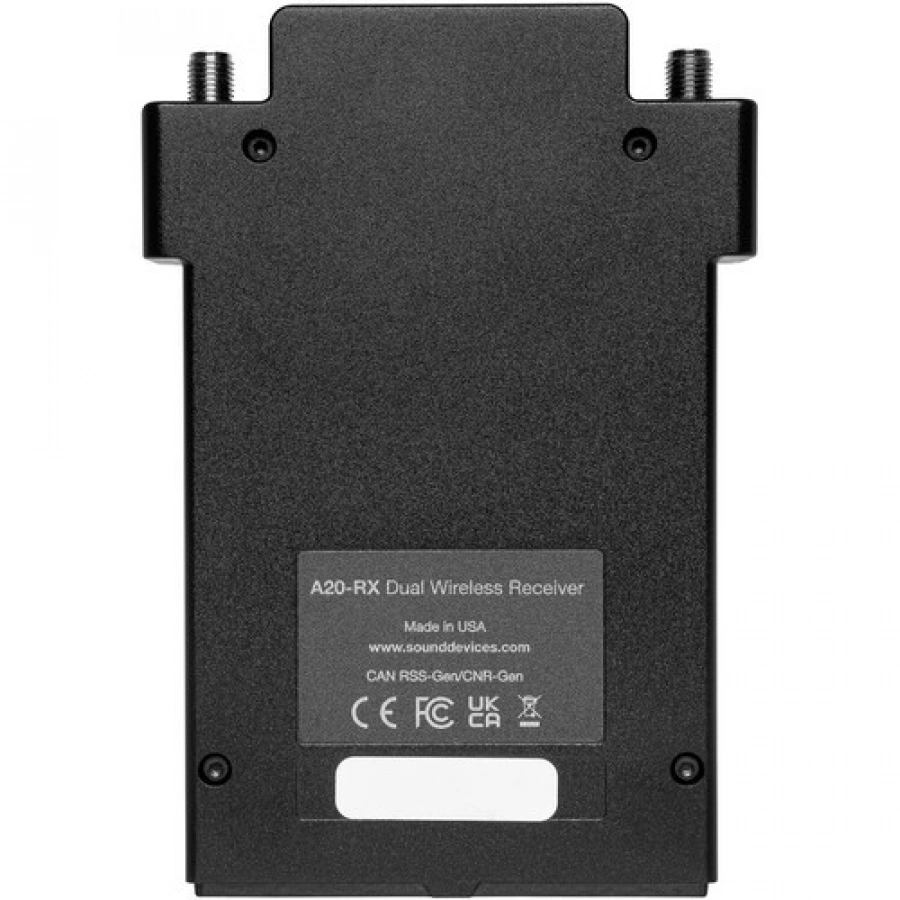

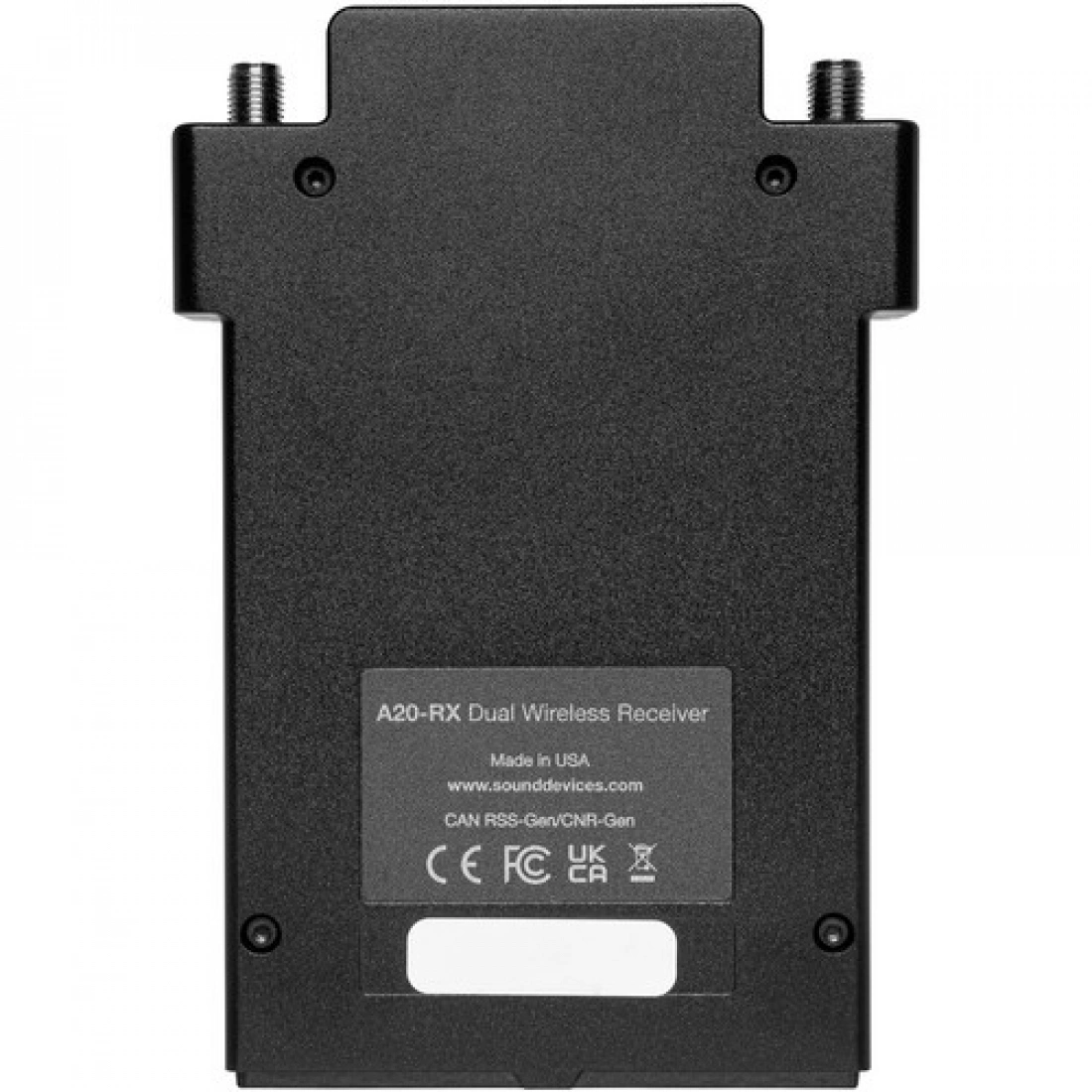

Sound Devices A20-RX Dual-Channel Digital Receiver (470 to 1525 MHz)
A20-RX
AED9,713.50
Tax excluded
SKU : #A20-RX
Key Features :
- Use with A20-Mini & A10-TX Transmitters
- Full-Tuning-Range SpectraBand Technology
- True-Diversity Reception
- Brick-Wall SAW Filters Cut Interference
- 10 Hz to 20 kHz Audio Frequency Response
- Analog or AES Digital Output
- GainForward Architecture
- Requires Backplate Adapter
Sound Devices A20-RX Overview
The A20-RX from Sound Devices is a dual-channel digital receiver designed for use with the A10-TX and A20-Mini transmitters and featuring a powerful feature set that ensures professional-level reliability, even in noisy RF environments.
In the Box
-----------------------------------------------------------------------------------
- Sound Devices A20-RX Dual-Channel Digital Receiver (470 to 1525 MHz)
- Straight Antenna (470 to 548 MHz)
- Right-Angle Antenna (470 to 548 MHz)
- Straight Antenna (548 to 638 MHz)
- Right-Angle Antenna (548 to 638 MHz)
- Straight Uncut Antenna
- Right-Angle Uncut Antenna
- 6 x Antenna Cap
- Limited 1-Year Manufacturer Warranty (Extends 1 Additional Year upon Product Registration)
- Dimensions
- 3.1 x 4.5 x 1" / 78.5 x 113.7 x 26.6 mm
- Weight
- 5.8 oz / 165 g (without Mounting Hardware)
- DC Input Power
- 6 to 18 VDC (via Mounting Slot)
- Package Weight
- 0.85 lb
- Audio I/O
- No
- Operating Temperature
- 14 to 131°F / -10 to 55°C
- Diversity
- True Digital Diversity
- Receiver Type
- Slot-Mount
- Timecode Support
- No
- Latency
- 2 to 3.9 ms
- Frequency Response
- 10 Hz to 20 kHz
- Mounting Options
- Slot-Mount (with Optional Hardware)
- Power Requirements
- DC Input
- Network I/O
- No
- RF Frequency Band
- 470 to 1525 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Modulation
- Proprietary
- Number of Audio Channels
- 2
- Network Protocols
- No
- Word Clock I/O
- No
- USB/Lightning Connectivity
- No
- Standalone Audio Interface Capable
- No
- Antenna
- 2x 1/4 Wave Flexible Whip, SMA (Front-Mount)
- Audio Output Level
- 14 dBu (Max)
- Phantom Power Protection
- No
- Display & Indicators
- 1x Graphic LCD (Frequency, Multifunction, Peak, RF Level, Transmitter Battery Status)
- Box Dimensions (LxWxH)
- 8 x 6.3 x 2.8"
