SWIT FLOW500 SDI&HDMI 500ft/150m Wireless System

SKU:FLOW 500

Key Features

  • KUWI 5.1-5.9GHz Wireless Technology
  • DFS Comply
  • 3GSDI & HDMI, with 3GSDI loop out
  • 500ft/150m (Line-of-Sight) distance
  • 32ms stable low latency
  • Strong Wall-Cross Performance
  • 2-ch SDI/HDMI audio transmission
  • OLED info and channel switching
  • Support up to 22 pairs working in one location
  • Multicast - 1 transmitter to unlimited receivers
  • Wireless protocol & content double encryption
  • Reclock and accurate color reproduction
FLOW 500
On backorder
AED5,805.00
Tax excluded

NEED HELP?

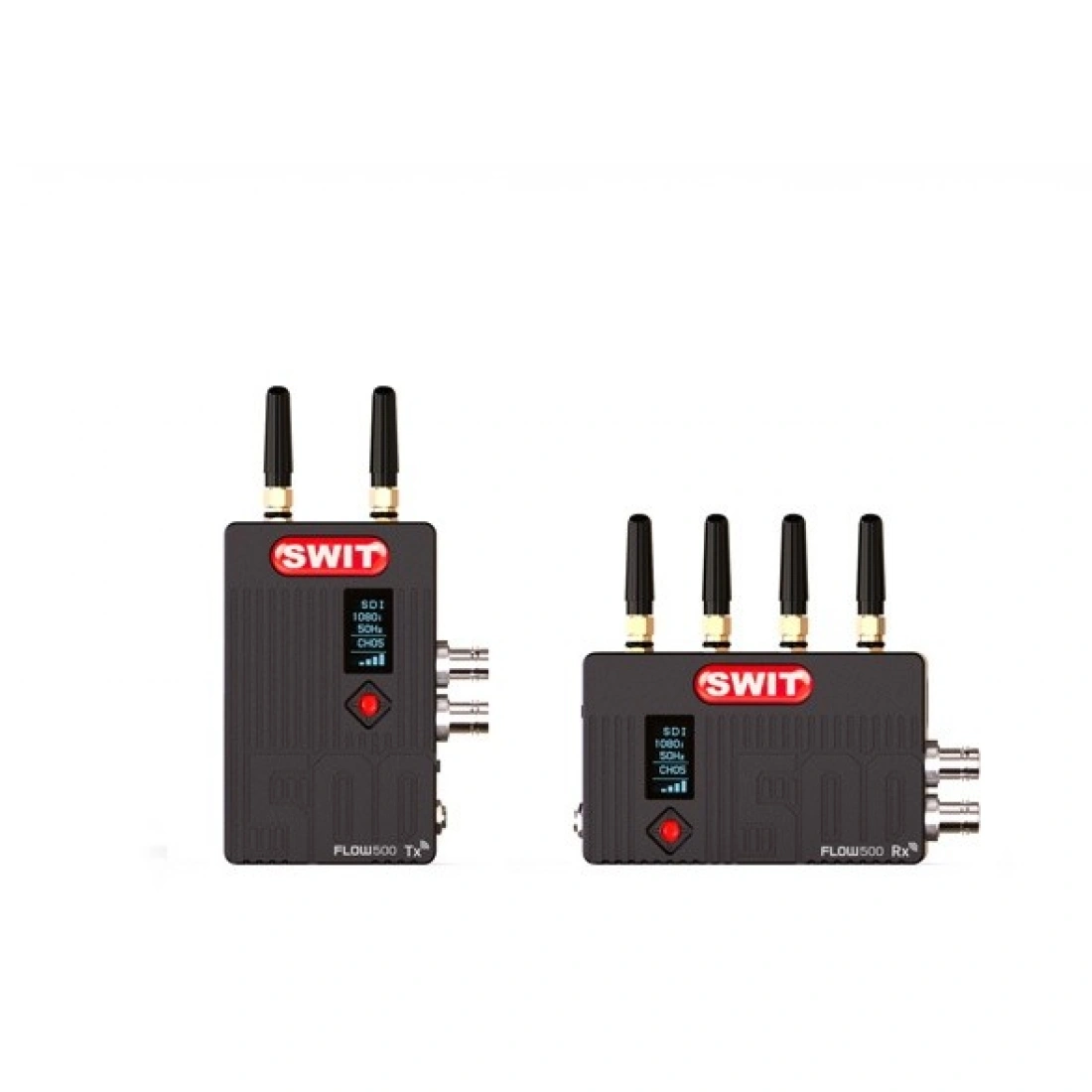

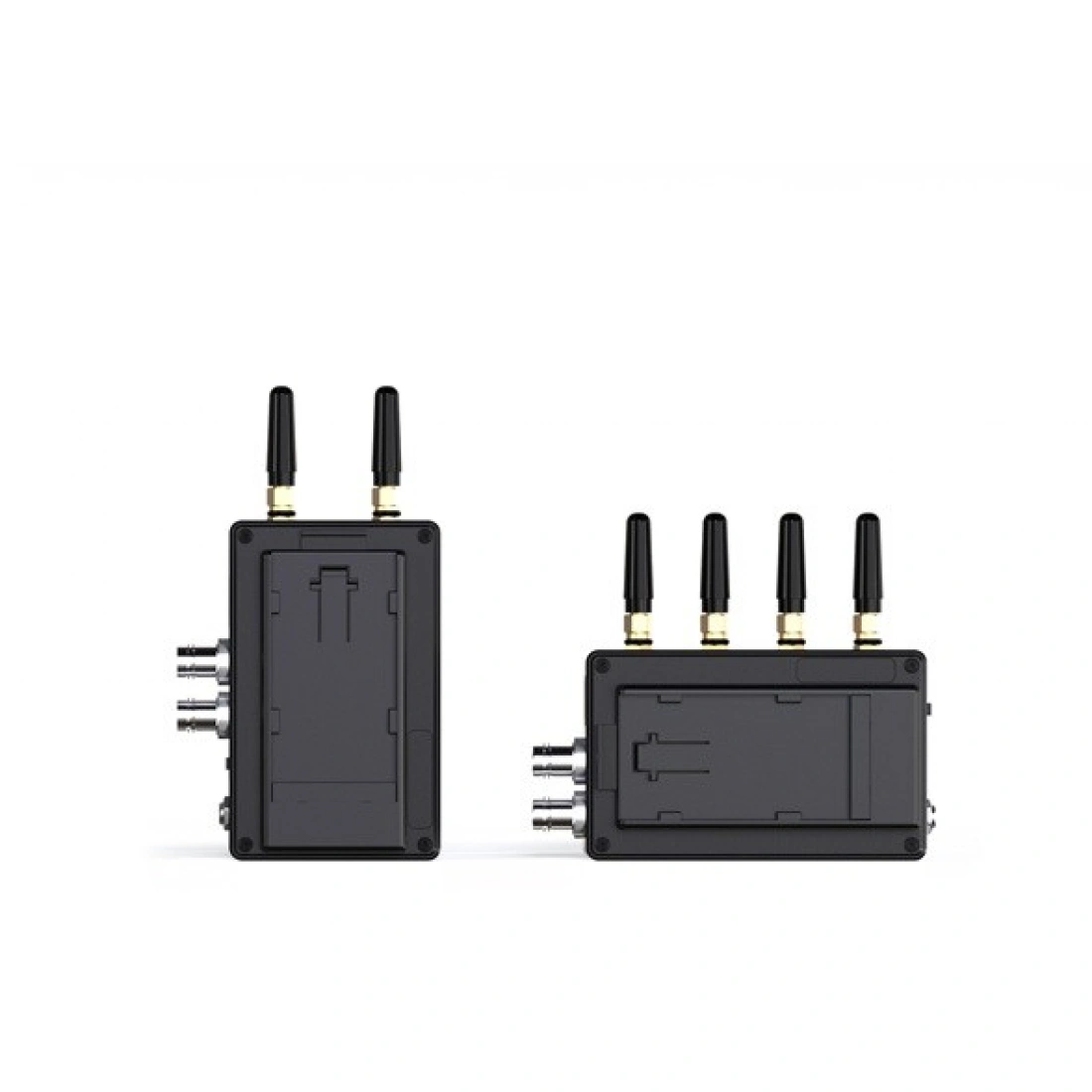

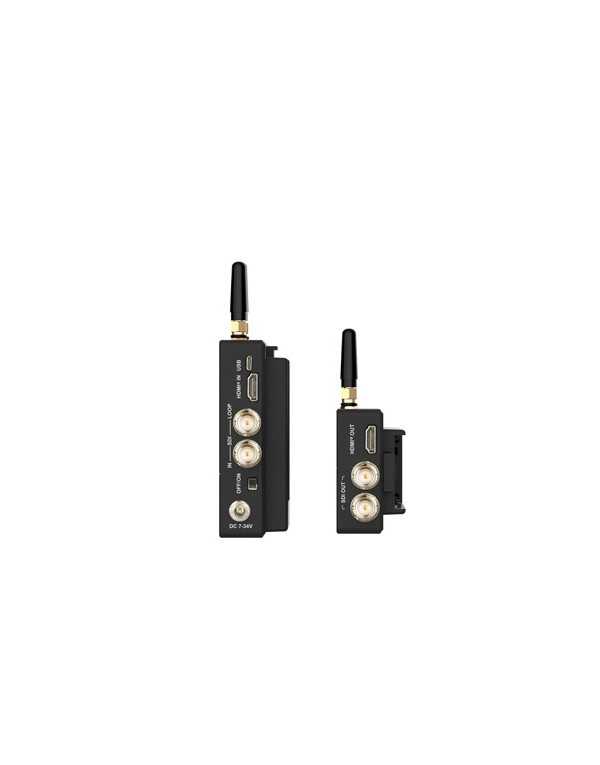

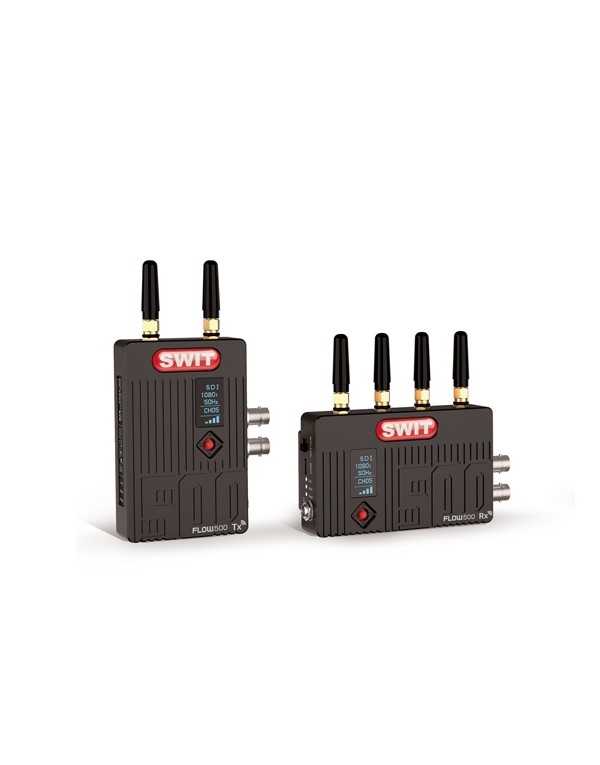

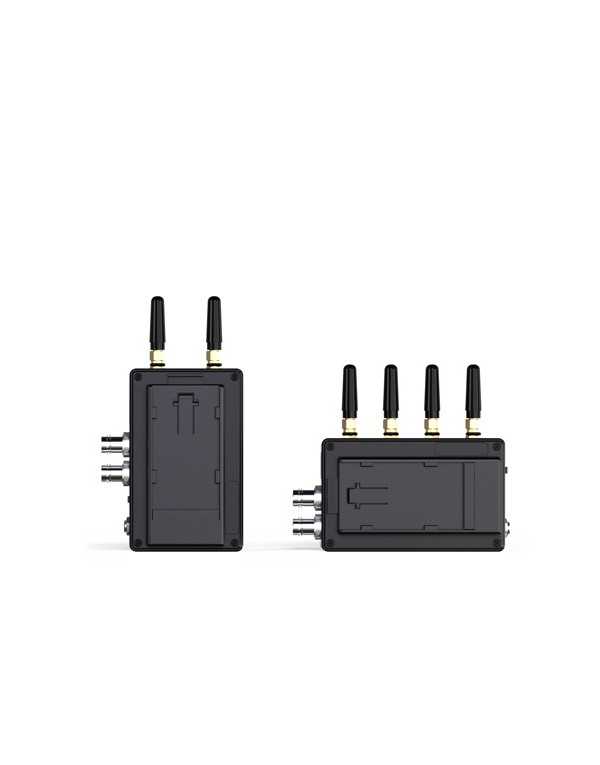

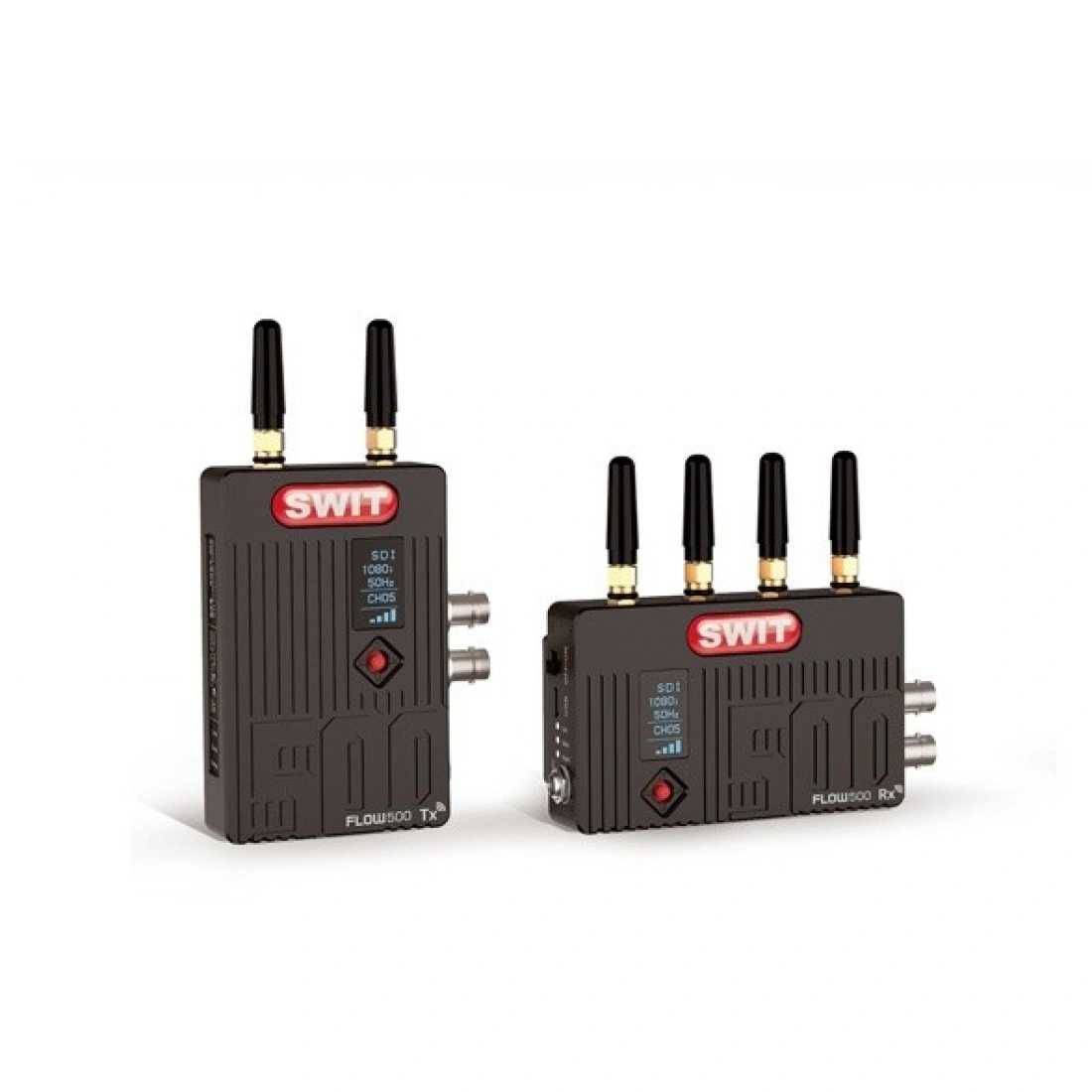

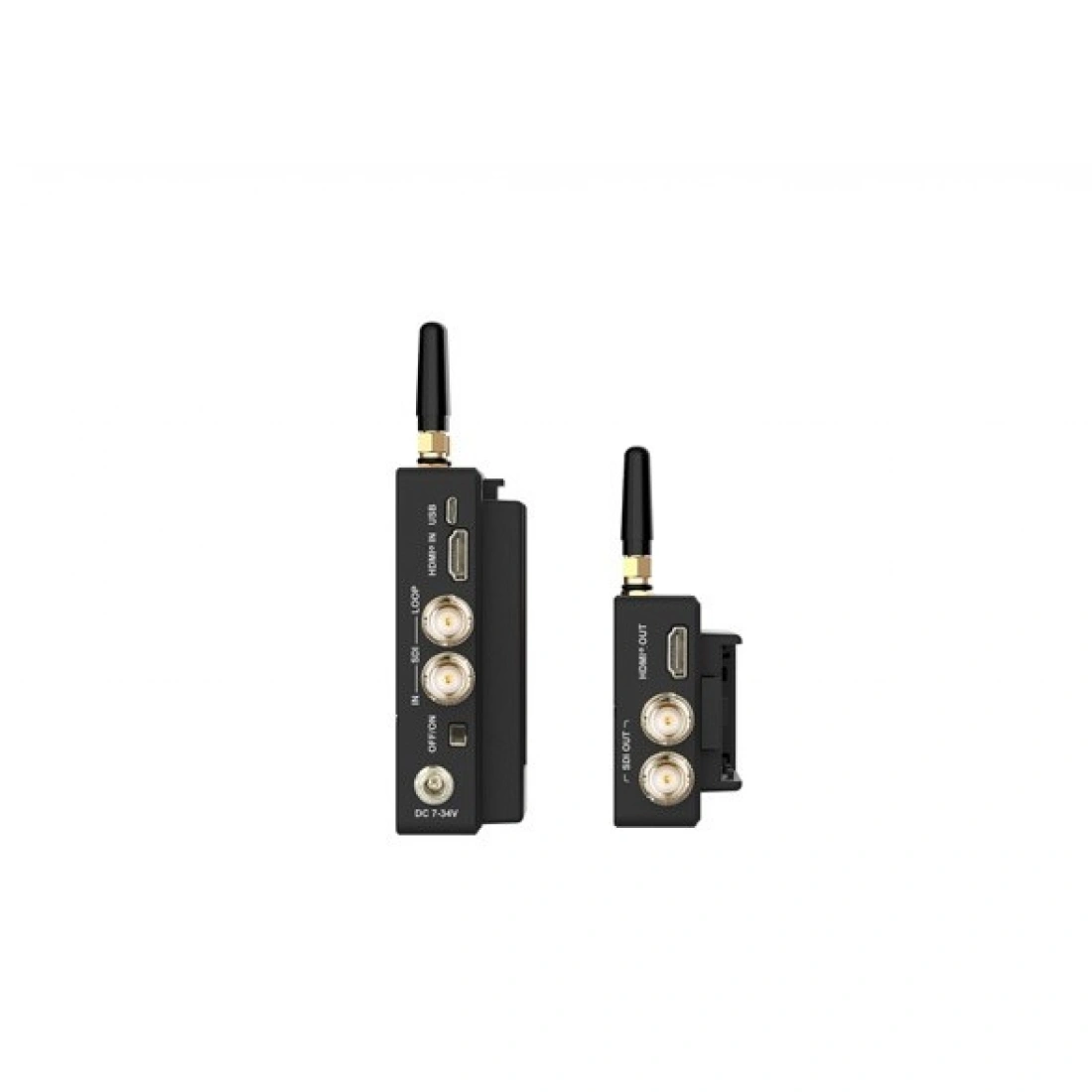

View your video capture up to 500' away from your camera using the FLOW500 SDI & HDMI Wireless Video System from SWIT. This set includes one transmitter and one receiver, each with a Sony L-Series type battery plate and DC input, that transmit up to 1080p60 uncompressed video and feature 3G/HD/SD-SDI and HDMI inputs/outputs, AES-128 encryption, and embedded SDI/HDMI stereo audio.

In the Box :

--------------------------------------------------

  • SWIT FLOW500 SDI & HDMI Wireless Video & Audio Transmission System
  • Transmitter
  • Receiver
  • 6 x Antenna
  • Locking D-Tap to Barrel Cable (2')
  • Power Adapter
  • Articulating Arm
  • Carrying Case
  • Limited 2-Year Manufacturer Warranty
Video I/O
Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI 1.3 Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI 1.3 Output
Battery Type
Transmitter: 1x L-Series Receiver: 1x L-Series
Dimensions
Transmitter: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm, Excluding Antenna, Battery Plate Receiver: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm, Excluding Antenna, Battery Plate
Weight
Transmitter: 8.3 oz / 236 g, Excluding Antenna Receiver: 8.6 oz / 245 g, Excluding Antenna
Video Format
SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50
Power Consumption
Transmitter: 8 W Receiver: 8 W
Mounting
1x 1/4"-20 Female
Wifi
NO
Bluetooth
NO
DC Input Power
7 to 34 VDC
Package Weight
5.53 lb
Other I/O
Transmitter: 1x Micro-USB
Operating Temperature
32 to 104°F / 0 to 40°C
Antenna I/O
Transmitter: 2x RP-SMA Receiver: 4x RP-SMA
Frequency Range
DFS Frequencies 5.1 to 5.9 GHz
Wireless Range
500' / 152.4 m
Box Dimensions (LxWxH)
14.2 x 11.6 x 4.5"
