SKU:PC-P461S
Key Features
- 4-Bay V-Mount Charger
- Simultaneous Fast Charging
- 3A/6A Charging Output, 100W
- 3.5" LCD, LED Indicators
- Built-In Carrying Handle
- Worldwide Compatible 90-240 VAC Input

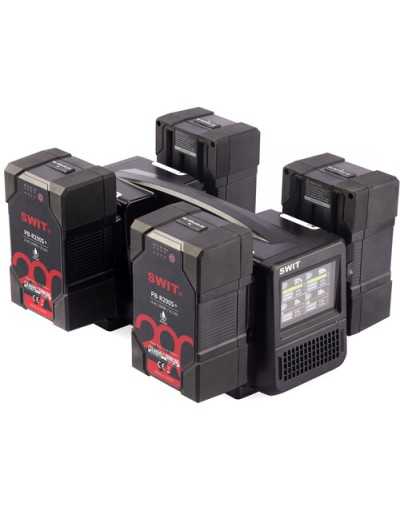

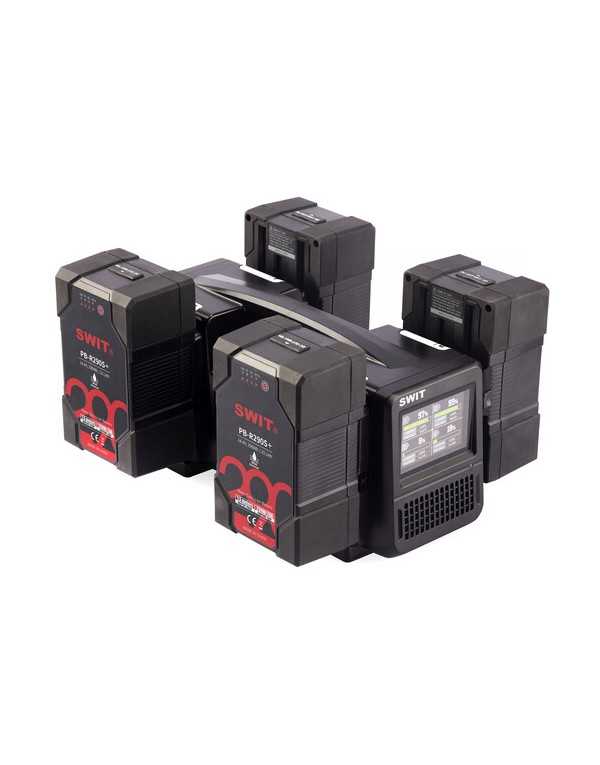

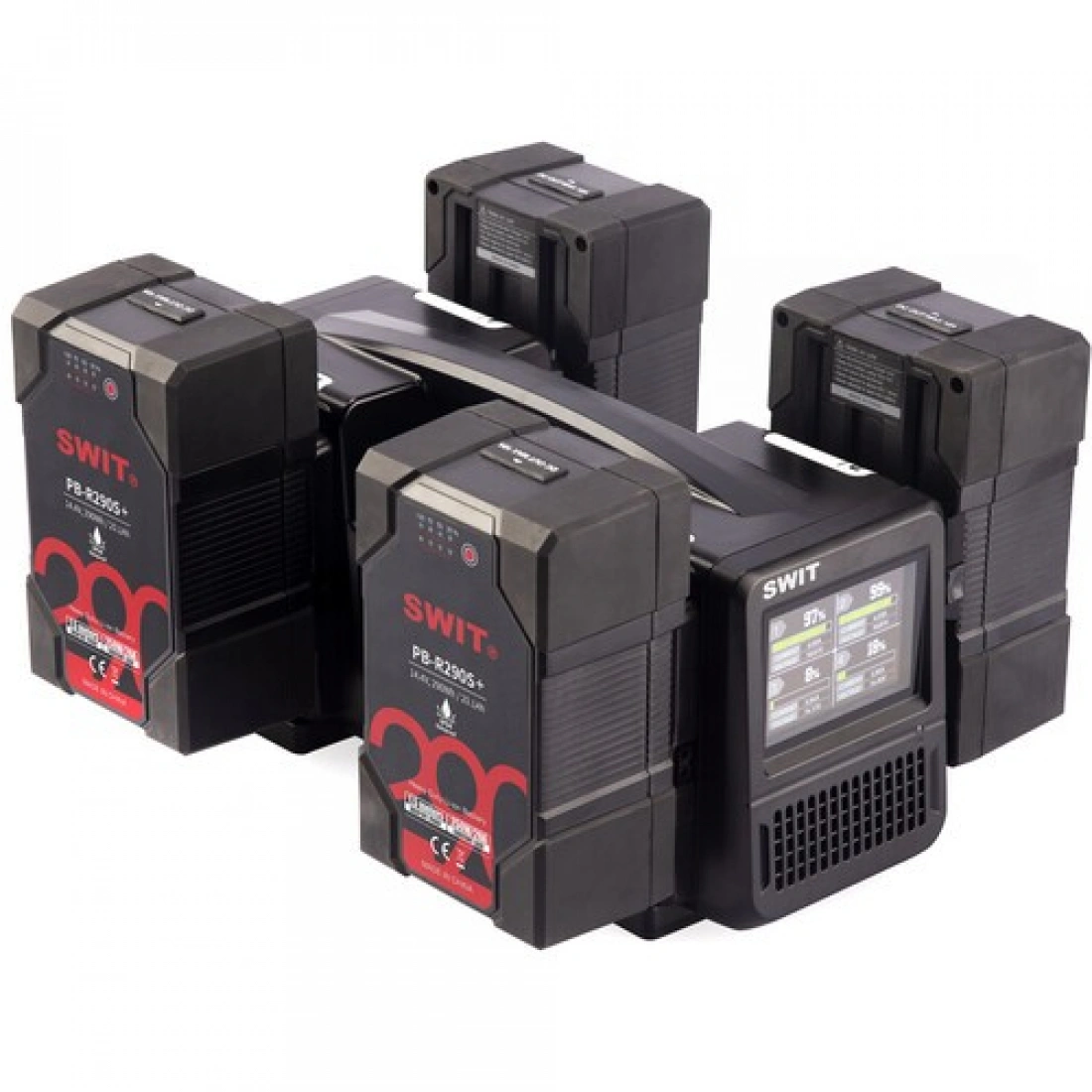

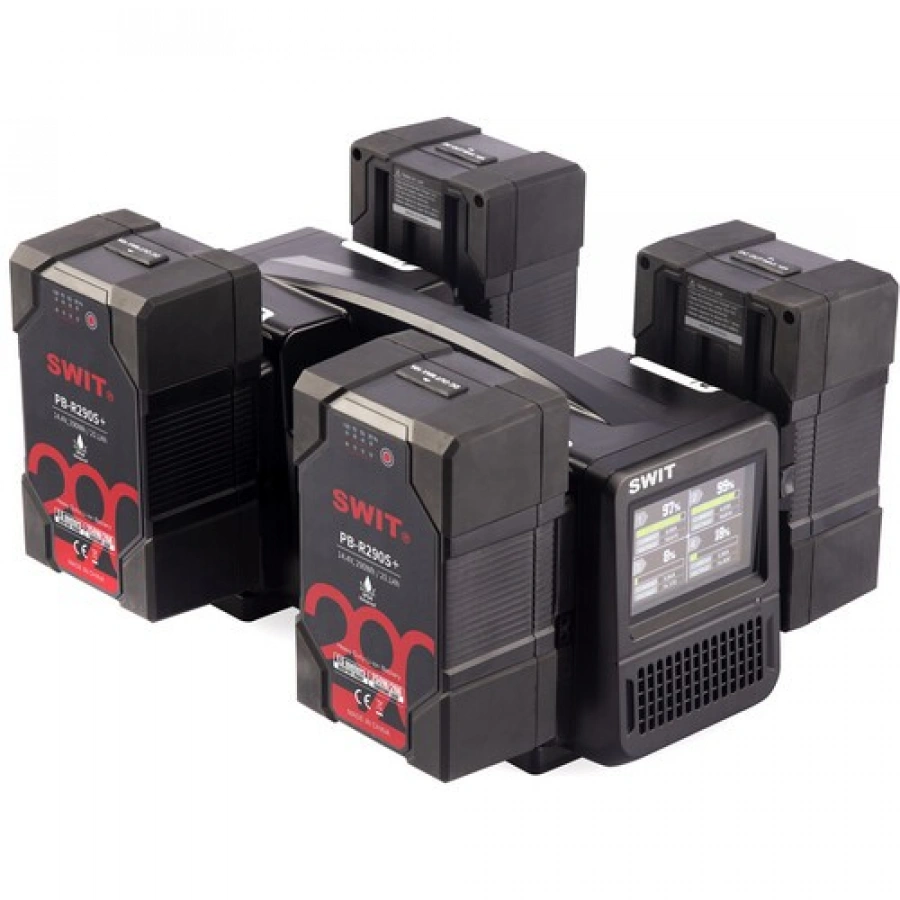

This PC-P461S 4-Bay Simultaneous Battery Charger from SWIT can charge four V-mount batteries simultaneously for super-fast charging speeds. Charge 14.4V and 28.8V nominal voltage batteries at 100W/6A or 100W/3A fast charging rates and save up to 60% charging time in comparison to other models. The charger is compatible with V-mount SWIT and Sony batteries. A built-in 3.5" LCD and LED light indicators make for easy monitoring of each battery's status.

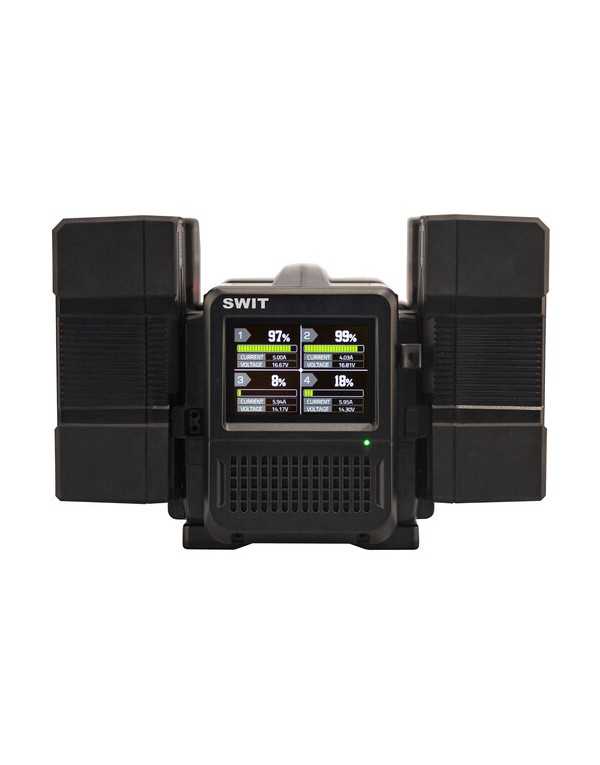

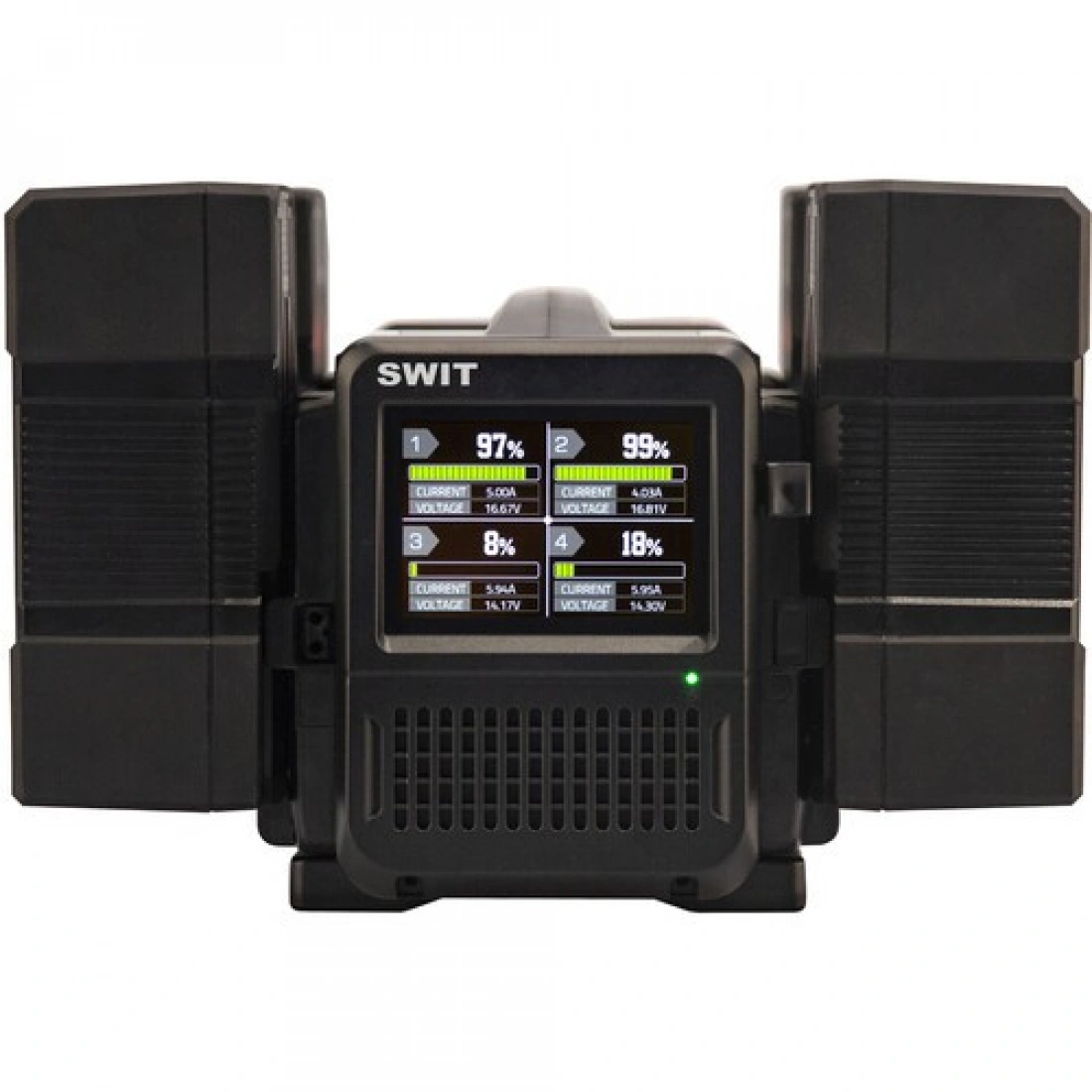

3.5" Color LCD and LED Indicators
The charger provides a 3.5" color LCD panel to display charging progress, charging current, voltage, and battery cycle times for each channel. Four large LED indicators on the top of the charger can also display the charging status.

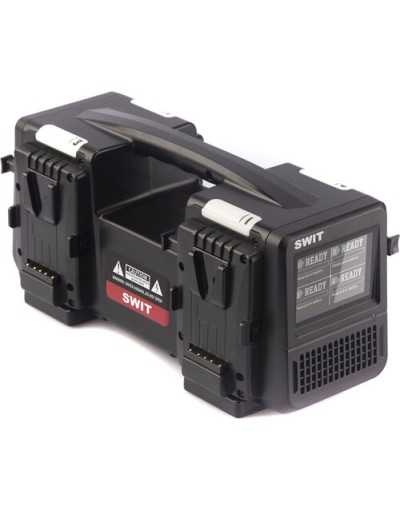

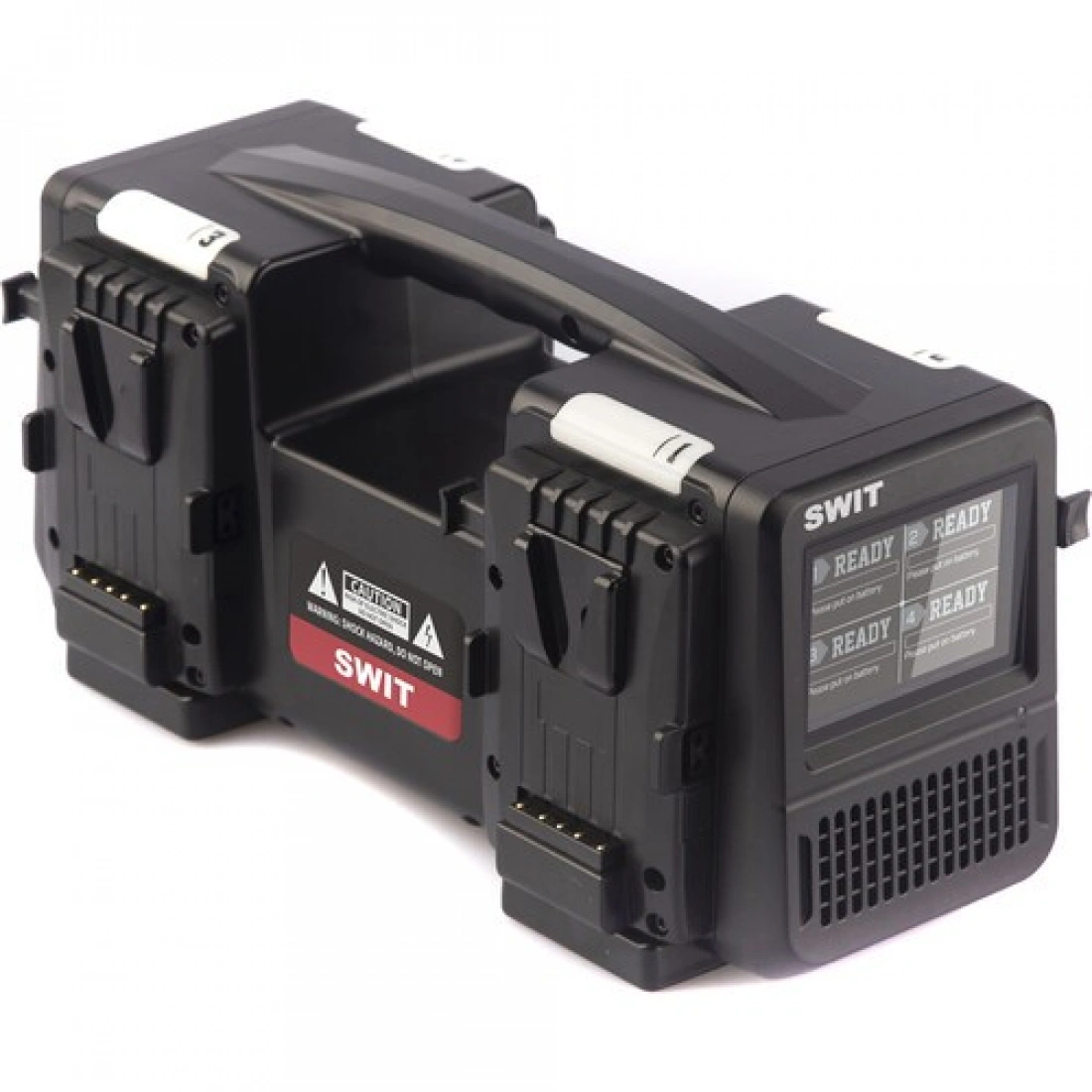

Lightweight and Portable
The 4-channel fast charger has a lightweight and portable form factor with an integrated handle design for easy transporting.
Fast Charging Times
The charger can fully charge a 160Wh battery in 2.6 hours using 6A fast charging.
Charging Outputs
SWIT 14.4V ≥160Wh batteries: 16.8V at 6A
SWIT 28.8V ≥160Wh batteries: 33.6V at 3A
Other batteries: 16.8V at 3A
In the Box
------------------------------------------------------
- SWIT PC-P461S 4-Bay Simultaneous Fast Charger (V-Mount)
- Compatibility
- V-Mount (26 V)
- Power Source
- AC Power (Cable Included)
- Dimensions
- 13 x 6.4 x 6" / 330 x 162 x 153 mm
- Weight
- 5.36 lb / 2.43 kg
- Package Weight
- 7.1 lb
- Power I/O

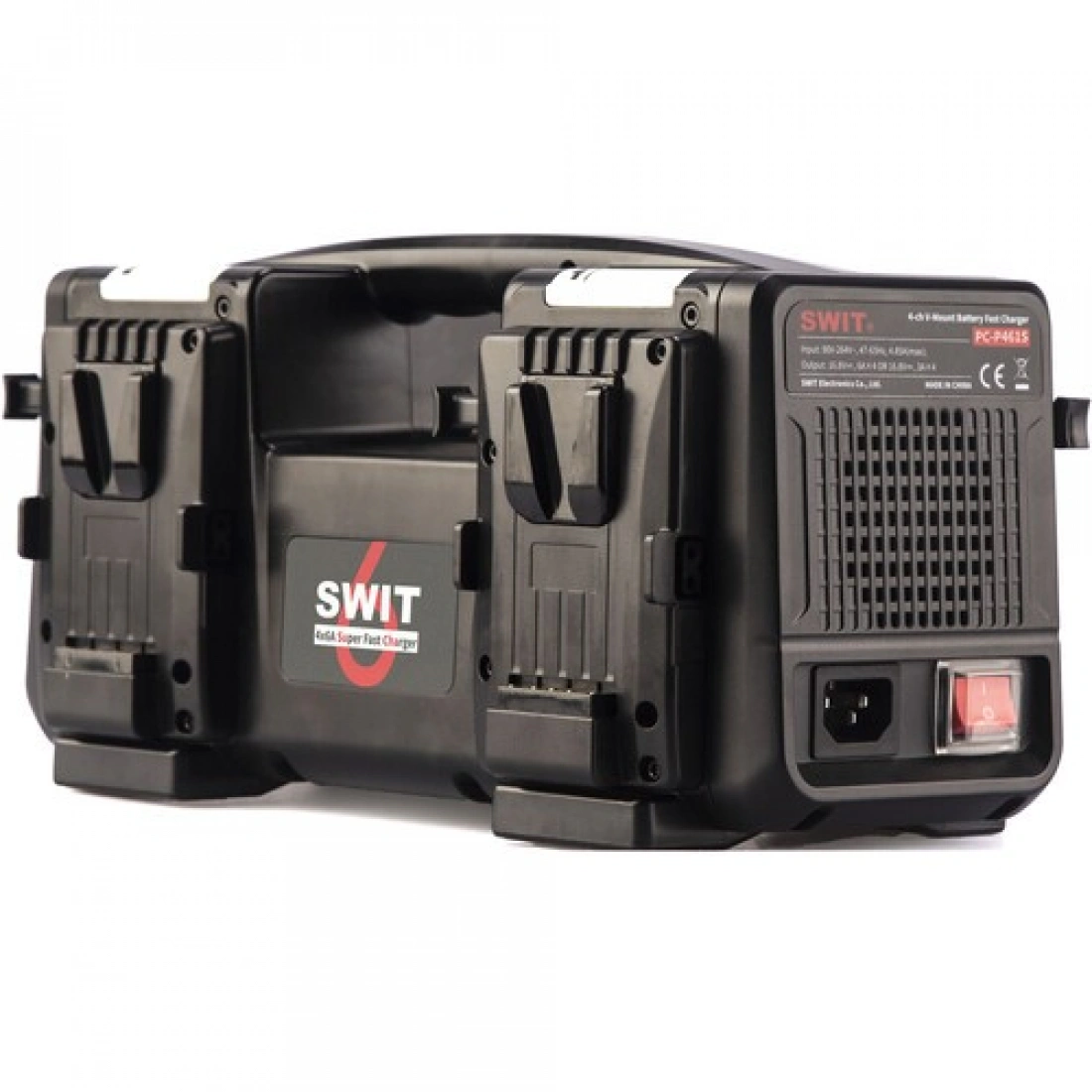

- 1x IEC Female Input • 100 to 240 VAC, 50 / 60 Hz
- Operating Temperature
- 32 to 104°F / 0 to 40°C
- Output Voltage
- 16.8 VDC at 3 A 33.6 VDC at 3 A
- Number of Battery Bays
- 4
- Box Dimensions (LxWxH)
- 15 x 8.9 x 8.2"
