SKU:PB-S98S
Key Features
- Square shape design for Cine-cameras
- Max 100W, 8A load
- 2× D-tap output sockets (Max 100W/8A in total)
- 1× USB 5V/2A power output sockets

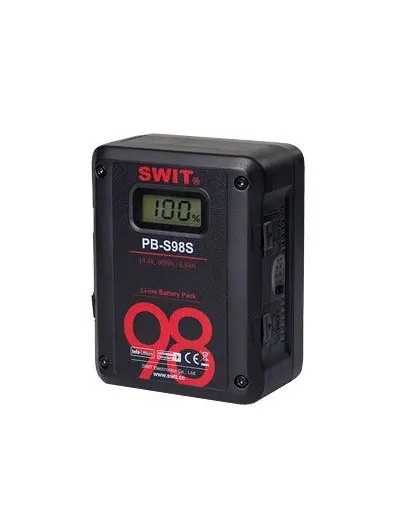

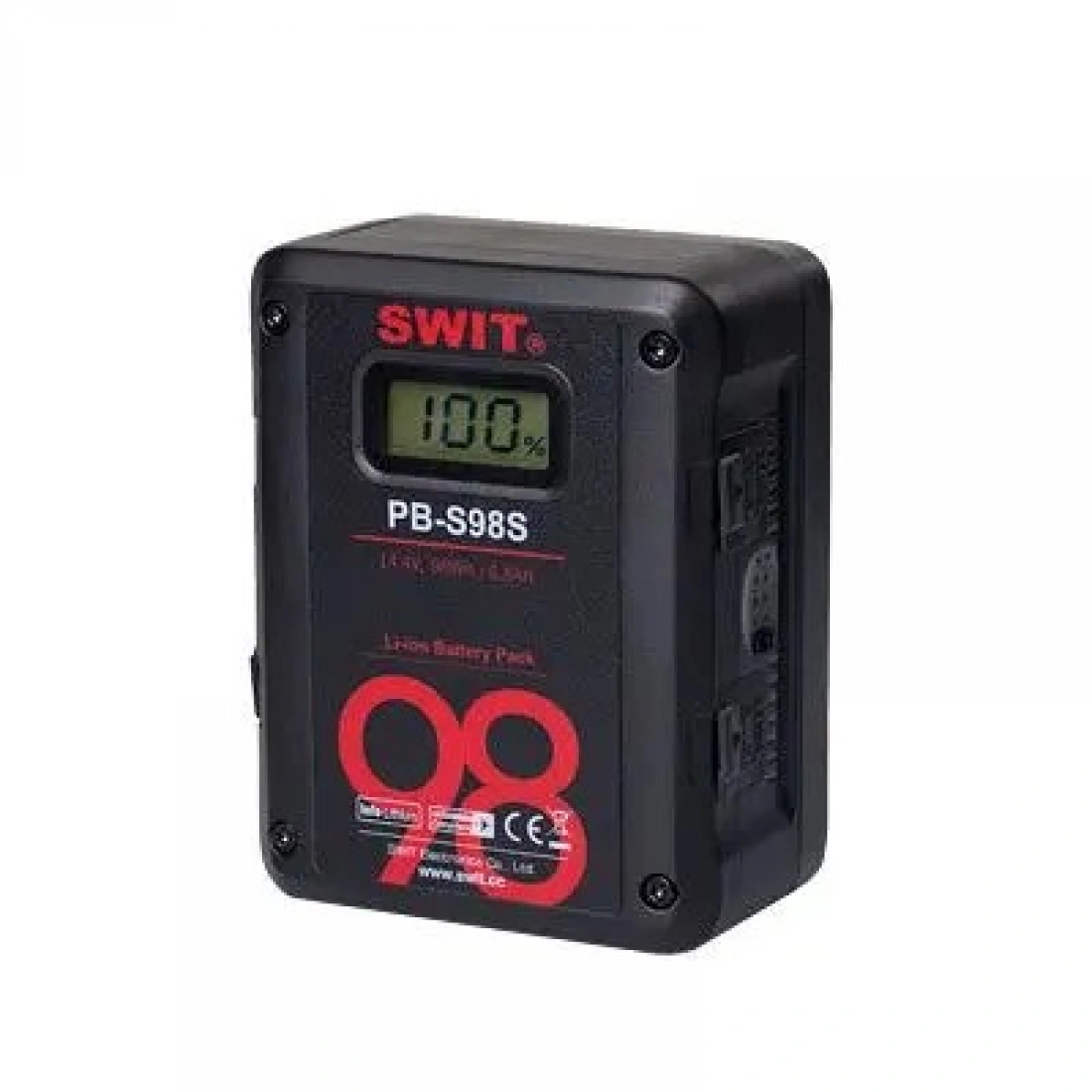

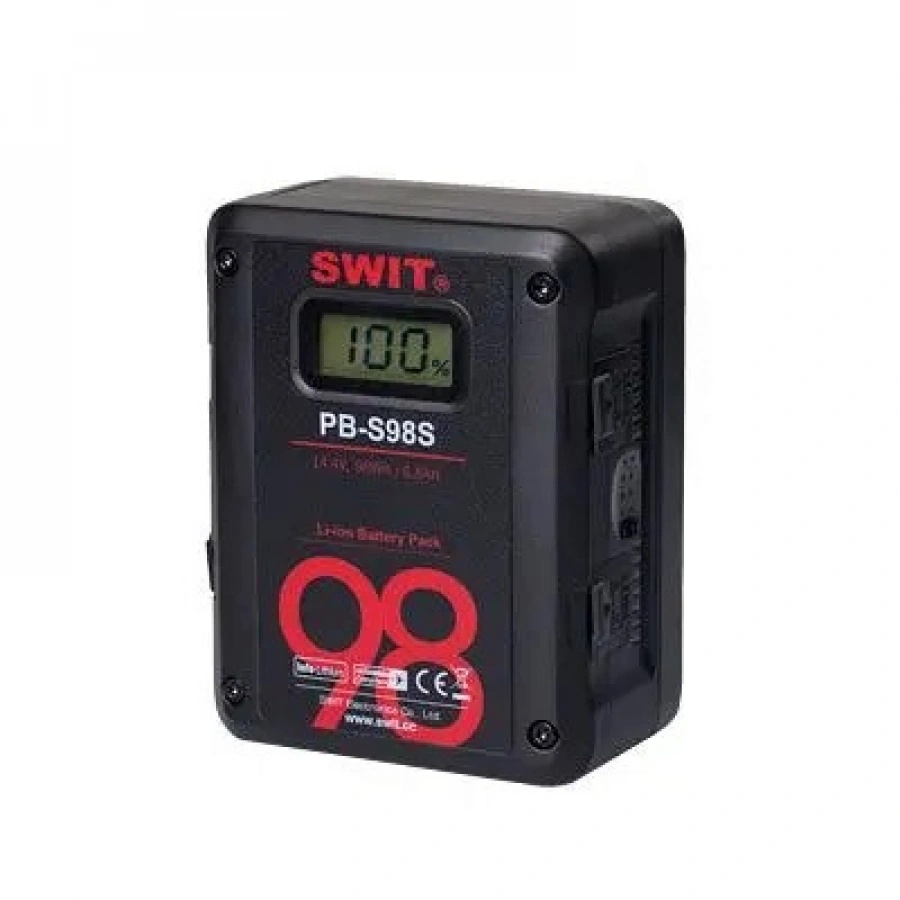

- LCD display accurate remaining run time
- Display power info in both SONY & RED
- Multiple circuit protections
SWIT 98Wh Square Li-ion Battery Multi-sockets.

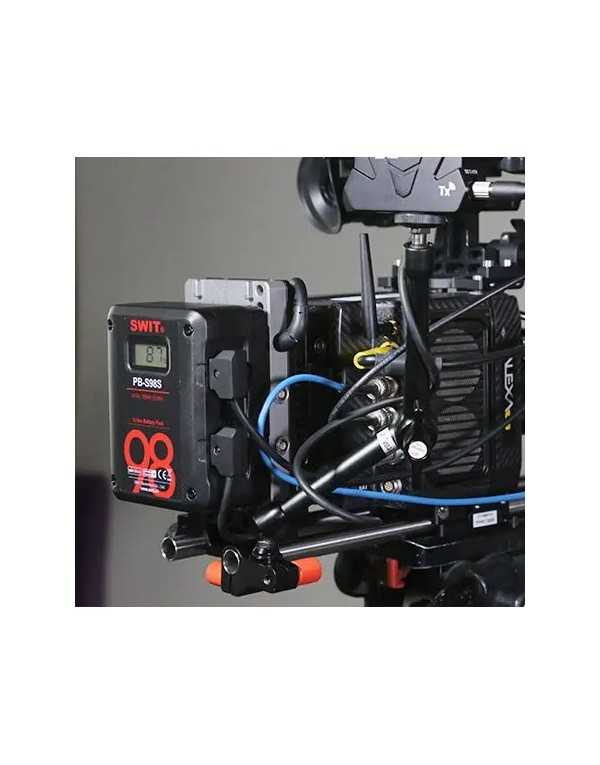

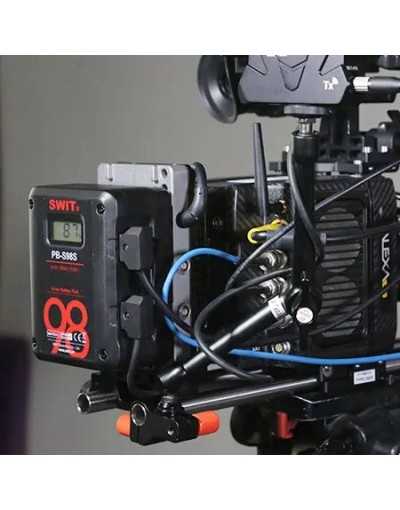

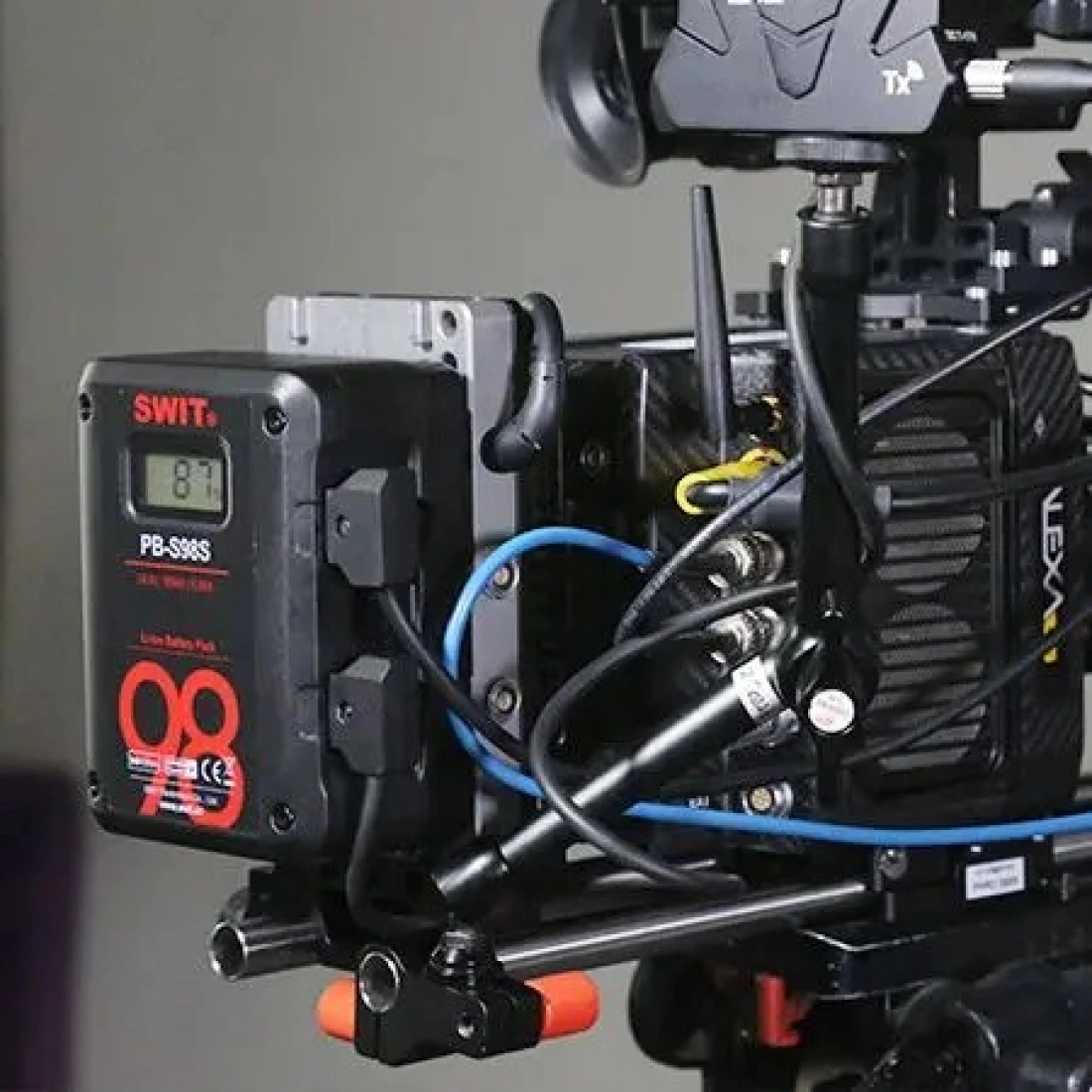

Square shape design for Cine-cameras
PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.
98Wh / 6.8Ah Capacity
Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity.
Can run approx 3 hours for normal ENG cameras.
Multiple output sockets design

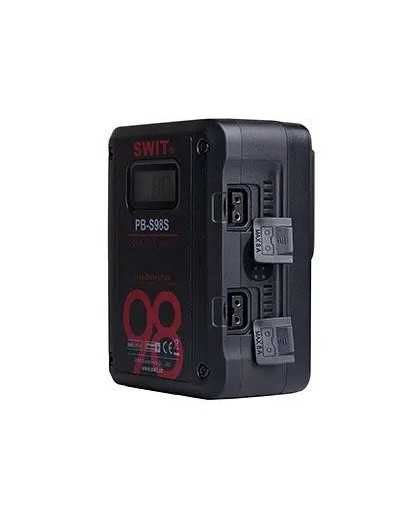

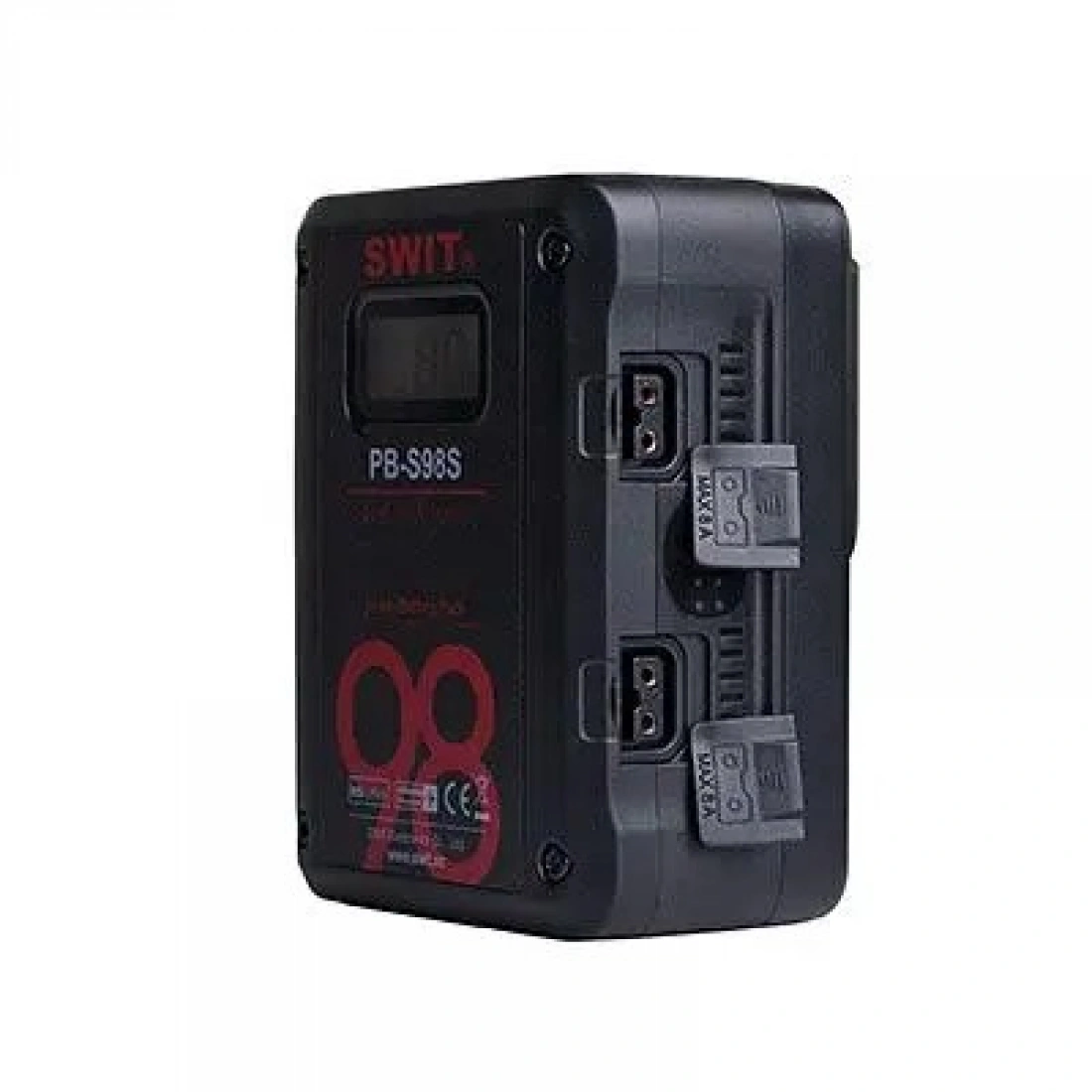

2× D-tap output sockets, 1× USB 5V/2A power output socket
PB-S98S is equipped with 2 D-tap DC output sockets, which can power other on-camera equipments together. The Max output current of D-tap is 8A, 100W.
PB-S98S is equipped with 1x USB 5V/2A output, which can be used to charge mobile phones, tablets and other portable devices.
In the Box
------------------------------------------------
- SWIT PB-S98S 14.4V 98Wh Dual D-Tap Heavy-Duty Digital Battery (V-Mount)
- Limited 1-Year Manufacturer Warranty
- Battery Type
- V-Mount
- Weight
- 1.76 lb / 0.8 kg
- Dimensions
- 3.74 x 4.76 x 2.32" / 9.5 x 12.1 x 5.9 cm
- Package Weight
- 1.895 lb
- Box Dimensions (DxWxH)
- 5.15 x 4 x 2.6"
- Chemistry
- Lithium-Ion
- Battery Capacity
- 6800 mAh / 98 Wh
- Output Voltage
- 14.4 VDC
- Maximum Load
- 100 W, 8 A
- Accessory I/O
- 2x D-Tap / P-Tap
- Maximum Load (Accessory I/O)
- 100 W, 8 A (D-Tap)
- USB Output
- 5 V, 2 A
