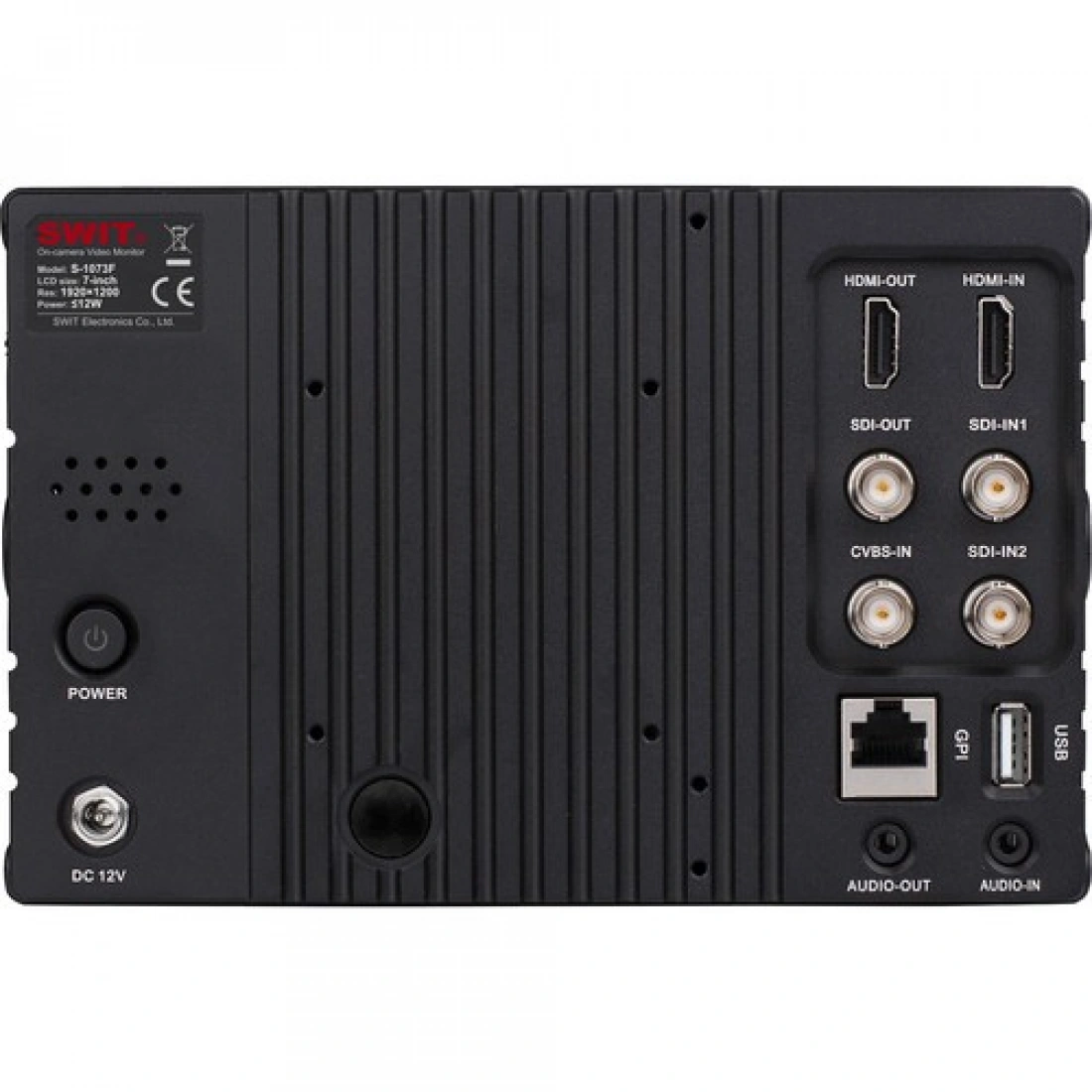

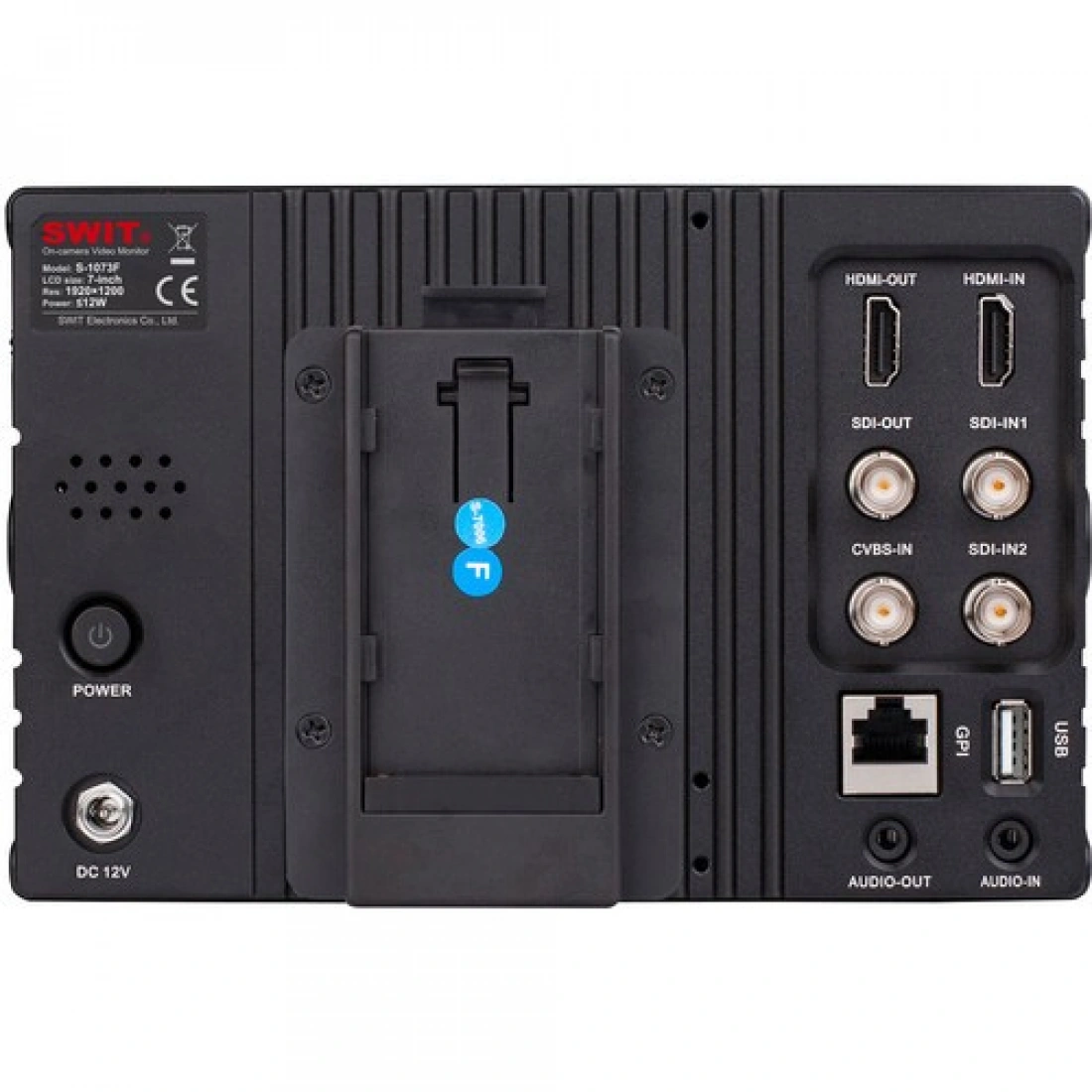

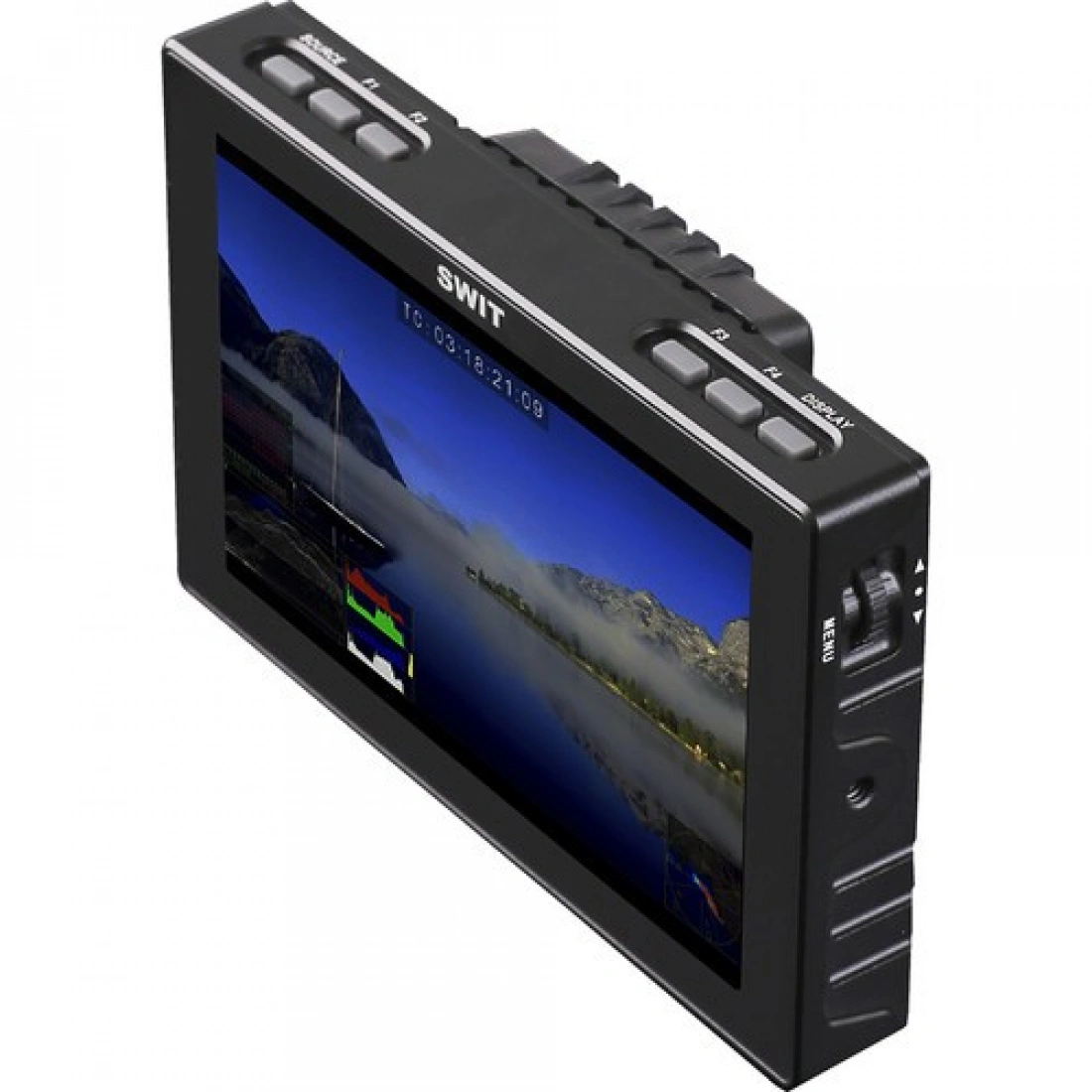

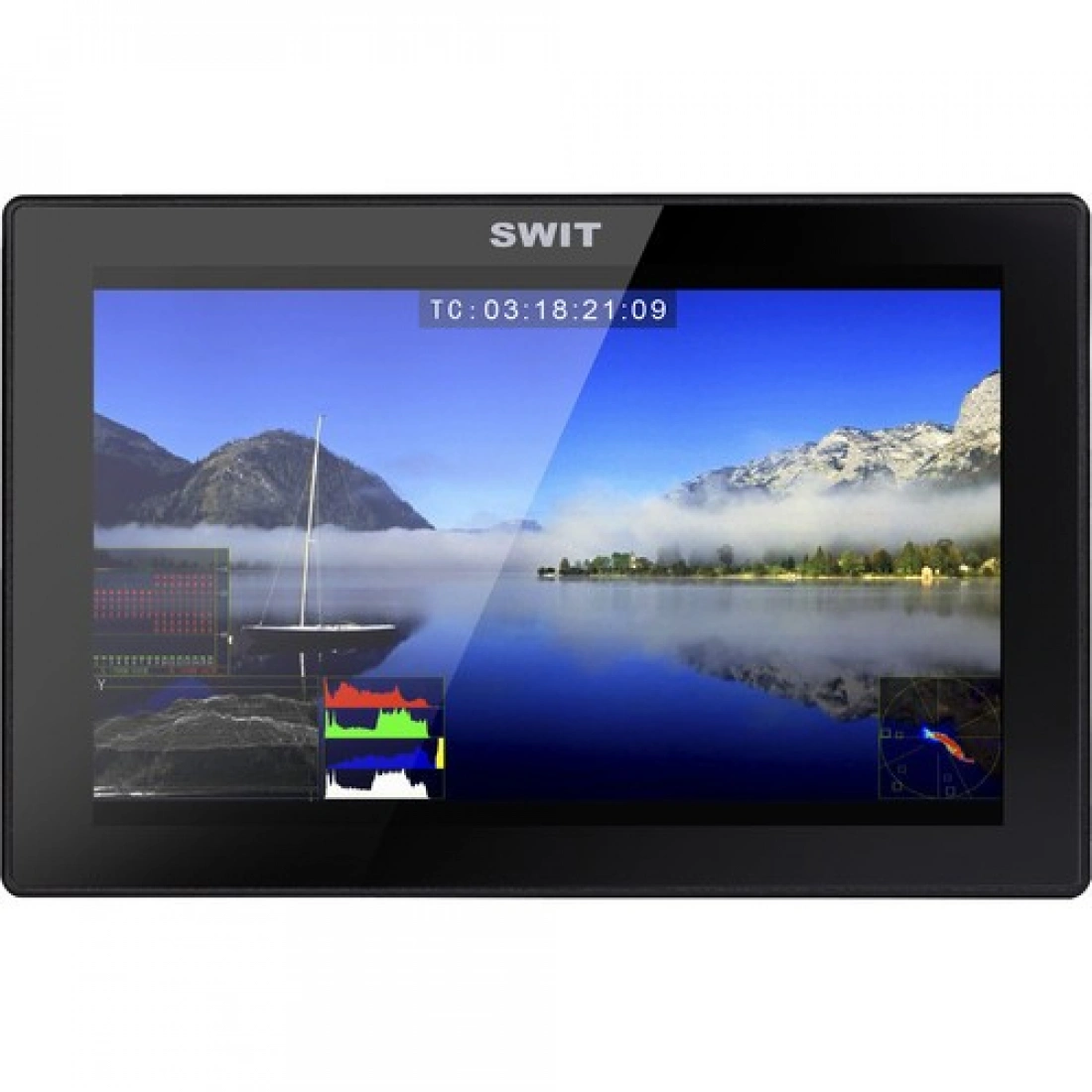

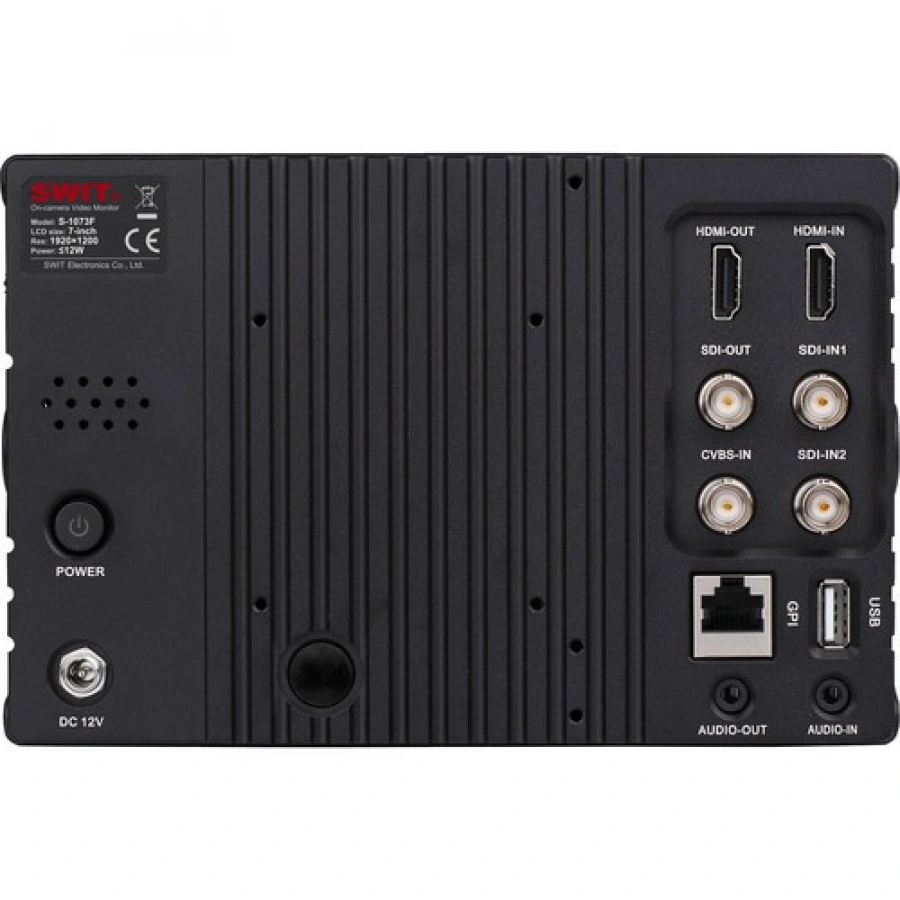

SWIT 7" Full HD Waveform LCD Monitor with NP-F Battery Plate

SWIT 7" Full HD Waveform LCD Monitor with NP-F Battery Plate

Name: SWIT 7" Full HD Waveform LCD Monitor with NP-F Battery Plate
Brand: SWIT
SKU: S-1073FF
Price: 3400 AED
Availability: BackOrder

0 Reviews

| Ask a question

SKU: S-1073FF

Special Order 1-2 Weeks

AED3,400.00

Tax excluded

SKU:S-1073FF

Key Features

7” optical bonding LCD, 1920×1200
All metal housing, thinner and robust
2K/3G/HD/SD-SDI input and loop out
HDMI input, loop out, converted to SDI out
16-ch Embedded audio meters with alert
Select any 2 audio channels to output
9-step quick zoom-in and mapping
Red/blue Focus assist and precision adjust
Multi-camera logs to Rec709 conversion
User 3DLUT cube import via USB stick
Waveform, Vector scope, Histogram R/G/B/Y
AFD, timecode, H/V delay, Zebra stripes
Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
False color, R/G/B/Mono, 100% colorbar
GPI control and soft Tally display
V / Gold mount and various DV plate install

Secure payments

Ask an Expert

WhatsApp Chat | Email | +971 55 510 4251

Description

The S-1073F adopts a 7-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

S-1073F adopts aluminium alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.

S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)

Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.

In The Box

----------------------------------------------------

Foldable sun hood,
D-Tap cable
Cold shoe / Screw articulating Arm trestle
DV Battery Plate
