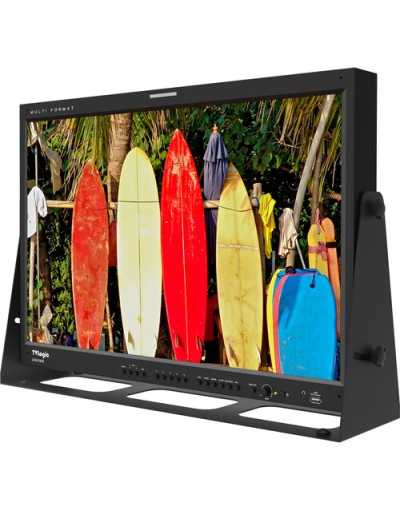

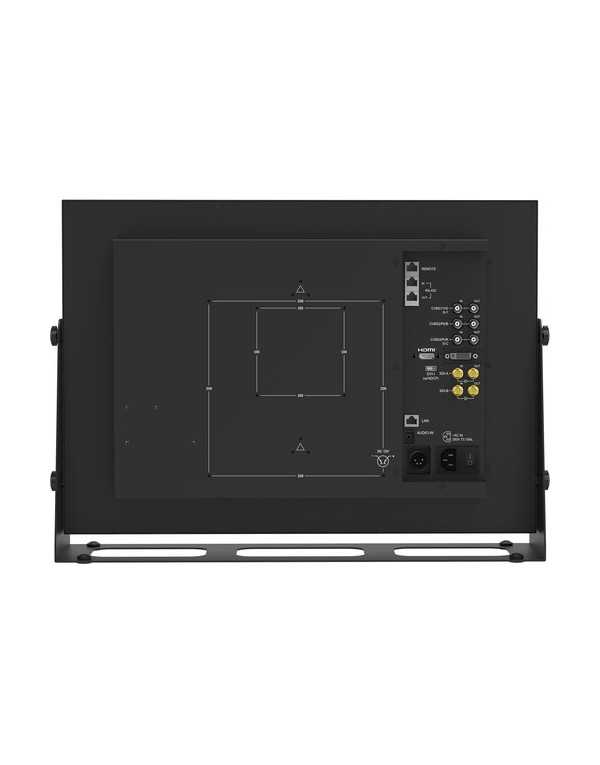

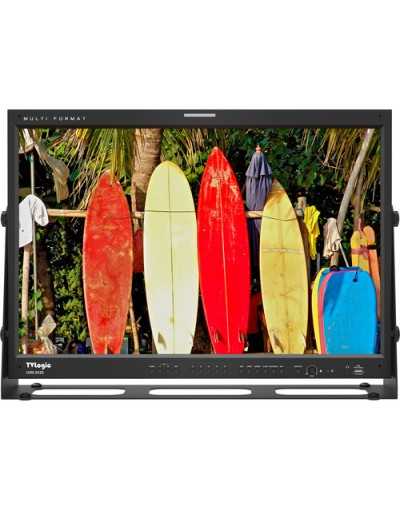

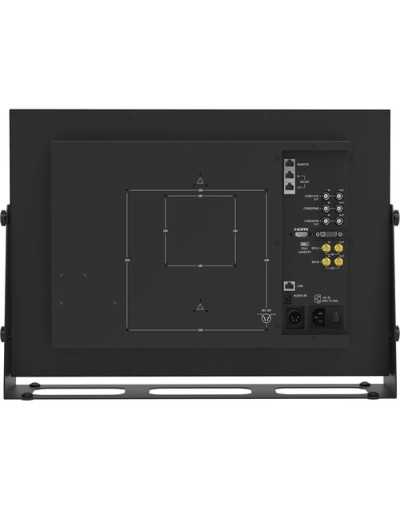

    TVLogic 24" Full HD SDI/HDMI/Analog LCD Monitor

    LVM-242S
    Special Order -
    AED17,336.56
    Tax excluded

     SKU :#LVM-242S

    Key Features :

    • 24" 1920 x 1200 LCD Monitor
    • 2 x SDI, 1 x HDMI Inputs
    • 3 x Analog, 1 x DVI-I Inputs
    • 2 x SDI and 3 x Analog Outputs
    • Supports Inputs up to 1080p Video
    • 400 cd/m² Maximum Brightness
    • Control via Buttons, RS-422, Remote
    • Various Image and Monitoring Controls

    NEED HELP?


    TVLogic LVM-242S Overview

    This 24" Full HD SDI/HDMI/Analog LCD Monitor from TVLogic is designed for field monitoring applications thanks to its various input connections and full HD 24" display. Various input connectors, two SDI, one HDMI, three BNC, and one DVI-I, support up to 1080p full HD video. The LVM-242S has a maximum brightness of 400 cd/m² and monitor resolution of 1920 x 1200 for improved visibility.

    In the Box :

    ----------------------------------------------

    • TVLogic 24" Full HD SDI/HDMI/Analog LCD Monitor
    • Camera Mount
    • Acrylic Filter
    • Rackmount Kit
    • Sun Hood
    • Handle
    • Table Stand
    • DC Power Adapter
    • AC Power Cord
    • HDMI Bracket
    • Carrying Case
    • Limited 1-Year Manufacturer Warranty (LCD Panel)
    • Limited 2-Year Manufacturer Warranty (Hardware)
    Video I/O
    2x BNC (3G-SDI) Input 1x HDMI Input 2x BNC (3G-SDI) Loop Output 1x 3BNC (Component) Input 1x 3BNC (Component) Output 1x DVI-I Input
    Mobile App Compatible
    No
    Display Size
    24.00" / 61.0 cm
    Resolution
    1920 x 1200
    Touchscreen
    No
    Wifi
    No
    Bluetooth
    No
    Screen Area
    20.39 x 12.76" / 518 x 324 mm
    Panel Type
    IPS-Type LCD
    Aspect Ratio
    16:10
    Viewing Angle
    Horizontal: 178° Vertical: 178°
    Maximum Brightness
    400 nits / cd/m2
    Contrast Ratio
    1800:1
    Dot Pitch
    0.270 x 0.270 mm
    Bit Depth / Color Support
    10-Bit (1.07 Billion Colors)
    Real-Time LUT Monitoring
    SDR, HDR
    Image Controls
    Blue Only, Focus Assist, Focus Peaking, H/V Delay, Overrange Detection, Screen Markers, Underscan, Vectorscope, Waveform, Zebra
    Audio I/O
    1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    No
    Other I/O
    1x RJ45 (GPI) 1x RJ45 (LAN) 2x RJ45 (RS-422) Input/Output 1x USB-A 2.0
    Media/Memory Card Slot
    No
    HDR Compatibility
    Yes
    Pixels Per Inch (ppi)
    94 ppi
