BM7 II-DS
Special Order
AED3,400.00
Tax excluded

SKU: BM7 II-DS

Key Features

  • Wireless Camera Control.
  • Custom JPG Picture Freeze Frame.
  • Split Screen Monitoring.
  • 3D LUT HDMI Output.
  • Wired Control Tilta Nucleus-N/MMotors.
  • CNC Aluminum Alloy All-metal Shell.Wired control of RED cinema camera.

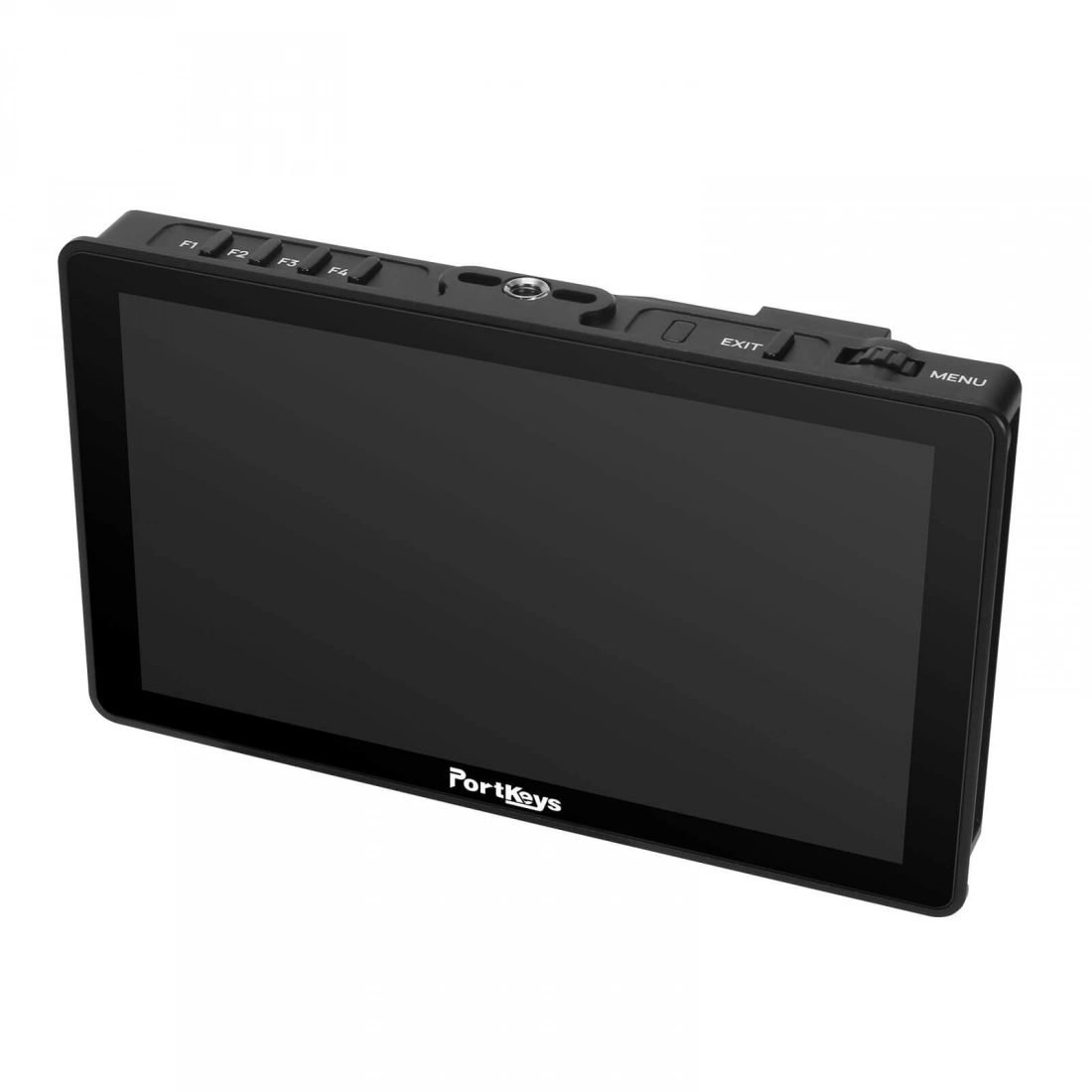

The Portkeys BM7 II DS is a rugged 7-inch touchscreen monitor and an evolution based on the worldwide success of the BM5 III WR. This monitor features a maximum brightness of 2,200nits, HDMI input/output ports, two SDI inputs and one SDI output with HDMI cross conversion, and wired/wireless camera control capabilities.

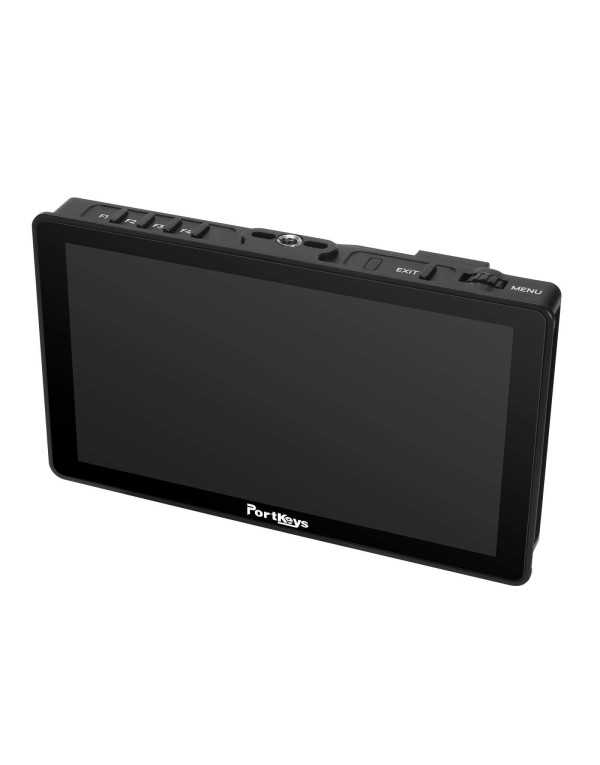

  • 7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
  • Daylight viewable with a maximum brightness of 2,200nits.
  • Factory color-calibrated: 100% coverage of Rec.709 and 85% coverage of DCI-P3.

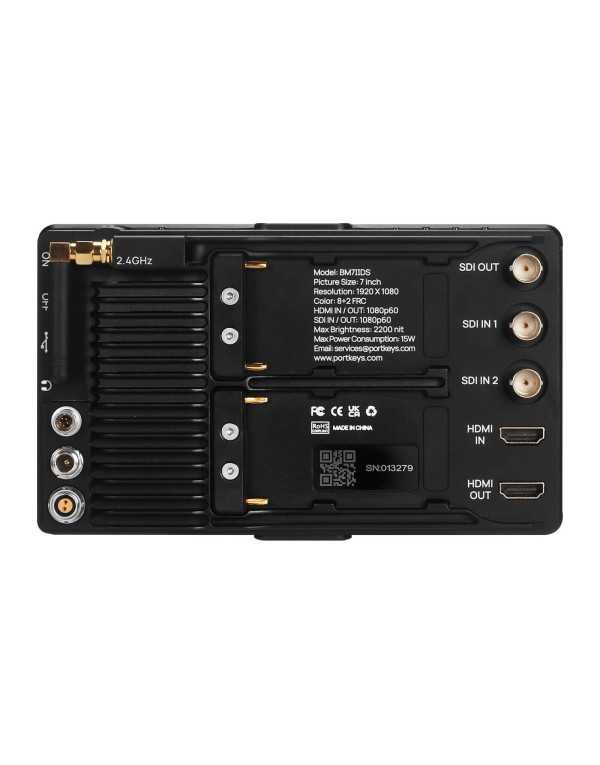

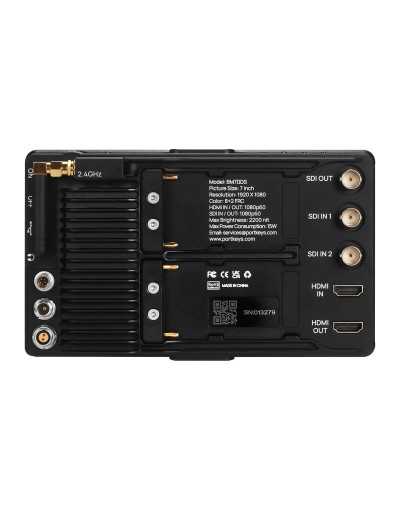

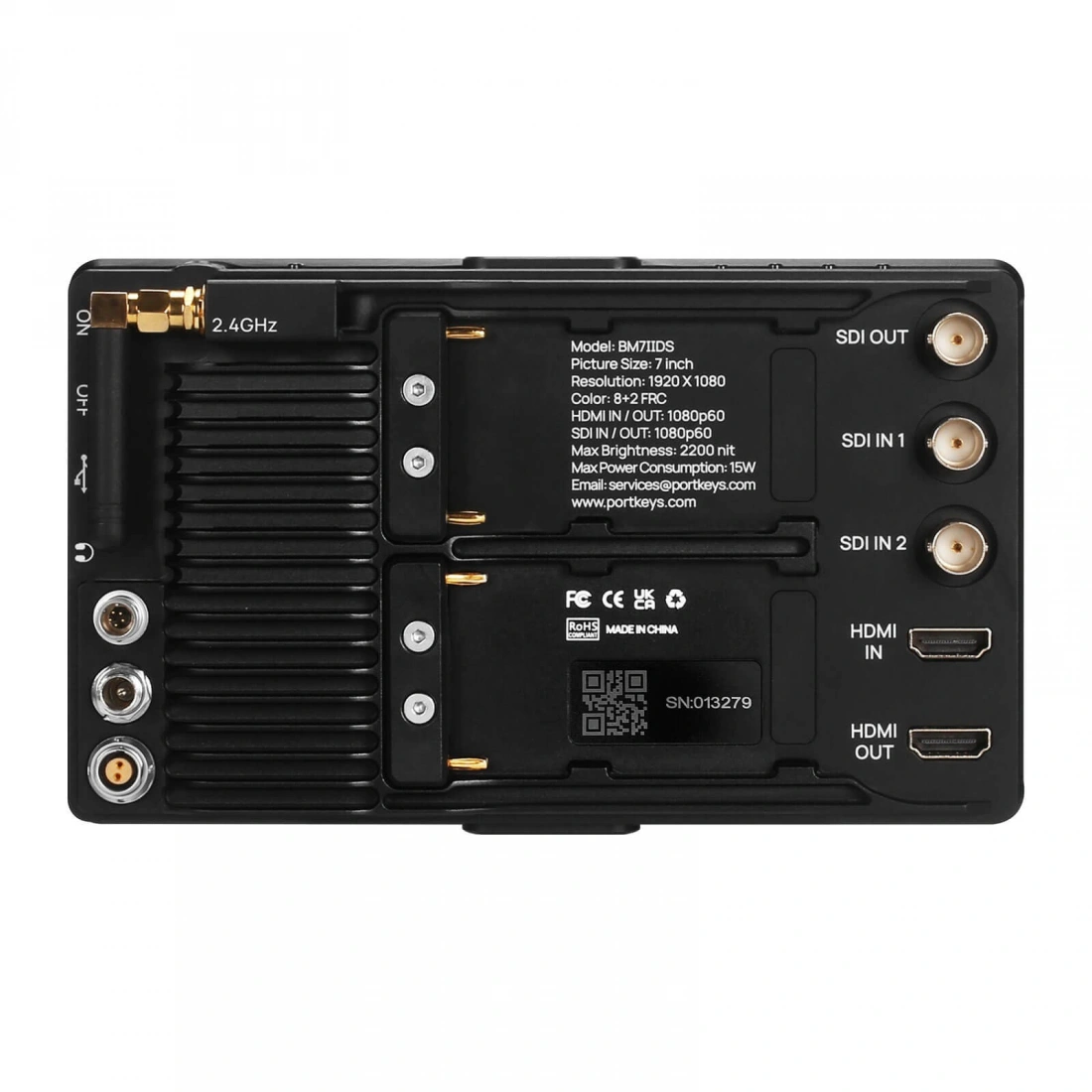

  • 2 x 3G-SDI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion.

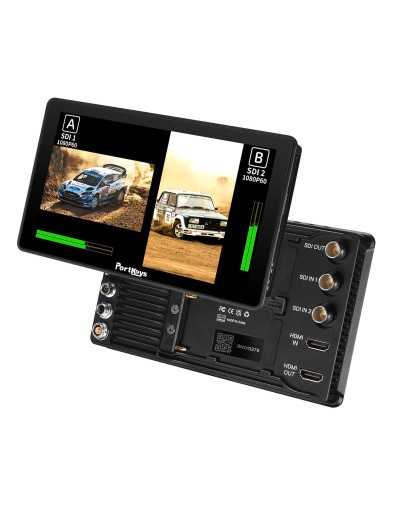

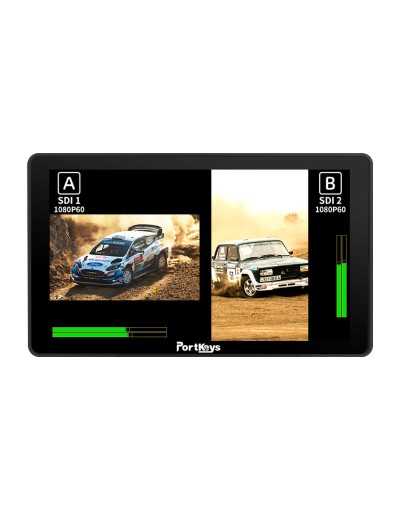

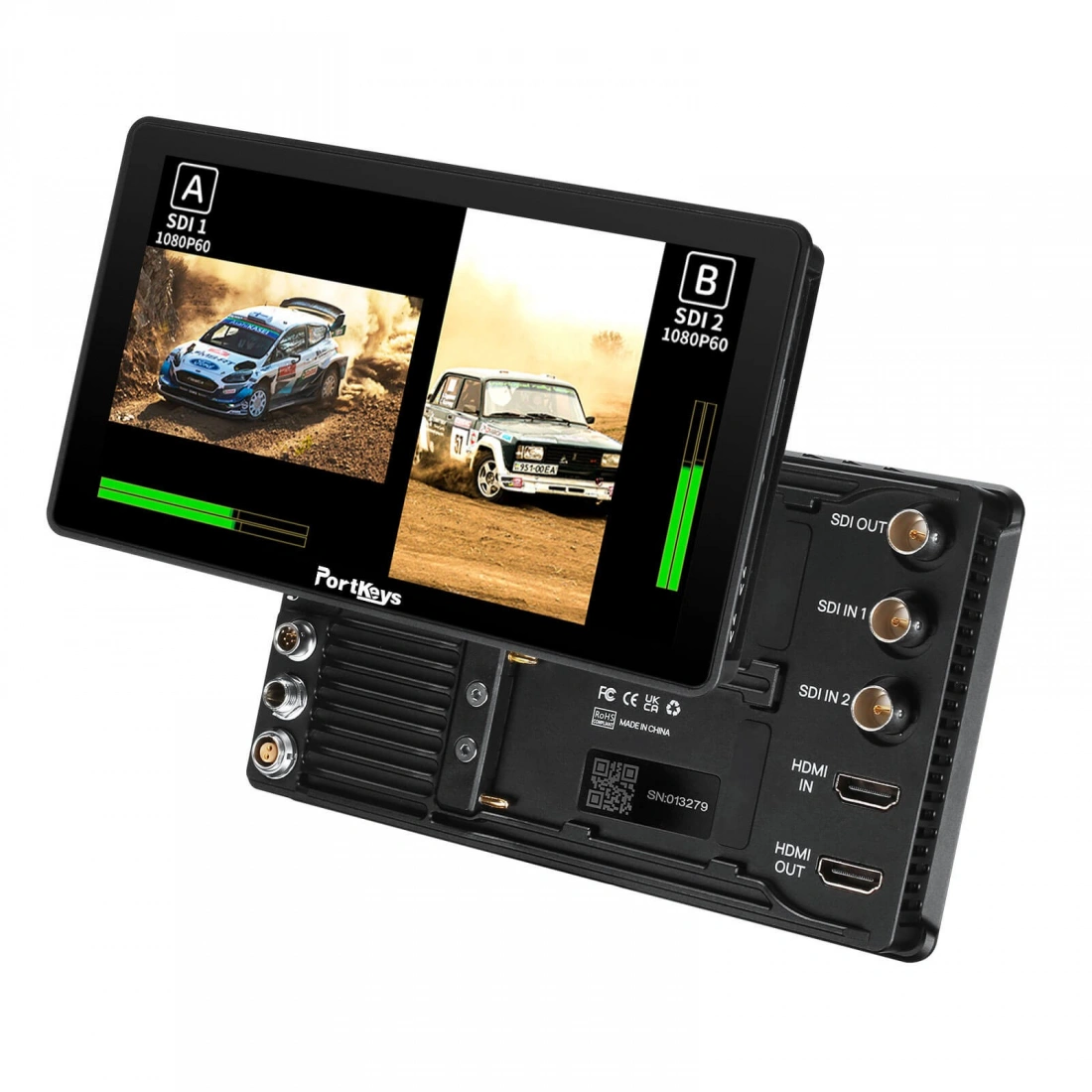

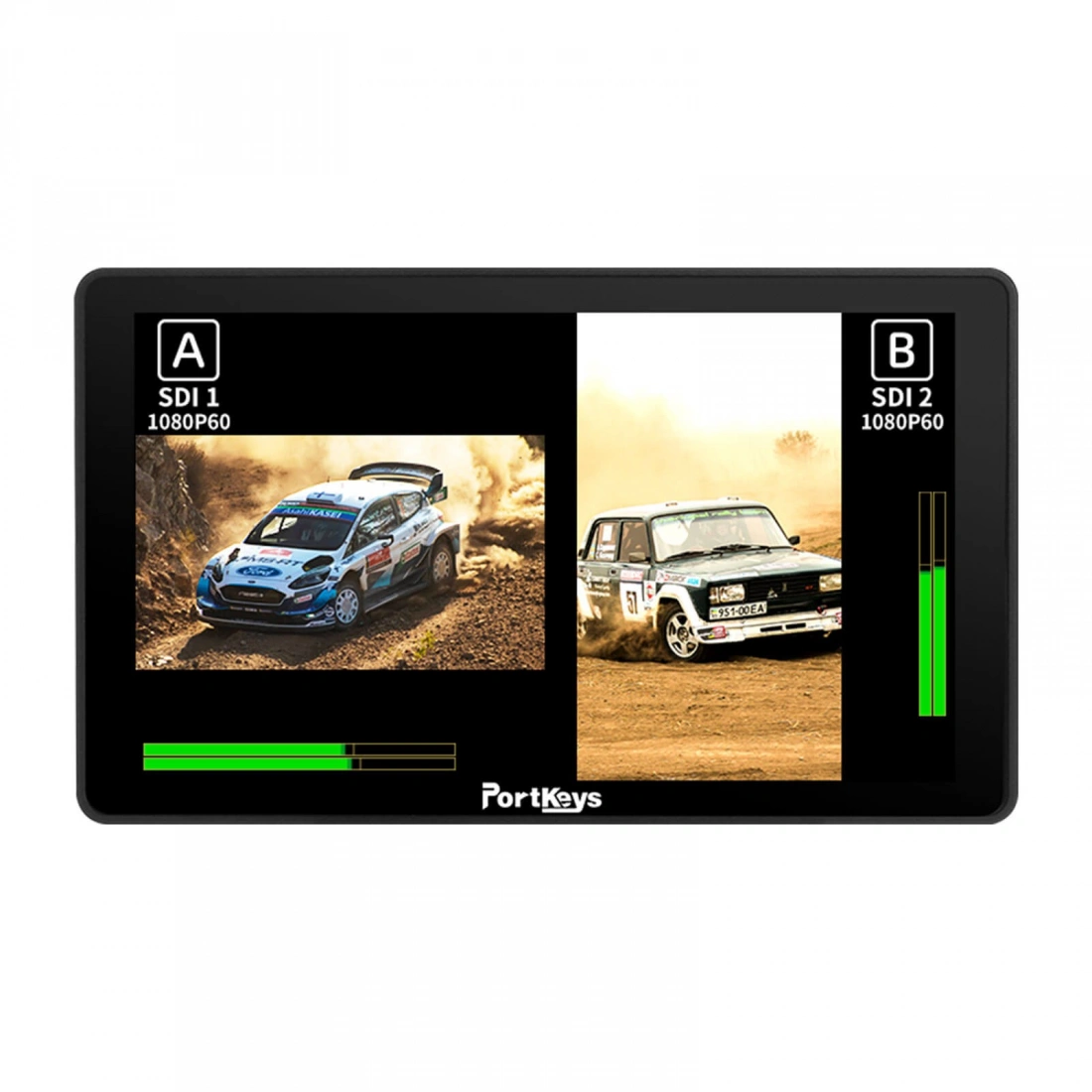

  • Split screen monitoring, you can monitor two video inputs simultaneously.
  • Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
  • 3D LUT monitoring and 3D LUT SDI output capabilities.
  • RED Approved: wireless camera control for the RED Komodo and V-RAPTOR.
  • Wireless camera control for most Sony and Blackmagic Design cameras.
  • Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2.
  • TILTA Nucleus N/M wireless follow focus wired control.
  • Built-in dual Sony NP-F style battery plates.

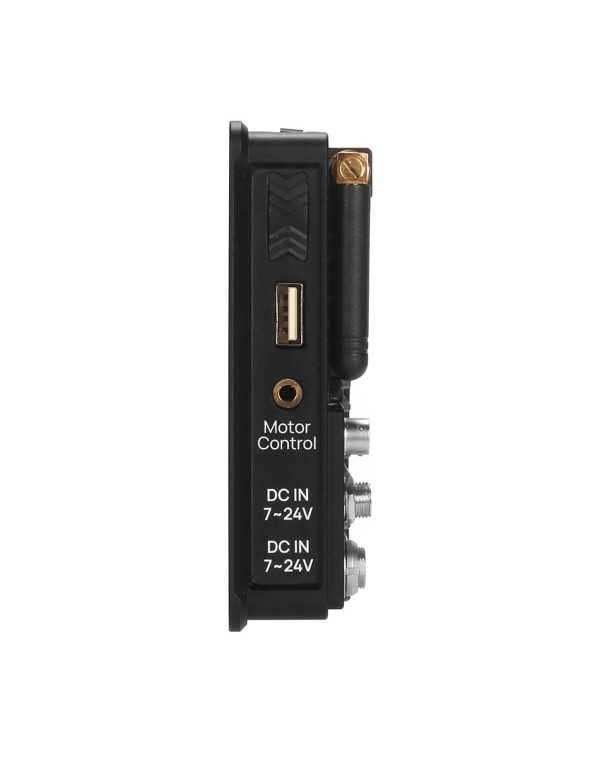

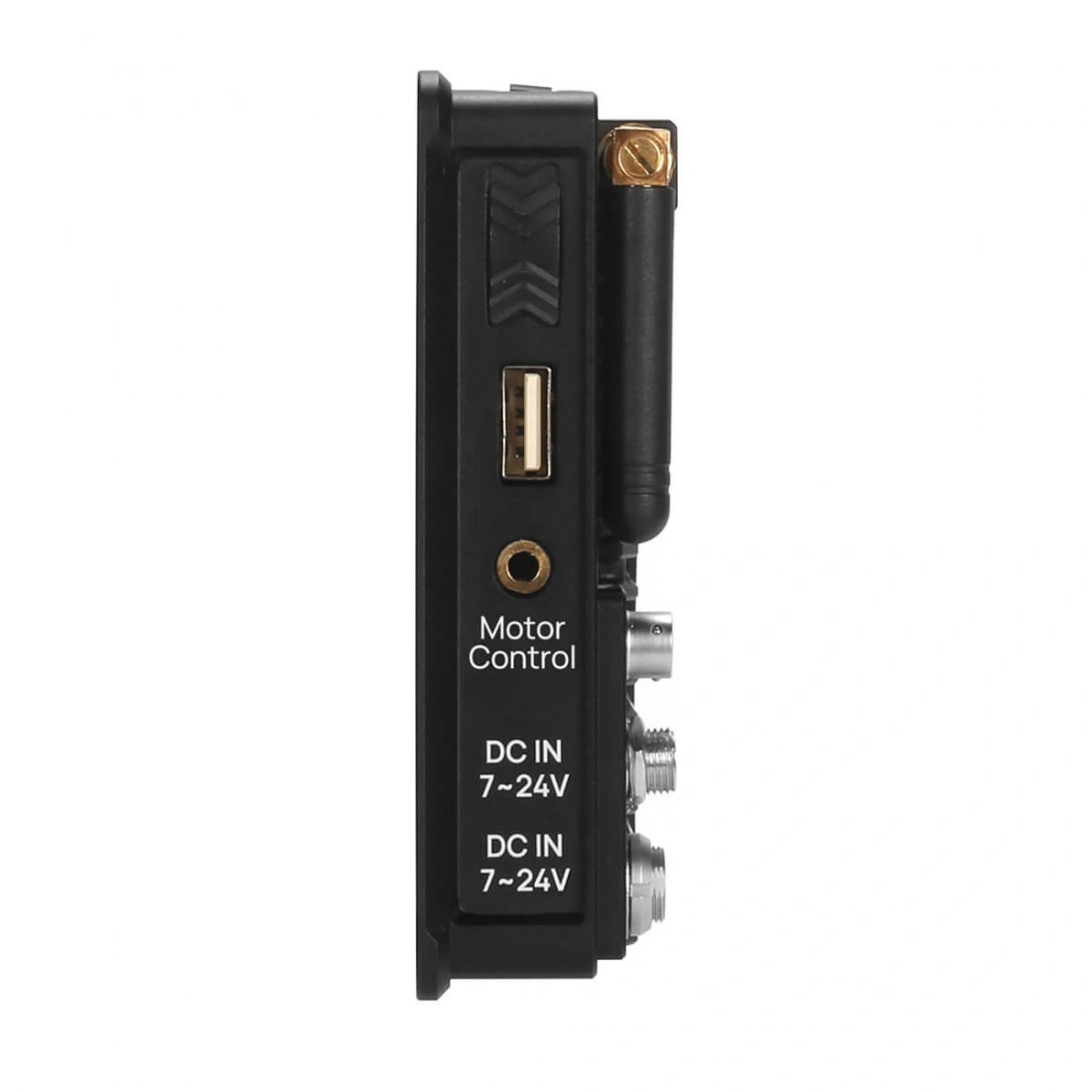

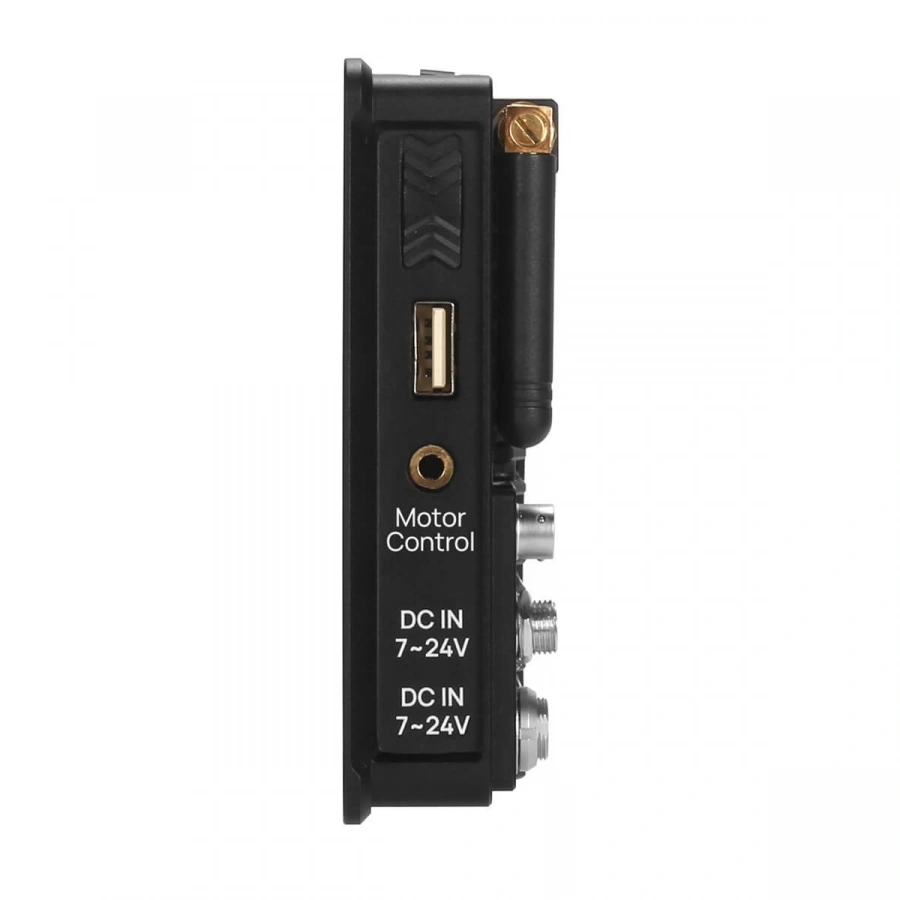

  • Industry-standard 2-pin LEMO and 5.5mm barrel connector 7.4V-24V power inputs for external power (D-Tap cable included).
  • Rugged all-aluminum housing: only 460g/16.2oz.
  • Custom JPG picture custom freeze frame.

In the Box

--------------------------------------------------------------------

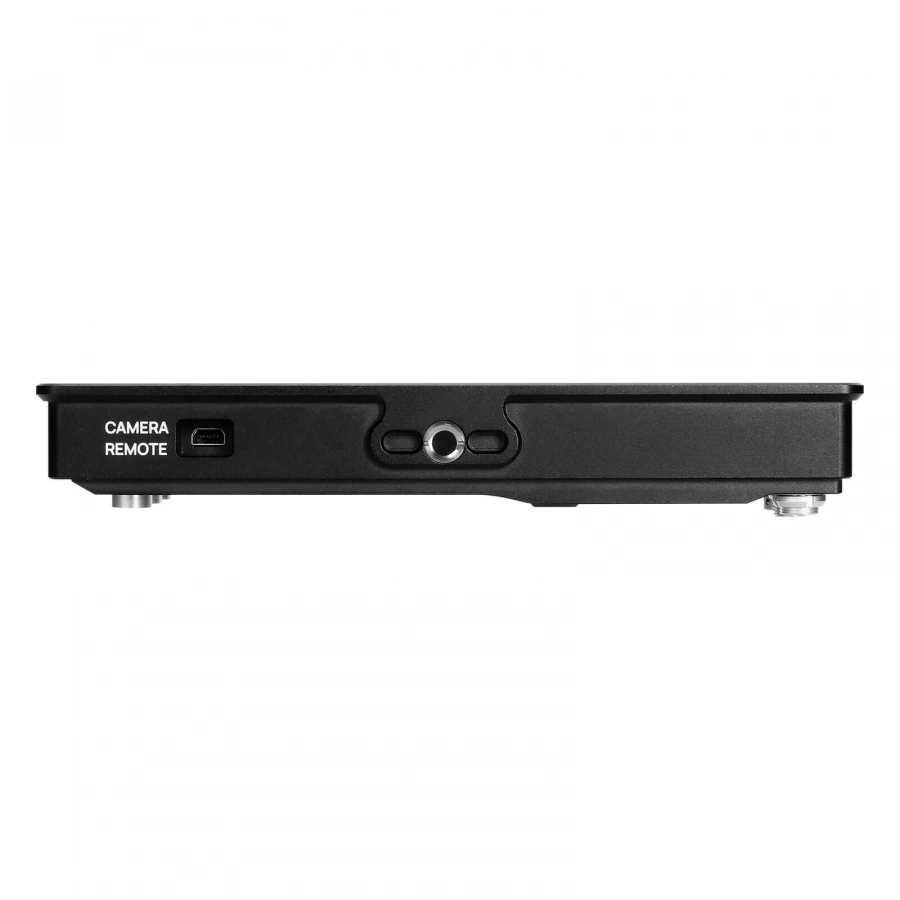

  • PORTKEYS BM7 II DS 7" High-Bright Monitor with Wireless Camera Control
  • USB Drive
  • DC Barrel to D-Tap Power Cable
  • Carrying Case
  • Limited 1-Year Manufacturer Warranty
Video I/O
2x BNC (3G-SDI) Input 1x HDMI (Unspecified Signal) Input 1x BNC (3G-SDI) Output 1x HDMI (Unspecified Signal) Output
Display Size
7.0" / 17.8 cm
Resolution
1920 x 1080
Touchscreen
YES
HDR Compatibility
Hybrid Log Gamma
