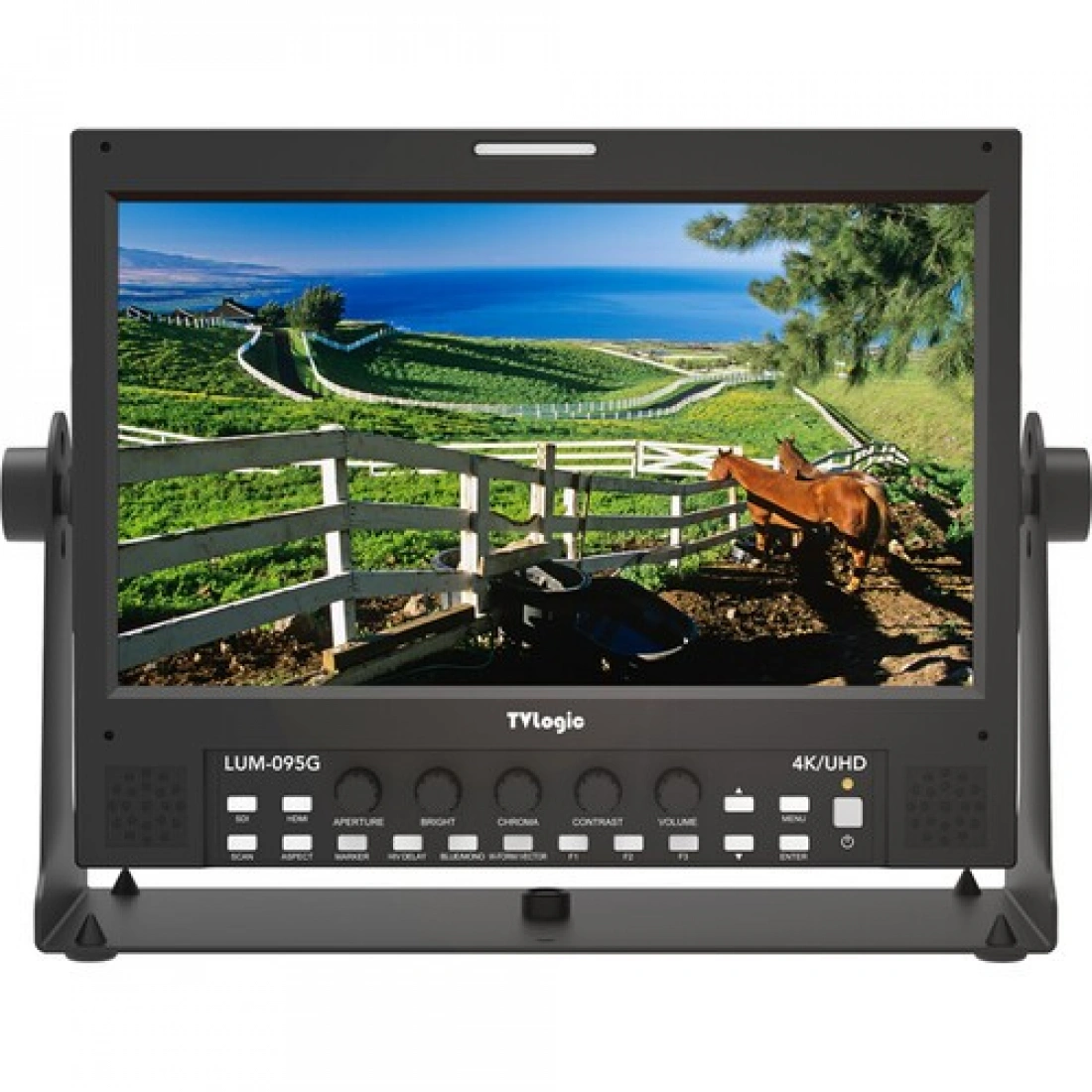

    TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor

    LUM-095G
    Special Order -
    AED17,042.72
    Tax excluded

    SKU : #LUM-095G

    Key Features :

    • 9" 1920 x 1080 LCD Monitor
    • 4 x SDI Ports, 1 x HDMI Port
    • Supports Inputs up to UHD 4K Video
    • 178° Viewing Angle
    • 400 cd/m² Maximum Brightness
    • Native Full HD Resolution
    • Control via Buttons, RS-422, Remote
    • Various Image Monitoring Controls

    NEED HELP?


    Ideal for field monitoring applications, the 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor from TVLogic supports both SDI and HDMI video at resolutions up to UHD 4K. Four SDI ports and one HDMI port natively support full HD resolutions while also supporting UHD 4K inputs. The LUM-0956 has a 178° viewing angle and maximum brightness of 400 cd/m² for increased visibility.

    In the Box :

    --------------------------------------------------

    • TVLogic 9" UHD 4K Input-Ready SDI/HDMI LCD Monitor
    • AC Power Cord
    • DC Power Adapter
    • Carry Handle
    • Table Stand
    • Camera Mount
    • Limited 2-Year Manufacturer Warranty (on Hardware)
    • Limited 1-Year Manufacturer Warranty (LCD Panel)
    Video I/O
    1x HDMI 2.0 Input 1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output
    Mobile App Compatible
    No
    Display Size
    9.0" / 22.9 cm
    Resolution
    1920 x 1080
    Touchscreen
    No
    Wifi
    No
    Bluetooth
    No
    Screen Area
    7.82 x 4.40" / 198.72 x 111.78 mm
    Panel Type
    IPS-Type LCD
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178° Vertical: 178°
    Maximum Brightness
    400 nits / cd/m2
    Contrast Ratio
    750:1
    Dot Pitch
    0.1035 x 0.1035 mm
    Bit Depth / Color Support
    8-Bit (16.7 Million Colors)
    Real-Time LUT Monitoring
    HDR
    Image Controls
    Anamorphic De-Squeeze, Blue Only, Color Temperature Selection, Customizable Aspect Ratios, Focus Assist, H/V Delay, Image Flip, Vectorscope, Waveform
    Embedded Audio
    HDMI/SDI
    Audio I/O
    1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Output
    Power I/O
    1x XLR 4-Pin (24 VDC) Input
    Other I/O
    2x RJ45 (RS-422) Input/Output 1x RJ45 (GPI) 1x USB-A (Firmware) Input
    Media/Memory Card Slot
    No
    HDR Compatibility
    No
    Pixels Per Inch (ppi)
    244 ppi
