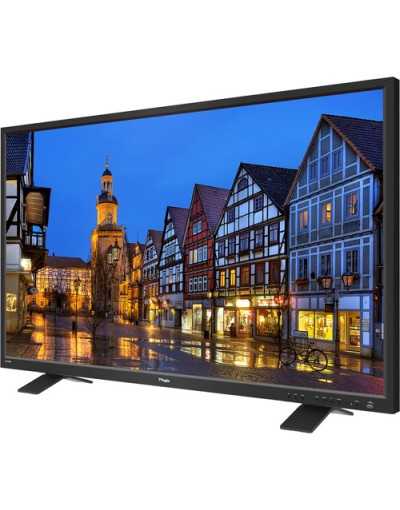

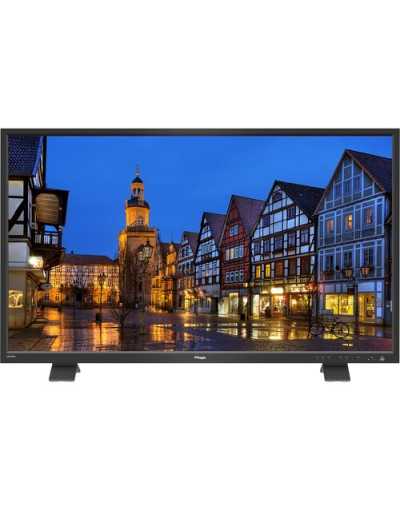

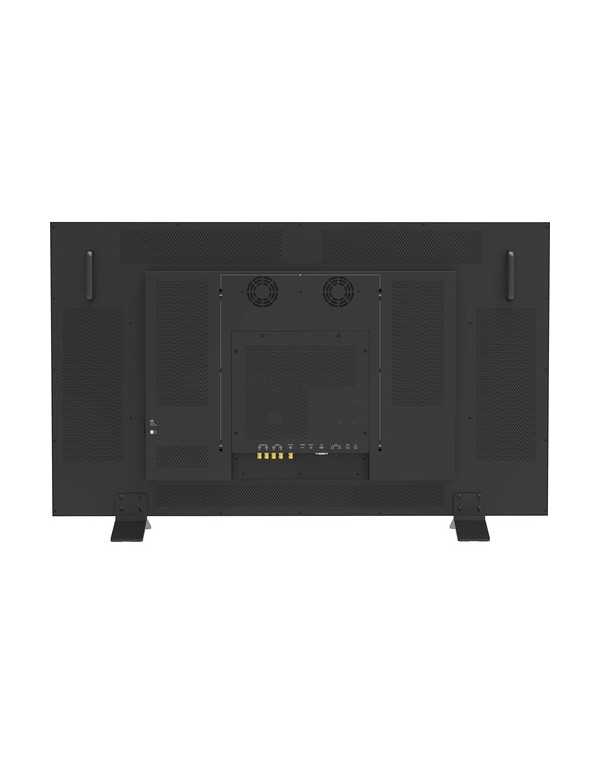

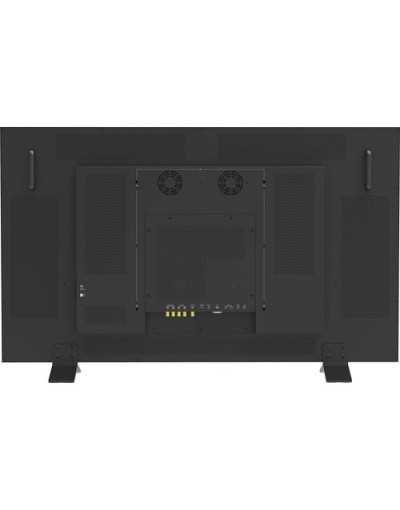

TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor

TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor

LUM-550M3
Special Order -
AED22,332.00
Tax excluded

SKU : #LUM-550M3

Key Features :

  • 54.6" UHD 4K LCD Monitor
  • 4 x SDI Inputs, 1 x HDMI Output
  • 4 x 12G-SDI and 4 x 3G-SDI Ports
  • Custom 3D LUT Import, Camera LUTs
  • Supports Inputs up to UHD 4K Video
  • 178° Horizontal Viewing Angle
  • 700 cd/m² Maximum White Brightness
  • Control via Buttons, IR Remote
  • Various Image Monitoring Controls



TVLogic LUM-550M Overview

Take 12G-SDI, 3G-SDI, and HDMI video sources up to UHD 4K and output them to the LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor from TVLogic with up to four SDI sources for monitoring in the field. The SDI ports on the monitor, four outputs and four inputs, can support either 12G-SDI or 3G-SDI video. The 12G-SDI ports can perform as single-link connections, while the 3G-SDI ports can perform in quad-link configurations. The monitor features camera LUTs and custom 3D LUT imports for color customization.

In the Box

-----------------------------------------------------------

  • TVLogic LUM-550M3 54.6" UHD 4K SDI/HDMI LCD Monitor
  • AC Power Cable
  • Table Stand
  • IR Remote
  • Carrying Case
  • Limited 1-Year Manufacturer Warranty (LCD Panel)
  • Limited 2-Year Manufacturer Warranty (Hardware)
Video I/O
1x HDMI 2.0 Input 2x BNC (12G-SDI) Input 2x BNC (12G-SDI) Output 2x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output
Mobile App Compatible
No
Display Size
54.6" / 138.7 cm
Resolution
3840 x 2160
Touchscreen
No
Wifi
No
Bluetooth
No
Screen Area
47.62 x 26.79" / 120.96 x 68.04 cm
Panel Type
LCD
Aspect Ratio
16:9
Viewing Angle
Horizontal: 178° Vertical: 178°
Maximum Brightness
700 nits / cd/m2
Contrast Ratio
1100:1
Dot Pitch
0.315 x 0.315 mm
Bit Depth / Color Support
10-Bit (1.07 Billion Colors)
Image Controls
Vectorscope, Waveform
Embedded Audio
SDI
Audio I/O
1x 1/8" / 3.5 mm Output
Built-In Speaker
No
Media/Memory Card Slot
No
HDR Compatibility
Yes
Pixels Per Inch (ppi)
80 ppi
