Blackmagic Design ATEM Constellation HD Live Production Switcher (1 RU)

Blackmagic Design ATEM Constellation HD Live Production Switcher (1 RU)

Name: Blackmagic Design ATEM Constellation HD Live Production Switcher (1 RU)
Brand: BlackMagicDesign
SKU: SWATEMSCN2/1ME1/HD
Price: 3956 AED
Availability: BackOrder

0 Reviews

| Ask a question

SKU: SWATEMSCN2/1ME1/HD

EXPECTED DELIVERY : 3-4WEEKS

AED3,956.00

Tax excluded

Key Features :

Supports 3G/HD-SDI at 10-Bit
10 x 3G-SDI Inputs, 6 x 3G-SDI Outputs
Up to 16-Multiview Monitoring Windows
Webcam Output via USB-C
Frame Rate/Format Converter per Input
28-Channel Audio Mixer
4 x Upstream, 1 x Downstream Keyer
Chroma/Luma Keyers
Color/Pattern Generators
Hardware or Software Mac/Windows Control

Secure payments

Ask an Expert

WhatsApp Chat | Email | +971 55 510 4251

Description

Blackmagic Design ATEM Constellation HD :

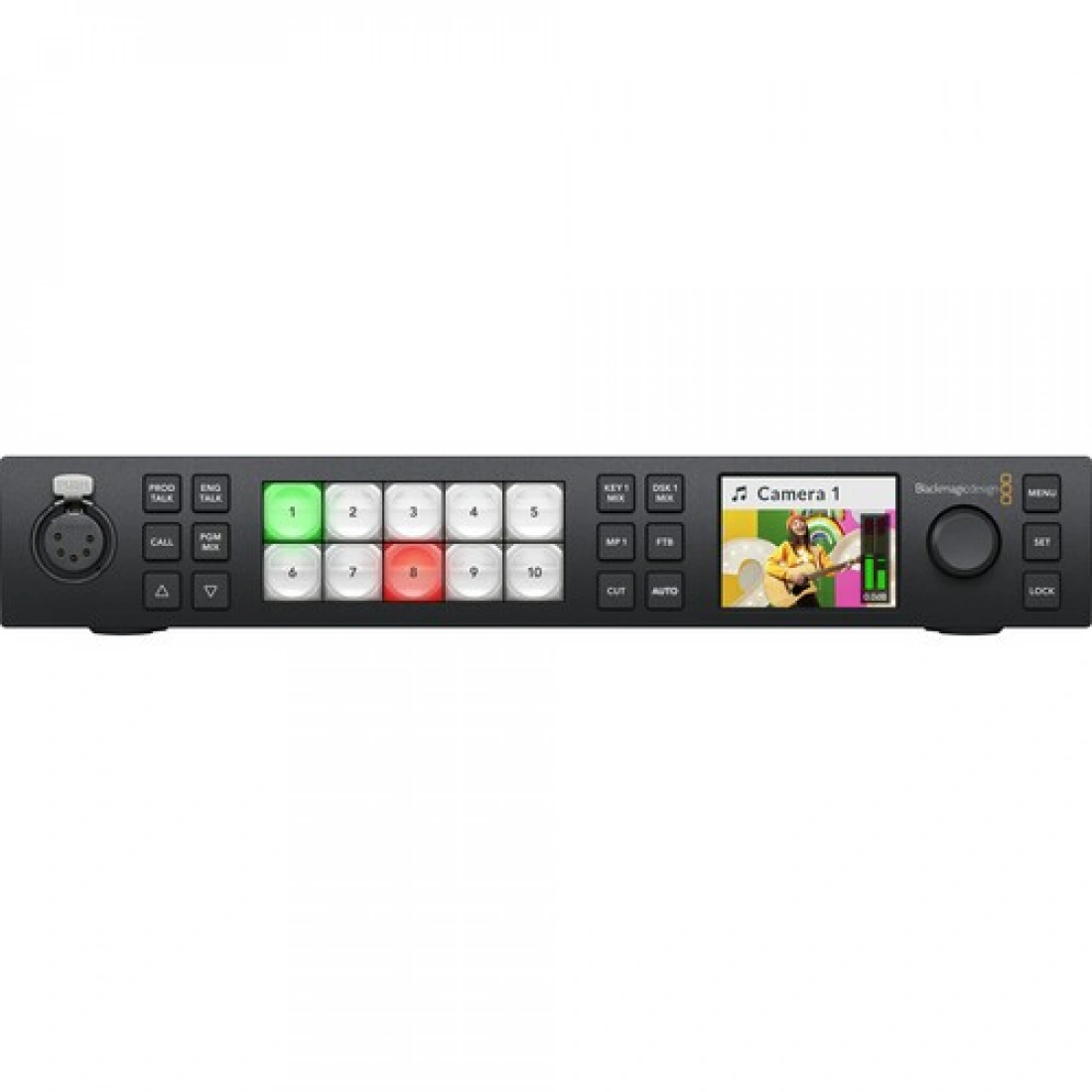

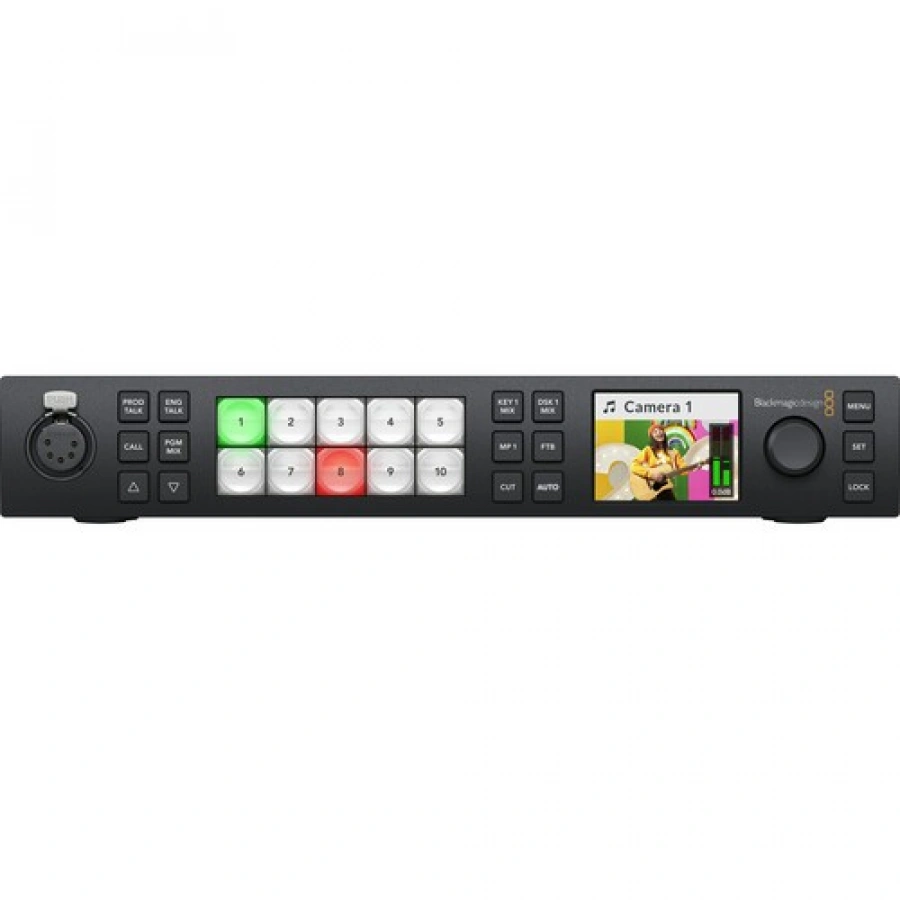

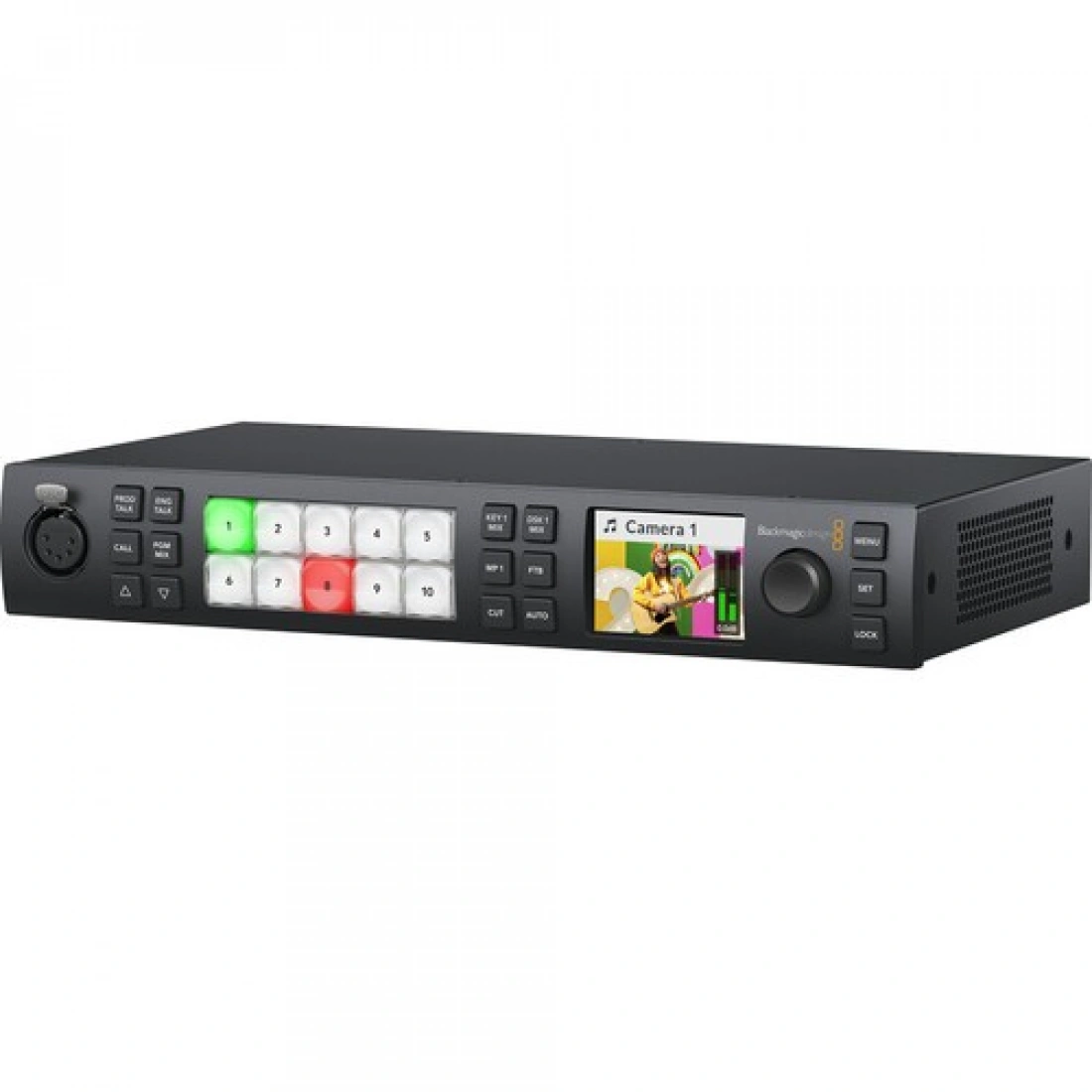

Powerful live event HD switching, supporting up to 10 individual 3G/HD-SDI inputs built into a 1 RU chassis, is at hand with the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via six 3G-SDI BNC outputs or a webcam output via USB-C. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

In the Box :

Blackmagic Design ATEM 1 M/E - 2 M/E Constellation HD Live Production Switcher (1 RU)
Limited 1-Year Manufacturer Warranty

Product Details

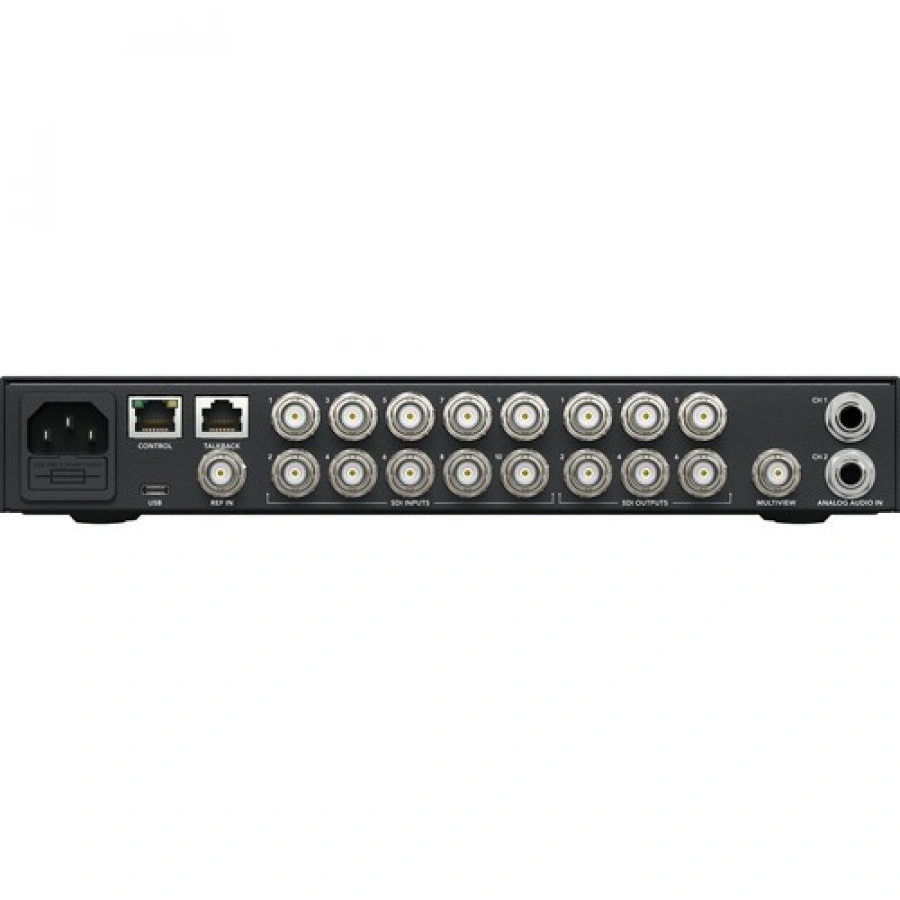

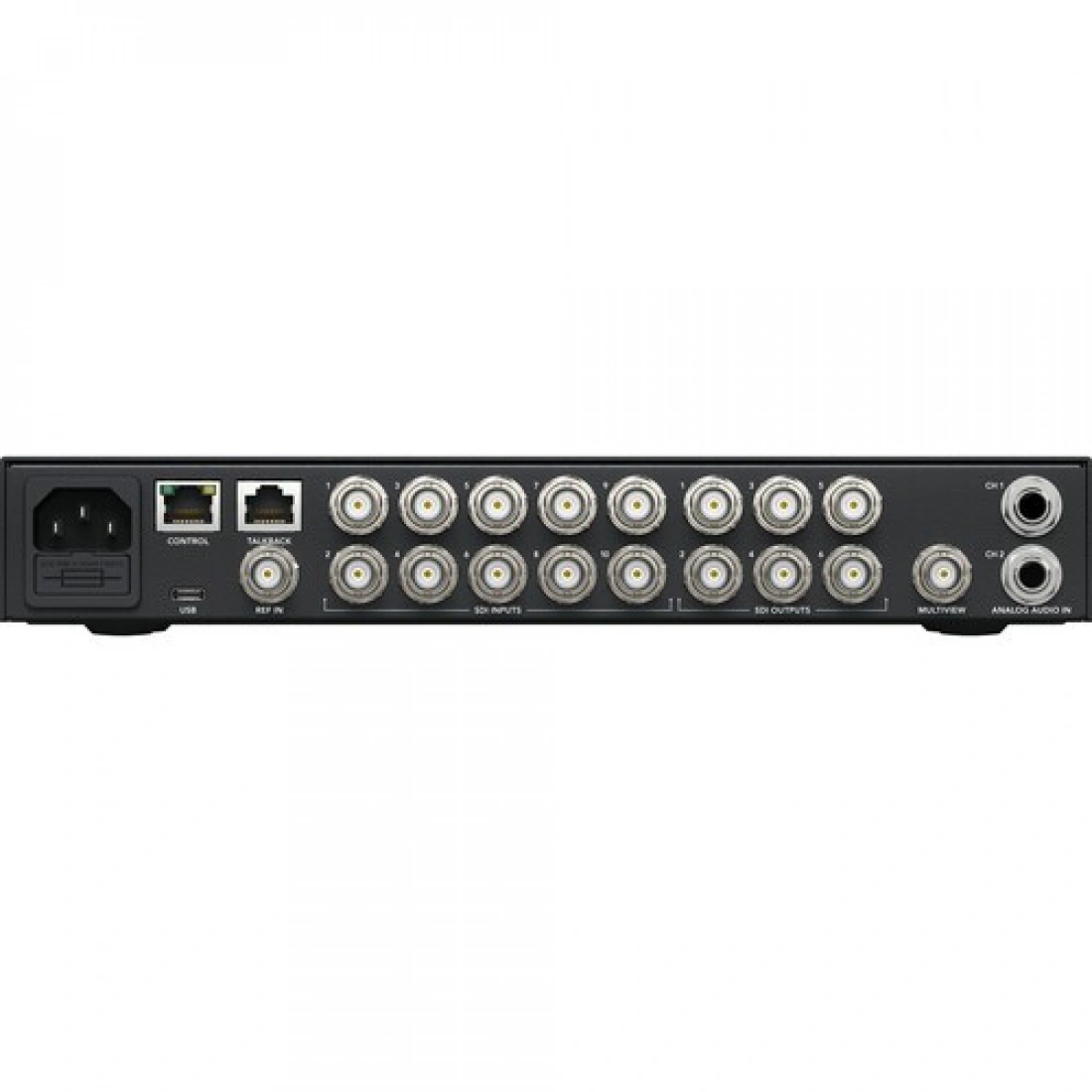

Video I/O: 10x BNC (3G-SDI)
Number of Input Channels: 10
Available M/E Layers: 1 M/E
Effect Types: 4x Chroma Key 5x Luma Key 1x DVE, Stinger
Downstream Keys: 1x Chroma, Luma, DVE
Generators: 2x Color 5x Pattern
Audio Mixing: 28-Channel Mixing
Switching Type: Pushbutton, Software
Color Processing: 10-Bit 4:2:2
