Blackmagic GPI & Tally Interface for ATEM Switchers

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers

Name: Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Brand: BlackMagicDesign
SKU: SWTALGPI8
Price: 1969 AED
Availability: BackOrder

0 Reviews

| Ask a question

SKU: SWTALGPI8

Special Order 1-2 Weeks

AED1,969.00

Tax excluded

SKU : SWTALGPI8

Ethernet-based tally interface for compatible Blackmagic ATEM production switchers, providing eight relay contact-closure outputs and eight opto-isolated inputs. Multiple units can be networked when additional tally outputs are required, making it suitable for broadcast and live-production workflows across the UAE.

Key Features :

Displays Tallies for Video Signals
Indicates On-air Status
For ATEM Switchers / Videohub Routers
8 Contact Closure Inputs & Outputs
Connects with Multiple Interfaces

Secure payments

Ask an Expert

WhatsApp Chat | Email | +971 55 510 4251

Description

Blackmagic Design GPI & Tally Interface Overview

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

In the Box :

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
12 V Power Supply
Limited 1-Year Manufacturer Warranty

Product Details

Inputs: Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA)
Connections: dd

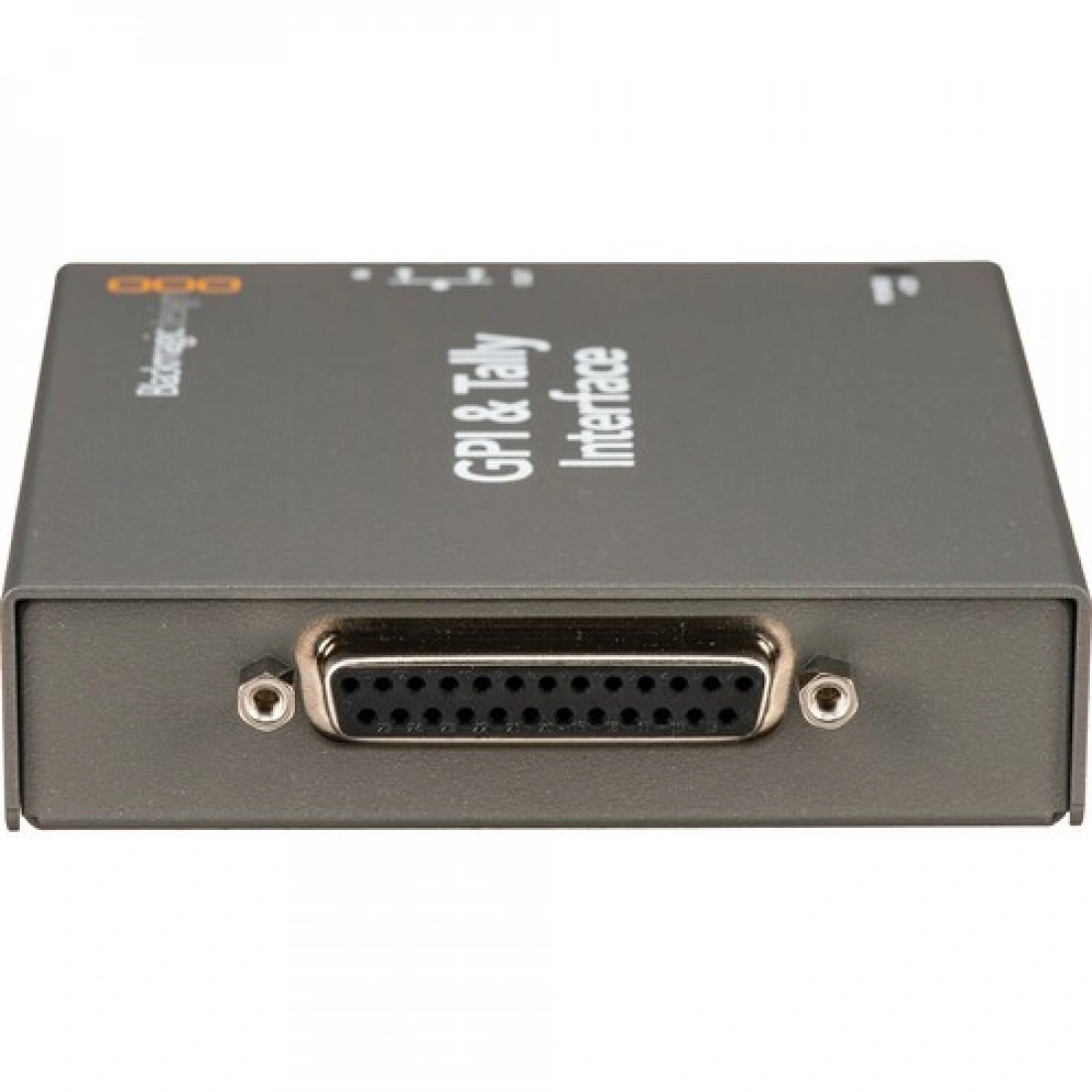

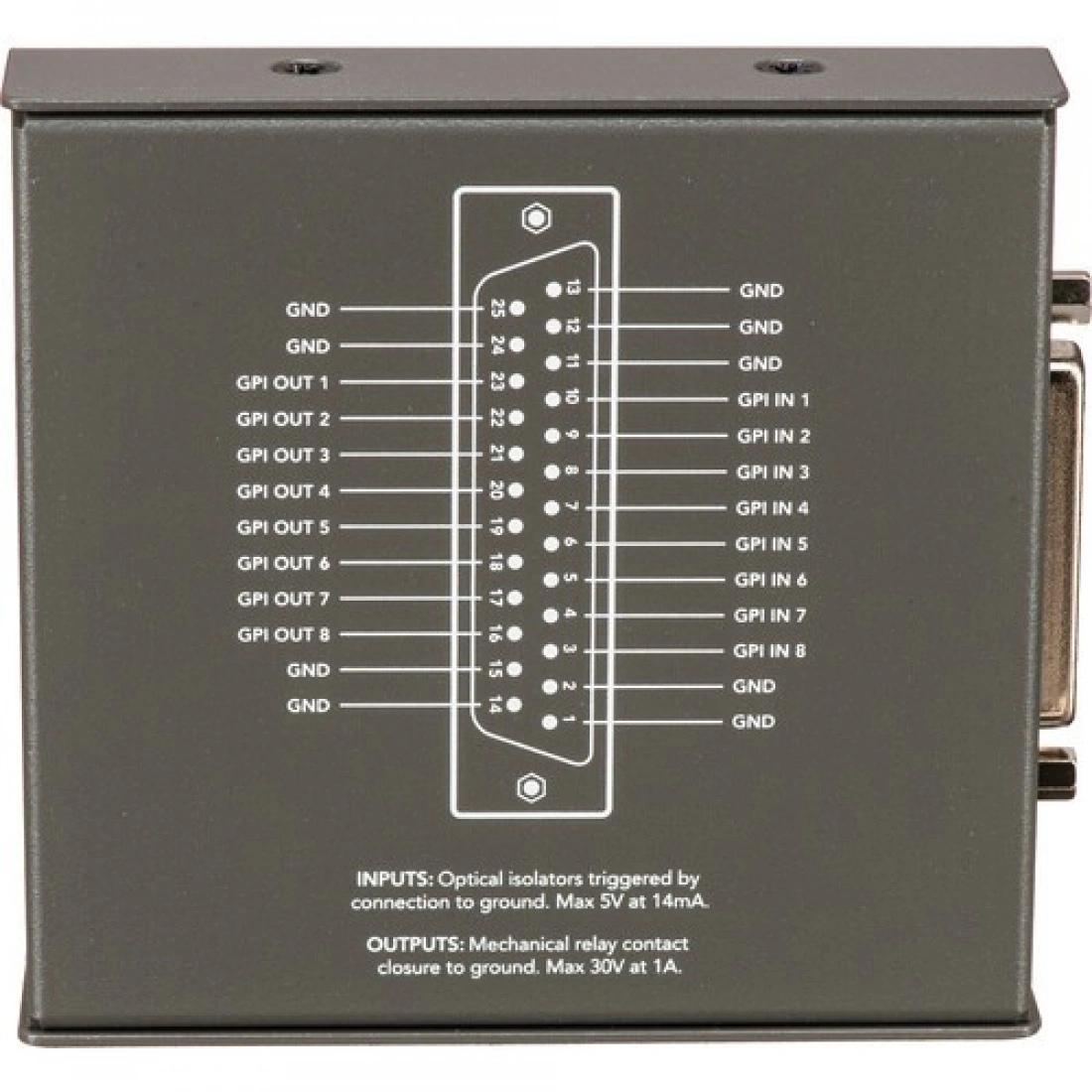

Contact Closure: 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs
Outputs: Mechanical relay contact closure to ground (maximum 30 V @ 1 A)

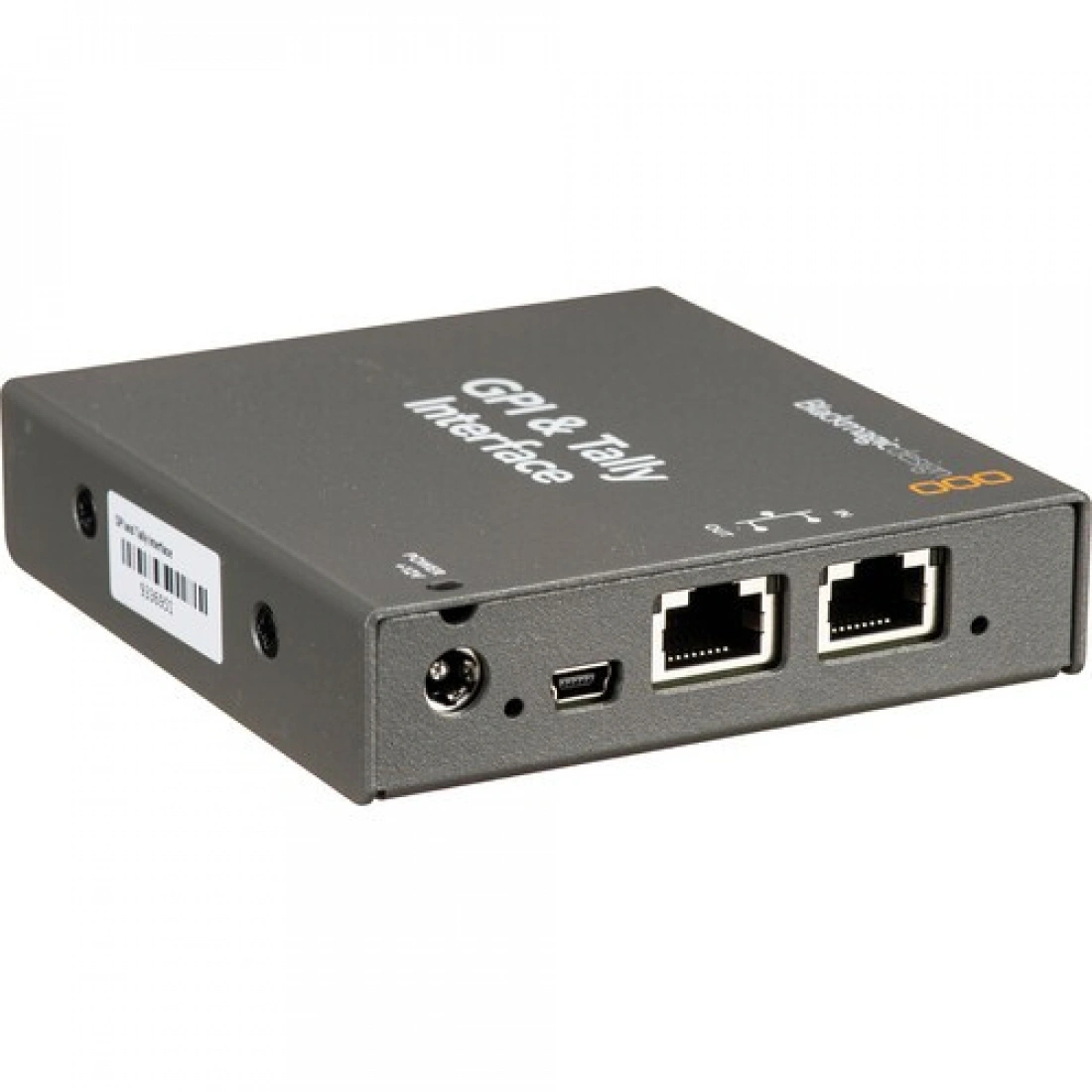

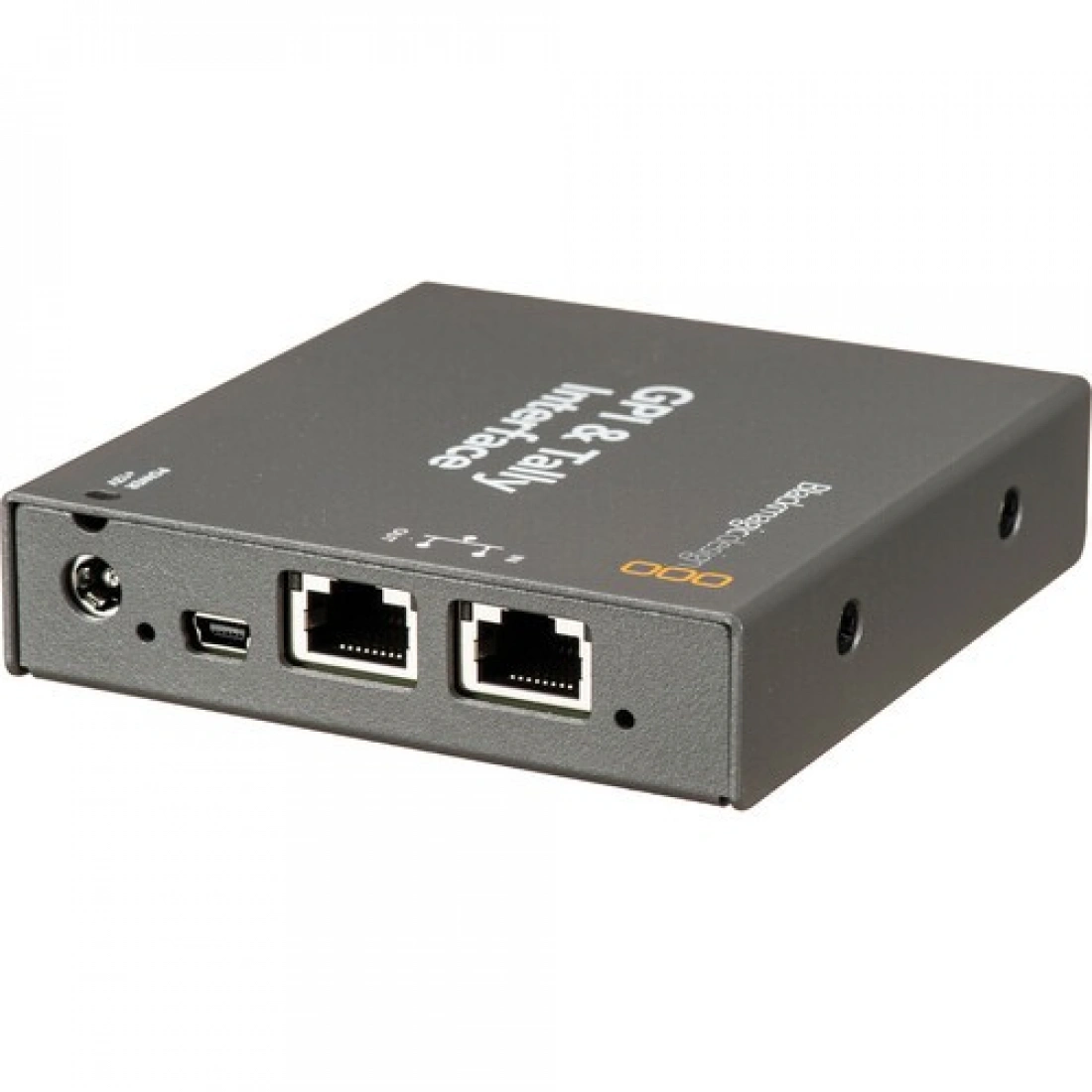

Ethernet: 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment
Computer Interface: 1 x USB 2.0 high speed interface for configuration and firmware updates
Software Included: Configured via ATEM Switcher utility
Firmware Upgrade: Firmware built into software driver. Loaded at system startup or via updater software
Operating System: Microsoft Windows 7 and Apple Mac OS X
Power Supply: 12 V power supply included with international socket adapters for all countries
