Sound Devices A20-Mini Digital Wireless Bodypack Transmitter and Recorder (470-1525MHz)

Sound Devices Sound Devices A20-Mini Digital Wireless Bodypack Transmitter and Recorder (470-1525MHz) | Wireless Microphone Systems | CAM TOOLS Middle East

Sound Devices A20-Mini Digital Wireless Bodypack Transmitter and Recorder (470-1525MHz)

Name: Sound Devices A20-Mini Digital Wireless Bodypack Transmitter and Recorder (470-1525MHz)
Brand: Sound Devices
SKU: A20-MINI
Price: 2449.66 USD
Availability: InStock

SKU: A20-MINI

$2,449.66

Tax excluded

SKU : #A20-MINI

Key Features :

For Demanding Film and Television Shoots
LEMO 3-Pin Lav Input with 5V Bias Power
32-Bit Float Recording Avoids Clipping
Internal 64GB Storage
Full Remote Control via Companion App

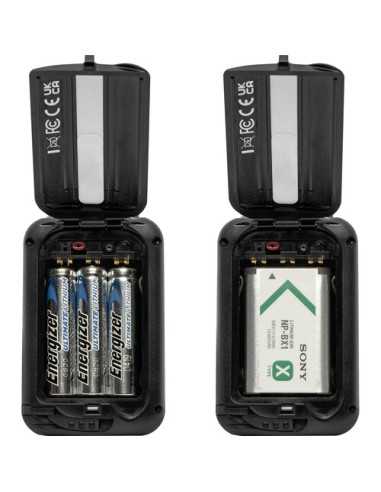

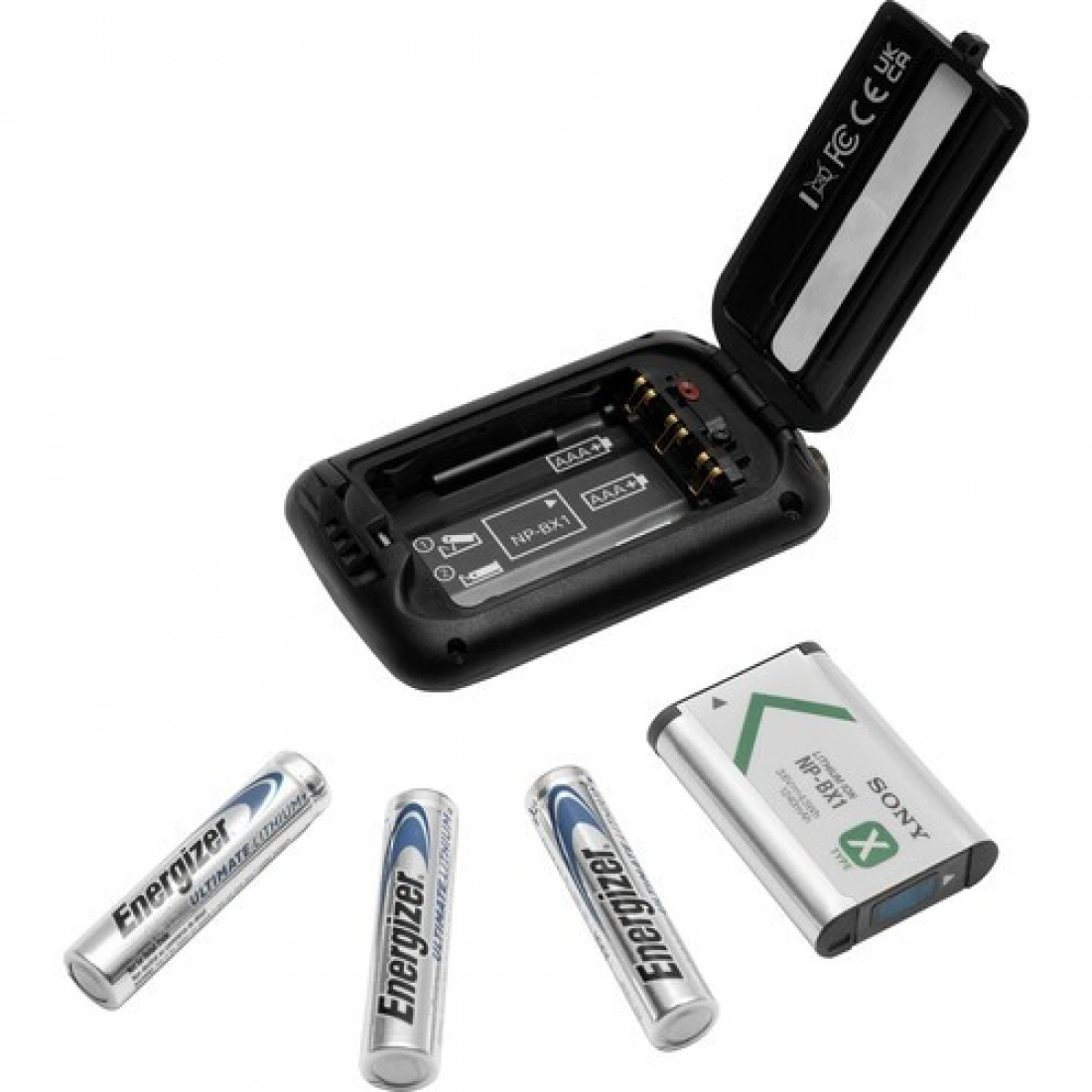

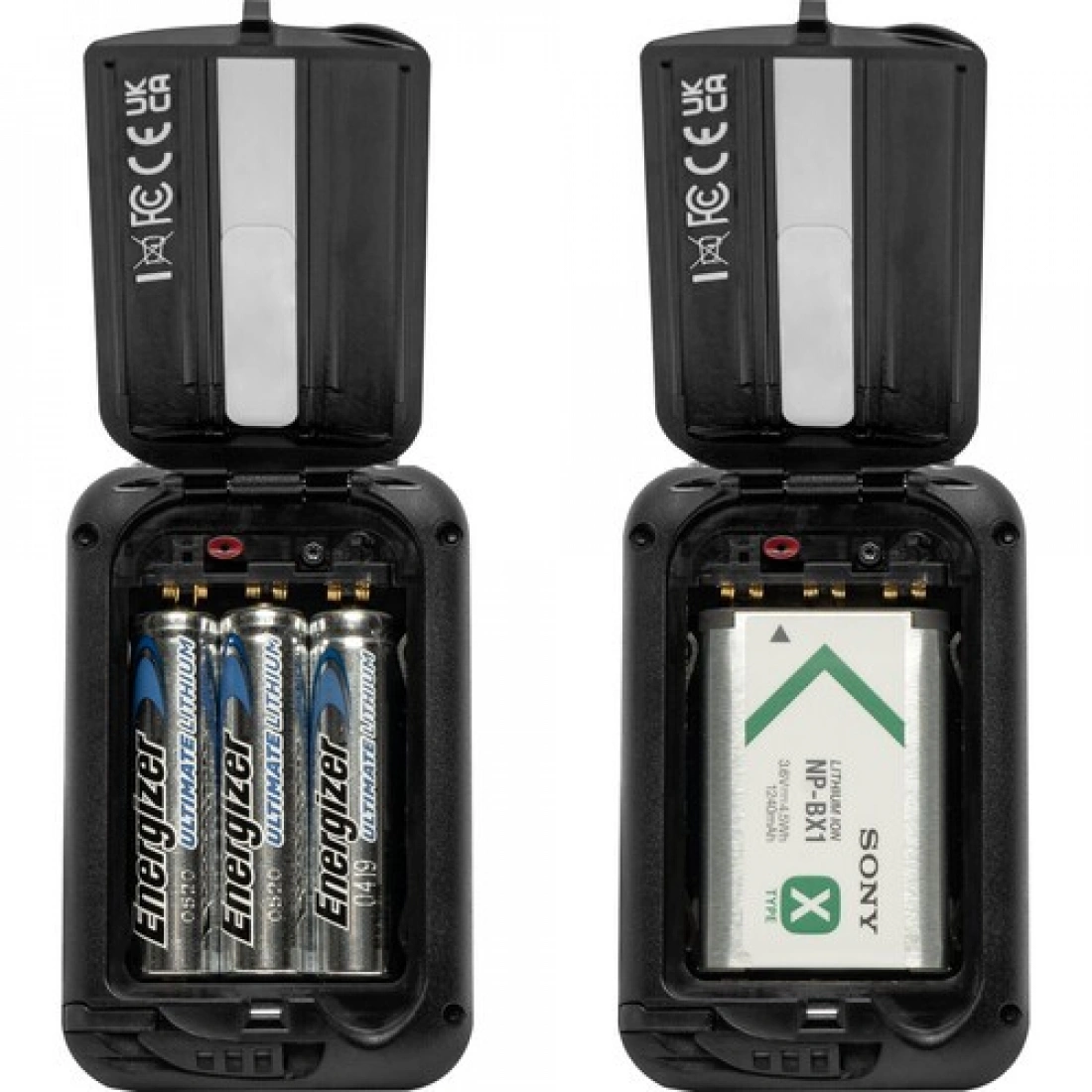

Powered by Three AAA Batteries or NP-BX1
Built-In Timecode Generator
Supports Jam Syncing via USB Type-C

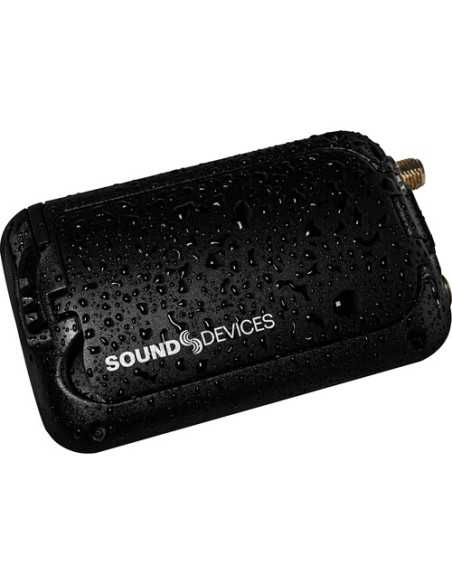

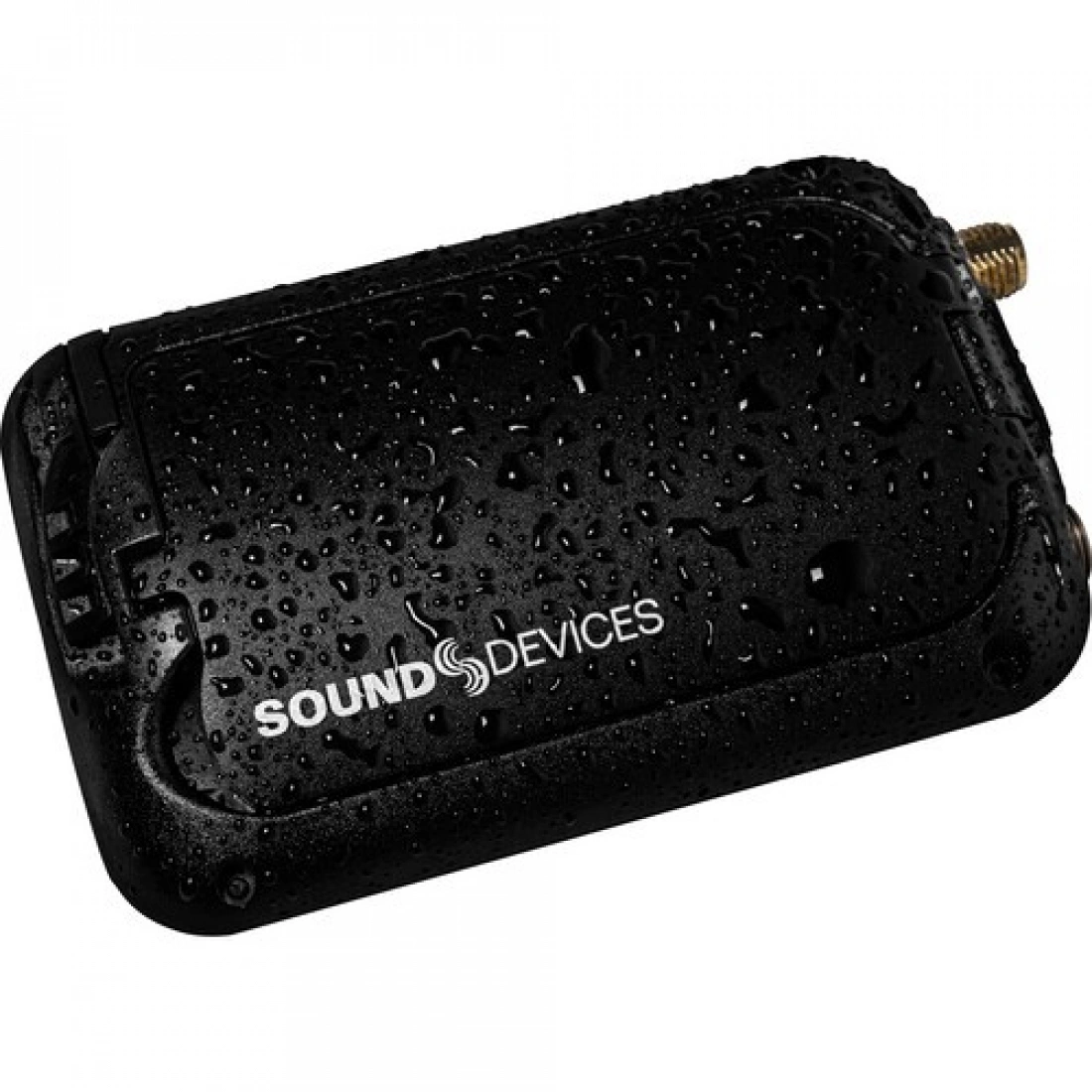

Water-Resistant, Rounded Form Factor
Compatible with Sound Devices A10 System

NEED HELP?

Sound Devices A20 Overview

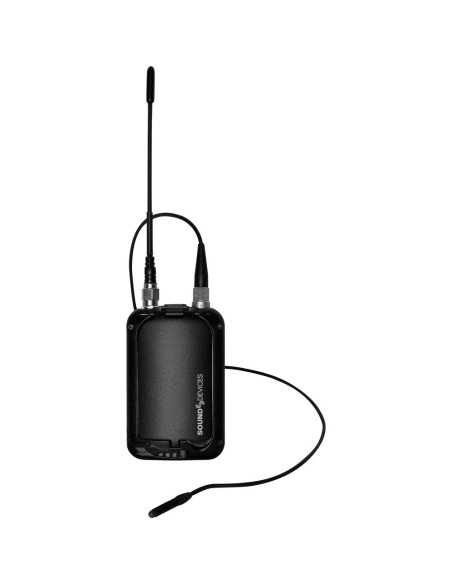

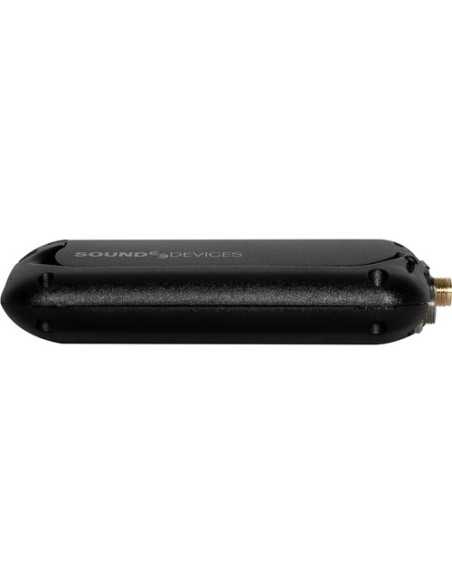

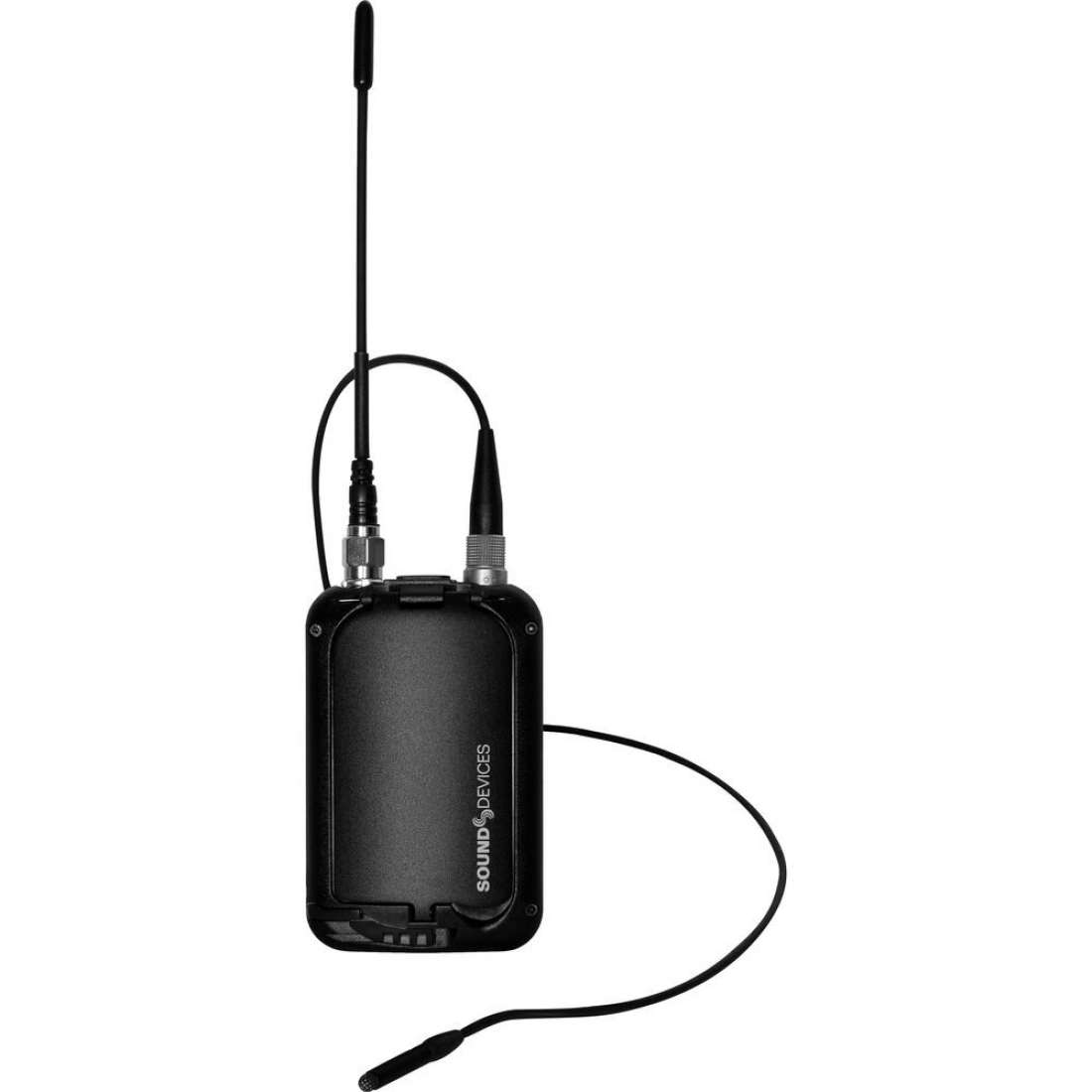

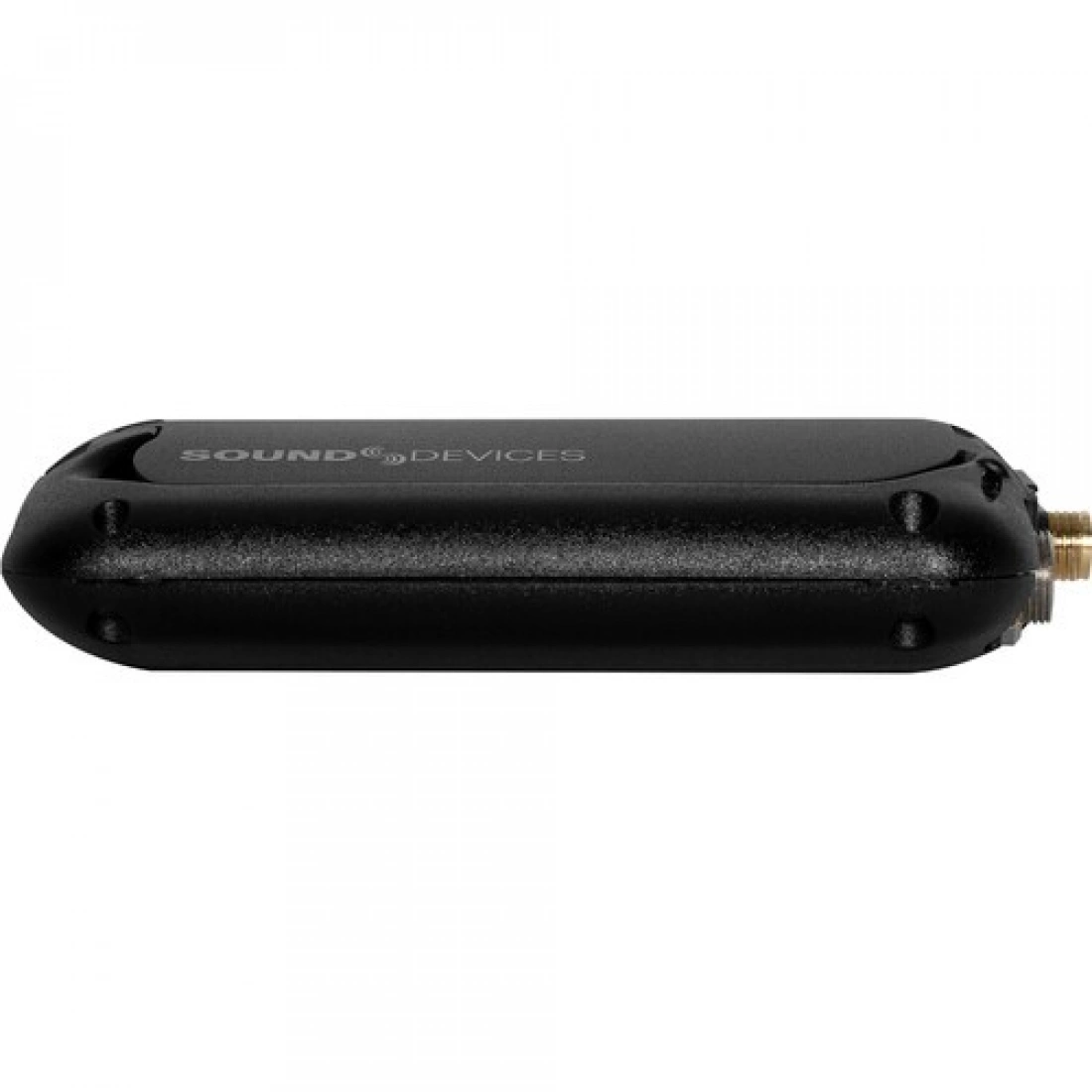

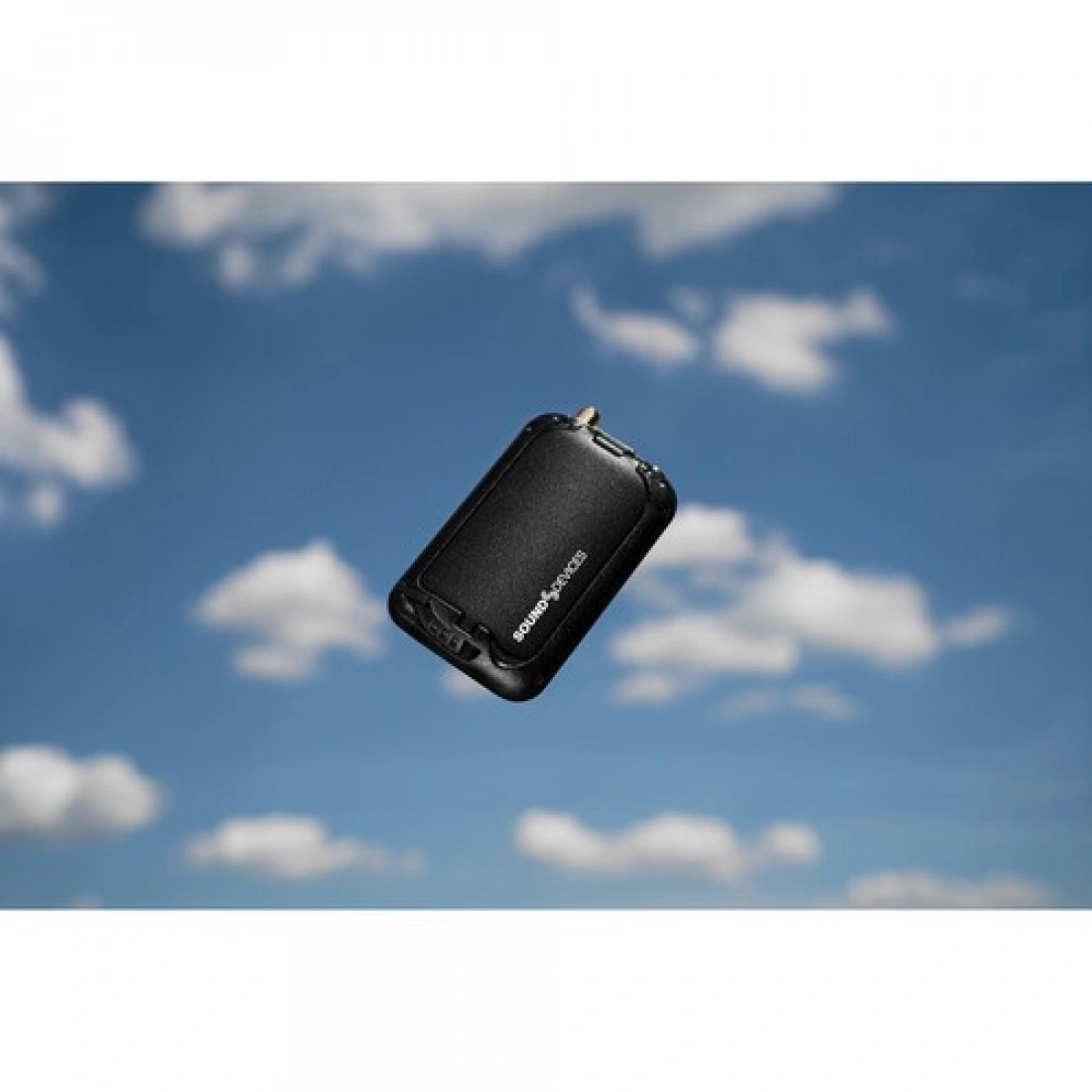

Housed in an ultracompact and water-resistant form factor for reliable use on set, the Sound Devices A20-Mini is not only an A10-compatible digital wireless bodypack transmitter with full remote control via a companion mobile app, but also a distortion-free, 32-bit float / 48 kHz audio recorder with 64GB internal storage. As a transmitter, it boasts a wide 10 Hz to 20 kHz frequency response, full SpectraBand with a tuning range of 470 to 1525 MHz, and 100% digital RF modulation and transmission, making it a premium unit for professional film and television shoots. Recorded WAV files can be transferred via USB Type-C and even converted or conformed through a companion desktop app to accommodate a range of workflows and user preferences.

In the Box

Sound Devices A20-Mini Digital Wireless Bodypack Transmitter and Recorder (470 to 1525 MHz)
Antenna with Cap (470 to 548 MHz)
Antenna with Cap (548 to 638 MHz)
Uncut Antenna with Cap
Holster with Belt Clip
Limited 1-Year Manufacturer Warranty
Registration Extension: 1-Year (US Only)
Not in the Box

Mobile App Compatible: Yes: Android & iOS

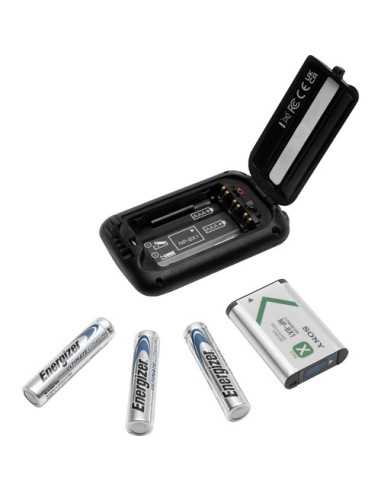

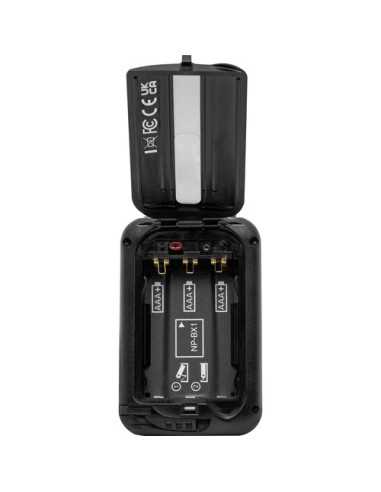

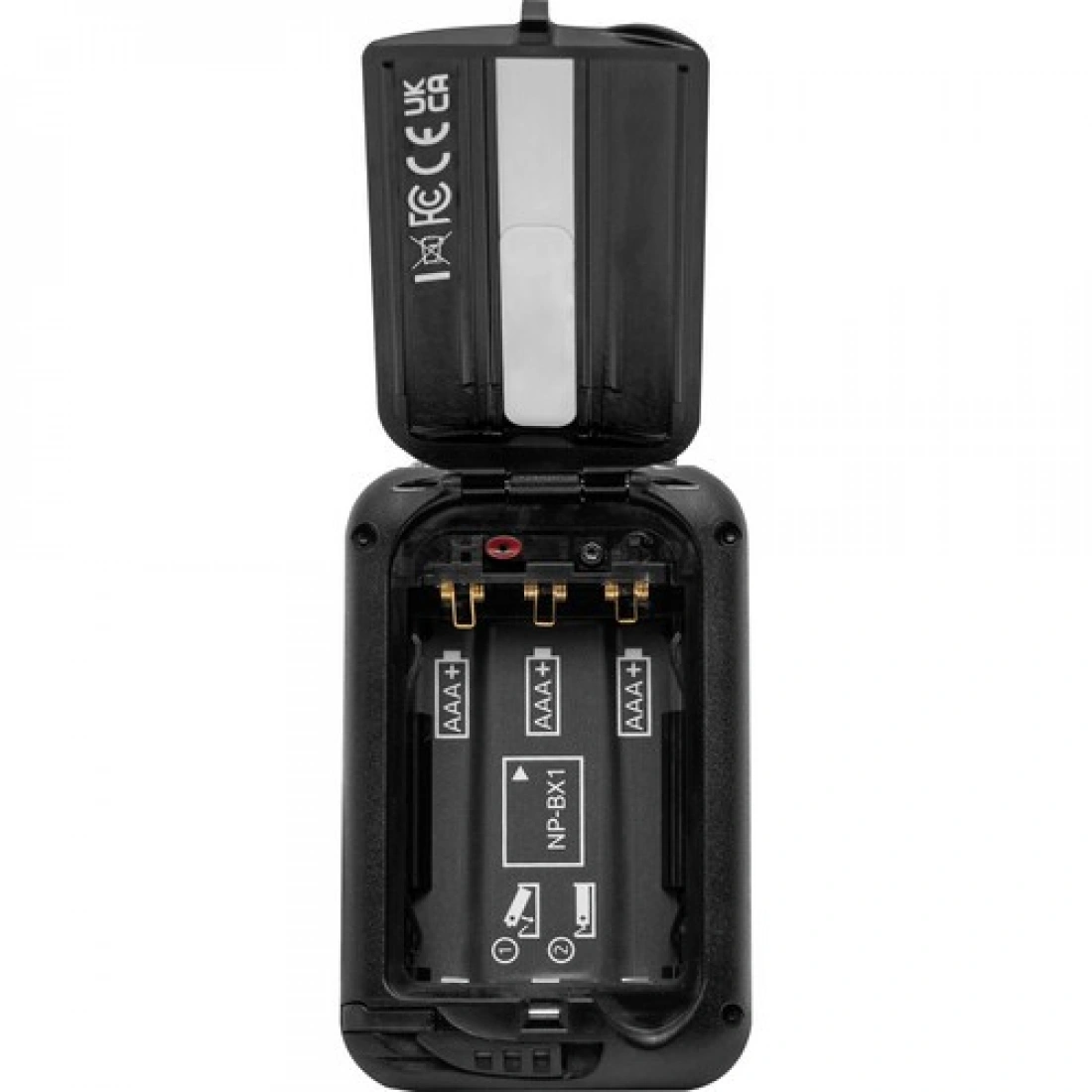

Battery Type: 3x AAA (Not Included) 1x NP-BX1 (Not Included)

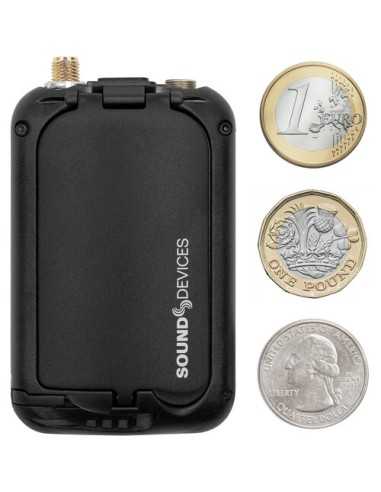

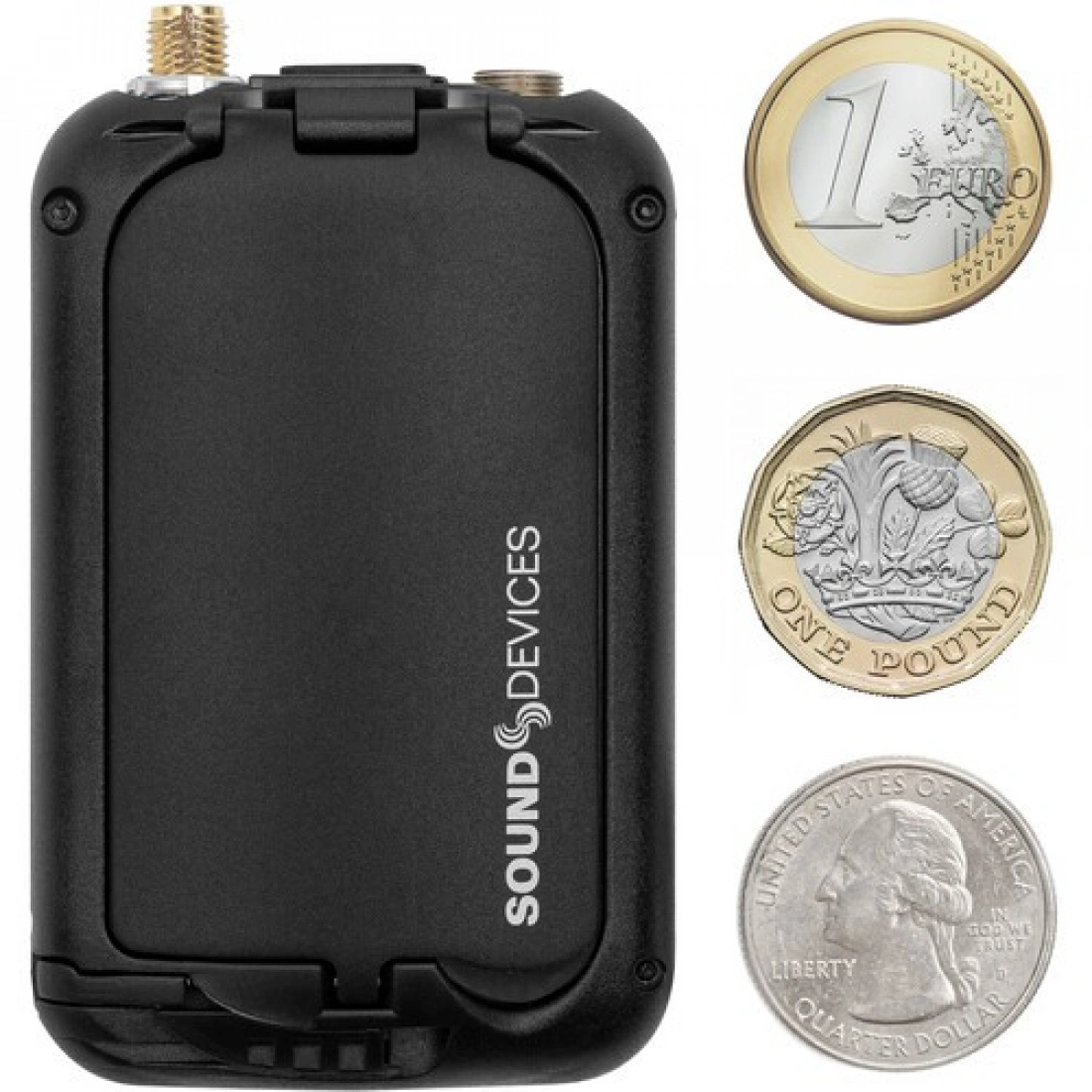

Dimensions: 1.9 x 3 x 0.7" / 4.8 x 7.6 x 1.8 cm
Weight: 1.8 oz / 51 g (without Batteries)
Bluetooth: 5.2 LE
Package Weight: 0.4 lb

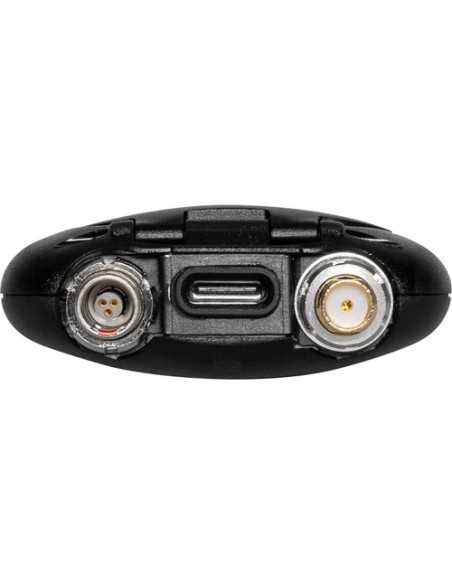

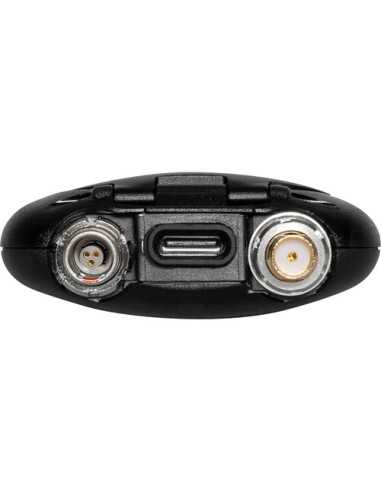

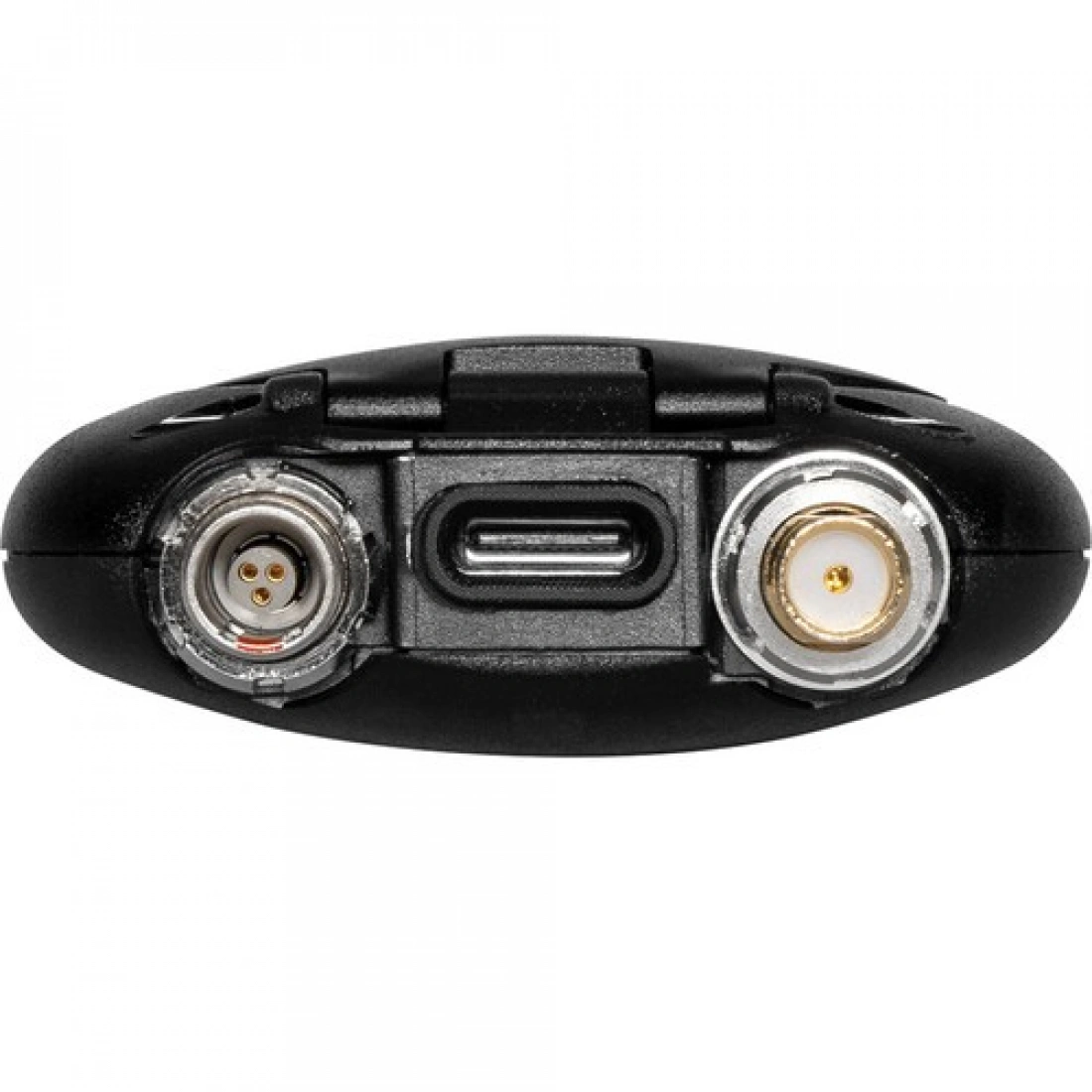

Audio I/O: 1x LEMO 3-Pin Female Unbalanced Input (Locking)
Operating Temperature: -4 to 140°F / -20 to 60°C
Storage Temperature: -40 to 185°F / -40 to 85°C
Encryption: No
Timecode Support: Yes
Memory Card Support: No
Audio File Formats: Recording: WAV
Operating Humidity: 0 to 90%
Frequency Response: 10 Hz to 20 kHz ±1 dB (Dependent on Mic)
Power Requirements: Battery
Plug-In Power: 5 V
Pad: No
RF Frequency Band: 470 to 1525 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Manual
Modulation: Proprietary
Antenna: 1x External, Detachable 1x Internal
Display & Indicators: 1x LED (Battery Status, Power) 1x LED (Audio Level, Multifunction, Mute) 2x LED (Multifunction, Recharging, Sync)
Built-In Recorder: Yes
Transmitter Type: Muting
RF Output Power: 2 / 10 / 20 / 40 mW (Switchable)
Included Cable Connector: No
Muting: Via Control App
Audio Input Level: +5 dBu (Max)
Auto-Level Control: No
Recorder Sample Rates: 48 kHz (Record)
Recorder Bit Depths: 32-Bit Float
Sync Method: Manual
Signal Processing: No
Approx. Battery Life: Low: 5.2 Hours (Lithium) 4.5 Hours (Rechargeable) High: 3 Hours (Lithium) 2.8 Hours (Rechargeable)
USB/Lightning I/O: 1x USB-C (Charging, Host Connection)
Battery Charging Time: 2.5 to 2.7 Hours
Box Dimensions (LxWxH): 5.2 x 3.3 x 3.3"

In stock 5 Items
