SKU: CP.RN.00000397.02
Key Features :
- Complete Wireless Video Transmission Kit
- SDR Tri-Bandwidth Technology
- Transmit up to 1080p60 Video
- DFS, 2.4 & 5.8 GHz with Auto Hopping
- Transmit to Tablet/Phone or SDR Receiver
- Wireless SDR Range of up to 1.9 Miles
- Up to 20 Mb/s Bit Rate, 35ms Low Latency
- Broadcast & Control Modes
- HDMI & 3G-SDI Video I/O
- L-Series Battery Plates, USB-C PD Inputs

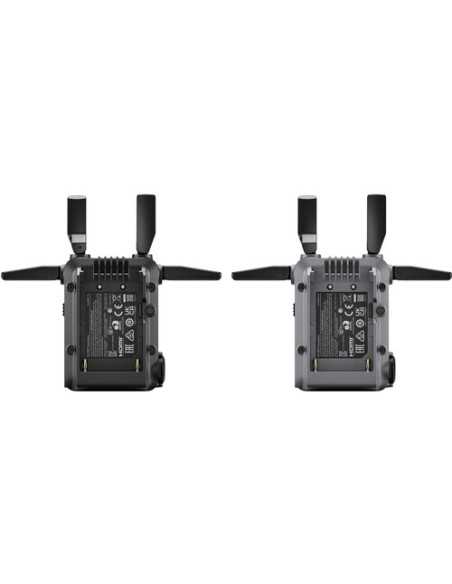

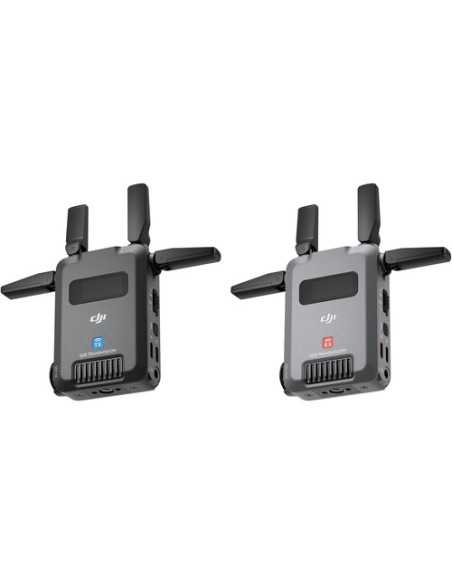

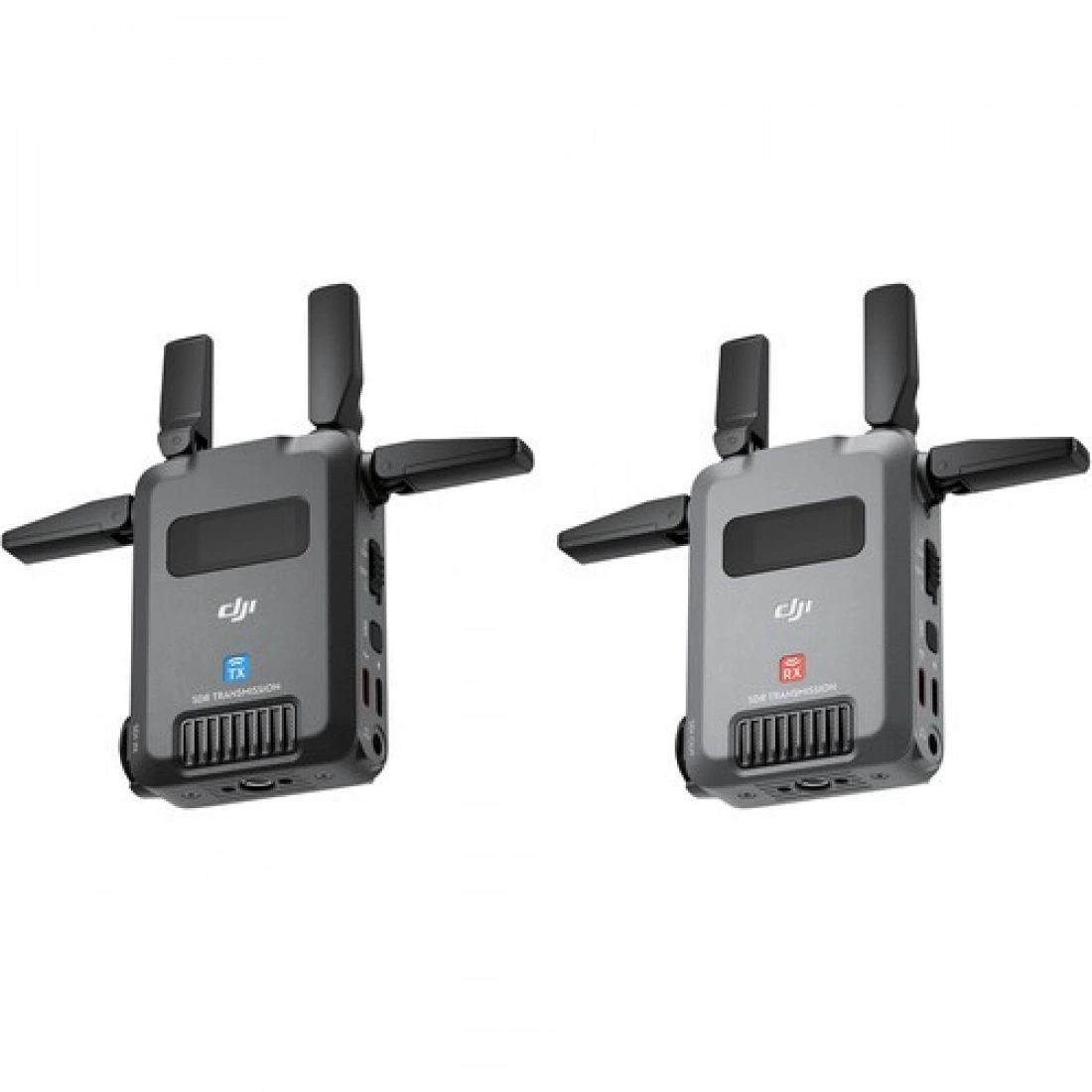

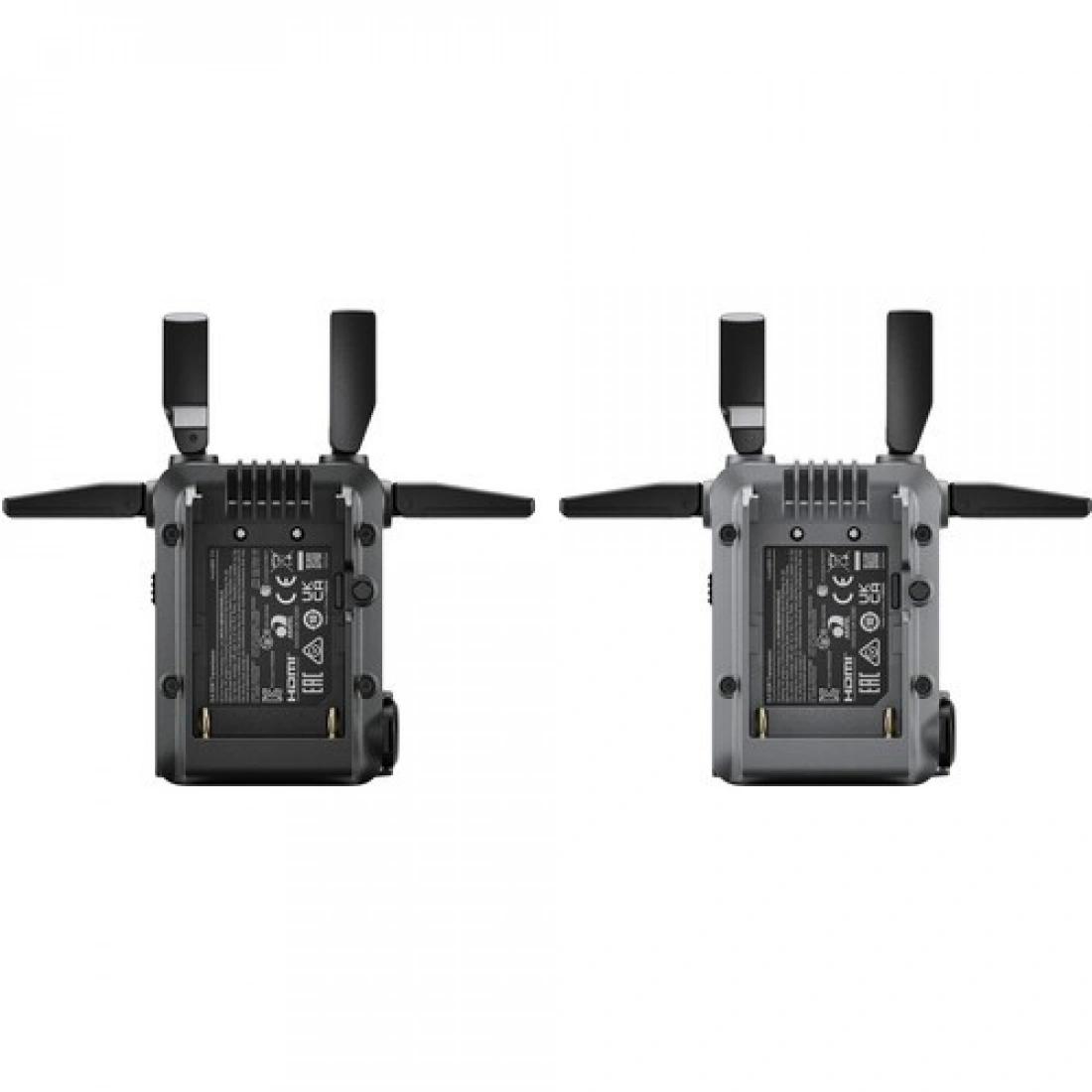

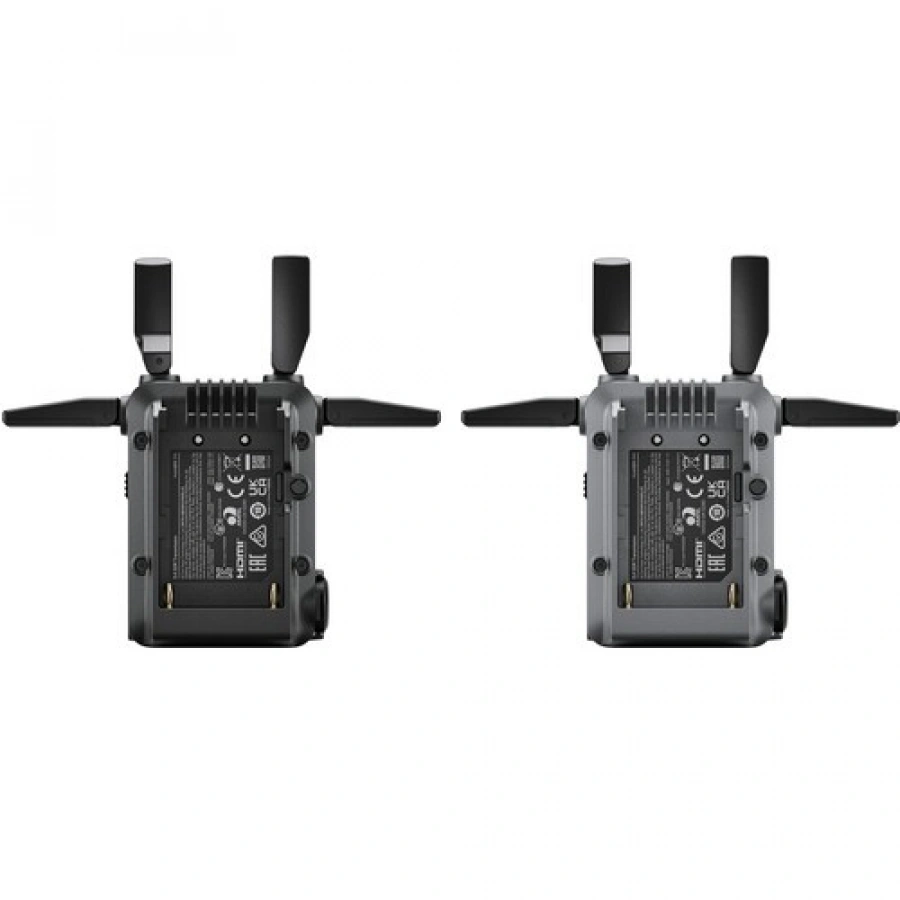

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.

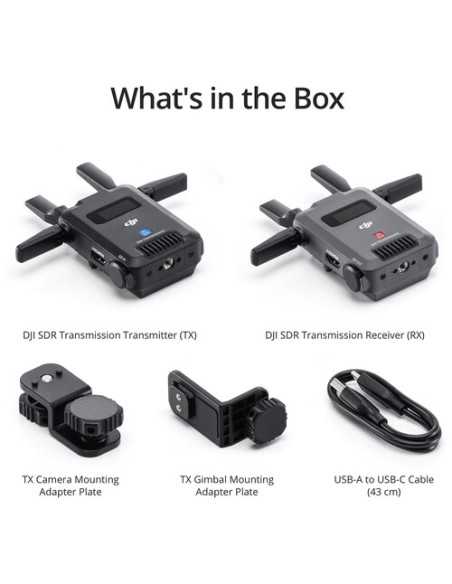

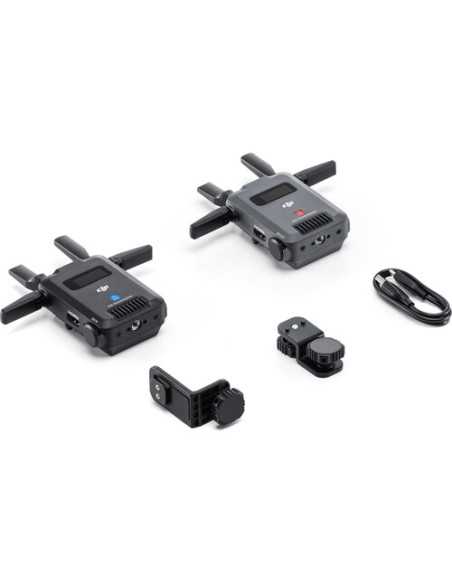

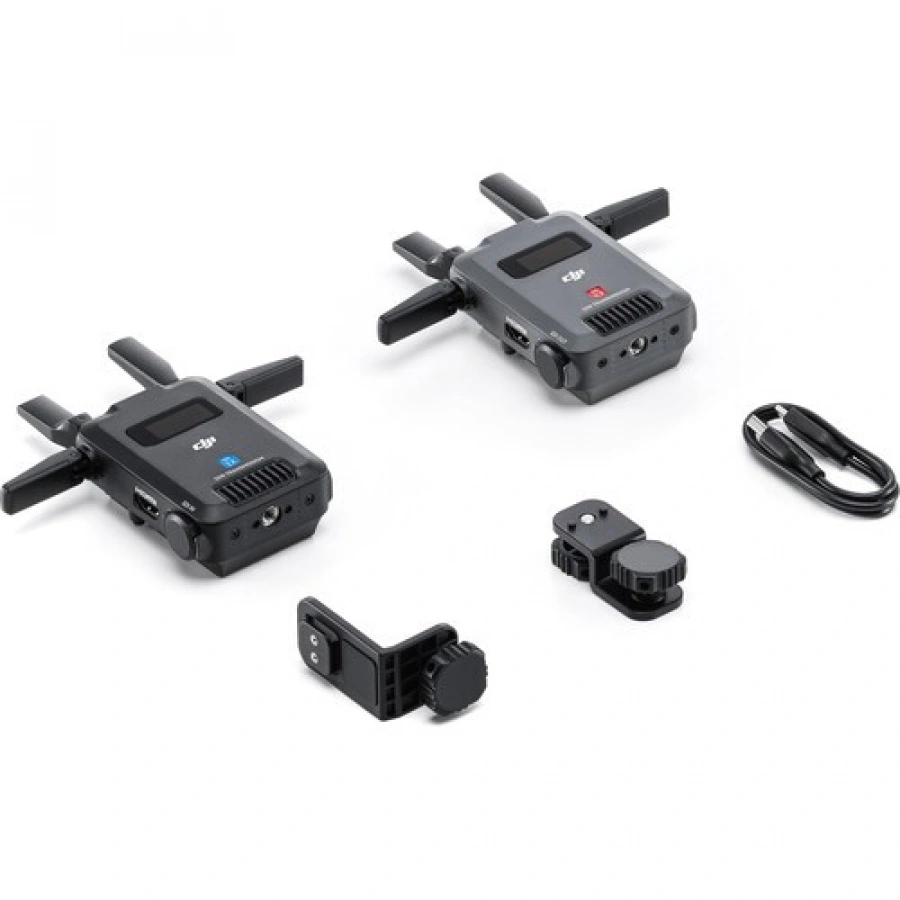

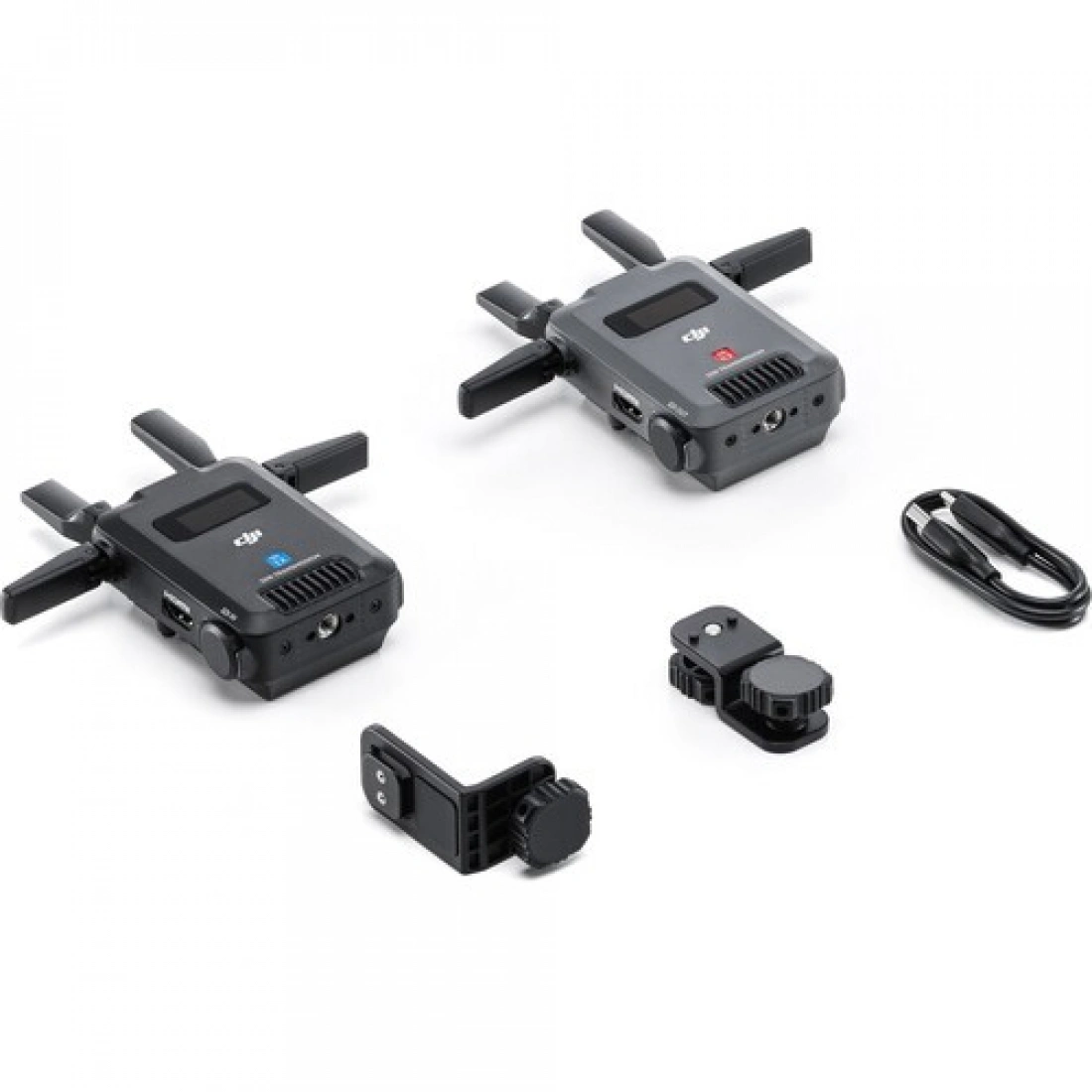

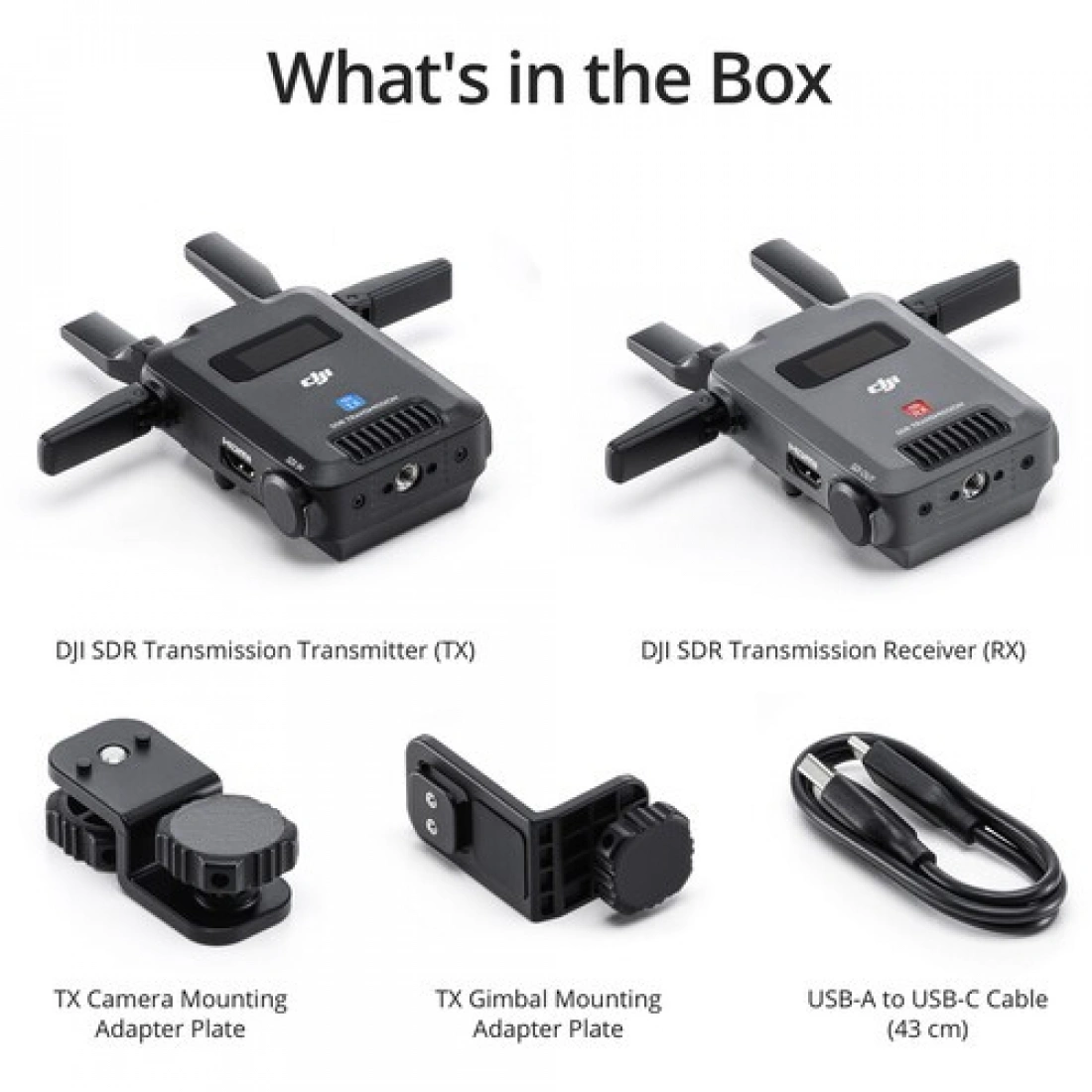

In the Box :
- DJI SDR Transmission Transmitter
- Gimbal Mounting Adapter Plate
- Limited 1-Year Manufacturer Warranty
- DJI SDR Transmission Receiver
- Limited 1-Year Manufacturer Warranty
- Transmitter Camera Mounting Adapter Plate
- USB-A to USB-C Cable (16.9")
- Video I/O
- 1x HDMI (Unspecified Signal) Input 1x BNC (Unspecified SDI) Input
- Battery Type
- 1x L-Series
- Embedded Audio
- HDMI/SDI/USB/Wireless
- Fixture Mounting
- 1x 1/4"-20 Female (Bottom)
- Latency
- 35 ms
- Power Consumption
- 8.2 W
- Video Format
- HDMI/SDI/USB
