    SWIT 2000ft SDI/HDMI Wireless system

    0  Reviews
    | Ask a question
    Flow 2000
    In Stock
    AED9,800.00
    Tax excluded

    SKU:Flow 2000

    Key Features

    • Up to 2000' Line-of-Sight Range
    • 1 x Transmitter & 1 x Receiver
    • Transmits up to 1080p60, L-Series Plate
    • Uncompressed HDMI & 3G/HD/SD-SDI
    • 2-Channel SDI/HDMI Embedded Audio
    • Multicasting to up to 4 x Receivers
    • AES 128-Bit Encryption
    • L-Series Battery or DC Adapter Power

    Secure payments
    Powered by Stripe

    Description

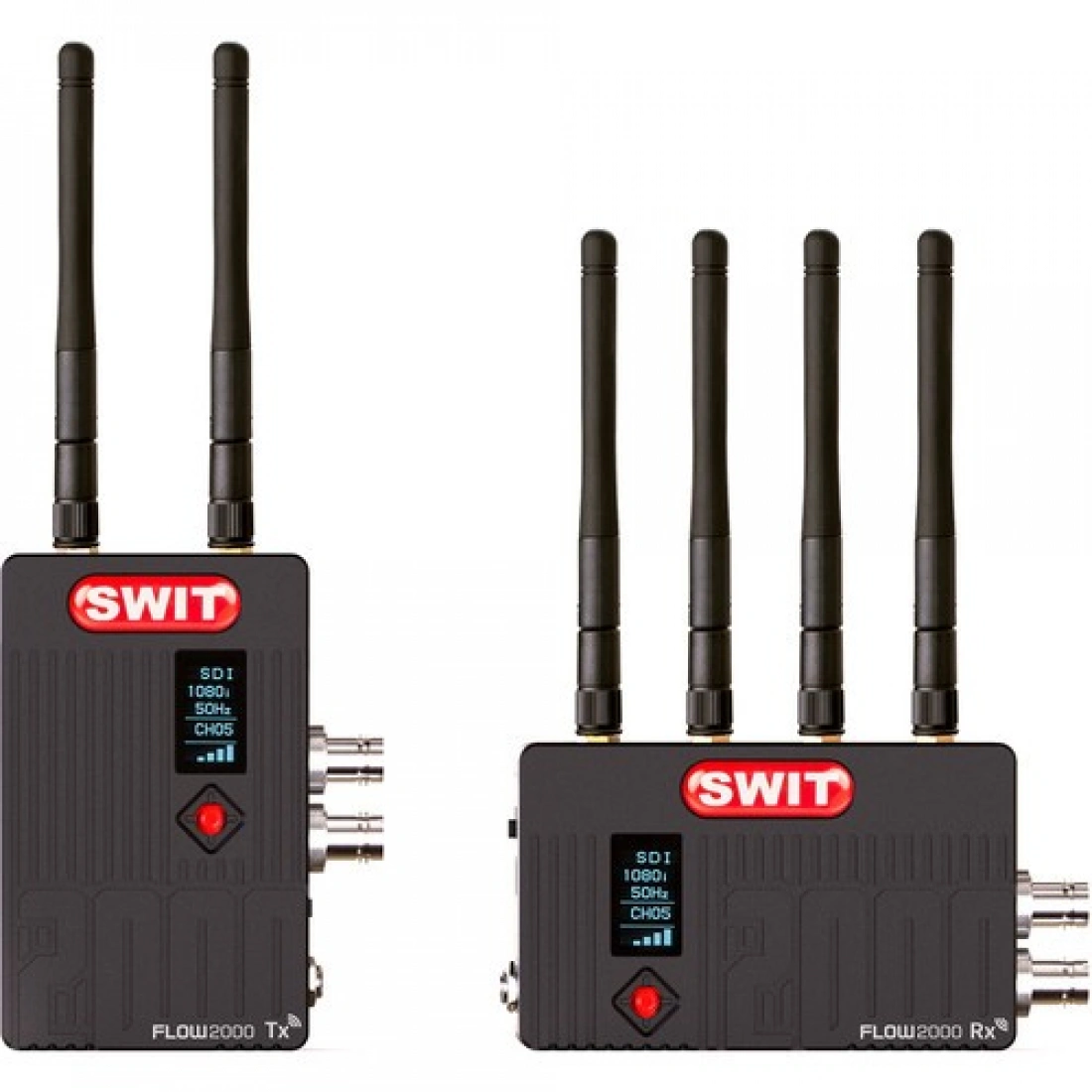

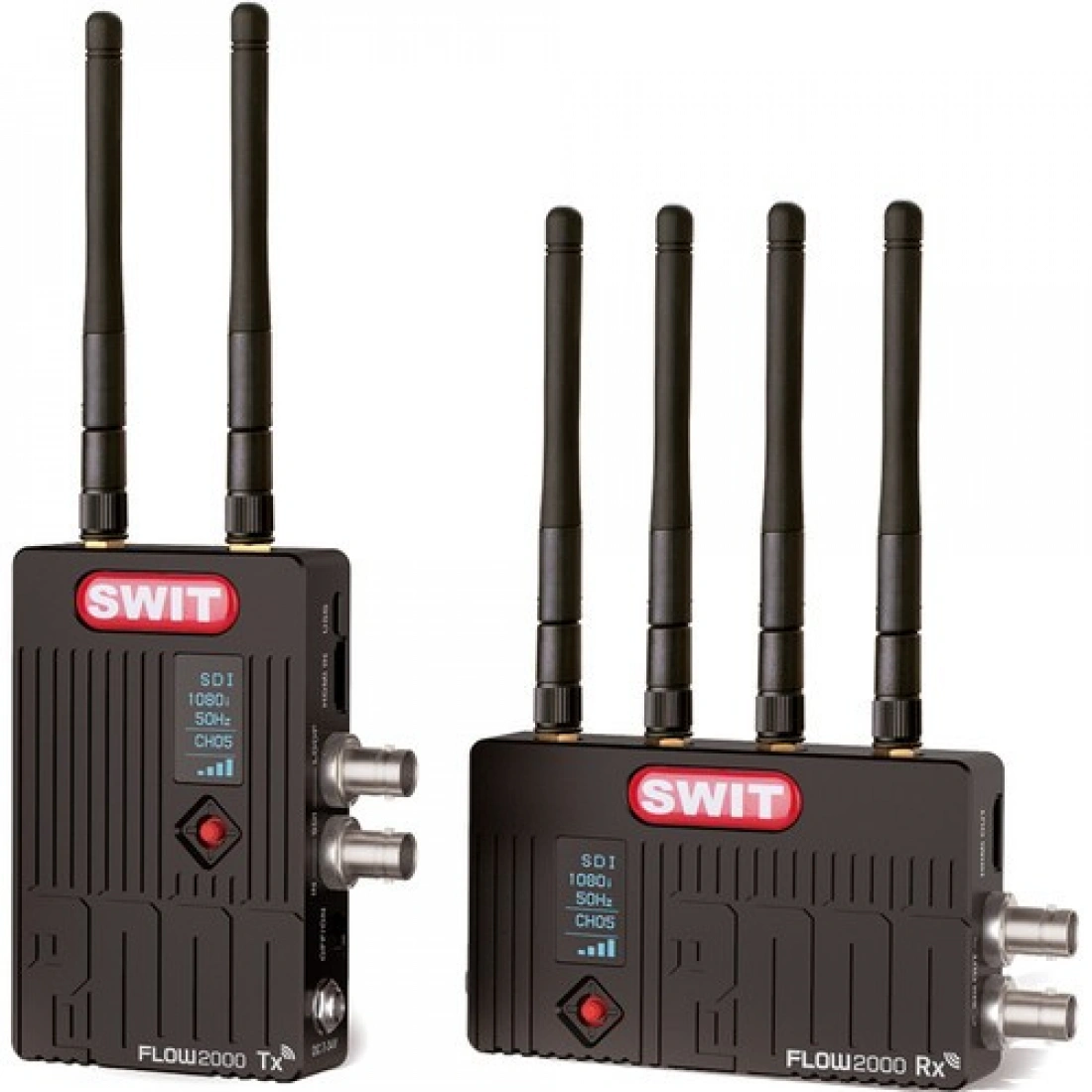

    View your video capture up to 2000' away from your camera using the FLOW2000 SDI & HDMI Wireless Video System from SWIT. This set includes one transmitter and one receiver, each with a Sony L-Series type battery plate and DC input, that transmit up to 1080p60 uncompressed video and feature 3G/HD/SD-SDI and HDMI inputs/outputs, AES-128 encryption, and embedded SDI/HDMI stereo audio.

    Up to 2000' Transmission

    Transmits uncompressed video and embedded audio at distances up to 2000' (line-of-sight)

    Robust wall-penetrating transmission with RF and image quality optimization

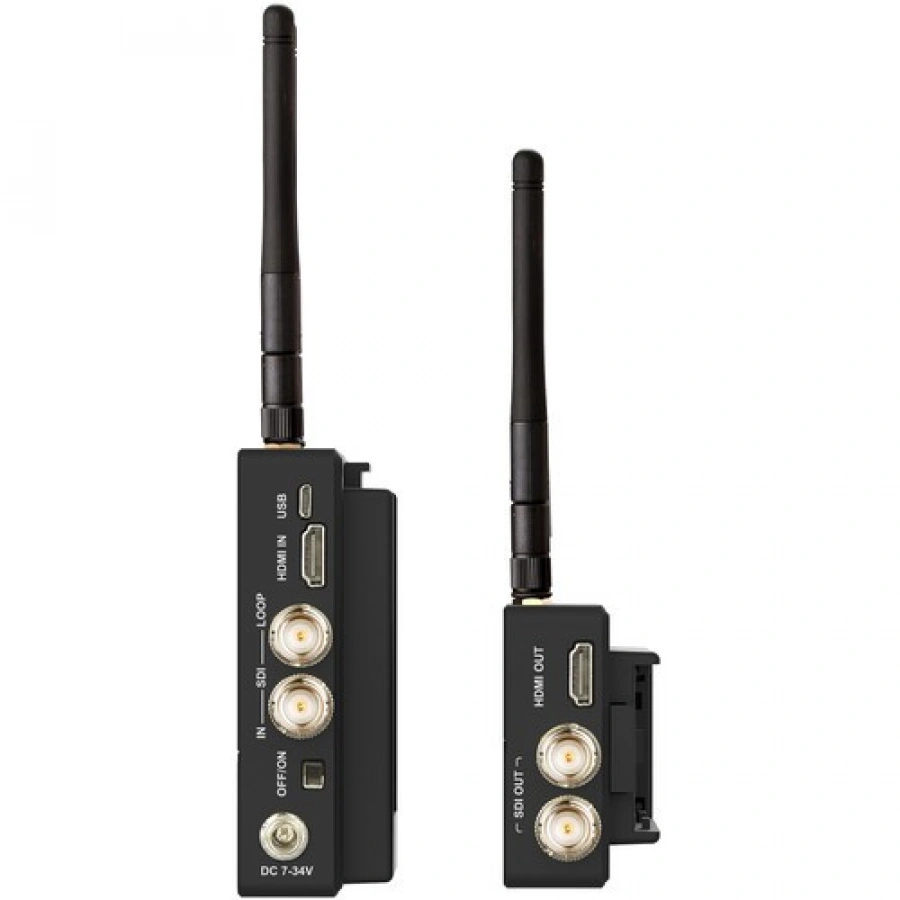

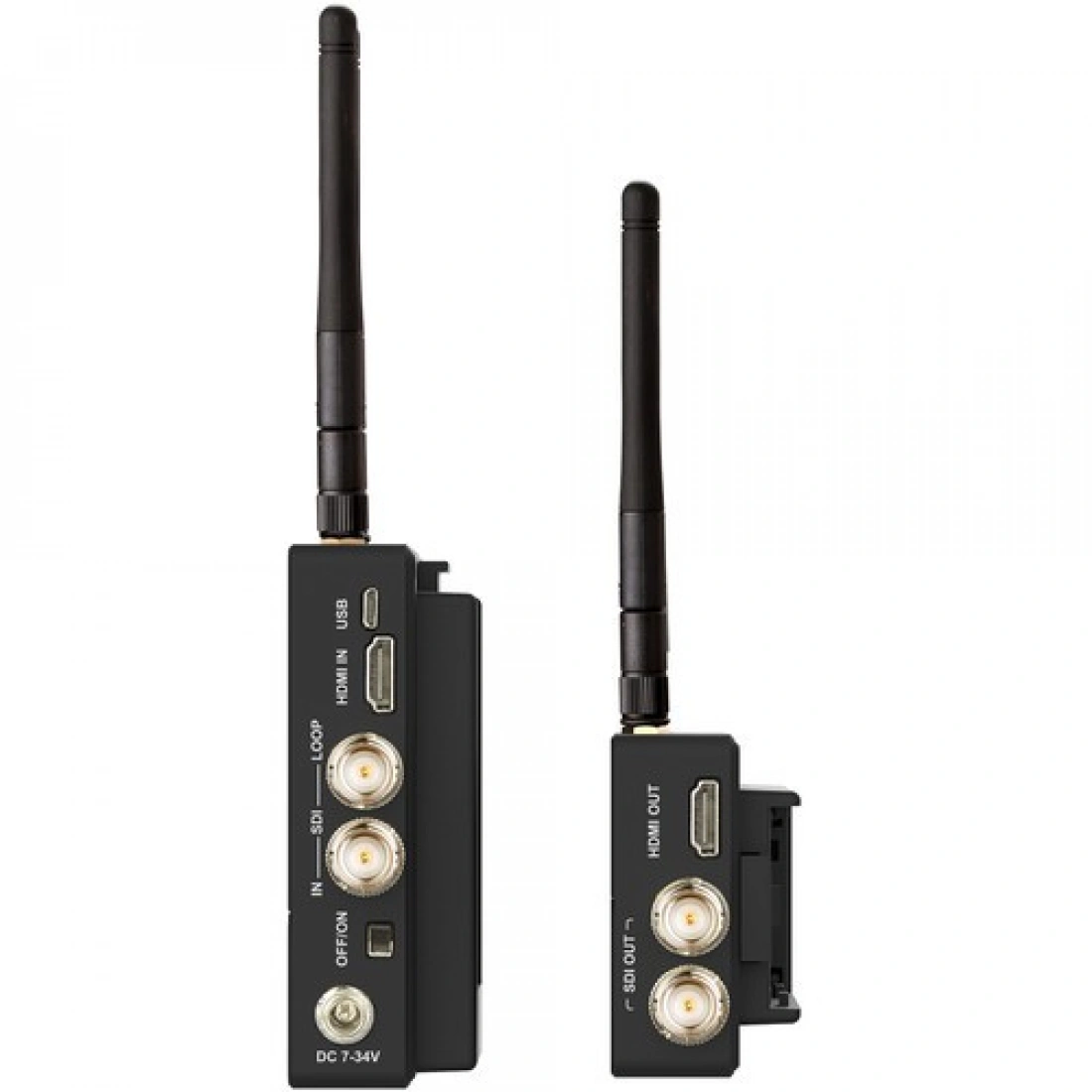

    SDI & HDMI Inputs/Outputs

    Transmitter has single HDMI Type-A input

    Transmitter has single SDI (BNC) input and loop output

    Receiver has single HDMI and dual SDI (BNC) outputs

    1080p60 HD Video: Supports multiple video resolutions up to 1080p60

    5.1 to 5.9 GHz Transmission

    License-free operation at 5.1 to 5.9 GHz

    Automatic DFS-compliant and manual non-DFS channel selection

    Embedded Audio :2-channel embedded SDI/HDMI audio transmission

    Timecode Transmission: Transmits timecode from original video source

    Multicast Compatible : Use with separately available receivers to multicast one transmitter to up to four receivers

    AES Encryption : AES128 encryption secures your footage transmission

    Reclocking : Reclocking for optimal signal transmission

    USB Updating : Firmware updating via micro-USB port on both transmitter and receiver

    OLED Display : 1" OLED display on both transmitter and receiver

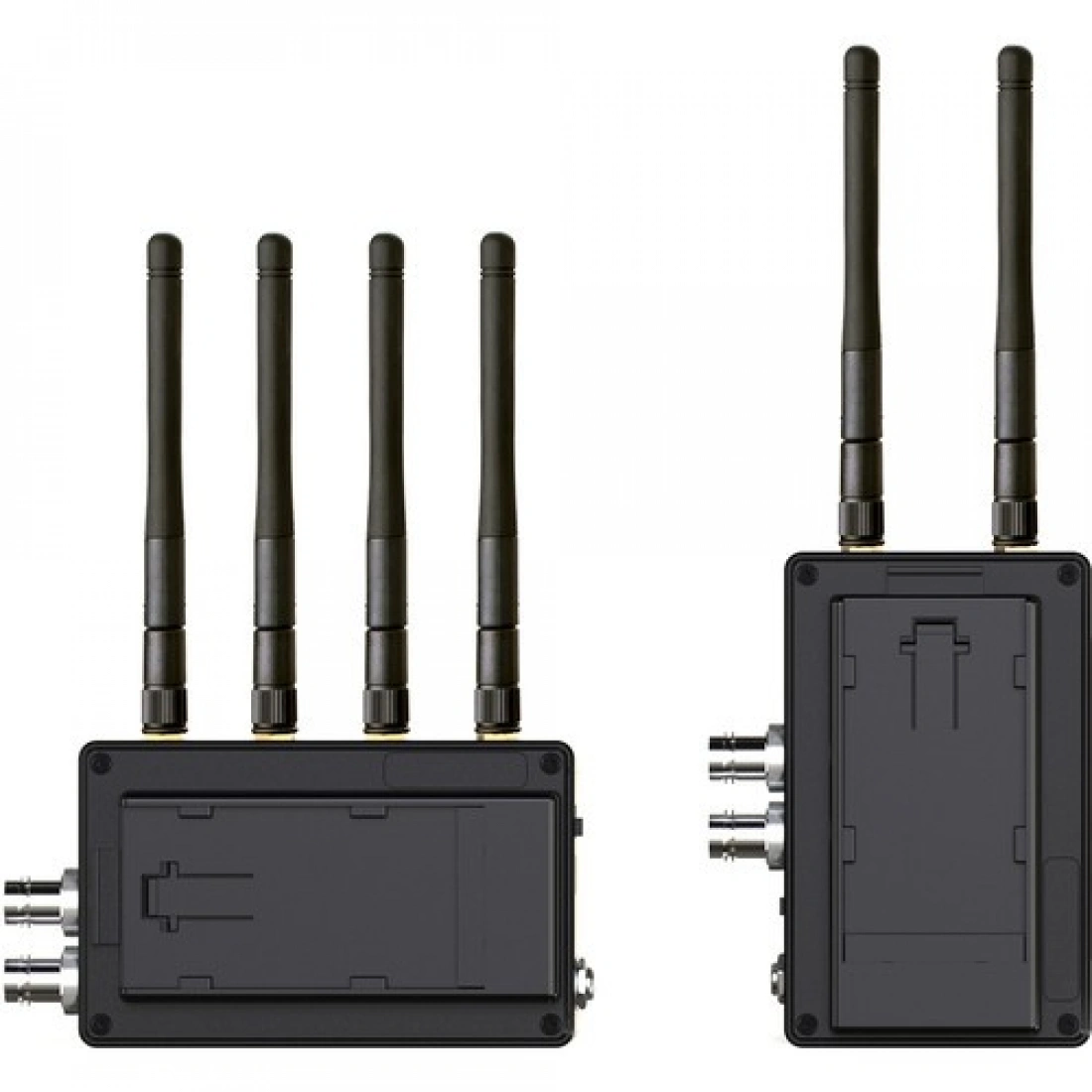

    Power Options : Transmitter and receiver both have:

    One Sony L-Series type battery plate

    One 5.5mm DC barrel input

    Mounting Options:

    Transmitter and receiver both have 1/4"-20 mounting threads

    Includes one articulated arm with 1/4"-20 and shoe mounts

    In the Box

    • SWIT FLOW2000 SDI & HDMI Wireless Video & Audio Transmission System
    • Transmitter
    • Receiver
    • 6 x Antenna
    • Locking D-Tap to Barrel Cable (2')
    • Power Adapter
    • Articulating Arm
    • Carrying Case

    Product Details

    Video I/O
    Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x HDMI 1.3 Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 2x BNC (3G-SDI) Output Receiver: 1x HDMI 1.3 Output
    Battery Type
    Transmitter: 1x L-Series Receiver: 1x L-Series
    Dimensions
    Transmitter: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm, Excluding Antenna, Battery Plate Receiver: 4.2 x 2.6 x 1" / 106.5 x 66 x 24.7 mm, Excluding Antenna, Battery Plate
    Weight
    Transmitter: 8.3 oz / 236 g, Excluding Antenna Receiver: 8.6 oz / 245 g, Excluding Antenna
    Video Format
    SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50
    Power Consumption
    Transmitter: 8 W Receiver: 8 W
    Mounting
    1x 1/4"-20 Female
    DC Input Power
    7 to 34 VDC
    Package Weight
    5.695 lb
    Other I/O
    Transmitter: 1x Micro-USB
    Operating Temperature
    32 to 104°F / 0 to 40°C
    Antenna I/O
    Transmitter: 2x RP-SMA Receiver: 4x RP-SMA
    Frequency Range
    DFS Frequencies 5.1 to 5.9 GHz
    Wireless Range
    2000' / 609.6 m
    Box Dimensions (LxWxH)
    14.7 x 11.7 x 4.5"
