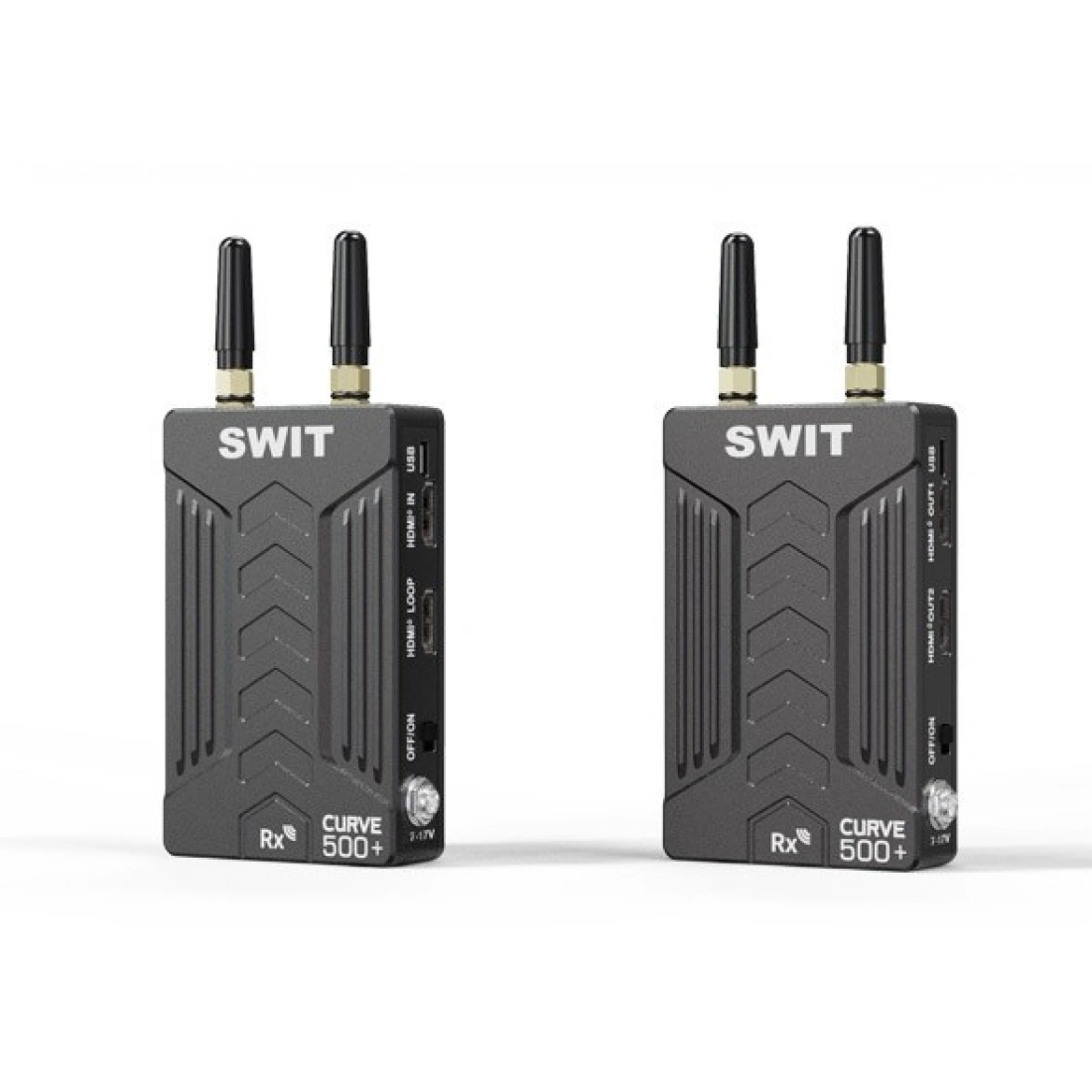

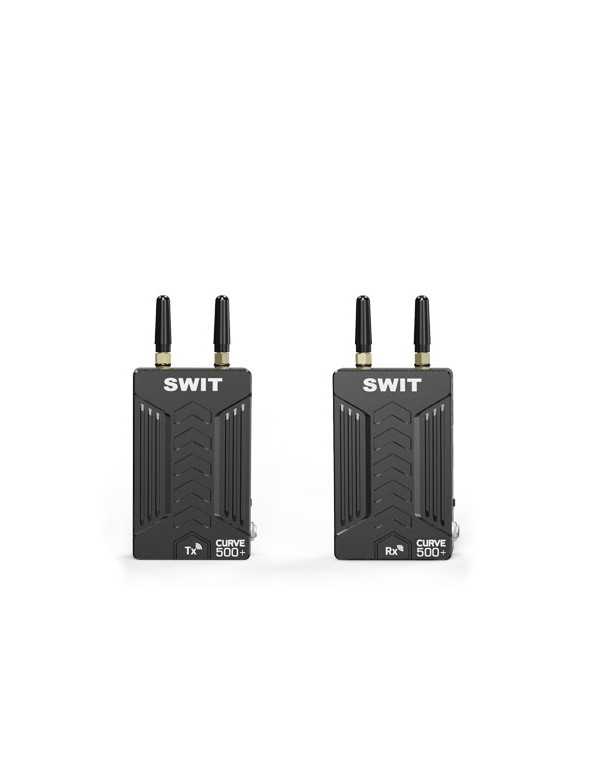

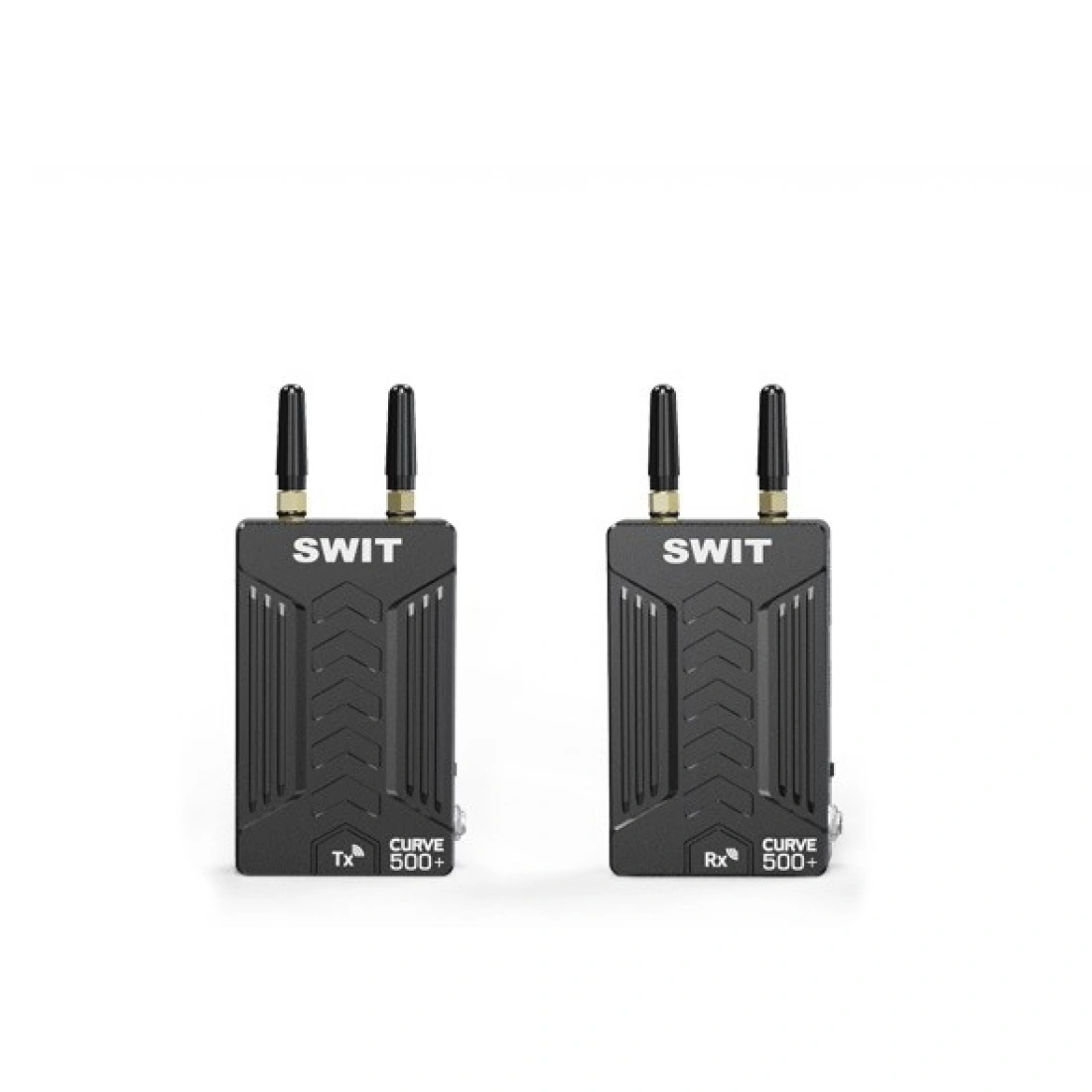

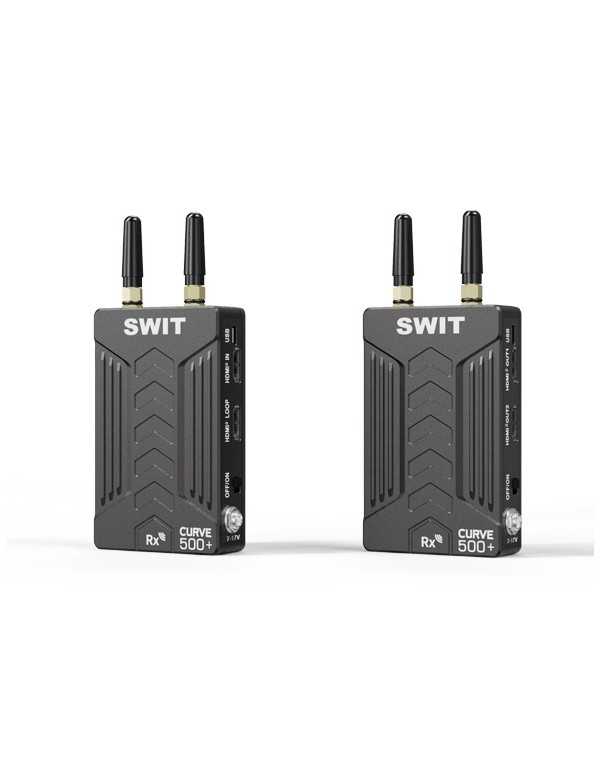

SWIT CURVE500+ HDMI 500ft/150m Wireless with USB capture

Wireless HDMI Transmission

New Update with USB Video Capture

CURVE500+ wireless system is based on SWIT KUWI wireless video technology, NOT WIFI, 5.1-5.9GHz license free, DFS comply, supports HDMI® 1080p60 transmit 500 feet (150 meters) Line-of-Sight distance.

As the updated version, CURVE500+ support USB video capture output to computer for live streaming.

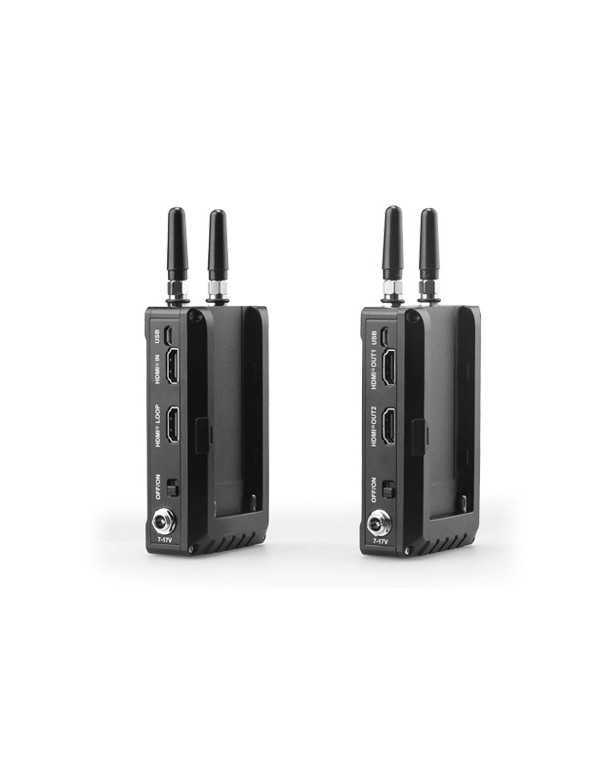

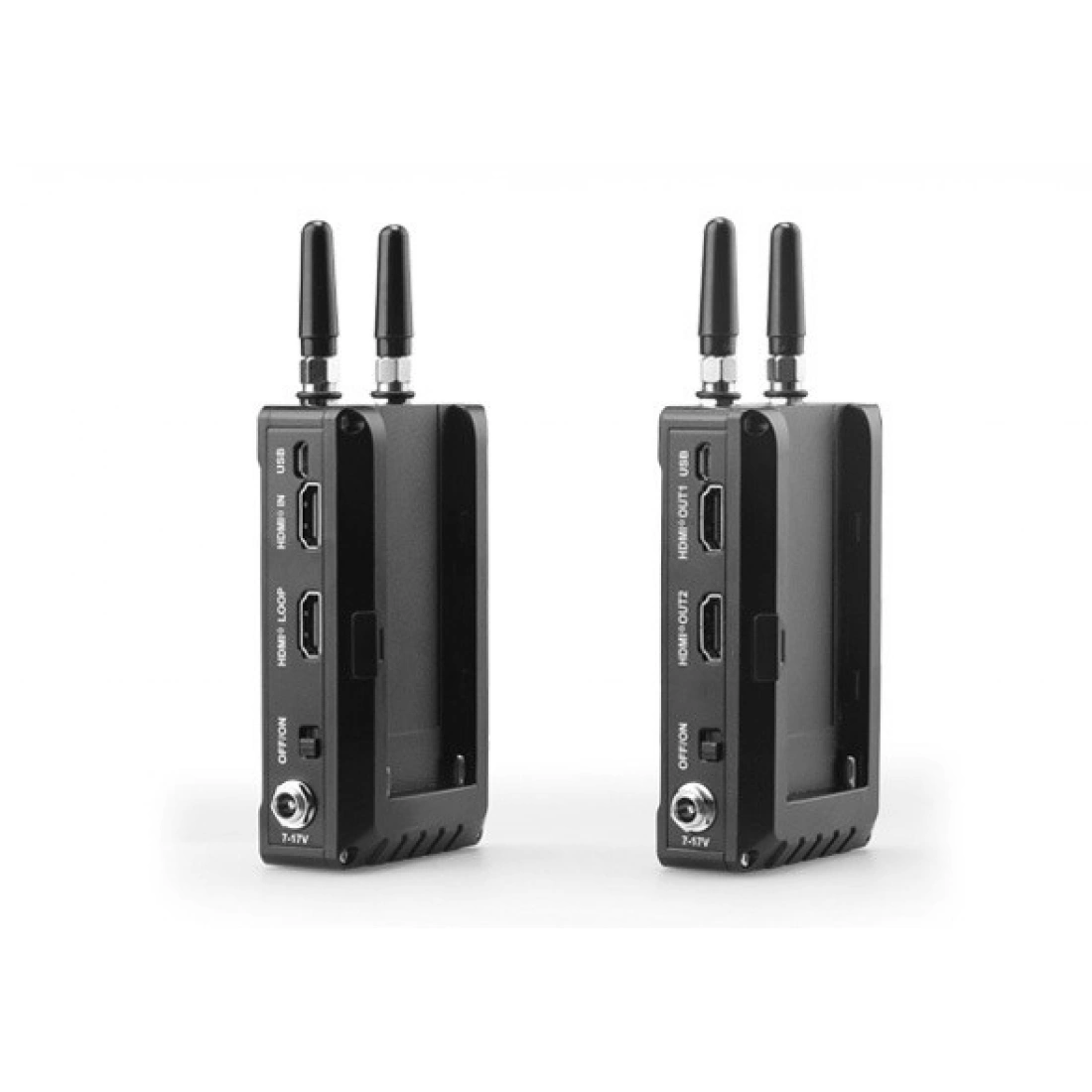

Input & Output

The Transmitter (Tx) supports

• 1x HDMI input
• 1x HDMI loop output

The Receiver (Rx) supports

• 2x HDMI output
• 1x Micro USB Video Capture output

USB Video Capture for PC/Mac

CURVE500+ Receiver provides an USB port for video capture output to computer. You can find CURVE500+ wireless video source from video conference software like MS Team, ZOOM etc, to capture high quality up to 1080p60 video instead of computer webcam.

You can pull CURVE500+ wireless receiving video source to OBS studio, editing, switching and live streaming broadcasting.

500ft/150m Strong Wall-cross

CURVE500+ supports 500ft/150m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.

Supports HDMI embedded audio (CH1&2) transmission.

Backstage Frequency Jumping

CURVE500+ works between 5.1-5.9GHz, DFS comply, and has built-in wireless scanner to detect wireless condition and automatically jump to the best wireless channel to keep reliable connection and transmission.

Up to 7 Pairs Work Together

At one location, you can use up to 7 pairs of CURVE500+ wireless system, without interference to each other.
