Name: TVLogic F-10A 10" Full HD HDMI/SDI HDR Field Monitor
Brand: TV Logic
SKU: TVF10A
Price: 9990.56 AED
Availability: OutOfStock

0 Reviews

| Ask a question

SKU: TVF10A

Out-of-Stock

AED9,990.56

Tax excluded

SKU : #TVF10A

Key Features

Audio level meter display
Blue-only/mono
Focus Assist
H/V delay
Auto H/V flip
Waveform
Vectorscope
Zoom / Split Zoom
3D LUT support
Key lock
Luma(Y') zone check
Marker
Max brightness on/off
Range Error
Timecode display
1-to-1 pixel zoom
ARRI ALEXA metadata support
Anamorphic de-squeeze
HDR emulation
HDMI to SDI conversion
SDI to HDMI conversion
Internal pattern generator (0~100% gray/color bars + pluge)
Center marker, safety area marker, marker mat, marker size, fit marker, thickness adjustment function

Secure payments

Ask an Expert

WhatsApp Chat | Email | +971 55 510 4251

Description

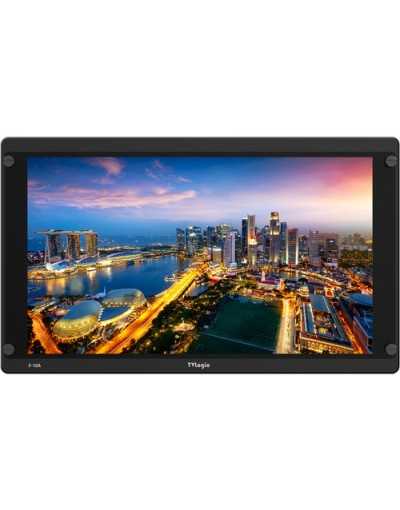

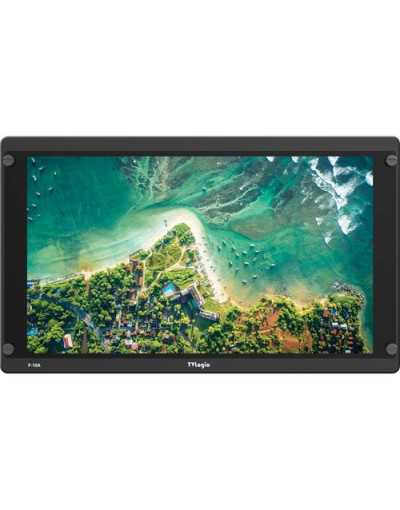

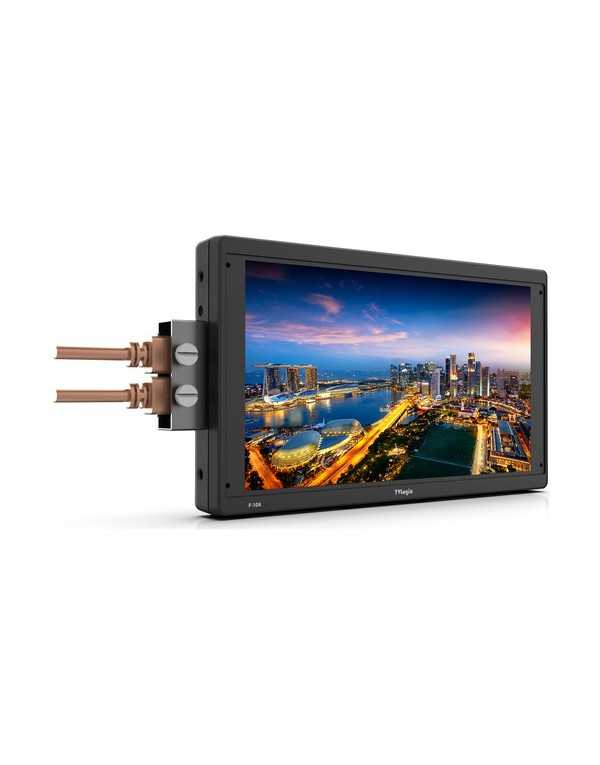

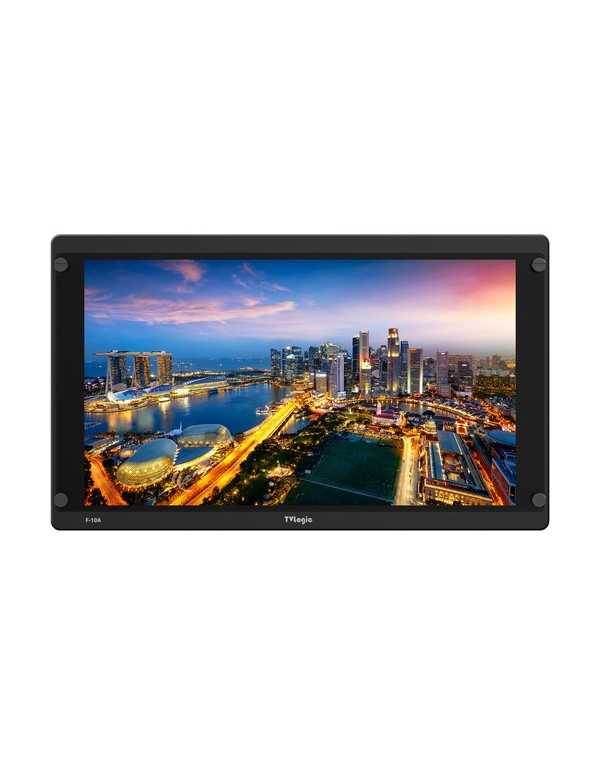

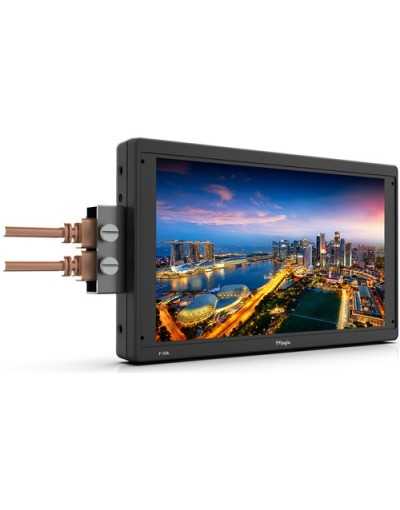

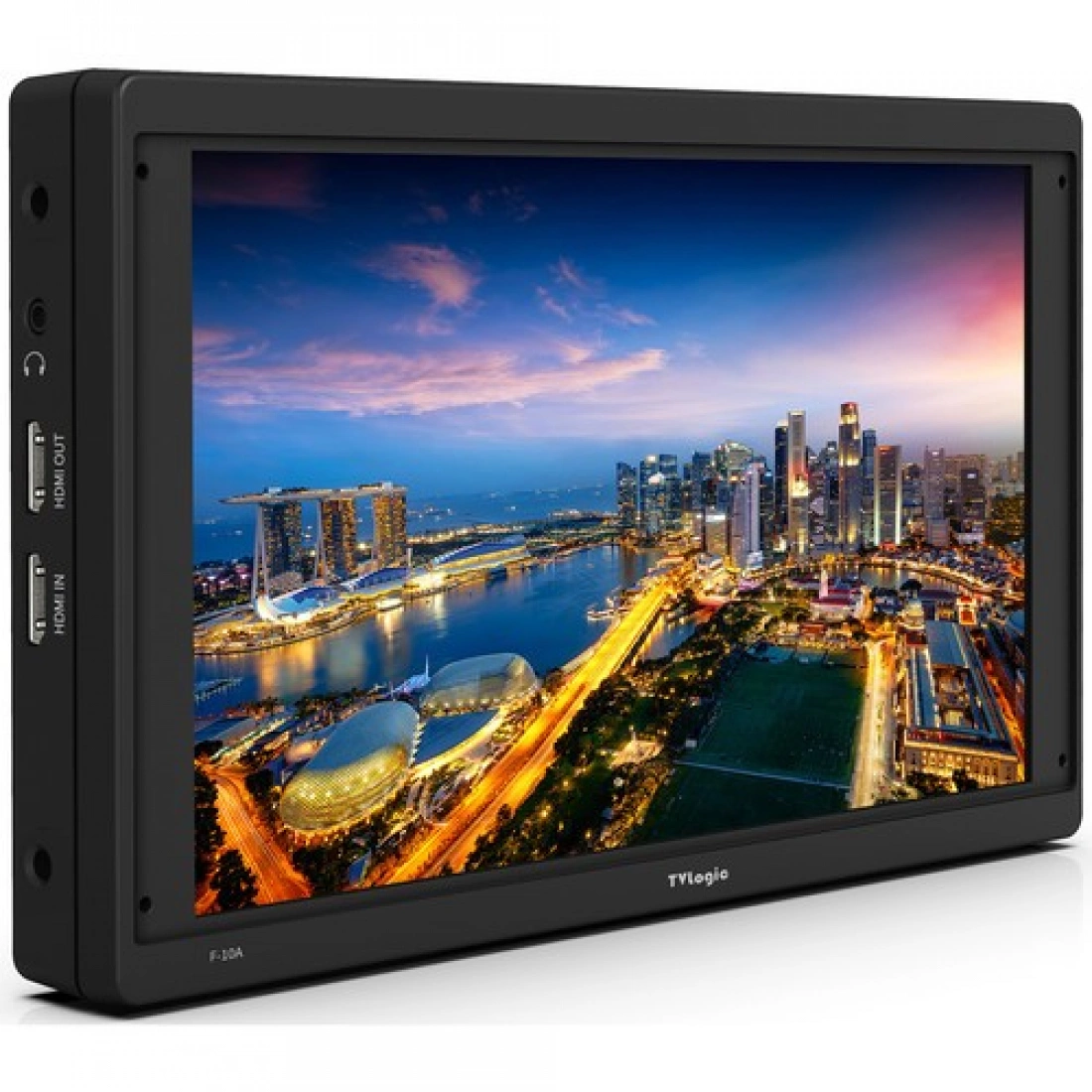

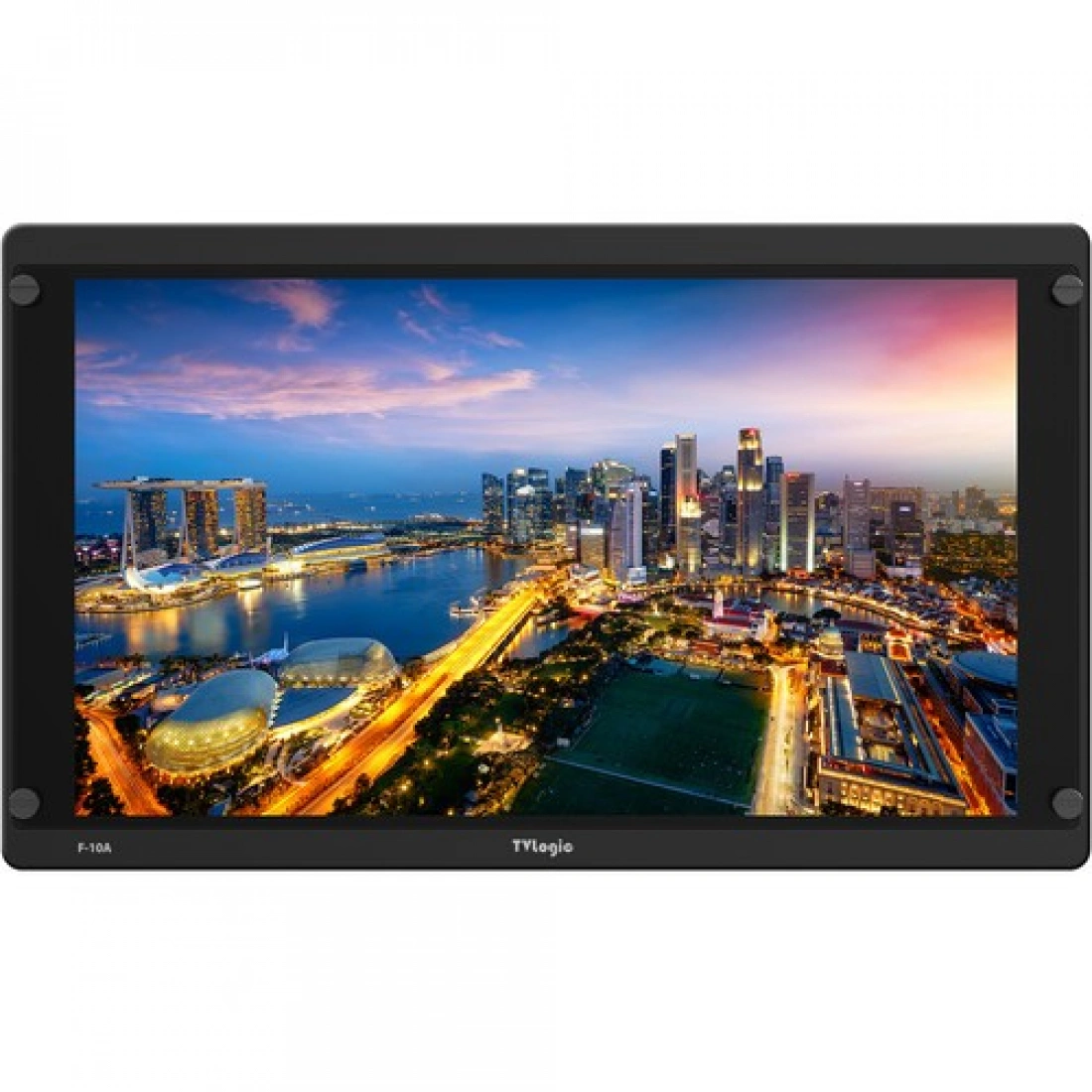

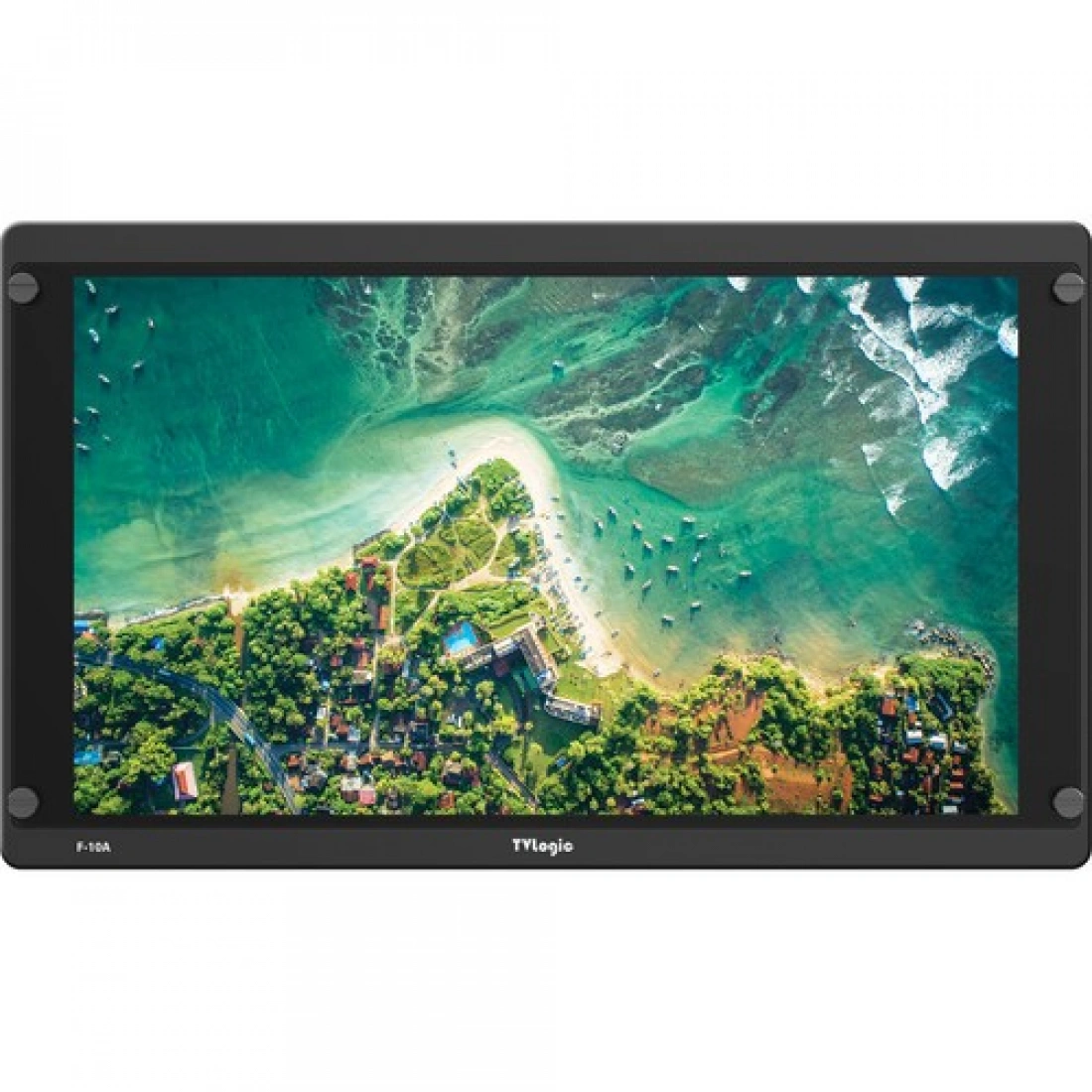

The 10" F-10A HDMI/SDI HDR Field Monitor is well suited for work in the field, on a camera, or in a studio. The slim IPS panel features a 1920 x 1080 resolution with 160° viewing angle. The F-10A features a sharp image, new touch preset buttons on the front of the monitor, and added automatic H/V flip functionality.

In the Box

-------------------------------------------------------------

TVLogic F-10A 10" Full HD HDMI/SDI HDR Field Monitor

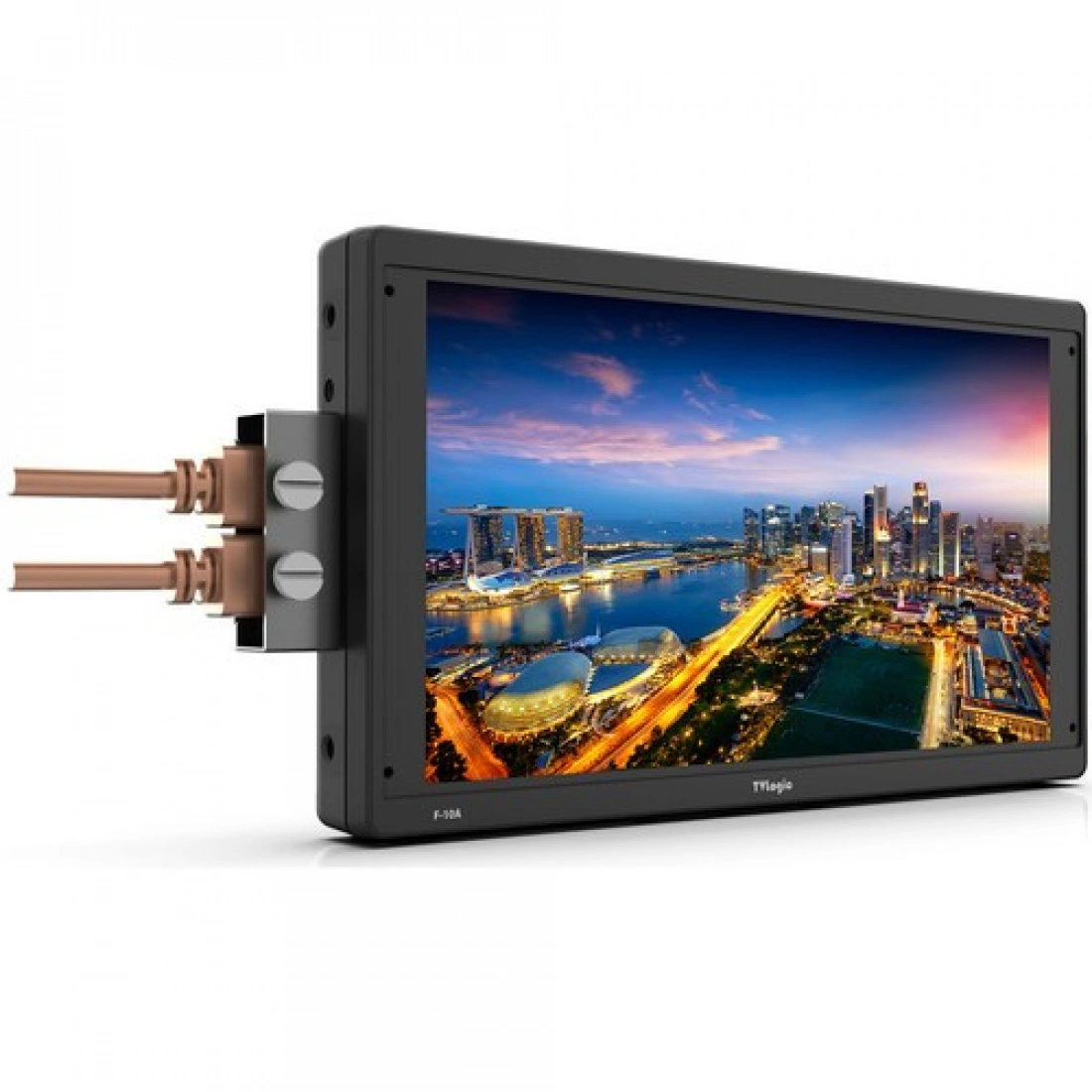

Screw Mount
D-Tap Power Adapter Cable
Limited 2-Year Manufacturer Warranty (on Hardware)

Product Details

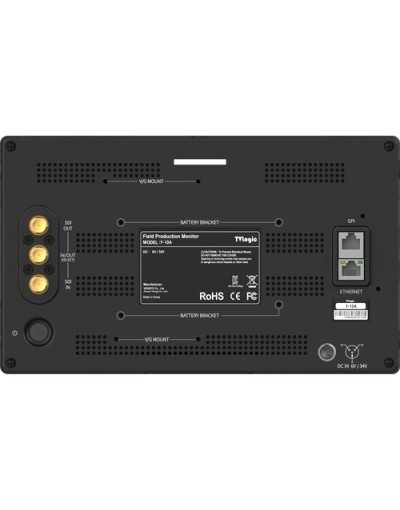

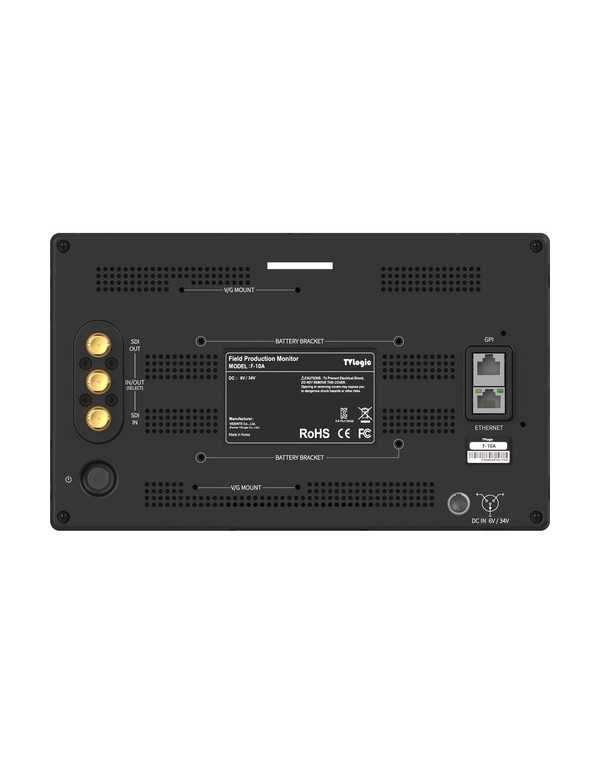

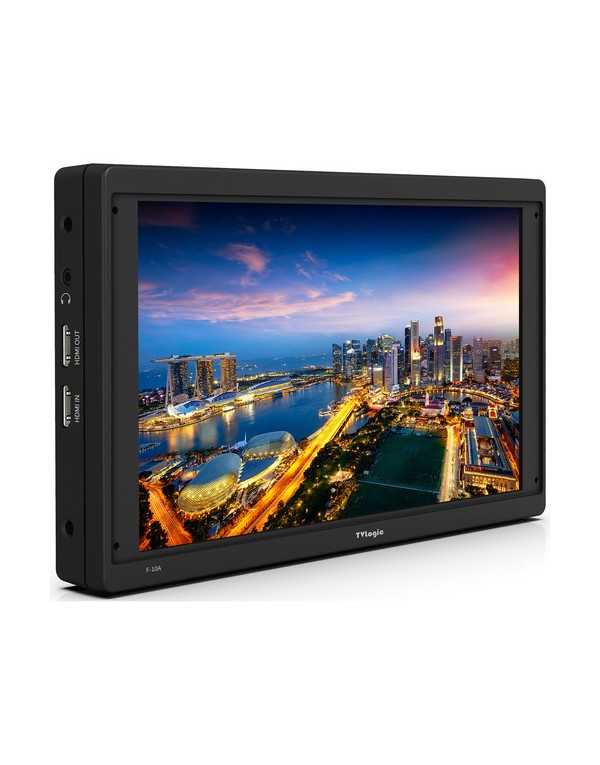

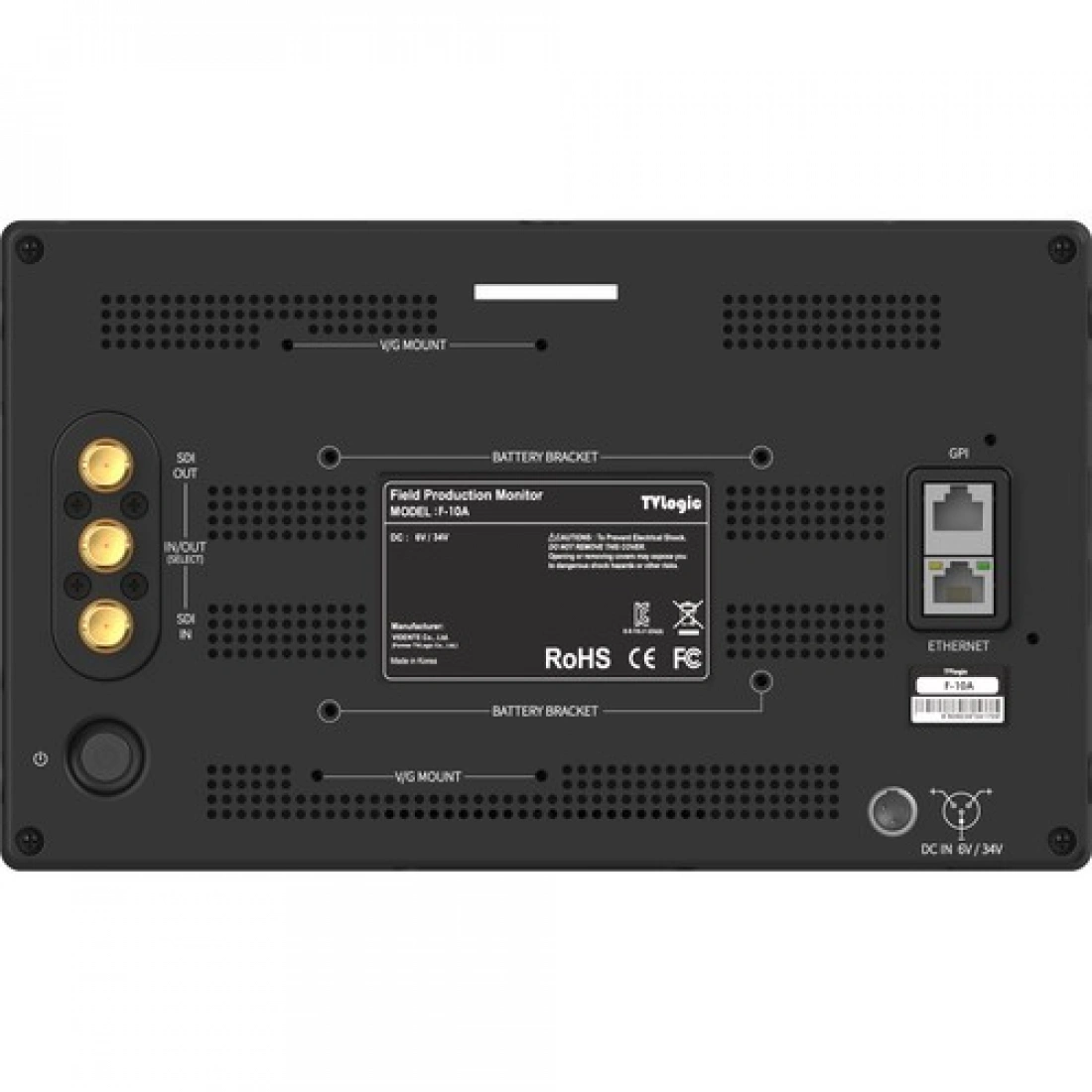

Video I/O: 2x BNC (3G-SDI) Input 2x BNC (3G-SDI) Output 1x HDMI 2.0 Input 1x HDMI 1.3 Output
Battery Type: 1x V-Mount, Gold Mount (Interchangeable Mount)
Dimensions: 10.2 x 6.1 x 1.2" / 258 x 154 x 29.8 mm
Weight: 2.87 lb / 1.3 kg
Display Size: 10.00" / 25.4 cm
Resolution: 1920 x 1080
Touchscreen: No
Video Format: SDI 1080p: 60 HDMI DCI 4K: 60 1080p: 60
Wifi: No
Screen Area: 8.67 x 4.88" / 220.32 x 123.93 mm
Panel Type: IPS-Type LCD
Aspect Ratio: 16:9
Viewing Angle: Horizontal: 160° Vertical: 160°
Maximum Brightness: 300 nits / cd/m2
Contrast Ratio: 1000:1
Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
Real-Time LUT Monitoring: SDR, HDR
Image Controls: Anamorphic De-Squeeze, Color Temperature Selection, Focus Assist, H/V Delay, Image Flip, Scaling, Vectorscope, Waveform
Embedded Audio: SDI HDMI
Audio I/O: 1x 1/8" / 3.5 mm Line Input 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker: 1
Other I/O: 1x RJ45 (LAN) 1x RJ45 (GPI)
Media/Memory Card Slot: No
Pixels Per Inch (ppi): 220 ppi
