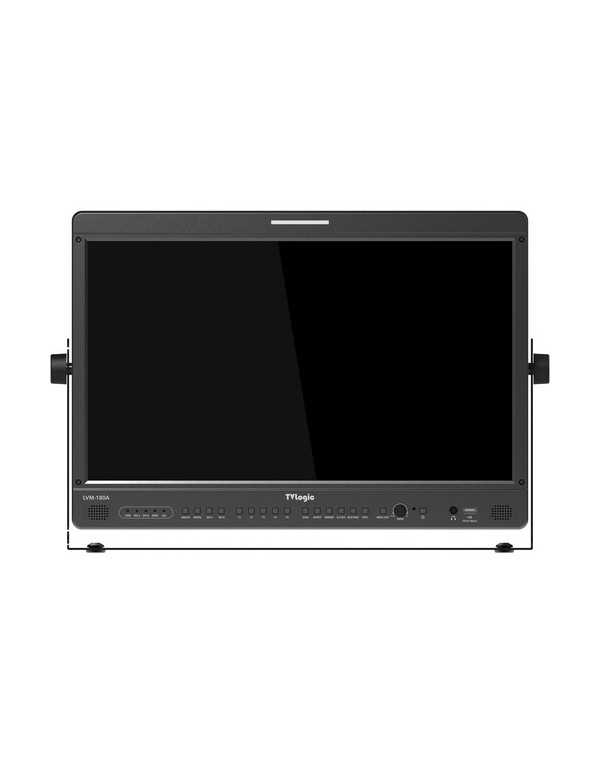

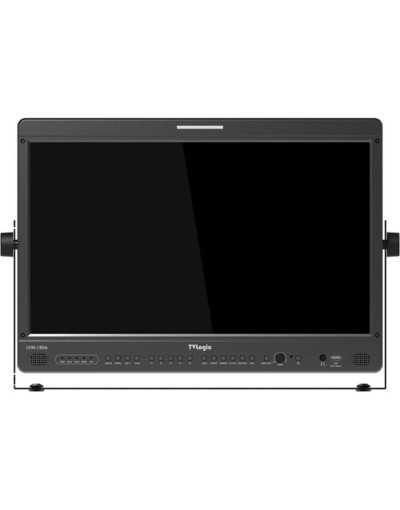

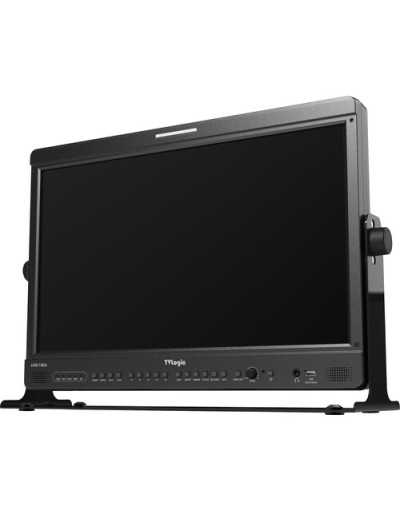

    TVLogic 18.5" 3G-SDI/HDMI Wide-View LCD Broadcast Monitor

    LVM-180A
    Special Order -
    AED9,366.15
    Tax excluded

    SKU : #LVM-180A

    Key Features

    • 1920 x 1080 Resolution IPS LCD Screen
    • Composite, 3G-SDI A/B, HDMI & DVI Inputs
    • 1 x Composite & 1 x 3G-SDI Output
    • 500 cd/m² Brightness, 178° Viewing Angle
    • 3.5mm Audio Headphone Output
    • GPI & Ethernet Control
    • Waveform, Vectorscope, Audio Meter
    • Focus Assist, H/V Delay, Key Lock, Zoom
    • TVLogic Color Calibration Utility & More

    NEED HELP?


    TVLogic LVM-180A Overview

    The 18.5" 3G-SDI/HDMI Wide-View LCD Broadcast Monitor from TVLogic features a 1920 x 1080 IPS LCD screen and HDMI, DVI, 3G-SDI, and composite BNC inputs, as well as 3G-SDI and composite outputs. It also features a 3.5mm headphone output and both LAN and GPI ports for remote control. A stand is also supplied for desktop-mounting the monitor.

    In the Box

    -------------------------------------------------------------------

    • TVLogic 18.5" 3G-SDI/HDMI Wide-View LCD Broadcast Monitor
    • Stand
    • Limited 1-Year Manufacturer Warranty (on LCD Panel)
    • Limited 2-Year Manufacturer Warranty (on Hardware)
    Video I/O
    2x BNC (3G-SDI) Input 1x HDMI Input 1x BNC (Composite) Input 1x DVI-I Input 1x BNC (3G-SDI) Loop Output 1x BNC (Composite) Loop Output
    Battery Type
    No
    Weight
    15.4 lb / 7 kg
    Display Size
    18.5" / 47.0 cm
    Resolution
    1920 x 1080
    Touchscreen
    No
    Video Format
    SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI 1080p: 60/50/30/25/24 1080i 720p 576p 576i 480p 480i
    Wifi
    No
    Screen Area
    16.1 x 8.0" / 408 x 203 mm
    Panel Type
    LCD
    Aspect Ratio
    16:9
    Viewing Angle
    Horizontal: 178° Vertical: 178°
    Maximum Brightness
    500 nits / cd/m2
    Contrast Ratio
    1000:1
    Bit Depth / Color Support
    8-Bit (16.7 Million Colors)
    Embedded Audio
    SDI HDMI
    Audio I/O
    1x 1/8" / 3.5 mm Input 1x 1/8" / 3.5 mm Output
    Built-In Speaker
    1
    Power I/O
    1x XLR 4-Pin (2.5 A / 24 VDC) Input
    Other I/O
    1x RJ45 (LAN) 1x RJ45 (GPI)
    Media/Memory Card Slot
    No
    PC Resolutions
    1366 x 768 1280 x 1024 1024 x 768 800 x 600 720 x 400
    HDR Compatibility
    No
    Pixels Per Inch (ppi)
    119 ppi
    Video Standard Compliance
    SMPTE 425M/425M-A/425M-B
