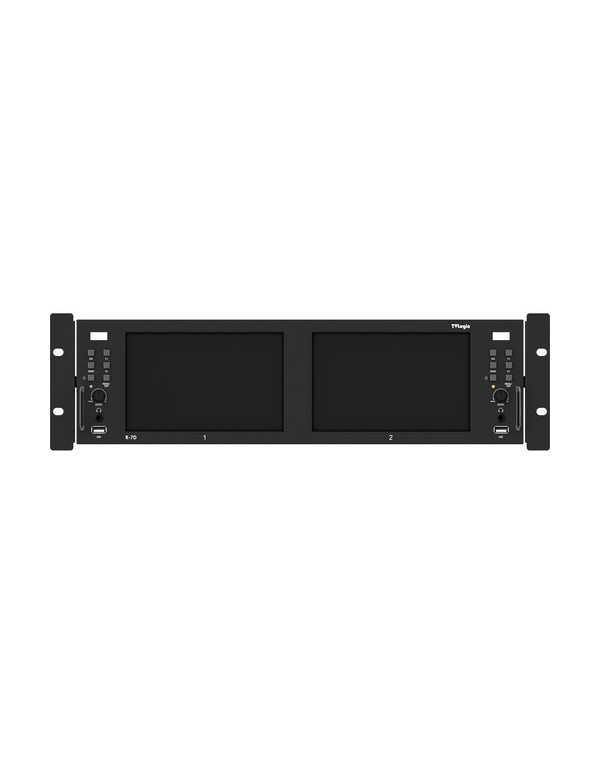

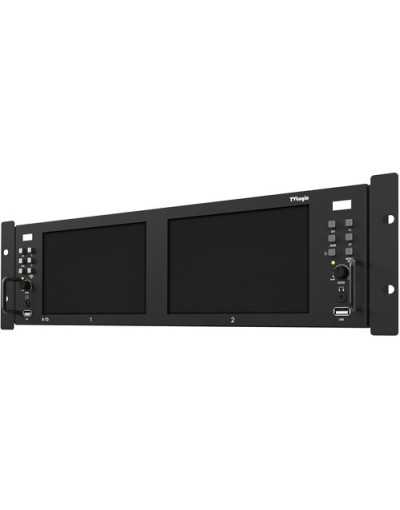

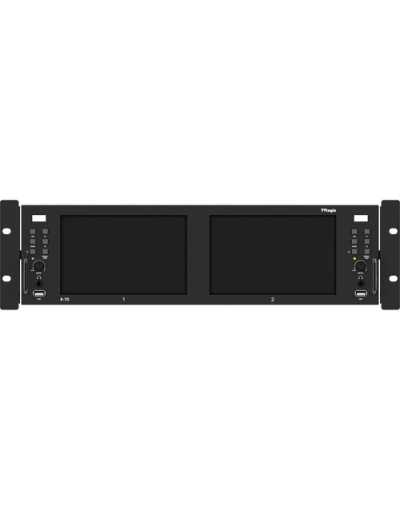

    TVLogic Dual 7" LCD UHD 4K Ready Rackmount Monitors

    R-7D
    Special Order -
    AED15,573.52
    Tax excluded

    SKU : #R-7D

    Key Features :

    • Two 7" 1920 x 1200 IPS Displays
    • 12G-SDI, 3G-SDI & HDMI Inputs/Outputs
    • Up to UHD 4K60 Signal Input5
    • 160° Viewing Angle
    • 500 cd/m² Brightness, 1200:1 Contrast
    • 3.5mm Headphone Outputs
    • 4-Pin XLR Power Input

    NEED HELP?


    TVLogic R-7D Overview

    Featuring two 7" displays in a slim 3 RU design, the Dual 7" LCD UHD 4K Ready Rackmount Monitors from TVLogic are designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The R-7D has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display as well as 3.5mm headphone output and a USB input for firmware and 3D LUT import for each panel. Each 7" display features a 1920 x 1200 resolution, a wide 160° viewing angle, and they can monitor up to UHD 4K60 video resolutions.

    In the Box

    ----------------------------------------------------------------

    • TVLogic Dual 7" LCD UHD 4K Ready Rackmount Monitors
    • Power Cable
    • Power Adapter
    • Rackmount Kit
    • Limited 1-Year Manufacturer Warranty

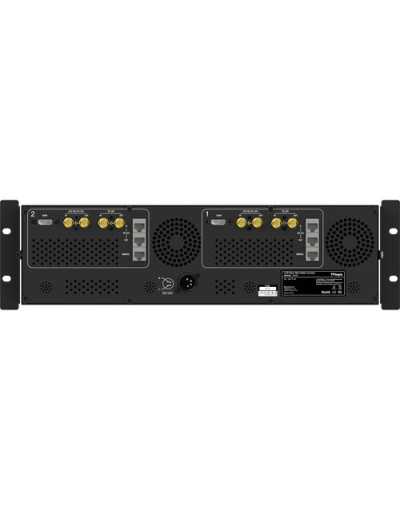

    Video I/O
    1x BNC (12G-SDI) Input 1x BNC (3G-SDI) Input 1x HDMI Input 1x BNC (12G-SDI) Loop Output 1x BNC (3G-SDI) Loop Output
    Dimensions
    16.9 x 5.2 x 2" / 430 x 132 x 50.5 mm, Excluding Bracket 18.9 x 5.2 x 2.9" / 480.8 x 132 x 73 mm, Including Bracket
    Weight
    5.42 lb / 2.46 kg
    Display Size
    7.0" / 17.8 cm
    Resolution
    1900 x 1200
    Touchscreen
    No
    Video Format
    HDMI/SDI UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 DCI 2K: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 576i: 50 480i: 59.94
    Power Consumption
    22 W
    Wifi
    No
    DC Input Power
    12 VDC at 1.85 A
    Screen Area
    6.0 x 3.7" / 151.2 x 94.5 mm
    Panel Type
    LCD
    Aspect Ratio
    16:10
    Viewing Angle
    Horizontal: 160° Vertical: 160°
    Maximum Brightness
    500 nits / cd/m2
    Contrast Ratio
    1200:1
    Dot Pitch
    0.07875 x 0.07875 mm
    Bit Depth / Color Support
    6-Bit+FRC (16.7 Million Colors)
    Image Controls
    Check Field, Customizable Aspect Ratios, Vectorscope, Waveform
    Embedded Audio
    HDMI/SDI
    Audio I/O
    2x 1/8" / 3.5 mm Headphone Output
    Built-In Speaker
    No
    Power I/O
    1x XLR 4-Pin (1.85 A / 12 VDC) Input
    Other I/O
    2x USB-A 2.0 Input
    Media/Memory Card Slot
    No
    Operating Temperature
    32 to 104°F / 0 to 40°C
    Storage Temperature
    -4 to 140°F / -20 to 60°C
    HDR Compatibility
    Hybrid Log Gamma
    Pixels Per Inch (ppi)
    323 ppi
