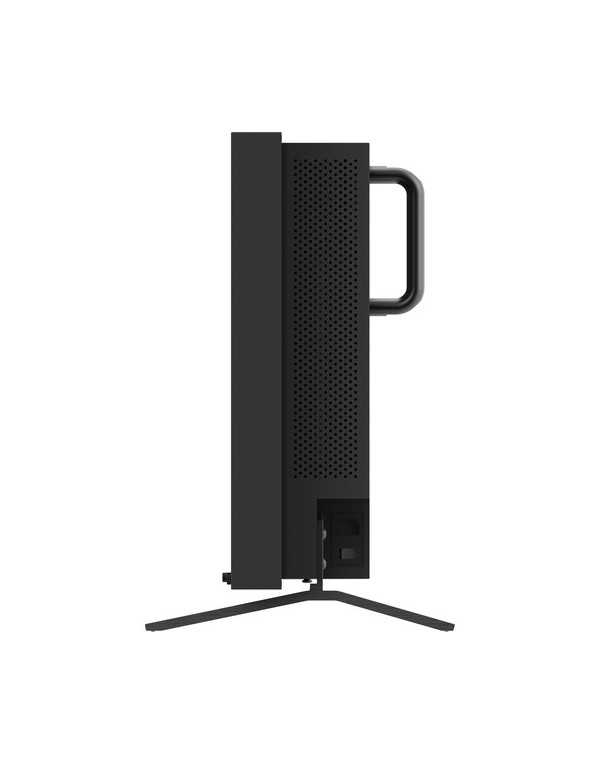

TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD

TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD

LUM-310X
Special Order -
$23,400.60
Tax excluded

SKU :  #LUM-310X

Key Features :

  • 4096 x 2160 4K Resolution
  • In-Plane Switching (IPS) LCD Panel
  • Dual-Layer LCD Technology
  • 1000 cd/m² Brightness
  • 1,000,00:1 Contrast Ratio
  • 178/178° Viewing Angles
  • 99% DCI-P3 Color Gamut & Gamut Control
  • 3D Look-Up Table (LUT)
  • 12G/3G-SDI & HDMI Ports
  • Power Cable, Stand & Carrying Case

NEED HELP?


TVLogic LUM-310 Overview

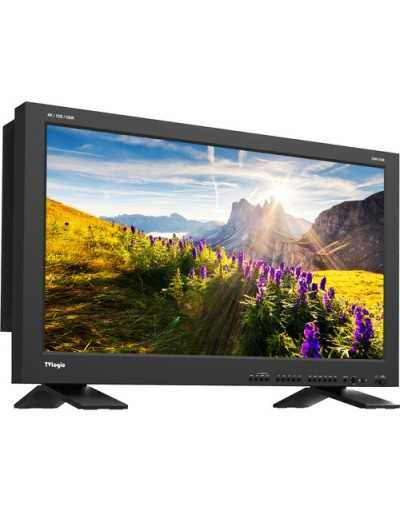

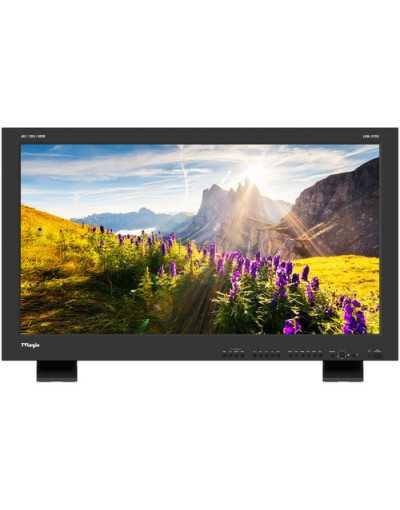

The LUM-310X 31" 4K HDR Reference Monitor from TVLogic features a dual-layer, in-plane switching (IPS) screen designed to reproduce reference HDR content at a maximum brightness of 1000 cd/m² with a simultaneous black minimum of 0.001 cd/m². The LUM-310X supports PQ, HLG, and S-Log3 HDR standards, as well as Rec. 709, Rec. 2020, and DCI color gamuts. It features a 4096 x 2160 maximum video resolution. Additional features include a 3D LUT for precise color reproduction, a 1,00,00:1 contrast ratio, 78/78° viewing angles, and a 1-second color switching speed. There are 12G/3G-SDI and HDMI ports for connectivity. Firmware can be updated via a USB memory stick (available separately). An AC power cable, a stand, and a carrying case are included.

In the Box

-------------------------------------------------------------------------

  • TVLogic LUM-310X 31" 4K HDR Reference Monitor with Dual-Layer LCD
  • AC Power Cord
  • Stand
  • Carrying Case
  • Limited 2-Year Warranty on Hardware
  • Limited 1-Year Warranty on Display Panel
Video I/O
4x BNC (12G-SDI) Input 4x BNC (12G-SDI) Output 1x HDMI 2.0 Input
Battery Type
No
Dimensions
30.6 x 19.6 x 12.2" / 77.7 x 49.8 x 31 cm
Weight
63.9 lb / 28.98 kg
Display Size
31.1" / 79.0 cm
Resolution
4096 x 2160
Touchscreen
No
Video Format
SDI DCI 4K
Screen Area
27.48 x 14.49" / 698 x 368 mm
Panel Type
IPS-Type LCD
Aspect Ratio
17:9
Viewing Angle
Horizontal: 178° Vertical: 178°
Maximum Brightness
1000 nits / cd/m2
Bit Depth / Color Support
10-Bit (1.07 Billion Colors)
Real-Time LUT Monitoring
HDR
Image Controls
Blue Only, Customizable Aspect Ratios, Focus Assist, H/V Delay, Pixel Value Checker, Screen Markers, Underscan, Vectorscope, Waveform
Embedded Audio
SDI: 4-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Input 1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
No
Other I/O
1x USB-A 1x RJ45 (GPI) 1x RJ45 (LAN) 1x RJ45 (RS-422) Input 1x RJ45 (RS-422) Output
Media/Memory Card Slot
No
Pixels Per Inch (ppi)
149 ppi
Gamma Curve
DCI-P3, HDR-HLG, HDR-PQ, Rec2020, Rec709
