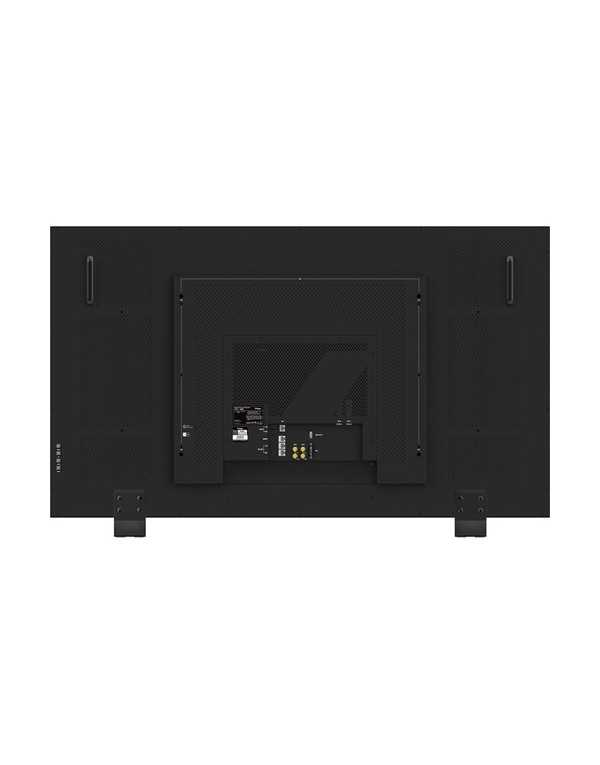

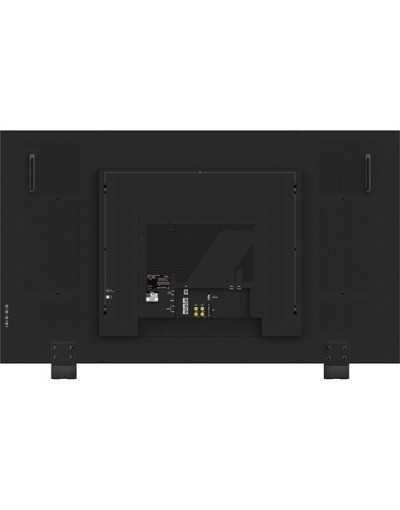

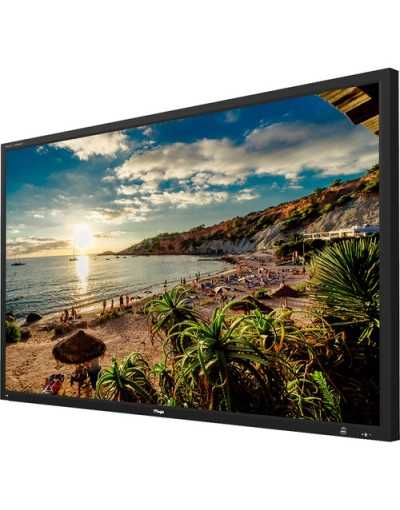

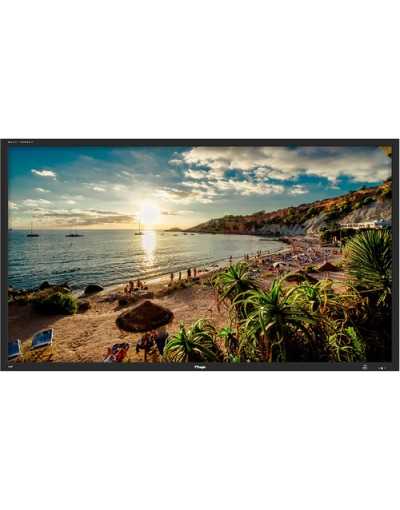

TVLogic S-55P 55" Full HD Studio Wall Monitor with Ember+ Protocol

TVLogic S-55P 55" Full HD Studio Wall Monitor with Ember+ Protocol

Name: TVLogic S-55P 55" Full HD Studio Wall Monitor with Ember+ Protocol
Brand: TV Logic
SKU: S-55P
Price: 6400.16 USD
Availability: BackOrder

Reference S-55P

Special Order -

$6,400.16

Tax excluded

SKU : #S-55P

Key Features

55" 1920 x 1080 LCD Wall Panel Display
3D LUT & PQ, HLG, SLog3 HDR Support
Ember+ Protocol, Optional SFP I/O Module
Vectorscope, Waveform, CC, Timecode

The S-55P 55" Full HD Studio Wall Monitor with Ember+ Protocol from TVLogic is a Full HD Studio Wall monitor with a high contrast ratio and wide viewing angle. It supports various video input formats, including 3G/HD-SDI, HDMI, and DVI. The SFP module interface can be utilized for additional optional functionality. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG, and SLog3.

In the Box

---------------------------------------------------------------------------

TVLogic S-55P 55" Full HD Studio Wall Monitor with Ember+ Protocol
Stand
Carry Case
Limited 1-Year Manufacturer Warranty

Video I/O: 2x BNC (3G-SDI) Input 1x HDMI Input 1x DVI-I Input 2x BNC (3G-SDI) Loop Output
Display Size: 55.00" / 139.7 cm
Resolution: 1920 x 1080
Touchscreen: No
Video Format: SDI DCI 2K: 24/23.98 DCI 2K PsF: 24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI 1080p: 60/50/30/25/24 1080i 720p 576p 576i 480p 480i
Wifi: No
Screen Area: 47.6 x 26.8" / 1209 x 680 mm
Panel Type: LCD
Aspect Ratio: 16:9
Viewing Angle: Horizontal: 178° Vertical: 178°
Maximum Brightness: 450 nits / cd/m2
Contrast Ratio: 4000:1
Dot Pitch: 0.53 x 0.53 mm
Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
Image Controls: Blue Only, Focus Assist, Frame Luminance Monitor, Screen Markers, Vectorscope, Waveform
Embedded Audio: SDI HDMI
Audio I/O: 1x 1/8" / 3.5 mm Input
Built-In Speaker: 1
Other I/O: 1x RJ45 (GPI) 1x USB-A 2.0
Media/Memory Card Slot: No
PC Resolutions: HDMI, DVI: 1600 x 1200 HDMI, DVI: 1024 x 768 HDMI, DVI: 800 x 600 HDMI, DVI: 720 x 400
HDR Compatibility: Yes
Pixels Per Inch (ppi): 40 ppi
Video Standard Compliance: SMPTE 125M/260M/274M/296M/372M/425M ITU -R BT.656
